BM28N0.6-6DS/2-0.35V(53)

Description
CONN RCPT 0.35MM SMD 6POS+2PWR
CategoryThe connector
File Size474KB,8 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric View All

BM28N0.6-6DS/2-0.35V(53) Overview

CONN RCPT 0.35MM SMD 6POS+2PWR

BM28N0.6-6DS/2-0.35V(53) Parametric

Parameter NameAttribute value
Connector typeSocket with central contact
Number of pins6
spacing0.014"(0.35mm)
Number of rows2
Installation typesurface mount
characteristicFixed solder tail
Contact platinggold
Contact plating thickness1.97µin(0.050µm)
Joint stack height0.6mm
board height0.024"(0.61mm)
0.35mm pitch, 0.6mm height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A
BM28 Series
Conventional
article
(P=0.35mm,
20pos.)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BM28-10pos.
(+2pos. for
power)
Power lines are concentrated into 2 power contacts
instead of conventional multiple signal contacts.

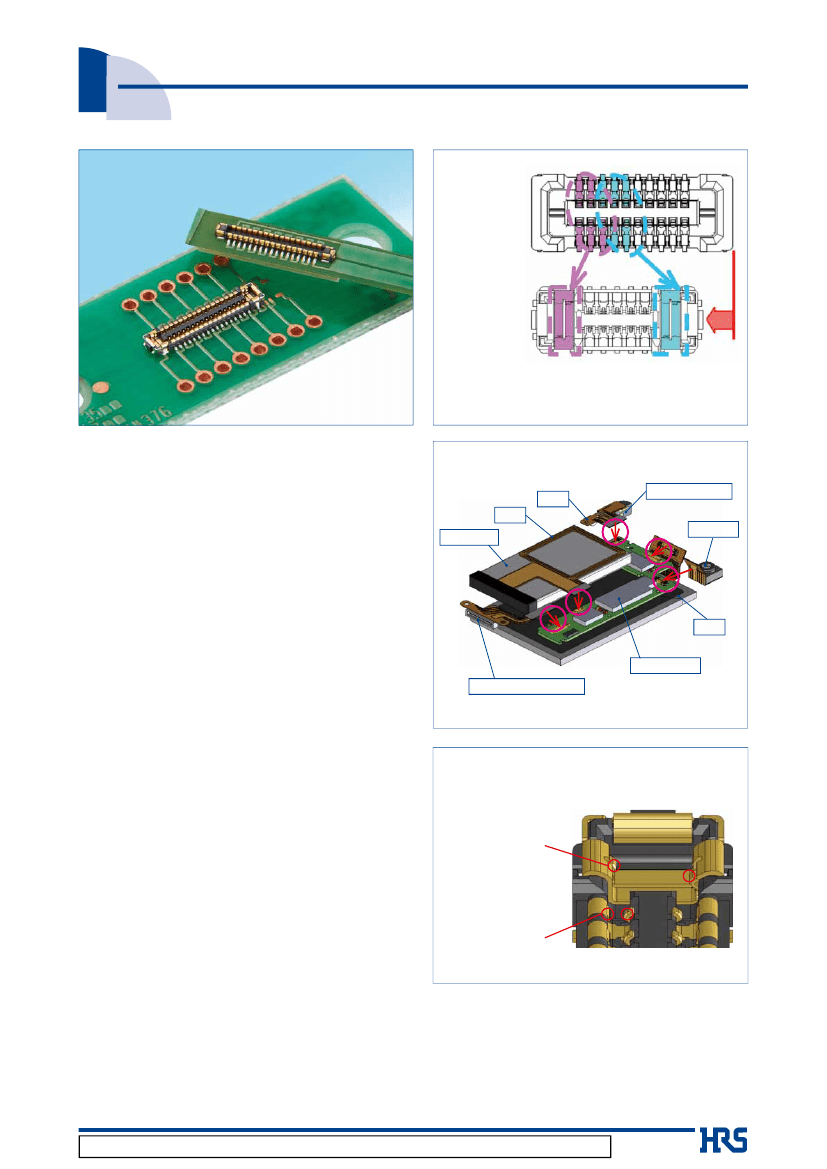

■Features
1. Rated current 5A
2 Power contacts up to 5A with 0.2A contacts for
signal, space-saving connector.
Usage specification
USB
NFC
Battery
Camera
Earphone jack
2. Highly reliable contact design
2-point contact design for both power & signal
ensures a highly reliable contact
3. Good mating operation
Guide ribs ensure 0.3mm self-alignment. Clear
tactile click prevents partial mating, increases mating
operability.
LCD
Main board
Interface connector
4. Supports USB3.1 Gen.2 (10Gbps) transmission
Signal connector supports USB3.1 Gen.2 transmission
signals.
■Usage
Devices designed to be thinner and smaller, such
as mobile phone, wearable device, tablet PC.
Contact design
■Environmental
Halogen-free
*
As defined by IEC 61249-2-21
Br : 900ppm max, Cl : 900ppm max
Br+Cl :1500ppm max
Power contact :
2-point contact
Signal contact :
2-point contact
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.9③
1
