FSV1060V — 10 A, 60 V Ultra-Low VF Schottky Rectifier
May 2015
FSV1060V
10 A, 60 V Ultra-Low VF Schottky Rectifier
Features
• Ultra-Low Forward Voltage Drop:
- 0.47 V Typical at 10 A, T
A
= 25°C
- 0.52 V Maximum at 10 A, T
A
= 25°C
• Low Thermal Resistance
• Very Low Profile: Typical Height of 1.1 mm
• RoHS Compliant
• Halogen Free
• Meets MSL 1 per JESD22-A111 Full-Body Solder
Immersion
Description

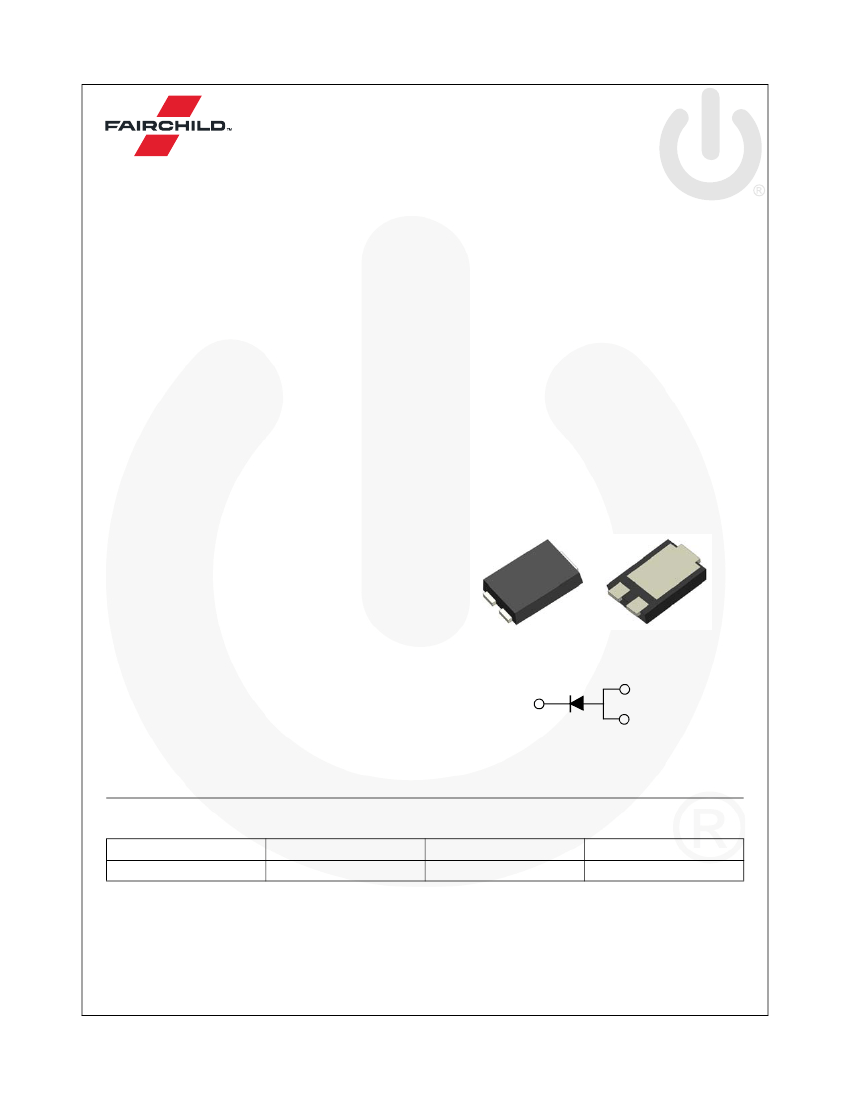

The FSV1060V schottky rectifier offers break-through
size and performance. The device is optimized for mobile
charger applications. It sinks only 13 mA reverse current
at high temperature and provides forward voltage drop of
0.2 V at 1 A operating current in a charger design.
All this capability is packed into a small, flat-lead, TO-277
package, optimized for space-constrained applications.
The FSV1060V supports a typical Z height of 1.1 mm. It is
RoHS compliant and halogen free. It is also qualified for a
