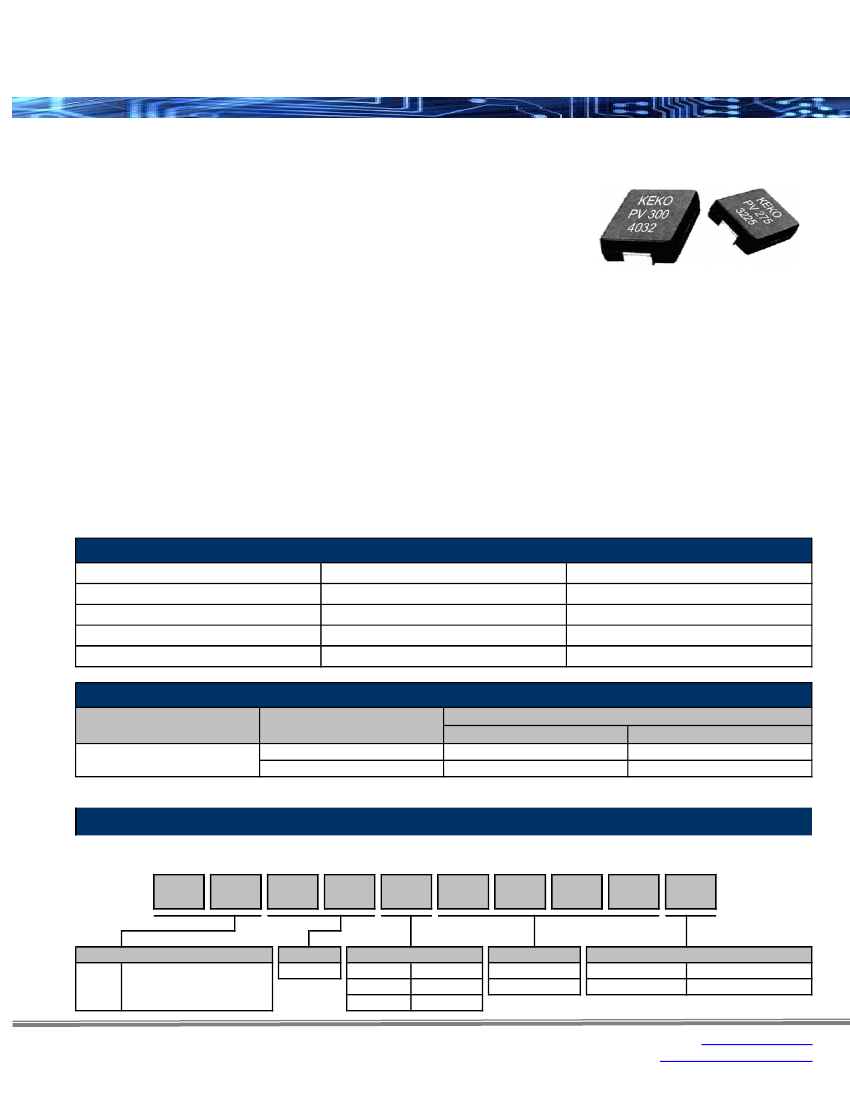

PV Series
Low & Medium Voltage Plastic Encapsulated SMD Varistor
Description:
Stackpole Electronics, Inc.
Resistive Product Solutions
The PV Series is a line of surface mount plastic-encapsulated varistors designed
to protect electronic equipment against high voltage surges in the low and
medium voltage region. They offer direct SMD equivalents to 5mm and 7mm
leaded disc varistors. The thermoplastic encapsulation is non-flammable
according to the standard defined by UL94V-0. Terminations are tinned copper
sheet.
PV varistors are designed exclusively for surface mounting and are available in
two model sizes. These transient voltage suppressors cover operating voltages
(Vrms) from 11V to 300V and feature maximum surge currents from 100A to
1,200A.
Features:
•
•
•
•
•
•
•
•
•
AC operating voltage (Vrms) from 11V to 300V
DC operating voltage (Vdc) from 14V to 385V
Insensitive to water cleaning procedures and to humidity according to the climate category
55/125/56
+85ºC continuous operating temperature
Non-flammable thermoplastic encapsulation case according to standard UL94V-0
2 model sizes available: 3225 and 4032
Dimensional and weight savings on board
Easily solderable tinned copper terminations
UL, CAC, CEDD approved
General Technical Data
Climatic Category
Operating Temperature
Storage Temperature Range
Threshold Voltage Temperature Coefficient
Response Time
55 / 125 / 56
-40ºC to +85ºC
-40ºC to +125ºC
≤0.05%
/ ºC
< 5 nS
In accordance with IEC 60068-1
In accordance with CECC 42 000
Standard Packaging Options / Quantities
Series
PV
Voltage Range (Vrms)
11 - 150
175 - 300
Chip Size
3225
1,500
1,000
4032
1,000
1,000
How to Order
1
2
3
4
5
6
7
8
9
10
P
V
4
0
K
3
2
2
5
T
PV
Product Series
Low & Medium Voltage
Plastic Encapsulated
SMD Varistor
Vrms
40
Tolerance
Code
Tol
K
10%
S
Special
Chip Size
3225
4032
Code
T
Packaging
Description
Tape and Reel
Rev Date: 08/15/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
PV Series
Low & Medium Voltage Plastic Encapsulated SMD Varistor
Stackpole Electronics, Inc.
Resistive Product Solutions

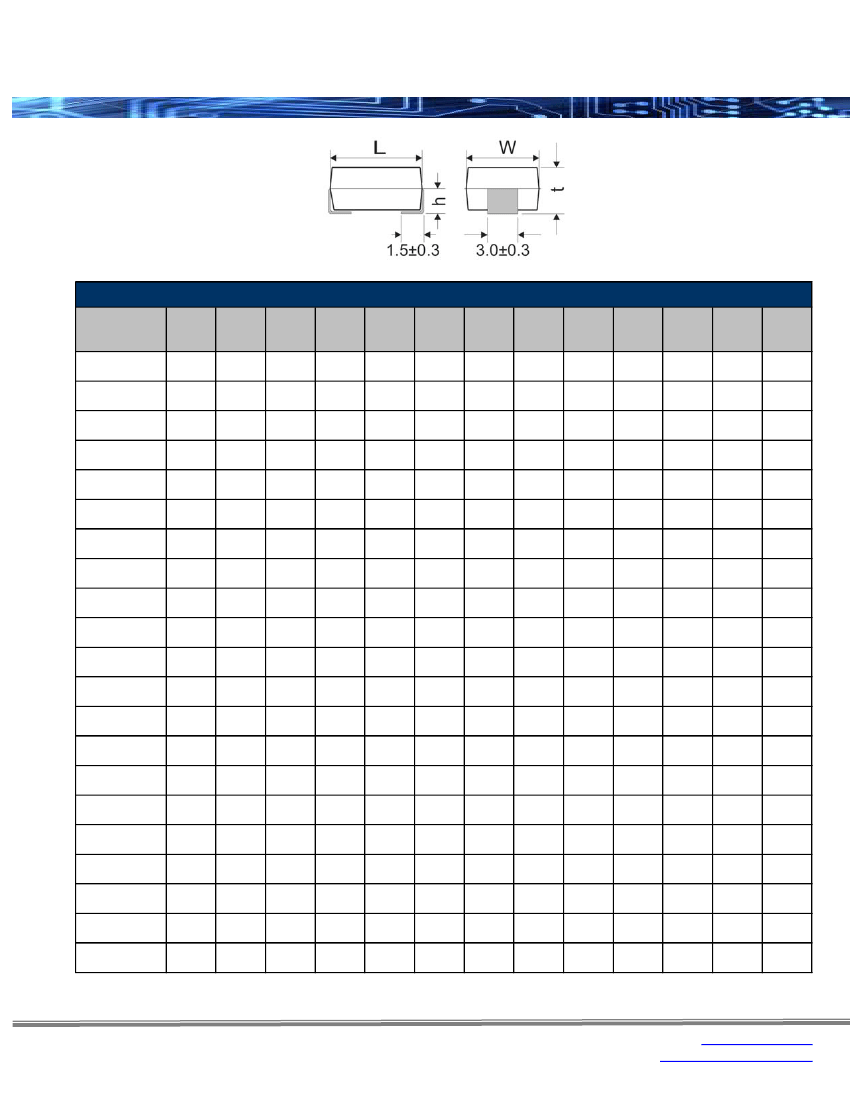

Device Ratings and Dimensions
Part Number
PV 11 K 3225
PV 11 K 4032
PV 14 K 3225
PV 14 K 4032
PV 17 K 3225
PV 17 K 4032
PV 20 K 3225
PV 20 K 4032
PV 25 K 3225
PV 25 K 4032
PV 30 K 3225
PV 30 K 4032
PV 35 K 3225
PV 35 K 4032
PV 40 K 3225
PV 40 K 4032
PV 50 K 3225
PV 50 K 4032
PV 60 K 3225
PV 60 K 4032
PV 75 K 3225
PV 75 K 4032
PV 95 K 3225
PV 95 K 4032
PV 115 K 3225
PV 115 K 4032
PV 130 K 3225
PV 130 K 4032
PV 140 K 3225
PV 140 K 4032
PV 150 K 3225
PV 150 K 4032
PV 175 K 3225
PV 175 K 4032
PV 230 K 3225
PV 230 K 4032
PV 250 K 3225
PV 250 K 4032
PV 275 K 3225
PV 275 K 4032
PV 300 K 3225
PV 300 K 4032
V
RMS
(volts)
11
11
14
14
17
17
20
20
25
25
30
30
35
35
40
40
50
50
60
60
75
75
95
95
115
115
130
130
140
140
150
150
175
175
230
230
250
250
275
275
300
300
V
DC
(volts)
14
14
18
18
22
22
26
26
31
31
38
38
45
45
56
56
65
65
85
85
100
100
125
125
150
150
170
170
180
180
200
200
225
225
300
300
320
320
350
350
385
385
V
n
@ 1mA
(volts)
18
18
22
22
27
27
33
33
39
39
47
47
56
56
68
68
82
82
100
100
120
120
150
150
180
180
205
205
220
220
240
240
270
270
360
360
390
390
430
430
470
470
V
C
(volts)
36
36
43
43
53
53
65
65
77
77
93
93
110
110
135
135
135
135
165
165
200
200
250
250
300
300
340
340
360
360
395
395
455
455
595
595
650
650
710
710
775
775
I
C
(amps)
W
MAX
(joules)
0.6
1.1
0.7
1.3
0.9
1.6
1.1
2.0
1.2
2.4
1.5
2.8
1.8
3.4
2.2
4.1
2.5
6.5
3.0
7.0
4.0
9.0
6.0
11.0
6.5
13.0
7.0
15.0
7.5
18.0
9.0
18.5
9.5
21.0
10.0
23.0
11.0
25.0
13.0
29.0
15.0
30.0
P
MAX
(watts)
0.01
0.02
0.01
0.02
0.01
0.02
0.01
0.02
0.01
0.02
0.01
0.02
0.01
0.02
0.01
0.02
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
0.10
0.25
I
max
8/20
μs
(amps)
100
250
100
250
100
250
100
250
100
250
100
250
100
250
100
250
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
400
1,200
C
TYP
@ 1kHz
(pF)
1,600
3,100
1,300
2,500
1,050
1,900
750
1,500
660
1,260
580
1,050
460
850
400
720
390
820
330
680
270
550
220
440
180
360
160
320
150
300
140
280
120
250
95
190
80
180
75
160
70
150
h
± 0.3
(mm)
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
1.70
2.30
2.30
2.30
2.30
2.30
2.30
2.30
2.30
2.30
2.30
2.30
L
± 0.5
(mm)
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
8.0
10.0
W
± 0.4
(mm)
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
6.3
8.0
t
± 0.3
(mm)
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
3.4
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
5.0
10.0
Rev Date: 08/15/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
