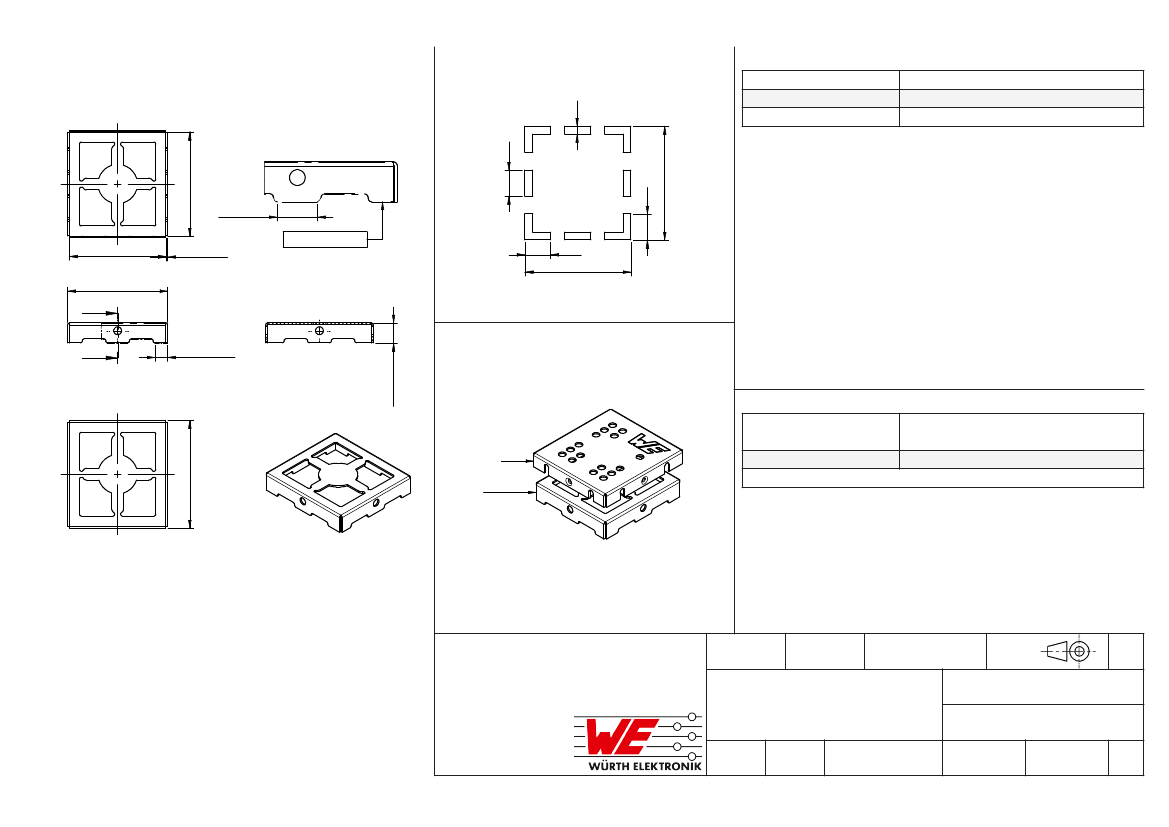

Dimensions: [mm]
Recommended Land Pattern: [mm]
1,0
Material:
Base Material
Plating
Version
Steel
Tin
SMD Frame
13,26 ±0,1
3,3
detail B
2,54
u
0,5
12,3 ±0,1
12,7 ±0,1
0,2
u
0,05
r
0,15 circular
3,3
13,5
A
B
A
1,62
u
0.0,5
sectional drawing A-A
3,3
14,46
Scale - 2:1
Assembly with SMD Frame:
2,54 ±0,1
General Information:
Storage Temperature (in original
packaging)
-20 °C up to +60 °C
-40 °C up to +125 °C
13,66 ±0,1
Top Cover
Frame
Operating Temperature
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
Scale - 2:1
Scale - 2:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
3610213126S
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.000
Valid
2017-06-21
eiSos
1/2
