0395383008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0395383008

0395383008: DescriptionTERM BLOCK HDR 8POS VERT 5.08MM; CategoryThe connector; File Size286KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0395383008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0395383008	-	-	View	Buy Now

0395383008 Overview

TERM BLOCK HDR 8POS VERT 5.08MM

0395383008 Parametric

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	8
Number of pins per level	4
Number of levels	2
spacing	0.200"（5.08mm）
Needle seat direction	Vertical
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	Interlocking (side)
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	brass
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	0.138"（3.50mm）
Insulation height	0.870"（22.10mm）

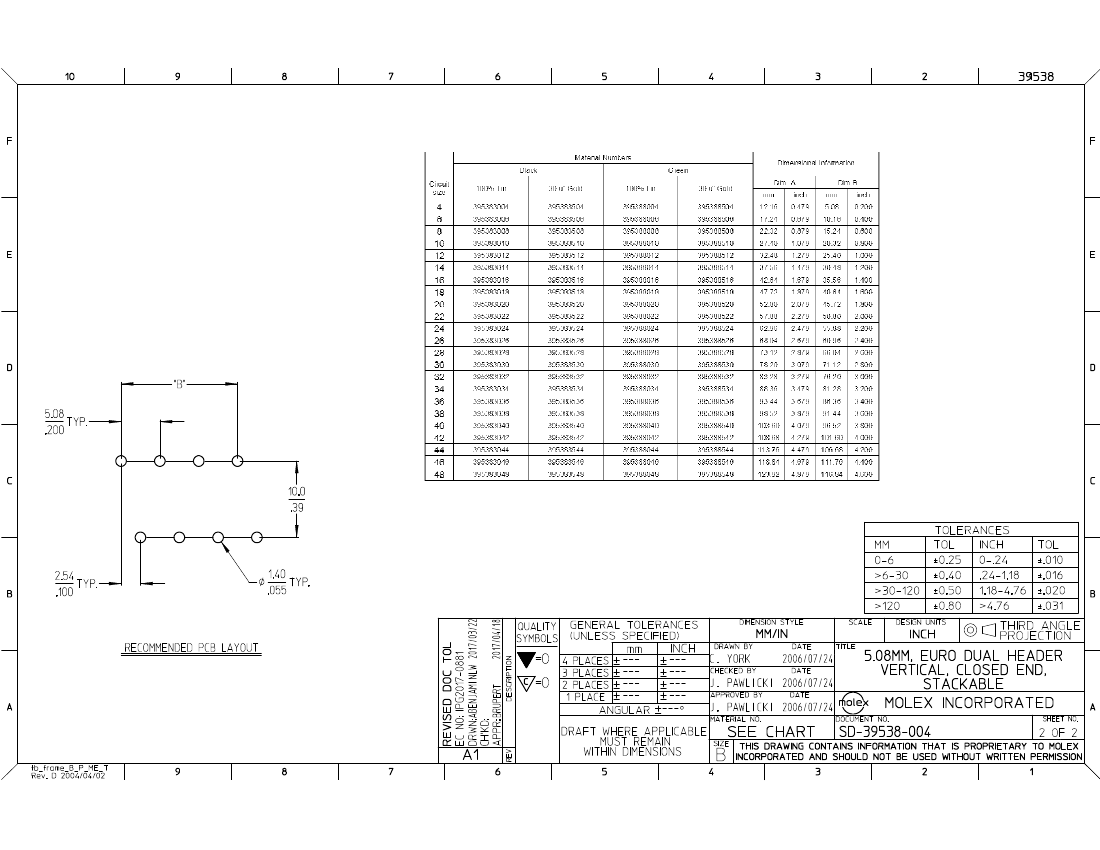

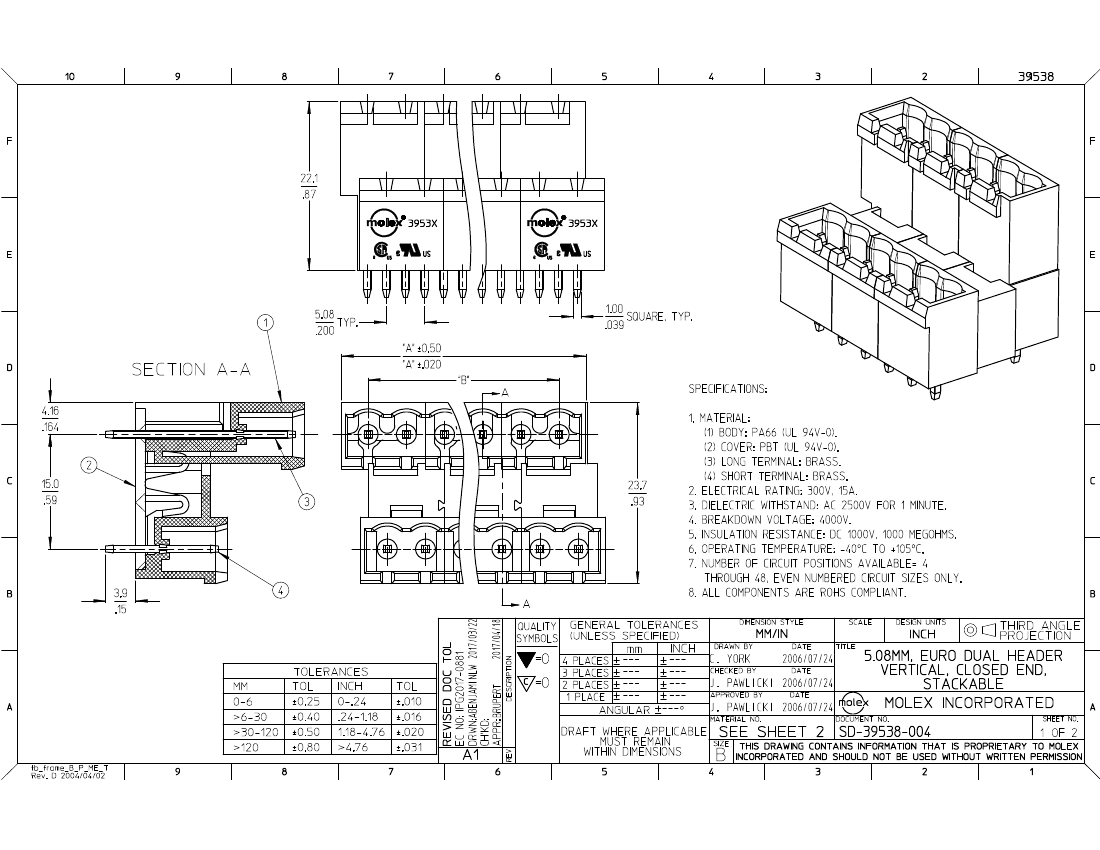

Preview

Download Datasheet

View All

0395383008 Related Products

	0395383008	0395383036	0395383004	0395383024	0395383048	0395383006	0395388034	0395383010	0395383012
Description	TERM BLOCK HDR 8POS VERT 5.08MM	TERM BLOCK HDR 36POS VERT 5.08MM	TERM BLOCK HDR 4POS VERT 5.08MM	TERM BLOCK HDR 24POS VERT 5.08MM	TERM BLOCK HDR 48POS VERT 5.08MM	TERM BLOCK HDR 6POS VERT 5.08MM	TERM BLOCK HDR 34POS VERT 5.08MM	TERM BLOCK HDR 10POS VERT 5.08MM	TERM BLOCK HDR 12POS VERT 5.08MM
type	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)
Number of pins	8	36	4	24	48	6	34	10	12
Number of pins per level	4	18	2	12	24	3	17	5	6
Number of levels	2	2	2	2	2	2	2	2	2
spacing	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）
Needle seat direction	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Terminal type	welding	welding	welding	welding	welding	welding	welding	welding	welding
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Current - UL	15A	15A	15A	15A	15A	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V	300V	300V	300V	300V	300V
color	black	black	black	black	black	black	green	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin	tin	tin	tin	tin	tin
characteristic	Interlocking (side)	Interlocking (side)	Interlocking (side)	Interlocking (side)	Interlocking (side)	Interlocking (side)	Interlocking (side)	Interlocking (side)	Interlocking (side)
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact material	brass	brass	brass	brass	brass	brass	brass	brass	brass
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact tail length	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）
Insulation height	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）	0.870"（22.10mm）
