B64290A0618X097 datasheet, PDF

Datasheet> All Categories > Passive components> B64290A0618X097

B64290A0618X097: DescriptionFERRITE CORE; CategoryPassive components; File Size98KB，5 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B64290A0618X097 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B64290A0618X097	-	-	View	Buy Now

B64290A0618X097 Overview

FERRITE CORE

B64290A0618X097 Parametric

Parameter Name	Attribute value
Kernel type	Magnetic ring
Tolerance	-
gap	No notch
Material	-
surface	Uncoated
Supplier device packaging	-
high	-
length	-
width	-
diameter	-

Preview

Download Datasheet

View All

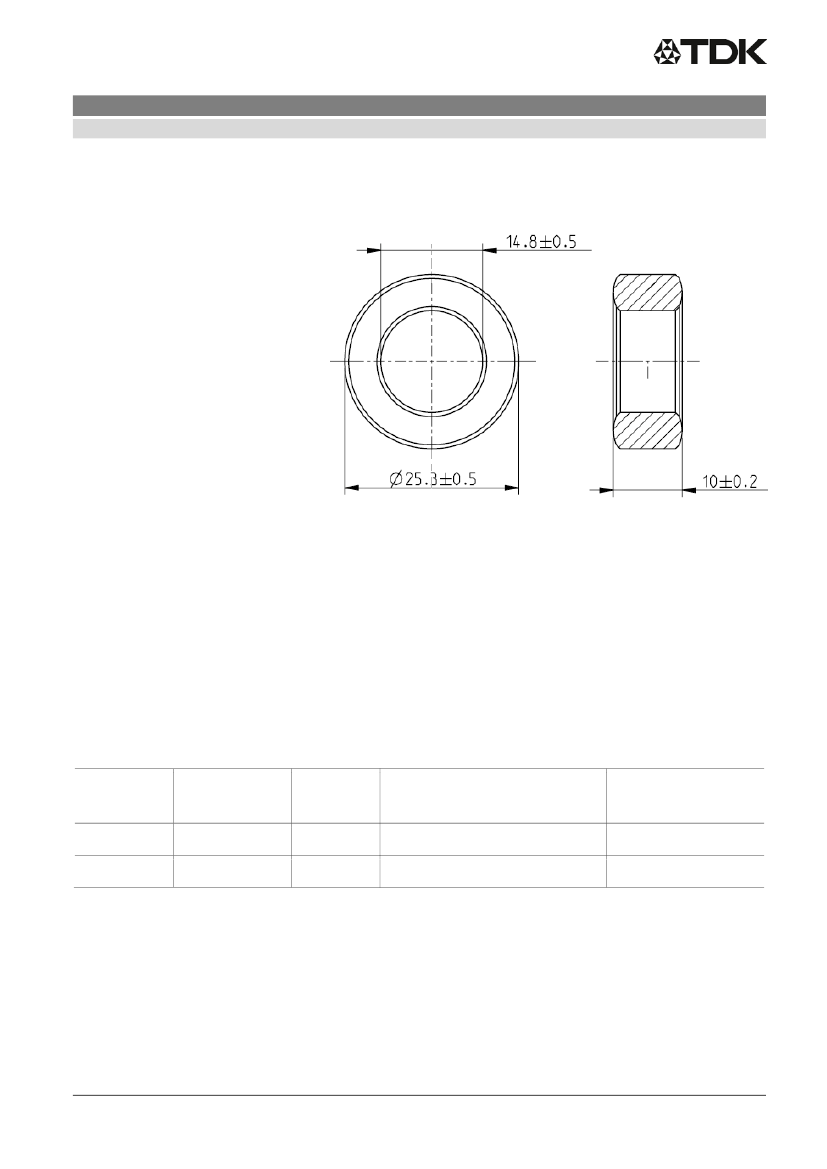

R25.3/14.8/10

Ferrite core

Series/Type:

Ordering code:

Date:

Version:

B64290

B64290A0618X097

2017-09-20

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then

change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

R25.3/14.8/10

(header 1 + top left bar):

Identification/Classification 2

Ferrite core

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

B64290A0618X097

Series/Type: (bottom right header bar)

B64290

Preliminary data (optional):

Department:

SMP MAG D

Date:

2017-09-20

Version:



EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

R25.3/14.8/10

Ferrite core

B64290A0618X097

B64290

Cautions and warnings

Mechanical stress and mounting

Ferrite cores have to meet mechanical requirements during assembling and for a growing number of

applications. Since ferrites are ceramic materials one has to be aware of the special behavior under

mechanical load.

As valid for any ceramic material, ferrite cores are brittle and sensitive to any shock, fast temperature

changing or tensile load. Especially high cooling rates under ultrasonic cleaning and high static or

cyclic loads can cause cracks or failure of the ferrite cores.

For detailed information see data book, chapter

“General - Definitions, 8.1”.

Effects of core combination on AL value

Stresses in the core affect not only the mechanical but also the magnetic properties. It is apparent

that the initial permeability is dependent on the stress state of the core. The higher the stresses are in

the core, the lower is the value for the initial permeability. Thus the embedding medium should have

the greatest possible elasticity.

For detailed information see data book, chapter

“General - Definitions, 8.1”.

Heating up

Ferrites can run hot during operation at higher flux densities and higher frequencies.

NiZn-materials

The magnetic properties of NiZn-materials can change irreversible in high magnetic fields.

Ferrite Accessories

EPCOS ferrite accessories have been designed and evaluated only in combination with EPCOS

ferrite cores. EPCOS explicitly points out that EPCOS ferrite accessories or EPCOS ferrite cores may

not be compatible with those of other manufacturers. Any such combination requires prior testing by

the customer and will be at the customer‘s own risk.

EPCOS assumes no warranty or reliability for the combination of EPCOS ferrite accessories with

cores and other accessories from any other manufacturer.

Processing remarks

The start of the winding process should be soft. Else the flanges may be destroyed.

– Too strong winding forces may blast the flanges or squeeze the tube that the cores can not be

mounted any more.

– Too long soldering time at high temperature (>300 °C) may effect coplanarity or pin arrangement.

– Not following the processing notes for soldering of the J-leg terminals may cause solderability

problems at the transformer because of pollution with Sn oxyde of the tin bath or burned

insulation of the wire. For detailed information see chapter

“Processing notes”,

section 2.2.

– The dimensions of the hole arrangement have fixed values and should be understood as a

recommendation for drilling the printed circuit board. For dimensioning the pins, the group of

holes can only be seen under certain conditions, as they fit into the given hole arrangement. To

avoid problems when mounting the transformer, the manufacturing tolerances for positioning the

customers’ drilling process must be considered by increasing the hole diameter.

SMP MAG D

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 5

2017-09-20

Important notes

The following applies to all products named in this publication:

1. Some parts of this publication contain

statements about the suitability of our products for

certain areas of application.

These statements are based on our knowledge of typical

requirements that are often placed on our products in the areas of application concerned. We

nevertheless expressly point out

that such statements cannot be regarded as binding

statements about the suitability of our products for a particular customer application.

As a

rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them

than the customers themselves. For these reasons, it is always ultimately incumbent on the

customer to check and decide whether an EPCOS product with the properties described in the

product specification is suitable for use in a particular customer application.

2. We also point out that

in individual cases, a malfunction of electronic components or failure

before the end of their usual service life cannot be completely ruled out in the current state

of the art, even if they are operated as specified.

In customer applications requiring a very high

level of operational safety and especially in customer applications in which the malfunction or

failure of an electronic component could endanger human life or health (e.g. in accident

prevention or life-saving systems), it must therefore be ensured by means of suitable design of the

customer application or other action taken by the customer (e.g. installation of protective circuitry

or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or

failure of an electronic component.

The warnings, cautions and product-specific notes must be observed.

4. In order to satisfy certain technical requirements,

some of the products described in this

publication may contain substances subject to restrictions in certain jurisdictions (e.g.

because they are classed as hazardous).

Useful information on this will be found in our Material

Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed

questions, please contact our sales offices.

5. We constantly strive to improve our products. Consequently,

the products described in this

publication may change from time to time.

The same is true of the corresponding product

specifications. Please check therefore to what extent product descriptions and specifications

contained in this publication are still applicable before or when you place an order.

We also

reserve the right to discontinue production and delivery of products.

Consequently,

we cannot guarantee that all products named in this publication will always be available.

The aforementioned does not apply in the case of individual agreements deviating from the

foregoing for customer-specific products.

6. Unless otherwise agreed in individual contracts,

all orders are subject to the current version of

the “General Terms of Delivery for Products and Services in the Electrical Industry”

published by the German Electrical and Electronics Industry Association (ZVEI).

7. The trade names EPCOS, CeraCharge, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CTVS,

DeltaCap, DigiSiMic, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell, MKD, MKK,

MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PowerHap, PQSine, PQvar,

SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, ThermoFuse,

WindCap are

trademarks registered or pending

in Europe and in other countries. Further

information will be found on the Internet at www.epcos.com/trademarks.

Page 5 of 5
