1413112

Description
CONN BASE BOTTOM ENTRY SZD7
CategoryThe connector
File Size58KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

1413112 Online Shopping

Suppliers Part Number Price MOQ In stock
1413112 - - View Buy Now

1413112 Overview

CONN BASE BOTTOM ENTRY SZD7

1413112 Parametric

Parameter NameAttribute value
Connector typeBase - Panel Mount
stylebottom entry
sizeD7
lock positionBase bottom locking clip (1)
Thread size-
size/dimensions1.102" long x 1.496" wide x 0.945" high (28.00mm x 38.00mm x 24.00mm)
Shell colorblack
characteristic-
Intrusion protectionIP54 - dust and water resistant
Shell materialPolyamide (PA), nylon
Shell surface-
Operating temperature-40°C ~ 125°C
https://www.phoenixcontact.com/us/products/1413112

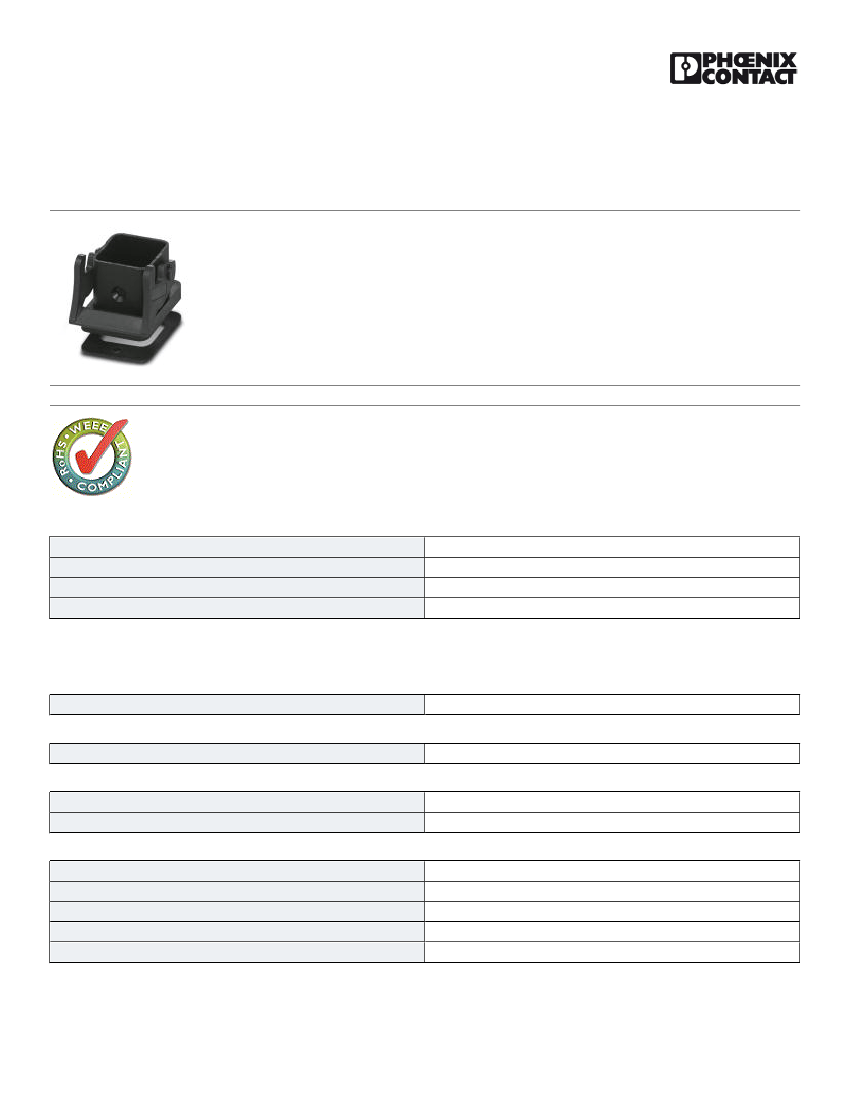

Housing - HC-D 7-AML-24/GR/PA BK - 1413112
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
HEAVYCON D7 panel mounting base, with single locking latch, height: 24 mm, straight, PA, black
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
20.0 g
85472000
Germany
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
Dimensions
Height
24 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP54 / IP65 with sealing screw
-40 °C ... 125 °C
General
Note
Type
Degree of protection
Locking type
Pg screw connection
For contact inserts HC-D7, D8, A3, A4, B5, HS2-D7
D7
IP54 / IP65 with sealing screw
With single locking latch
none
08/10/2016   Page 1 / 3
