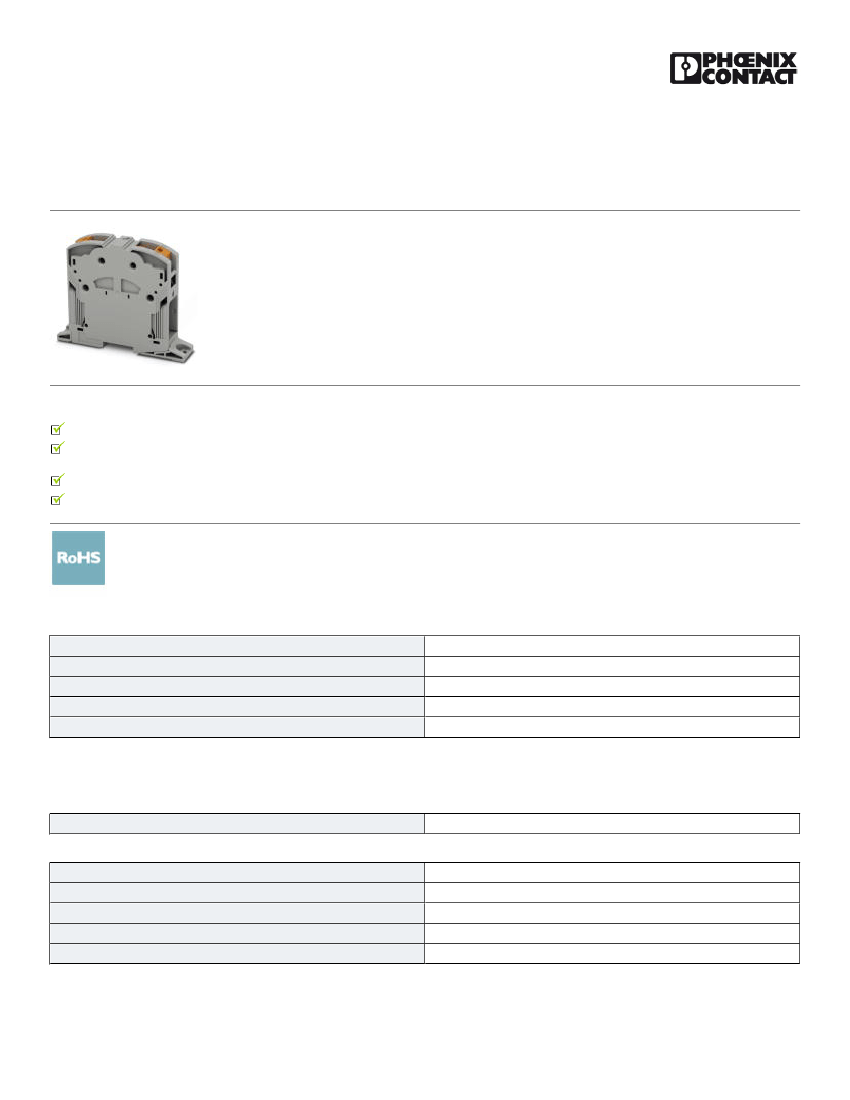

High-current terminal block - PTPOWER 150 P-F - 3215040
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
High-current terminal block, Connection method: Power-Turn connection, Number of positions: 1, Cross section:
50 mm² - 150 mm², AWG: 1/0 - 300 kcmil, Width: 31 mm, Height: 108.3 mm, Color: gray, Mounting type: ct screw
connection
Why buy this product
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
3 STK
366.670 g
85369010
Poland
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
1
1
2
1
150 mm²
09/08/2016 Page 1 / 15
https://www.phoenixcontact.com/us/products/3215040
High-current terminal block - PTPOWER 150 P-F - 3215040
Technical data
General
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
gray
PA
V0
8 kV
3
III
I
309 A (with 150 mm² conductor cross section)
309 A
1500 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Height
Hole diameter
Drill hole spacing
Pitch
31 mm
150 mm
108.3 mm
6.5 mm
137.2 mm
31 mm
Connection data
Connection method
Power-Turn connection
09/08/2016 Page 2 / 15
https://www.phoenixcontact.com/us/products/3215040
High-current terminal block - PTPOWER 150 P-F - 3215040
Technical data
Connection data
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge solid min.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge stranded min.
Cross section with insertion bridge, stranded max.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve min.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve max.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve min.
IEC 60947-7-1
50 mm²
150 mm²
1/0
300 kcmil
50 mm²
150 mm²
1/0
300 kcmil
50 mm²
95 mm²
50 mm²
95 mm²
50 mm²
150 mm²
50 mm²
150 mm²
50 mm²
95 mm²
50 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve
95 mm²
max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Stripping length
Internal cylindrical gage
150 mm²
150 mm²
40 mm
B14
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
09/08/2016 Page 3 / 15
https://www.phoenixcontact.com/us/products/3215040
High-current terminal block - PTPOWER 150 P-F - 3215040
Circuit diagram
Dimensional drawing
6,5
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
Approvals
Approvals
Approvals
LR / BV / UL Recognized / cUL Recognized / CSA / DNV GL / cULus Recognized
Ex Approvals
Approval details
LR http://www.lr.org/en 15/20030
BV http://www.veristar.com/wps/portal/!ut/p/_s.7_0_A/7_0_RIM 40933/A1 BV
137,3
09/08/2016 Page 4 / 15
https://www.phoenixcontact.com/us/products/3215040
High-current terminal block - PTPOWER 150 P-F - 3215040
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
2-300
270 A
1000 V
C
2-300
270 A
1000 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
C
2-300
270 A
1000 V
CSA
http://www.csagroup.org/us/en/services/testing-and-certification/certified-product-listing 13631
C
2-300
270 A
1000 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
DNV GL https://www.dnvgl.com/ TAE00000Z9
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Accessories
Accessories
Connector
09/08/2016 Page 5 / 15
