DATASHEET
Part No. M310220
Product: Wi-Fi/Bluetooth
Ceramic Antennas
Part No. M310220
Wi-Fi / ISM / BT / Zigbee Ceramic Antennas
2.4 GHz
Supports: Wi-Fi applications, Agriculture, Automotive, Bluetooth, Zigbee, WLAN, Smart Home, Healthcare, Digital Signage
Ethertronics’ series of Ceramic Isolated Magnetic Dipole™ (IMD) antennas
deliver on the key needs of device designers for higher functionality and
performance in smaller/thinner designs. These innovative antennas provide
compelling advantages for Bluetooth
®
enabled cell phones, media players
and other mobile devices.
Ceramic Wi-Fi / Bluetooth
Antenna
2400 – 2485 MHz
Real-World Performance and Implementation
Ceramic antennas may look alike on the outside, but the important
difference is inside. Other antennas may contain simple PiFA or monopole
designs that interact with their surroundings, complicating layout
or changing performance with use position. Ethertronics’ antennas utilize
patented IMD technology to deliver a unique size and performance
combination.
Greater Flexibility
Ethertronics’ first-in-class IMD technology enables you to develop concept
designs that are more advanced and that deliver superior performance in
reception critical applications.
Electrical Specifications
Typical performance on 40 x 60 mm PCB
KEY BENEFITS
Stay-in-Tune
IMD antenna technology
provides superior RF field
containment, resulting in
less interaction with
surrounding components.
Quicker Time-to-Market
By optimizing antenna size,
performance and
emissions, customer and
regulatory specifications
are more easily met.
Reliability
Products are the latest
RoHS version compliant.
APPLICATIONS
•
•
•
•
Embedded
design
Cellular,
Headsets,
Tablets
Gateway,
Access
Point
Handheld
•
•
•
•
•
•
Telematics
Tracking
Healthcare
M2M,
Industrial
devices
Smart Grid
OBD-II
Frequency (MHz)
Peak Gain
Average Efficiency
VSWR Match
Feed Point Impedance
Polarization
Power Handling
2400 – 2485
1.7 dBi
67%
2.0:1 max
50 ohms unbalanced
Linear
0.5 Watt CW
Mechanical Specifications & Ordering Part Number
Ordering Part Number
Size (mm)
Mounting
Weight (grams)
Packaging
Demo Board
M310220
3.00 x 1.50 x 1.08
Surface mounted
0.1
Tape & Reel,
M310220 – 1,000 pieces per reel
M310220-01
5/10/2018
Proprietary
www.ethertronics.com
DATASHEET |
Part No. M310220
2.4 GHz Ethertronics’ Embedded Antenna Specifications
Ethertronics produces a wide variety of standard and custom antennas to meet user needs.

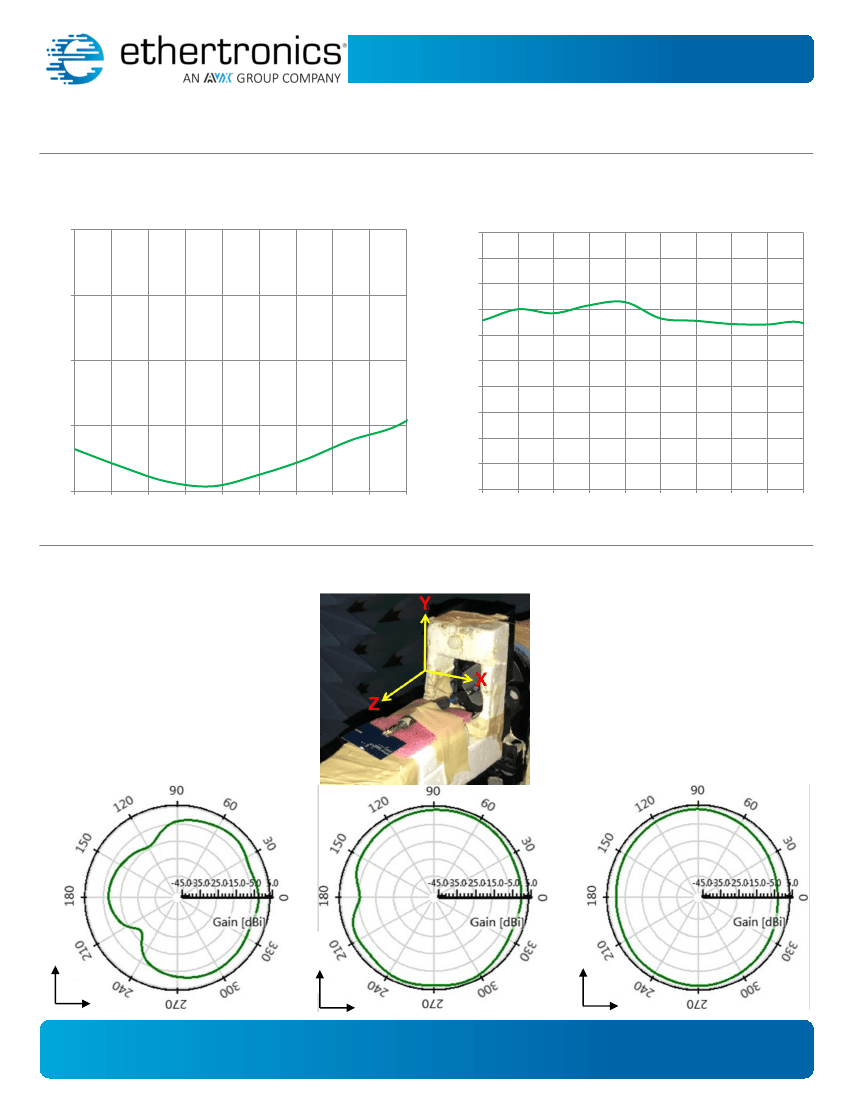

VSWR, Efficiency Plots
Typical performance on 40 x 60 mm PCB
VSWR
5
100
90
4
80
70
Efficiency (%)
Efficiency
60
50
40
30
VSWR
3
2
20
10
1
2400 2410 2420 2430 2440 2450 2460 2470 2480 2490
Frequency (MHz)
0
2400 2410 2420 2430 2440 2450 2460 2470 2480 2490
Frequency (MHz)
Antenna Radiation Patterns
Typical performance on 40 x 60 mm PCB
Measured @ 2440 MHz
X
Y
Y
Z
Z
X
© 2018 Ethertronics
tel +(1) 858.550.3820 | fax +(1) 858.550.3821
email: info@ethertronics.com
5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
DATASHEET |
Part No. M310220
2.4 GHz Ethertronics’ Embedded Antenna Specifications
Ethertronics produces a wide variety of standard and custom antennas to meet user needs.

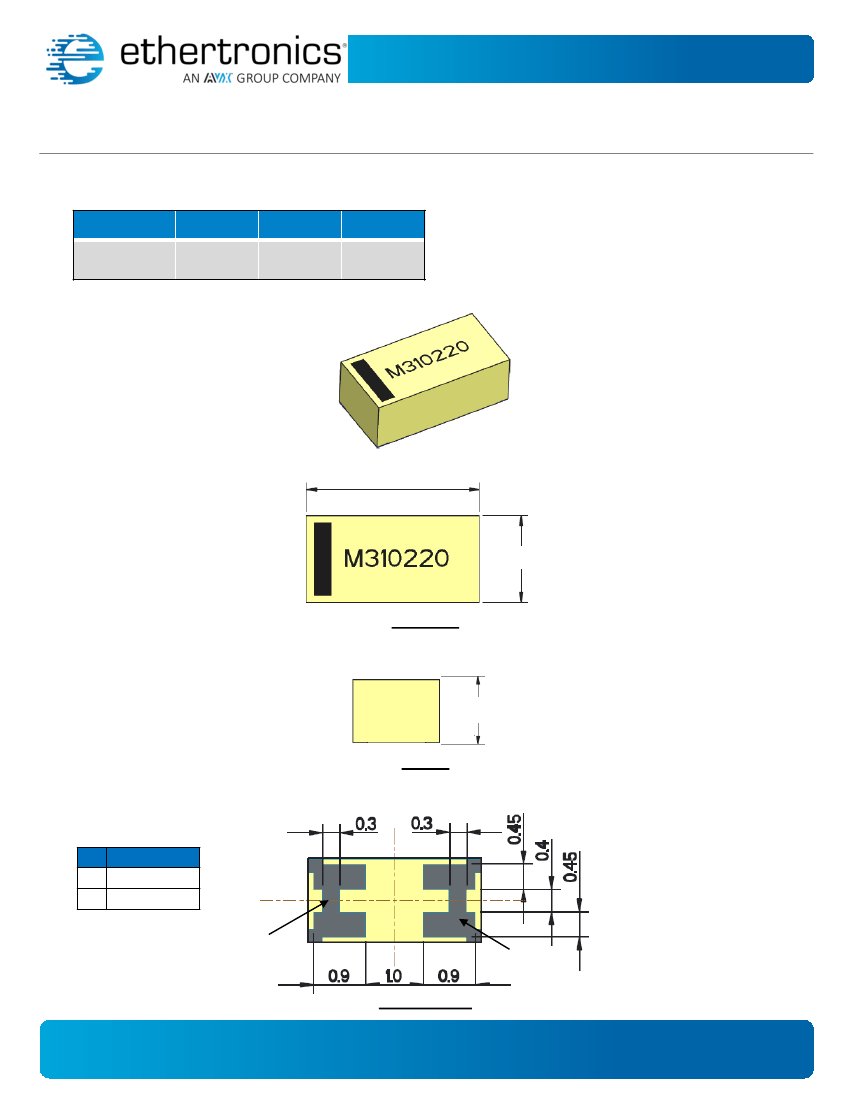

Antenna Dimensions
Typical antenna dimensions (mm)
Part Number
A (mm)
B (mm)
C (mm)
M310220
3.00 ± 0.2
1.50 ± 0.2
1.08 ± 0.1
A
B
Top View
C
Height
Pin Description
1 Feed
2
Ground
Pin #1
Bottom View
© 2018 Ethertronics
Pin #2
tel +(1) 858.550.3820 | fax +(1) 858.550.3821
email: info@ethertronics.com
5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
DATASHEET |
Part No. M310220
2.4 GHz Ethertronics’ Embedded Antenna Specifications
Ethertronics produces a wide variety of standard and custom antennas to meet user needs.

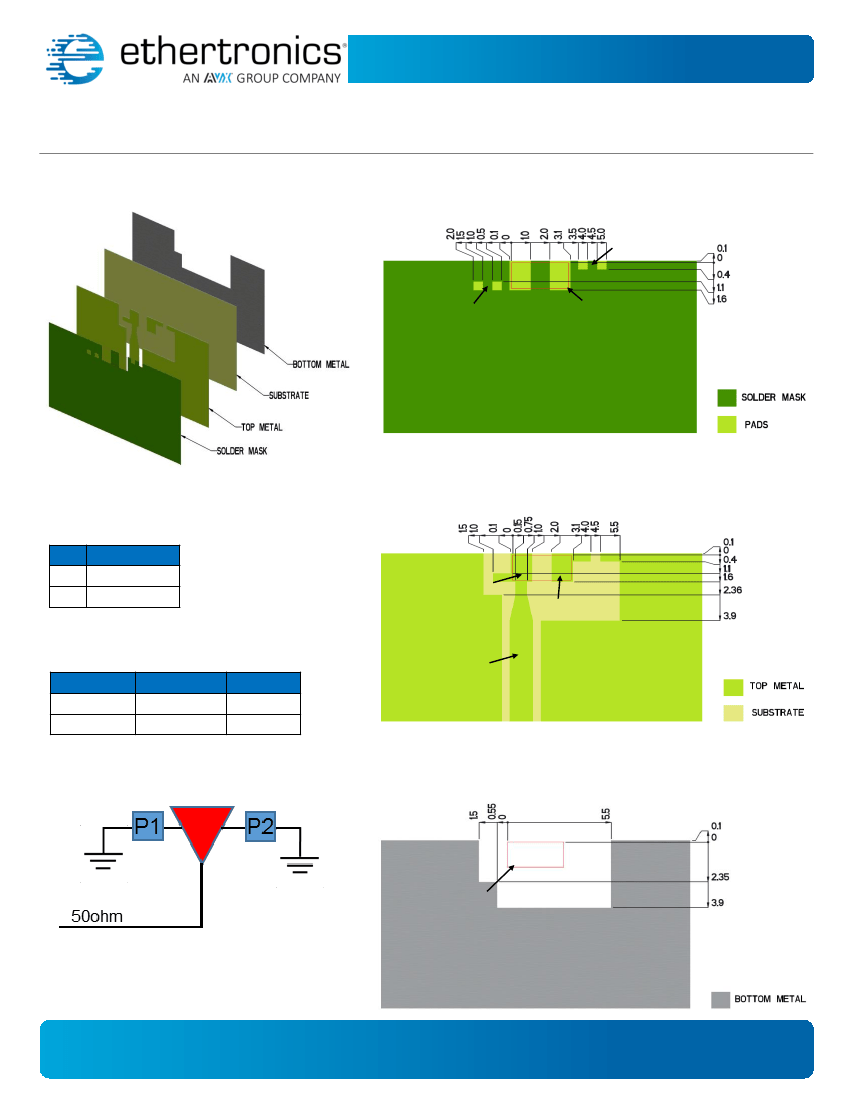

Antenna Layout
Typical layout dimensions (mm)
P2
P1
Antenna
Outline
Pin Descriptions
Pin# Description
1 Feed
2 Ground
Pin #1
Pin #2
Matching Network (Demo Board)
Component
Value
Tolerance
4.7pF
±0.05pF
P1
2.7pF
±0.05pF
P2
*Actual matching values depend on
customer design
50Ω
Transmission
line
Antenna
Outline
© 2018 Ethertronics
tel +(1) 858.550.3820 | fax +(1) 858.550.3821
email: info@ethertronics.com
5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
DATASHEET |
Part No. M310220
2.4 GHz Ethertronics’ Embedded Antenna Specifications
Ethertronics produces a wide variety of standard and custom antennas to meet user needs.

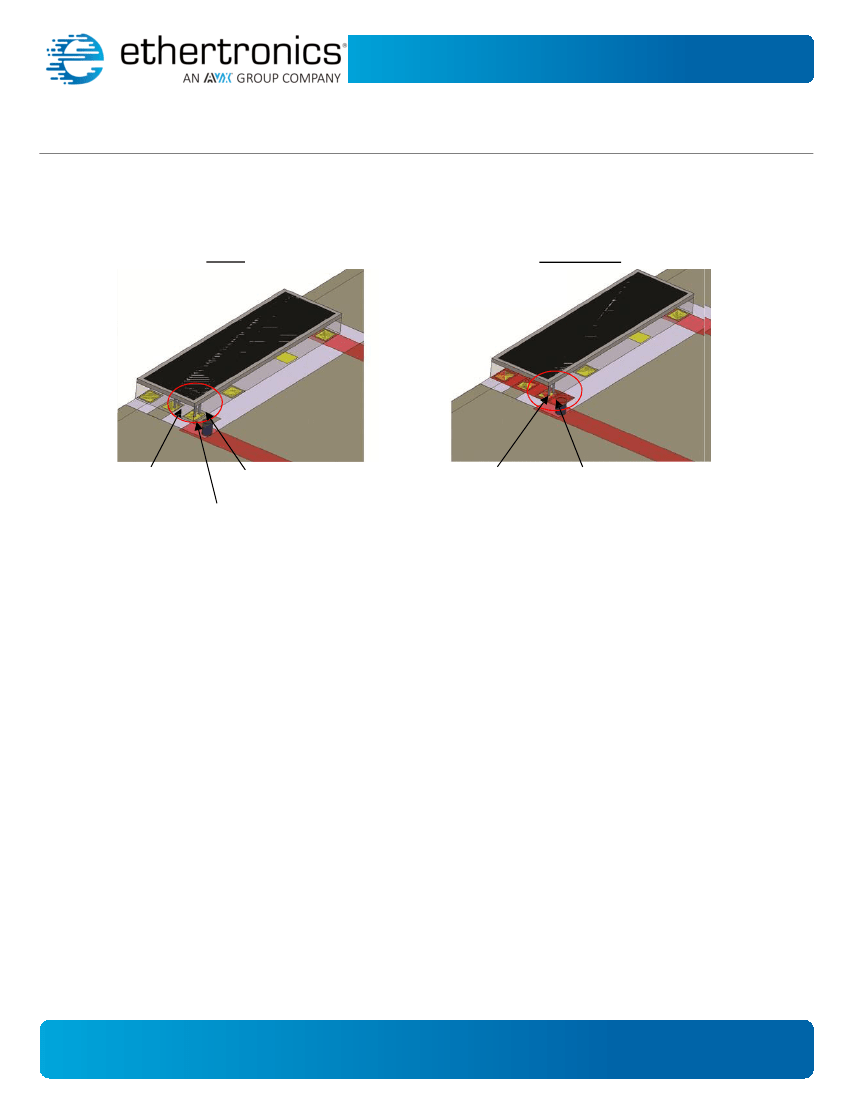

Antenna Layout Tips (General reference)
Important, layout guidelines for correct operation of Ethertronics Ceramic Antennas. Please read guidelines below
before laying out the antenna in a device. Figure 1 shows the typical antenna layout. Figure 2 shows Ethertronics’
antenna layout.
Other
Ethertronics
Shorting pin
Feed pin
Shorting pin and feed pin are shared in
Ethertronics ceramic antennas
Figure 2
Ethertronics Antenna Layout
(Required)
Antenna tuning loop:
Figure 1
Typical Antenna Layout
•
•
The antenna tuning loop is formed by the
PCB layout.
The feed pin and shorting pin are
combined because it requires very close
proximity to achieve more band- width.
© 2018 Ethertronics
tel +(1) 858.550.3820 | fax +(1) 858.550.3821
email: info@ethertronics.com
5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
