CRSH2-4M TR

Description
DIODE SCHOTTKY DO15
Categorysemiconductor    Discrete semiconductor
File Size341KB，3 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

CRSH2-4M TR Overview

DIODE SCHOTTKY DO15

CRSH2-4M TR Parametric

Parameter NameAttribute value
Diode typeSchottky
Voltage - DC Reverse (Vr) (Maximum)40V
Current - average rectification (Io)2A
Voltage at different If - Forward (Vf500mV @ 2A
speedFast recovery = < 500 ns, > 200mA (Io)
Current at different Vr - Reverse leakage current500µA @ 40V
Capacitance at different Vr, F170pF @ 4V，1MHz
Installation typeThrough hole
Package/casingDO-204AC, DO-15, axial
Supplier device packagingDO-15
Operating Temperature - Junction-65°C ~ 125°C

Preview

Download Datasheet

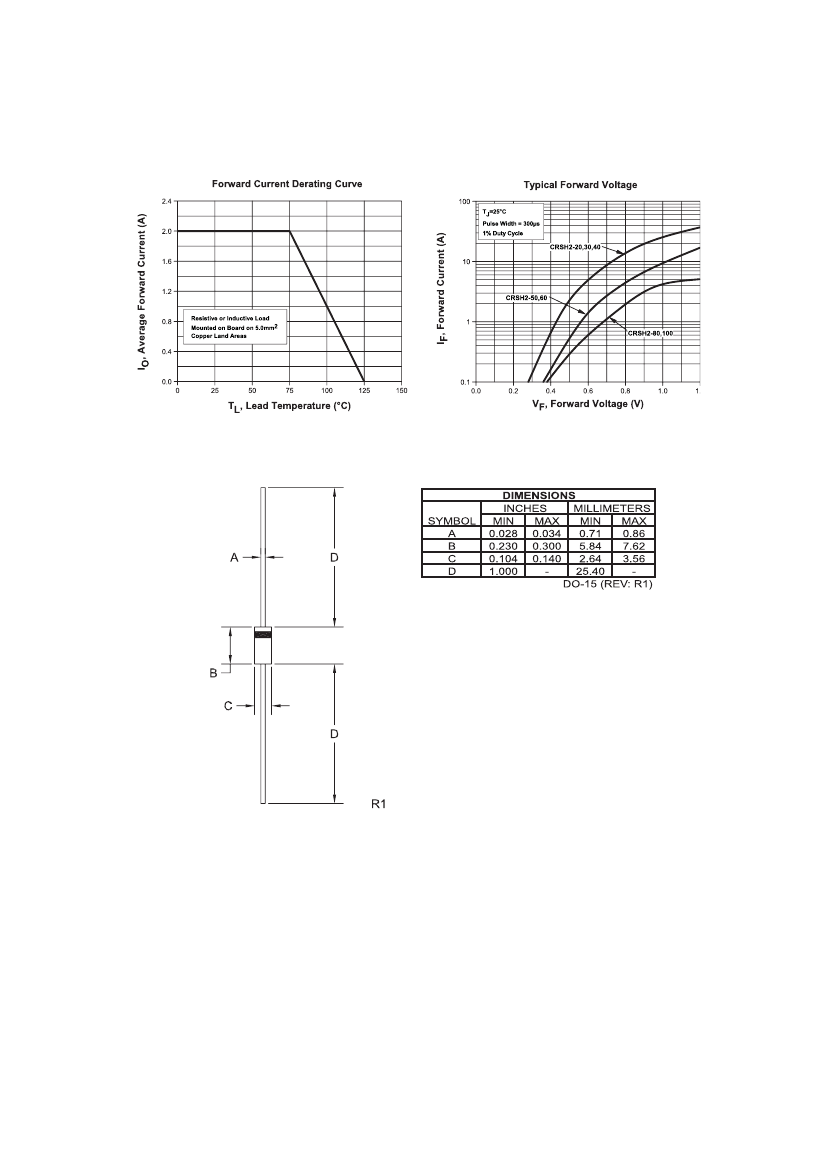

CRSH2 SERIES
SCHOTTKY BARRIER RECTIFIER
2.0 AMPS, 20 THRU 100 VOLTS
Central
DESCRIPTION:
TM
Semiconductor Corp.
The CENTRAL SEMICONDUCTOR CRSH2 Series types
are Schottky Barrier Rectifiers mounted in an axial lead
epoxy case using a metal to silicon junction to yield a
low forward voltage drop.
MARKING: FULL PART NUMBER
CASE DO-15
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
CRSH2-
SYMBOL
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TL=75°C)
VRRM
VR
VR(RMS)
IO
2
20
20
14
3
30
30
21
4
40
40
28
5
50
50
35
2.0
50
-65 to +125
35
6
60
60
42
8
80
80
56
10
100
100
70
UNITS
V
V
V
A
A
°C
°C/W
Peak Forward Surge Current (8.3ms) IFSM
Operating and Storage
Junction Temperature
Thermal Resistance
TJ, Tstg
Θ
JA
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
TYP
MAX
IR
IR
VF
VF
VF
CJ
VR=Rated VRRM
VR=Rated VRRM (TA=100°C)
IF=2.0A (20V, 30V, 40V)
IF=2.0A (50V, 60V)
IF=2.0A (80V, 100V)
VR=4.0, f=1.0MHz
170
0.5
20
0.5
0.7
0.85
UNITS
mA
mA
V
V
V
pF
R2 (24-October 2008)
