M30-3011146R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M30-3011146R

M30-3011146R: DescriptionCONN VERT SIL SMT MALE; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M30-3011146R Overview

CONN VERT SIL SMT MALE

M30-3011146R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HOLD-DOWN TABS,ROHS COMPLIANT
body width	0.146 inch
subject depth	0.193 inch
body length	0.61 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M30-301
Plug contact pitch	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0

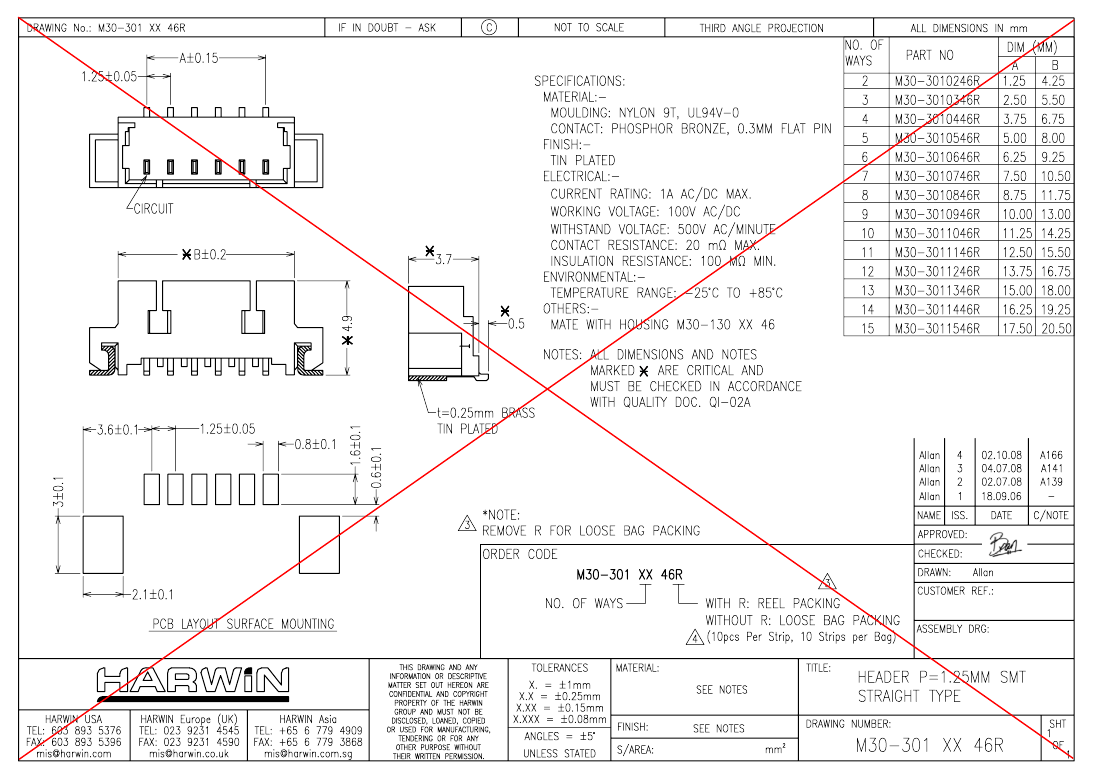

Preview

Download Datasheet

View All

OBSOLETE

M30-3011146R Related Products

	M30-3011146R	M30-3011546R	M30-3010346R	M30-3010846R	M30-3010546R	M30-3011246R	M30-3011046R	M30-3011346R	M30-3011446R
Description	CONN VERT SIL SMT MALE	headers & wire housings 15p sil smt vertical shrouded tab header	headers & wire housings 3P sil smt vertical shrouded tab header	headers & wire housings 8P sil smt vertical shrouded tab header	headers & wire housings 5P sil smt vertical shrouded tab header	headers & wire housings 12p sil smt vertical shrouded tab header	headers & wire housings 10p sil smt vertical shrouded tab header	CONN VERT SIL SMT MALE	CONN VERT SIL SMT MALE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compli	compli	compli	compliant	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT	HOLD-DOWN TABS,ROHS COMPLIANT
body width	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch
subject depth	0.193 inch	0.193 inch	0.193 inch	0.193 inch	0.193 inch	0.193 inch	0.193 inch	0.193 inch	0.193 inch
body length	0.61 inch	0.807 inch	0.217 inch	0.463 inch	0.315 inch	0.659 inch	0.561 inch	0.709 inch	0.758 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M30-301	M30-301	M30-301	M30-301	M30-301	M30-301	M30-301	M30-301	M30-301
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	11	15	3	8	5	12	10	13	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
