614-44-624-31-007000 datasheet, PDF

Datasheet> All Categories > socket> 614-44-624-31-007000

614-44-624-31-007000: DescriptionIC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT; Categorysocket; File Size296KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

614-44-624-31-007000 Overview

IC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT

614-44-624-31-007000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Contact to complete cooperation	MATTE TIN (150) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP24
JESD-609 code	e3
Number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

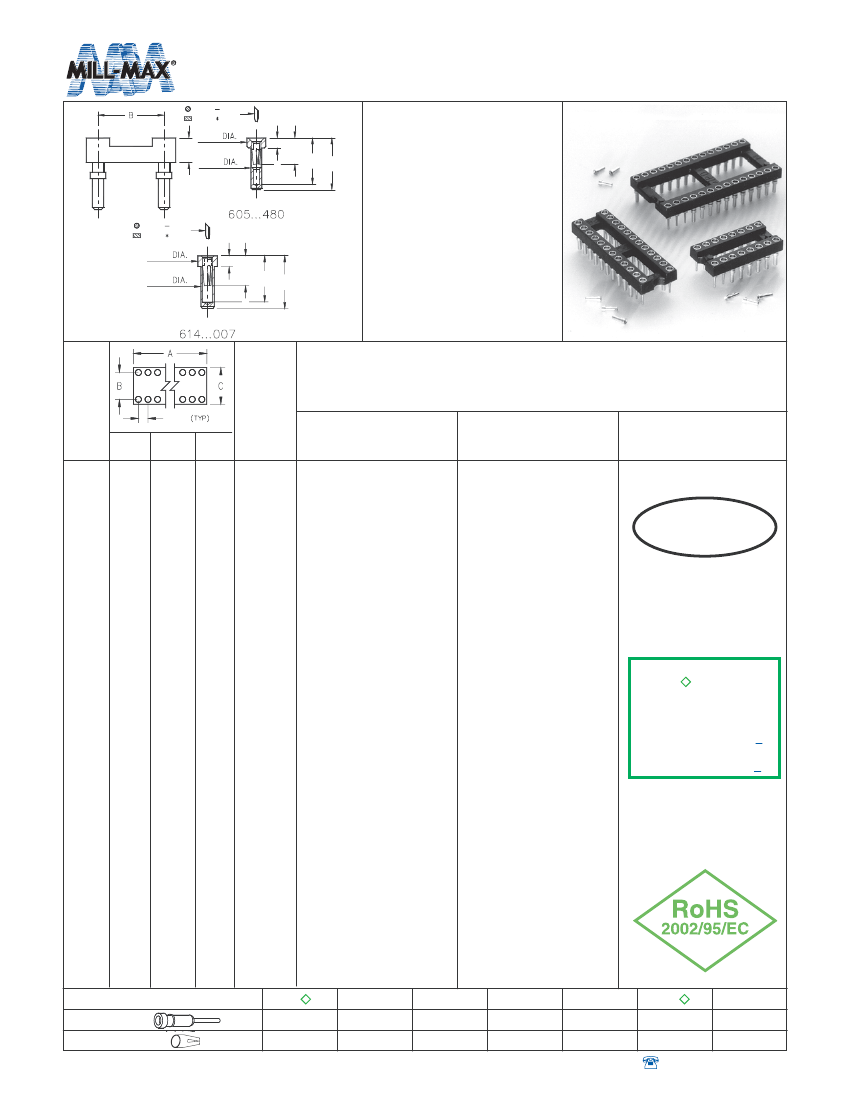

DUAL-IN-LINE SOCKETS

Carrier Type

Low Profile

0,38

0,25

1,47

2,79

0,86

2,16

3,51 3,94

0,53

0,46

0,79

Series 605, 614

●

0,38

0,25

1,4

0,97

0,53

0,46

0,79

2,11

●

Low profile receptacles

sit only 0,79 high above

the board.

Removable plastic carri-

ers can be returned for

reloading.

Hi-Rel, 3-finger #11 BeCu

contact is rated at 3 amps.

See page 206 for details.

Uses M-M#1407 & 0548

receptacles.

See page 126 for details.

3,23 3,71

●

Total number

of pins

2,54

Quantity

per tube

Or dering Inf ormation

Length = 3,71

(0,99 Min. Mounting Hole)

Length = 3,94

(0,89 Min. Mounting Hole)

12,6

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,5

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

5,08

7,62

10,16

15,24

7,6

10,1

12,7

17,7

102

614-XX-210-31-007000

614-XX-304-31-007000

614-XX-306-31-007000

614-XX-308-31-007000

614-XX-310-31-007000

614-XX-314-31-007000

614-XX-316-31-007000

614-XX-318-31-007000

614-XX-320-31-007000

614-XX-322-31-007000

614-XX-324-31-007000

614-XX-328-31-007000

614-XX-420-31-007000

614-XX-422-31-007000

614-XX-424-31-007000

614-XX-428-31-007000

614-XX-432-31-007000

614-XX-624-31-007000

614-XX-628-31-007000

614-XX-632-31-007000

614-XX-636-31-007000

614-XX-640-31-007000

614-XX-642-31-007000

614-XX-648-31-007000

614-XX-650-31-007000

614-XX-652-31-007000

614-XX-950-31-007000

614-XX-952-31-007000

614-XX-964-31-007000



0,25µm Au

0,76µm Au

” Au

605-XX-210-11-480000

605-XX-304-11-480000

605-XX-306-11-480000

605-XX-308-11-480000

605-XX-310-11-480000

605-XX-314-11-480000

605-XX-316-11-480000

605-XX-318-11-480000

605-XX-320-11-480000

605-XX-322- 11-480000

605-XX-324- 11-480000

605-XX-328-11-480000

605-XX-420- 11-480000

605-XX-422- 11-480000

605-XX-424- 11-480000

605-XX-428- 11-480000

605-XX-432- 11-480000

605-XX-624- 11-480000

605-XX-628- 11-480000

605-XX-632- 11-480000

605-XX-636- 11-480000

605-XX-640- 11-480000

605-XX-642- 11-480000

605-XX-648- 11-480000

605-XX-650- 11-480000

605-XX-652- 11-480000

605-XX-950- 11-480000

605-XX-952- 11-480000

605-XX-964- 11-480000

200

” Sn/Pb



200

” Sn

” Au



5,08µm Sn

0,76µm Au



200

”Sn

200

” Sn

XX=Plating Code

See Below

For RoHS compliance,

select



plating code.

For the all gold option

(XX=13) also change

part number from

6XX-XX-XXX-X1-XXX000

6XX-13-XXX-X1-XXX100

63,5 22,86 25,3

66,0 22,86 25,3

81,2 22,86 25,3

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

” Sn/Pb

5,08µm Sn/Pb

200

” Sn/Pb

0,76µm Au

w w w. m i l l - m a x . c o m



516-922-6000
