1618791 Overview

CONN RCP HSG MAL 8P INLIN PNL MT

1618791 Parametric

Parameter Name	Attribute value
Connector type	socket housing
type	for male pins
Number of pins	8 （7 + PE）
Housing Dimensions - Plug-in	M17-8
Housing size, MIL	-
Contact type	crimp
Contact size	1.0mm
Installation type	Free hanging (plug-in); panel mounting
Installation features	flange
Fastening type	Button type
towards	N (normal type)
Shell material	Metal
Shell surface	-
Shell color	silver
Intrusion protection	IP67 - dust and water resistant
Material flammability rating	-
characteristic	back shell
shield	shield
Remark	Does not include contacts
include	-
Connecting nut diameter	-
Connection nut material, electroplated	-
Insert material	-
Contact shape	round
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/pi/products/1618791

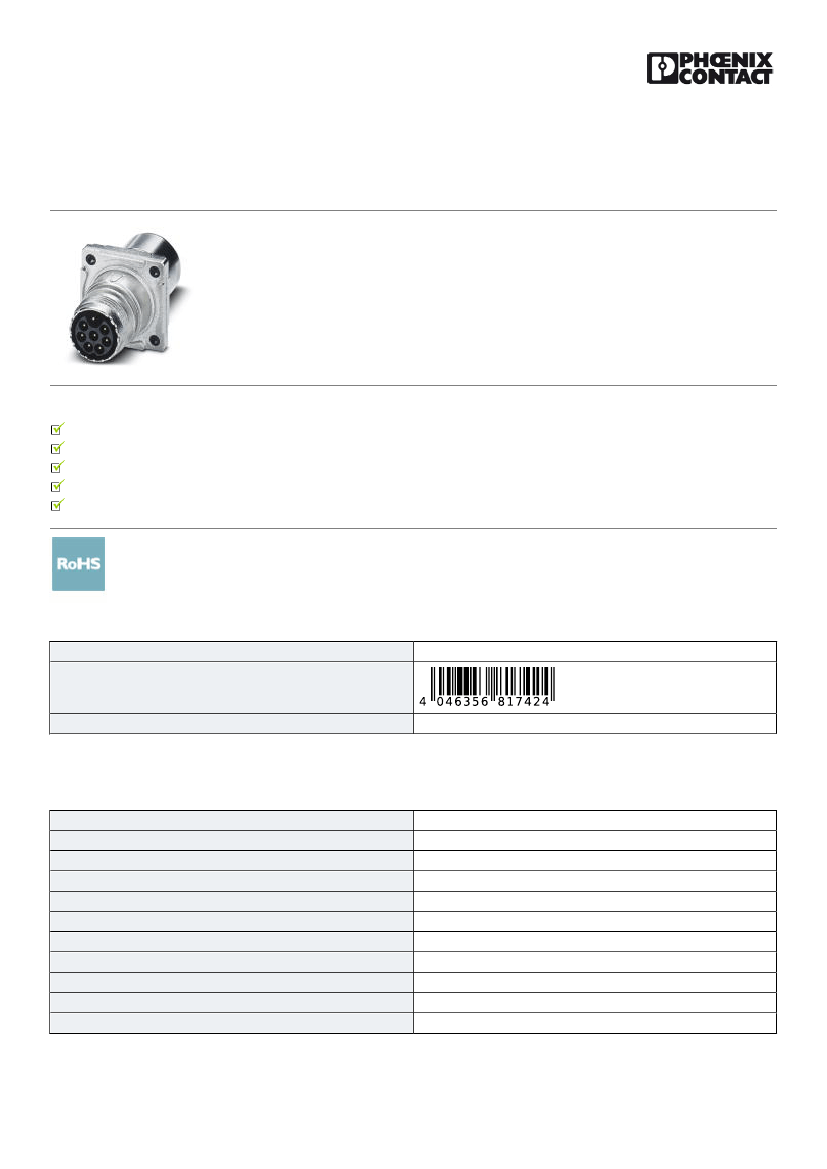

Panel feed-through - ST-7EP1N8ACK04S - 1618791

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Panel feed-through, straight, SPEEDCON locking, M17, number of positions: 7+PE, type of contact: Pin,

Crimp connection, Flat gasket, 4x Ø 3.2, shielded: yes, flange dimensions: 25.75 mm x 25.75 mm, cable

diameter range: 9 mm ... 11 mm

Your advantages

Reduced size: ideal for compact devices

Consistent EMC protection for reliable connection solutions in the industrial environment

Crimping connection: vibration- and temperature-resistant assembly

Flexible use: reliably connect various cable diameters

User-specific, suitable for front and rear mounting

Key Commercial Data

Packing unit

GTIN

4046356817424

1 pc

Technical data

General

Note

Type of locking

Direction of rotation of contact chamber numbering

Coding

Contact connection method

Type of contacts

Number of positions

Contact diameter of power contacts

Nominal current per power contact at 25°C

Contact diameter of signal contacts

Nominal current per signal contact at 25°C

Order information: Order crimp contacts Ø 1 mm separately

SPEEDCON locking

Standard

Crimp connection

1 mm

14 A

1 mm

14 A

10/19/2018 Page 1 / 4
