Panel feed-through - ST-7ES1N8ACK03S - 1618786
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

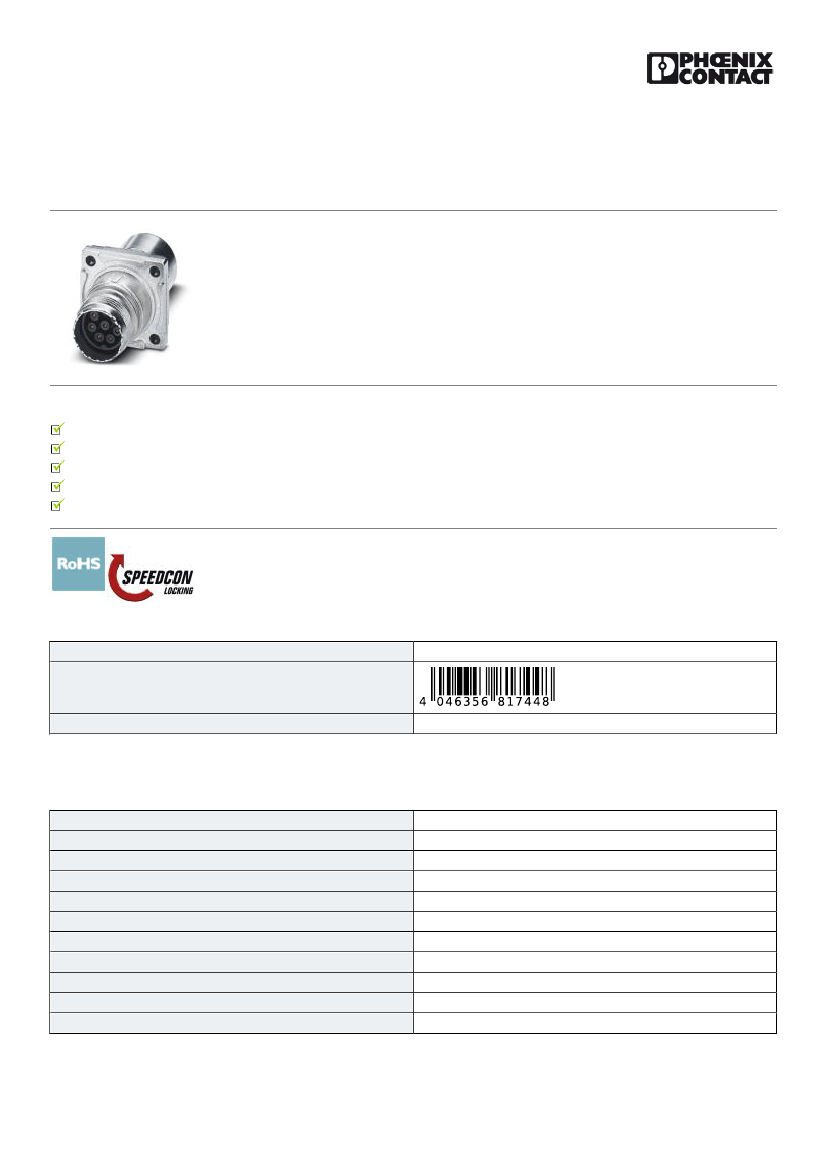

Panel feed-through, straight, SPEEDCON locking, M17, number of positions: 7+PE, type of contact: Socket,
Crimp connection, Flat gasket, 4x Ø 3.2, shielded: yes, flange dimensions: 25.75 mm x 25.75 mm, cable
diameter range: 5 mm ... 9 mm
Your advantages
Reduced size: ideal for compact devices
Consistent EMC protection for reliable connection solutions in the industrial environment
Crimping connection: vibration- and temperature-resistant assembly
Flexible use: reliably connect various cable diameters
User-specific, suitable for front and rear mounting
Key Commercial Data
Packing unit
GTIN
GTIN
4046356817448
1 pc
Technical data
General
Note
Type of locking
Direction of rotation of contact chamber numbering
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Contact diameter of signal contacts
Conductor entry
Order information: Order crimp contacts Ø 1 mm separately
SPEEDCON locking
Standard
N
Crimp connection
Socket
8
1 mm
14 A
1 mm
5 mm ... 9 mm
10/19/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1618786
Panel feed-through - ST-7ES1N8ACK03S - 1618786
Technical data
General
Pg housing screw connection
Mounting type
none
4x Ø 3.2
Ambient conditions
Ambient temperature
Degree of protection
-40 °C ... 125 °C
IP67
Specifications according to DIN EN 61984:2001
Nominal / operating voltage of power contacts
Rated surge voltage of power contacts
Overvoltage category of power contacts
Degree of pollution of power contacts
630 V
6 kV
III
3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

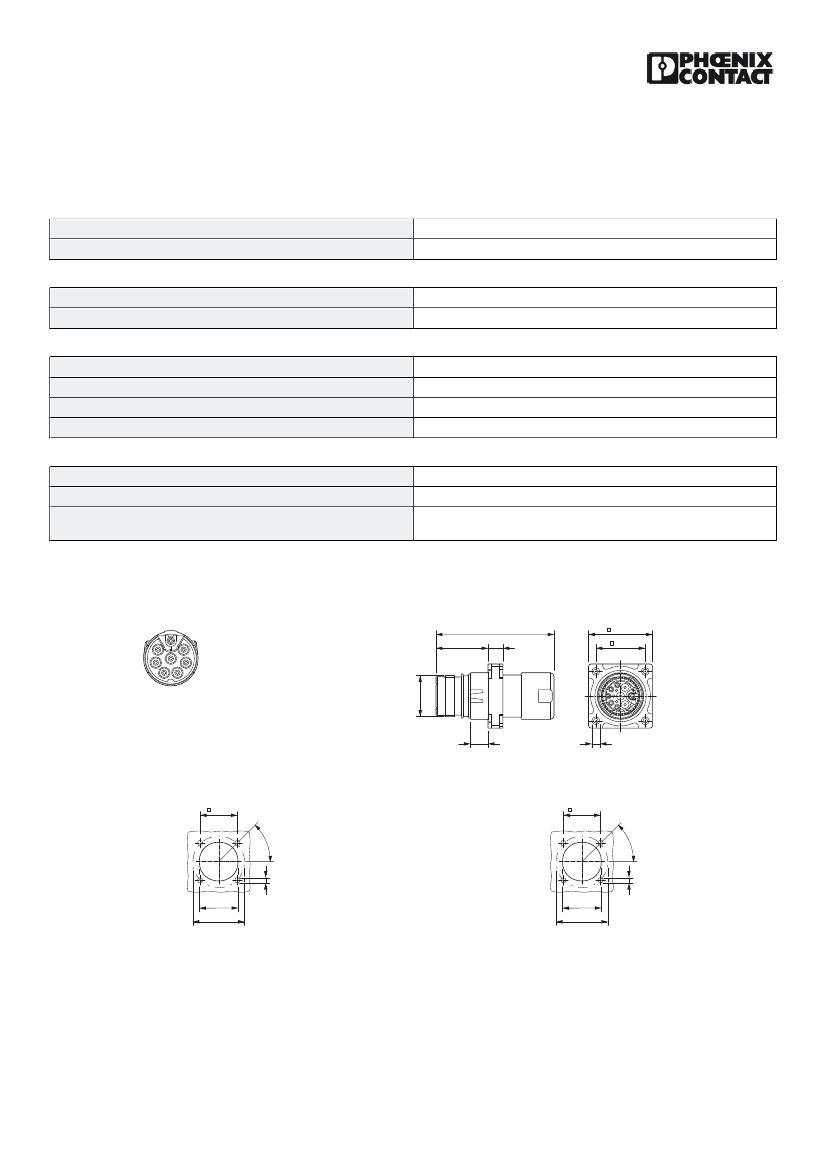

Drawings
Schematic diagram
20,9
1
2
7
3
4
6
5
Dimensional drawing
47,35
5,9
25,75
19,8
Connector pin assignment
7,1
4xØ3,2
Dimensional drawing
19,8
±0,1
M17x1
Schematic diagram
19,8
±0,1
4xM3
Ø19
+0,1
Ø19
+0,1
Ø28
Ø28
Installation dimensions
Approvals
Approvals
10/19/2018 Page 2 / 3
4xM3
45°
45°
https://www.phoenixcontact.com/pi/products/1618786
Panel feed-through - ST-7ES1N8ACK03S - 1618786
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
5A
18
FILE E 335019
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
5A
18
FILE E 335019
EAC
B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/19/2018 Page 3 / 3
