PM5-AP7R2.0V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PM5-AP7R2.0V

Preview

PM5-AP7R2.0V: DescriptionPANEL MOUNT ASSEMBLY RED, 8.5MM; CategoryLED optoelectronic/LED; File Size159KB，2 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

PM5-AP7R2.0V Overview

PANEL MOUNT ASSEMBLY RED, 8.5MM

PM5-AP7R2.0V Parametric

Parameter Name	Attribute value
type	LED
lamp color	red
Lens color	red
Lens transparency	scattering
grade	Vf (standard), If (minimum value)
Voltage	2V
current	20mA
Panel opening shape	round
Panel opening size	0.34"（8.64mm）
Lens style/size	Round, with dome, 7.00mm
millicandela level	600mcd
Wavelength - Peak	630nm
perspective	160°
Terminal type	Lead - 5.9" (150.00mm)
Intrusion protection	IP67
characteristic	-

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

B

C

D

Engineering Release

Added Wire Specs

Engineering Update w/o Changes

07/28/11

02/13/13

08/11/16

T. Y.

J. C.

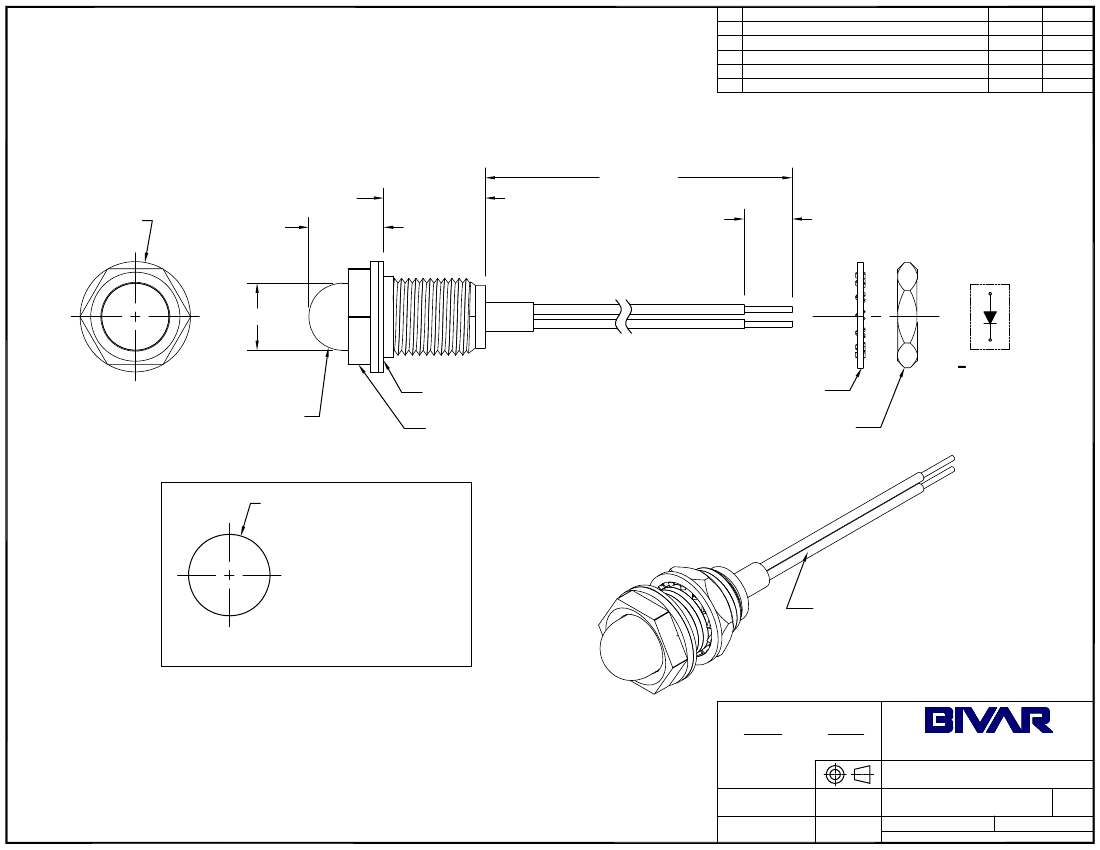

5.9 [150mm]

0.42 [10.6mm]

Ø.453 [Ø11.5mm]

0.31 [7.8mm]

0.20 [5.0mm] STRIPPED AND TINNED

(+) Anode

Red Wire

0.275 [7.0mm]

PTFE SEALING RING

DIFFUSED LENS

BLACK ANODIZED HARD

ALUMINUM HOUSING

SPRING STEEL LOCK WASHER

NICKEL PLATED BRASS NUT

MOUNTING TORQUE 1.0 Nm

( ) Cathode

Black Wire

Ø.335+.004 Ø8.5mm+0.1mm

-.000

-0.0mm

[

]

22 GAUGE, 600V, STRANDING

(19/0.16mm), 1.19mm DIAMETER

RECOMMENDED MOUNTING HOLE

1.5 - 5.0mm PANEL THICKNESS

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

®

NOTES:

1. SEALED TO IP68 RATING

2. HEXAGON BEZEL

3. ROHS COMPLIANT

4. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

5. INSERT PTFE RING ON PANEL MOUNT ASSEMBLY PRIOR TO PANEL INSTALLATION

DECIMALS

ANGULAR

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

R. Paje

CHECKED:

02/23/11

DATE:

TITLE:

WATER TIGHT PANEL MOUNT

LED ASSEMBLY, 8.5MM MOUNTING

REVISION:

PART NO:

PM5-AP7XXX

CAGE CODE : 32559

D

T. Yin

02/23/11

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

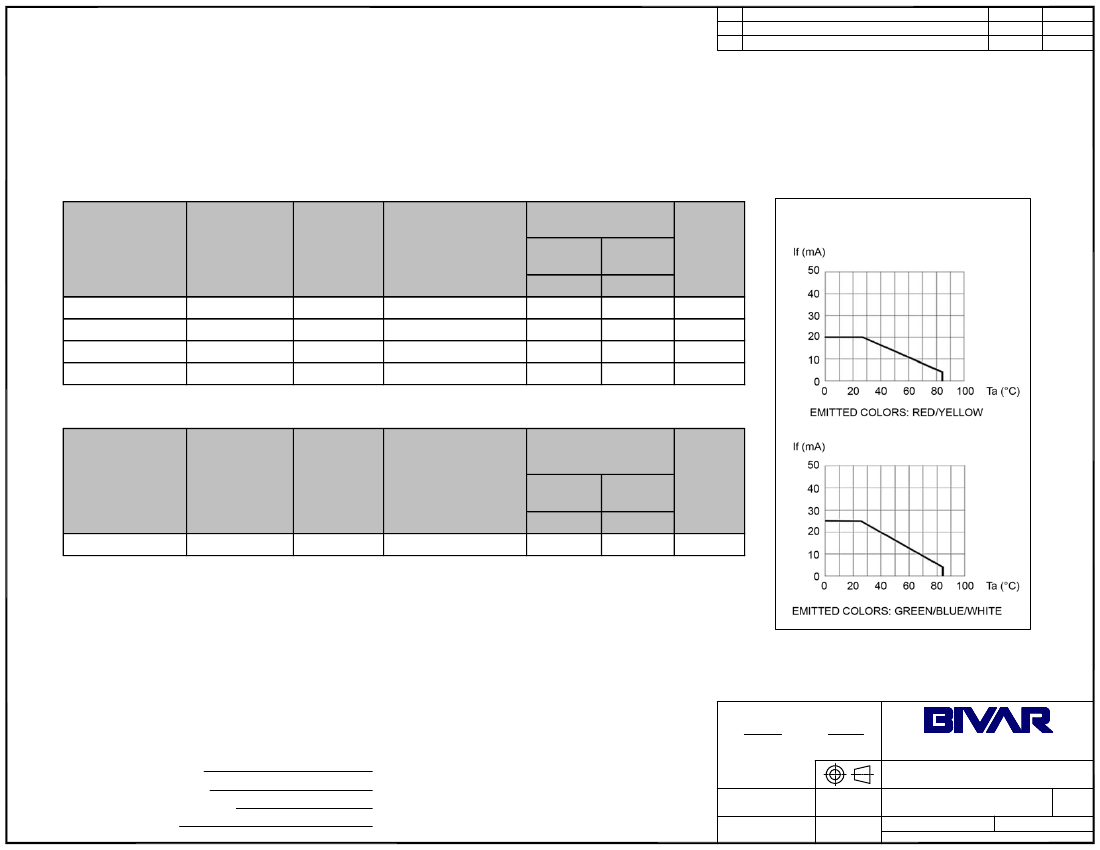

PM5-AP7R2.0V Related Products

	PM5-AP7R2.0V	PM5-AP7G3.4V	PM5-AP7B3.4V	PM5-AP7Y2.0V	PM5-AP7W3.4V
Description	PANEL MOUNT ASSEMBLY RED, 8.5MM	PANEL MOUNT ASSEM GREEN, 8.5MM	PANEL MOUNT ASSEMBLY BLUE, 8.5MM	PANEL MOUNT ASSEM YELLOW, 8.5MM	PANEL MOUNT ASSEM WHITE, 8.5MM
type	LED	LED	LED	LED	LED
lamp color	red	green	blue	yellow	White
Lens color	red	green	blue	yellow	white
Lens transparency	scattering	scattering	scattering	scattering	scattering
grade	Vf (standard), If (minimum value)	Vf (standard), If (minimum value)	Vf (standard), If (minimum value)	Vf (standard), If (minimum value)	Vf (standard), If (minimum value)
Voltage	2V	3.4V	3.4V	2V	3.4V
current	20mA	20mA	20mA	20mA	20mA
Panel opening shape	round	round	round	round	round
Panel opening size	0.34"（8.64mm）	0.34"（8.64mm）	0.34"（8.64mm）	0.34"（8.64mm）	0.34"（8.64mm）
Lens style/size	Round, with dome, 7.00mm	Round, with dome, 7.00mm	Round, with dome, 7.00mm	Round, with dome, 7.00mm	Round, with dome, 7.00mm
millicandela level	600mcd	800mcd	400mcd	600mcd	1200mcd
Wavelength - Peak	630nm	515nm	465nm	585nm	-
perspective	160°	160°	160°	160°	160°
Terminal type	Lead - 5.9" (150.00mm)	Lead - 5.9" (150.00mm)	Lead - 5.9" (150.00mm)	Lead - 5.9" (150.00mm)	Lead - 5.9" (150.00mm)
Intrusion protection	IP67	IP67	IP67	IP67	IP67
