FIS-21.4: DescriptionBand Pass Filter, 21.4MHz; Categoryfilter; File Size188KB，2 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

FIS-21.4 Overview

Band Pass Filter, 21.4MHz

FIS-21.4 Parametric

Parameter Name	Attribute value
Maker	SYNERGY
Reach Compliance Code	unknown
Is Samacsys	N
average input power	1 W
Center frequency or cutoff frequency (fo/fc)	21.4 MHz
filter type	BAND PASS FILTER
high	11.18 mm
input resistance	50 OHM
Maximum insertion loss	1.5 dB
length	21.34 mm
Installation type	SURFACE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Output impedance	50 OHM Ω
physical size	L21.34XB13.21XH11.18 (mm)/L0.84XB0.52XH0.44 (inch)
width	13.21 mm
Base Number Matches	1

Preview

Download Datasheet

View All

BAND PASS FILTER

MODEL FIS-21.4

OPTIMIZED BANDWIDTH

SPECIFICATIONS:

Center Frequency:

Passband I. Loss :

Passband:

20 dB Bandwidth :

21.4 MHz

1.5 dB (Max)

19.6 - 23.2 MHz

14.9 - 27.8 MHz

40 dB Bandwidth :

Input Power

Impedance :

Operating Temp. Range:

6.80 - 64.2 MHz

1 Watt (Max)

50 Ohms

o

-20 to +70

o

C

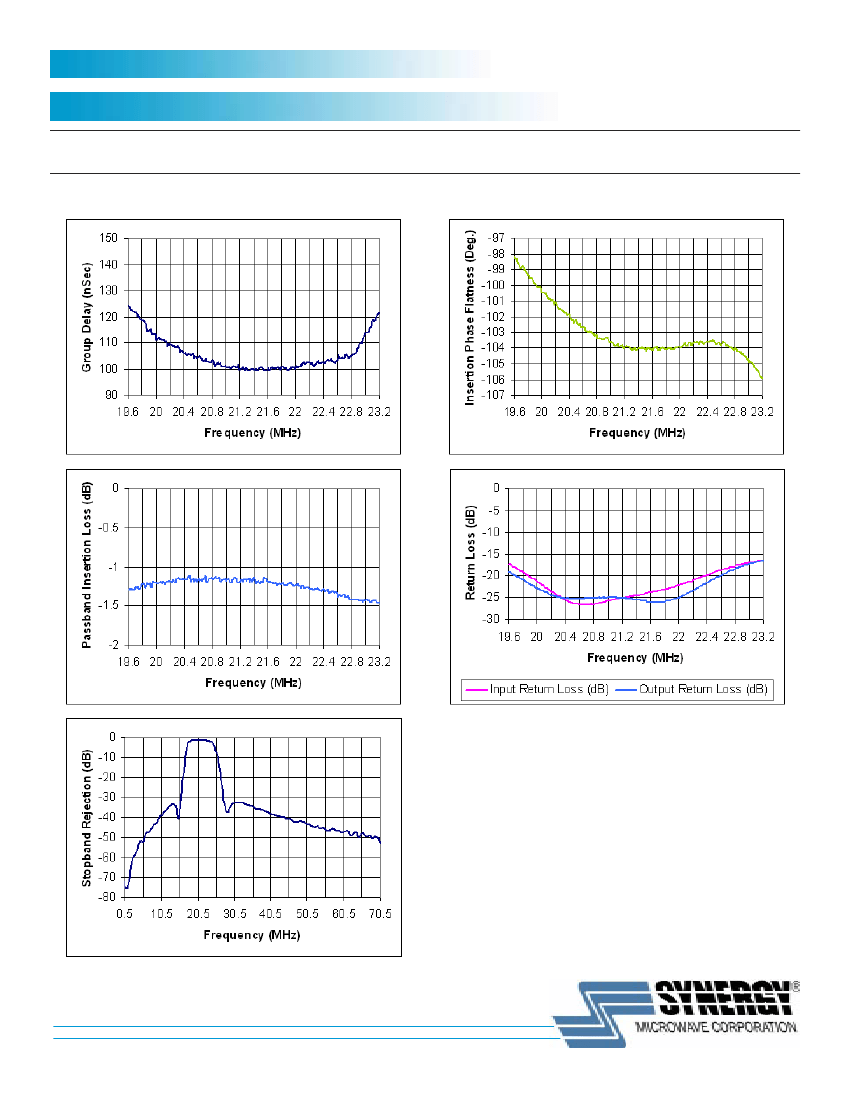

Fc = 21.4 MHz

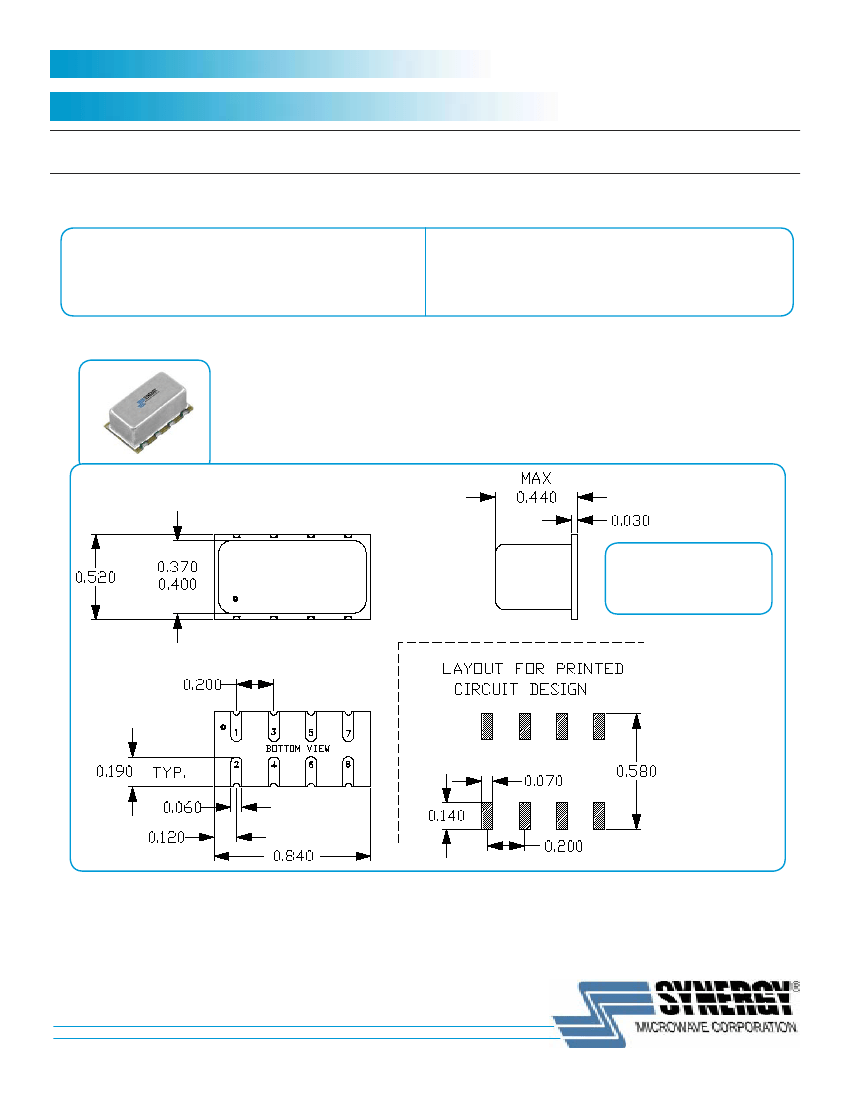

MECHANICAL OUTLINE:102S

Input

Output

Case Ground

PIN-OUT

1

8

All Others
