821K004-213R001 datasheet, PDF

Datasheet> All Categories > The connector> 821K004-213R001

821K004-213R001: DescriptionCONN RCPT FMALE 4POS GOLD SOLDER; CategoryThe connector; File Size125KB，2 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric Compare View All

821K004-213R001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	821K004-213R001	-	-	View	Buy Now

821K004-213R001 Overview

CONN RCPT FMALE 4POS GOLD SOLDER

821K004-213R001 Parametric

Parameter Name	Attribute value
Connector type	socket, female socket
Number of pins	4
Housing Dimensions - Plug-in	-
Housing size, MIL	-
Installation type	Panel mount, bulkhead, front nut; through hole
Termination	welding
Fastening type	push-pull
towards	Marked
Intrusion protection	IP67 - dust and water resistant
Housing material, plating	Brass, nickel plated
Contact plating	gold
characteristic	shield
Rated current	-
Voltage - Rated	-
Contact plating thickness	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C

Preview

Download Datasheet

View All

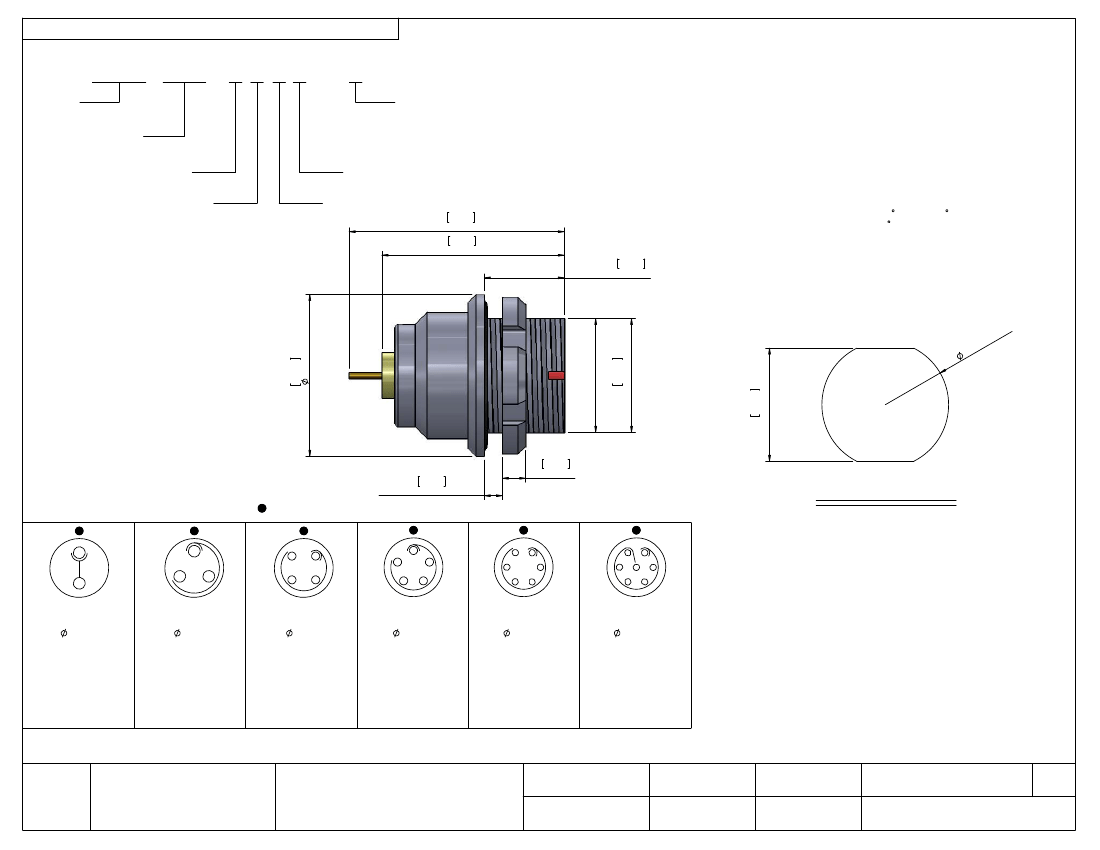

DESCRIPTION: QUIK-LOQ - FEMALE - VERTICAL - PANEL MOUNT - IP67

821K YYY - 2 1 3 R 00 1

SERIES

13.00 [0.512]

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

2 = FEMALE

VERTICAL (PANEL MOUNT)

1 = GOLD FLASH

UNITS = MM [INCHES]

CHARACTERISSTICS

MATERIALS

SHELL : BRASS

SHELL PLATING : NICKEL

NUT : BRASS

NUT PLATING : NICKEL

LATCH SLEEVE : BRASS

LATCH SLEEVE PLATING : NICKEL

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

O-RING: SILICONE

MECHANICAL

DURABILITY: 5000 CYCLES

OPERATING TEMP. RANGE: -40 C ~ +200 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TORQUE VALUE : 7.0 Nm [61.0 IN/lbs]

SHIELDING: 75dB @ 10MHz

40dB @ 1GHz

IP RATING: 67

RoHS COMPLIANT

NICKEL/CHROME PLATED SHELL

1.094

27.80

0.945

24.00

0.394

10.00

0.571

14.50

(ACROSS FLATS)

M16*1.0

0.787

20.00

[0.

.10

CHART A

= KEY LOCATION

0.236

6.00

(MAX. PANEL THICKNESS)

0.118

3.00

0.575

14.60

PANEL CUTOUT

TOLERANCE = +0.10, -0.0

[+0.004, -0.00]

**VIEW FROM TERMINATION END**

2 POSITION

15 AMP MAX.

= 1.30 [0.051]

3 POSITION

12 AMP MAX.

= 1.30 [0.051]

4 POSITION

10 AMP MAX.

= 0.90 [0.035]

5 POSITION

9 AMP MAX.

= 0.90 [0.035]

6 POSITION

7 AMP MAX.

= 0.70 [0.028]

7 POSITION

7 AMP MAX.

= 0.70 [0.028]

**NOTE**

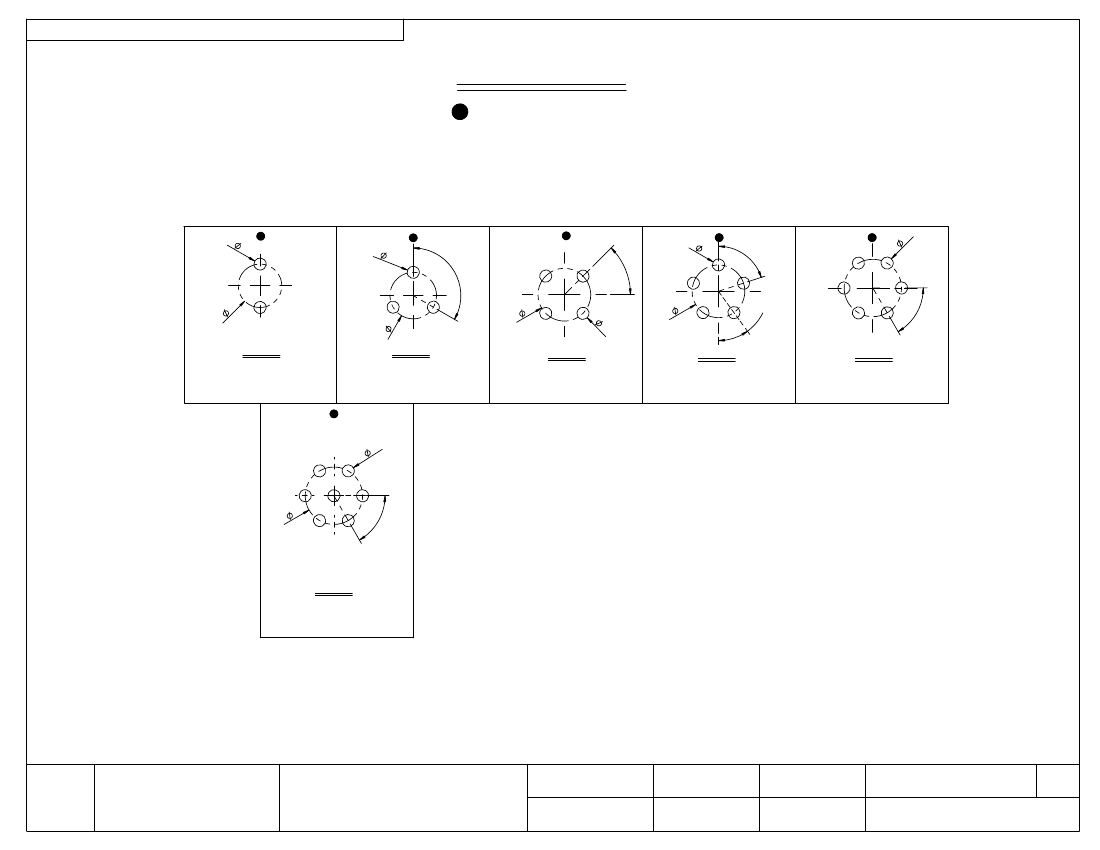

SEE PAGE 2 FOR

BOARD LAYOUTS

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1500V

WORKING VOLTAGE

= 500V

CONTACT

RESISTANCE

= 5 m

Ω

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

CONTACT

RESISTANCE

= 6 m

Ω

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

CONTACT

RESISTANCE

= 6 m

Ω

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 415V

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 1050V

WORKING VOLTAGE

= 350V

CONTACT

RESISTANCE

= 7.5 m

Ω

TEST VOLTAGE

= 950V

WORKING VOLTAGE

= 315V

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

DATE:

SCALE:

SHEET

REV:

M. SIGMON

CHECKED:

DATE:

02-25-16

N.T.S.

DWG NO.

821KYYY-213R001

821K004-213R001 Related Products

	821K004-213R001	821K007-213R001	821K002-213R001	821K006-213R001	821K005-213R001	821K003-213R001
Description	CONN RCPT FMALE 4POS GOLD SOLDER	CONN RCPT FMALE 7POS GOLD SOLDER	CONN RCPT FMALE 2POS GOLD SOLDER	CONN RCPT FMALE 6POS GOLD SLDR	CONN RCPT FMALE 5POS GOLD SLDR	CONN RCPT FMALE 3POS GOLD SOLDER
Connector type	socket, female socket	socket, female socket	socket, female socket	-	-	socket, female socket
Number of pins	4	7	2	-	-	3
Installation type	Panel mount, bulkhead, front nut; through hole	Panel mount, bulkhead, front nut; through hole	Panel mount, bulkhead, front nut; through hole	-	-	Panel mount, bulkhead, front nut; through hole
Termination	welding	welding	welding	-	-	welding
Fastening type	push-pull	push-pull	push-pull	-	-	push-pull
towards	Marked	Marked	Marked	-	-	Marked
Intrusion protection	IP67 - dust and water resistant	IP67 - dust and water resistant	IP67 - dust and water resistant	-	-	IP67 - dust and water resistant
Housing material, plating	Brass, nickel plated	Brass, nickel plated	Brass, nickel plated	-	-	Brass, nickel plated
Contact plating	gold	gold	gold	-	-	gold
characteristic	shield	shield	shield	-	-	shield
Contact plating thickness	7.00µin（0.178µm）	7.00µin（0.178µm）	7.00µin（0.178µm）	-	-	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C	-40°C ~ 200°C	-40°C ~ 200°C	-	-	-40°C ~ 200°C
