SEAF-20-01-L-08-2-RA-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAF-20-01-L-08-2-RA-K-TR

SEAF-20-01-L-08-2-RA-K-TR: Description.050 PITCH SOCKET ARRAY ASSEMBLY; CategoryThe connector The connector; File Size1MB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SEAF-20-01-L-08-2-RA-K-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SEAF-20-01-L-08-2-RA-K-TR	-	-	View	Buy Now

SEAF-20-01-L-08-2-RA-K-TR Overview

.050 PITCH SOCKET ARRAY ASSEMBLY

SEAF-20-01-L-08-2-RA-K-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	4 weeks 2 days
body width	0.312 inch
subject depth	0.592 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	17.1 mΩ
Durability	100 Cycles
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SEAF-RA
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	160

Preview

Download Datasheet

View All

REVISION AC

DO NOT

SCALE FROM

THIS PRINT

"H" REF (SEE TABLE 3)

"M" REF

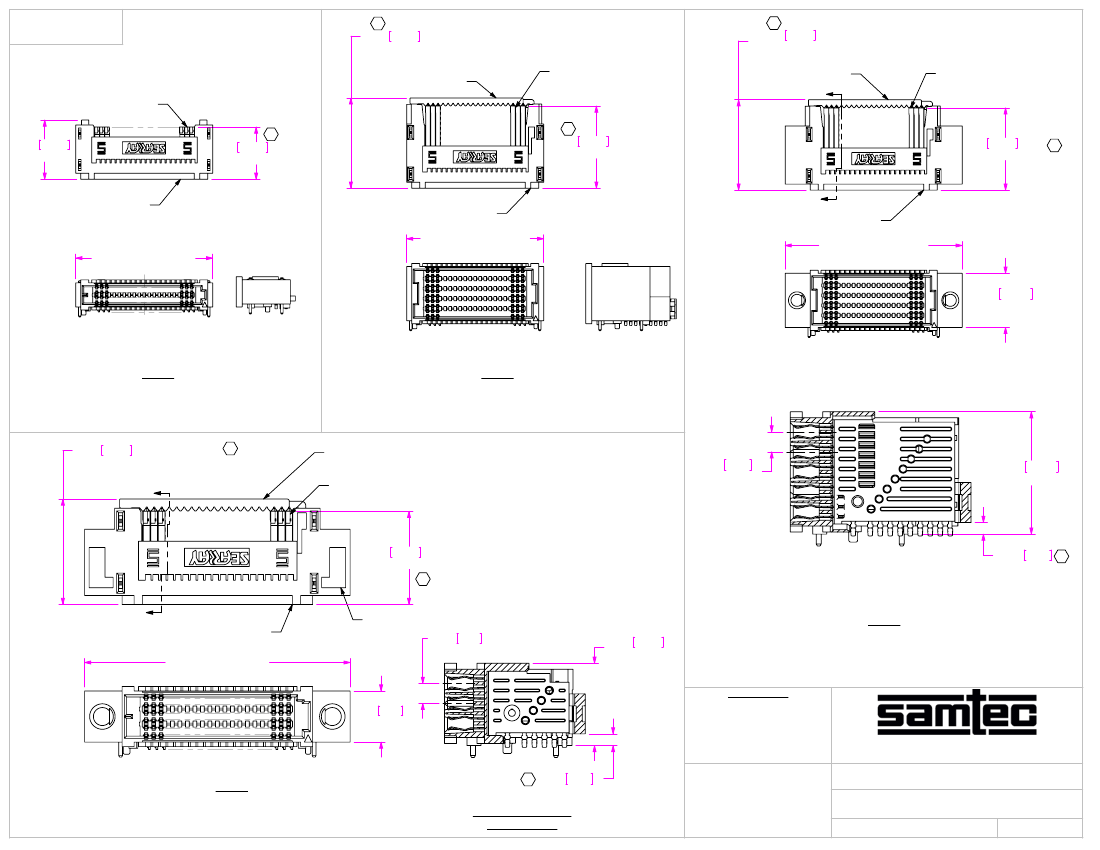

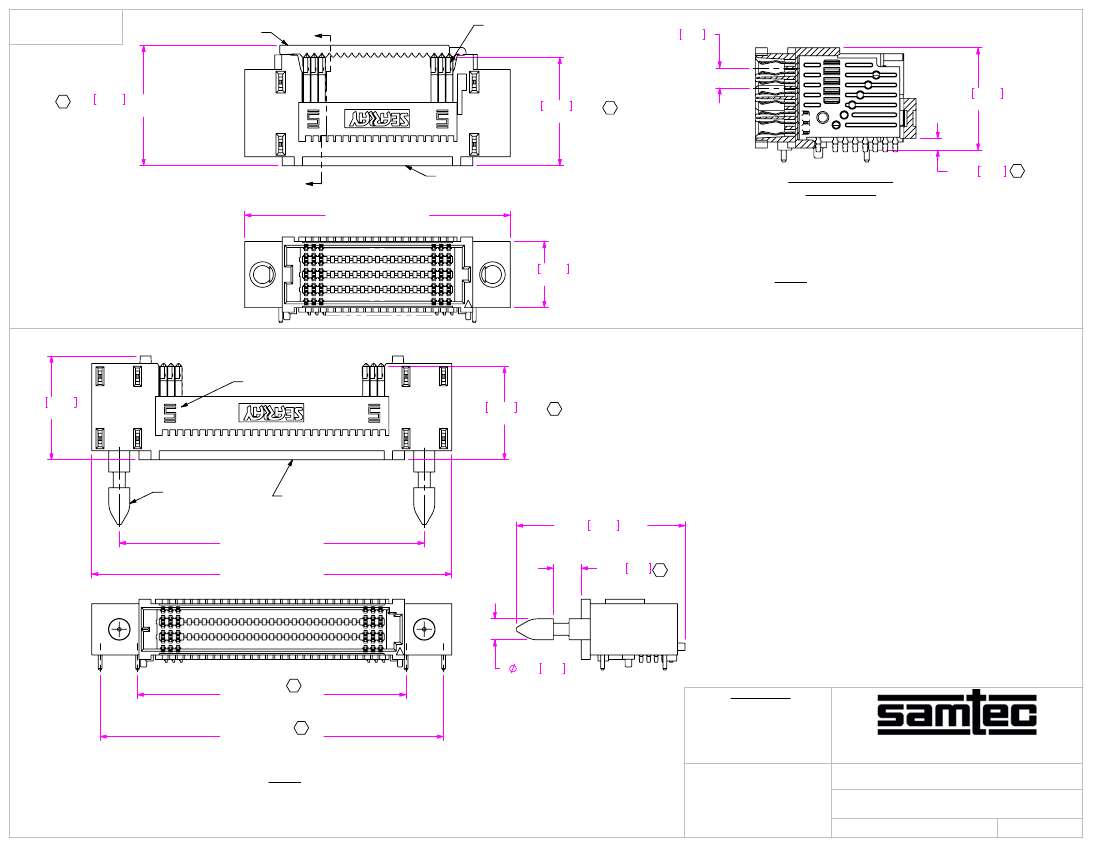

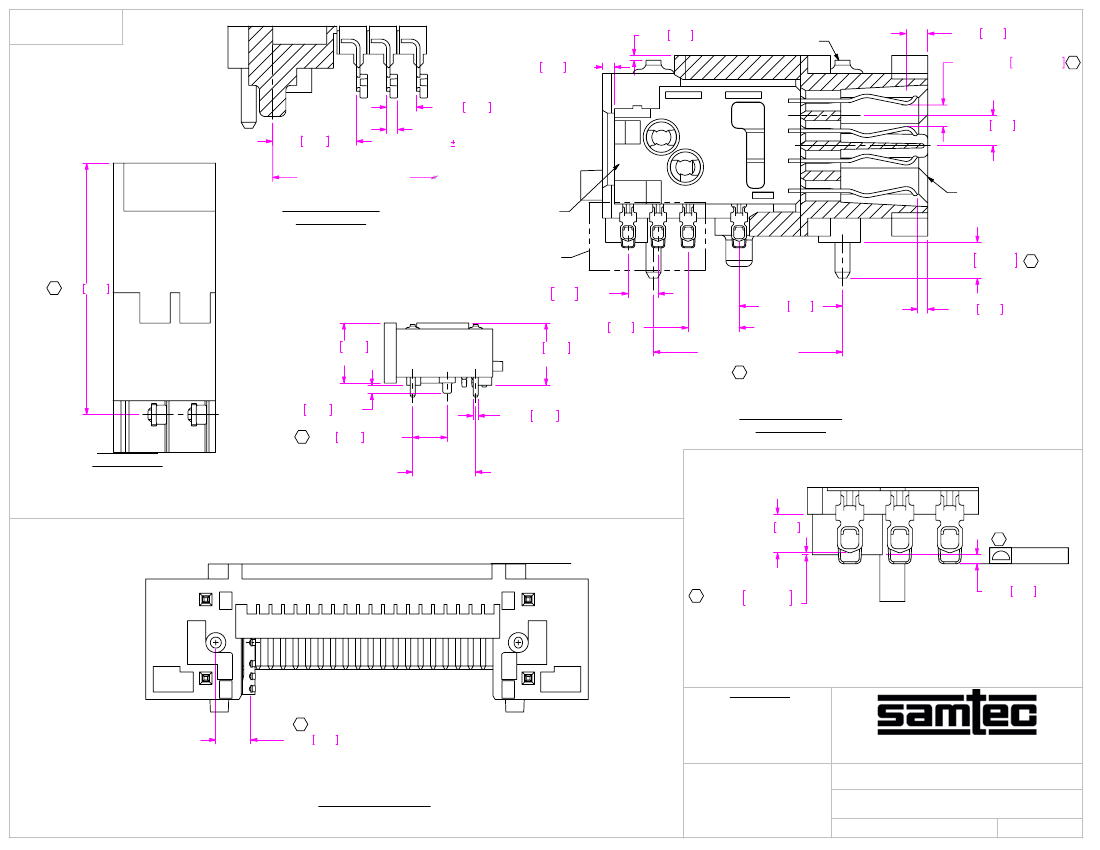

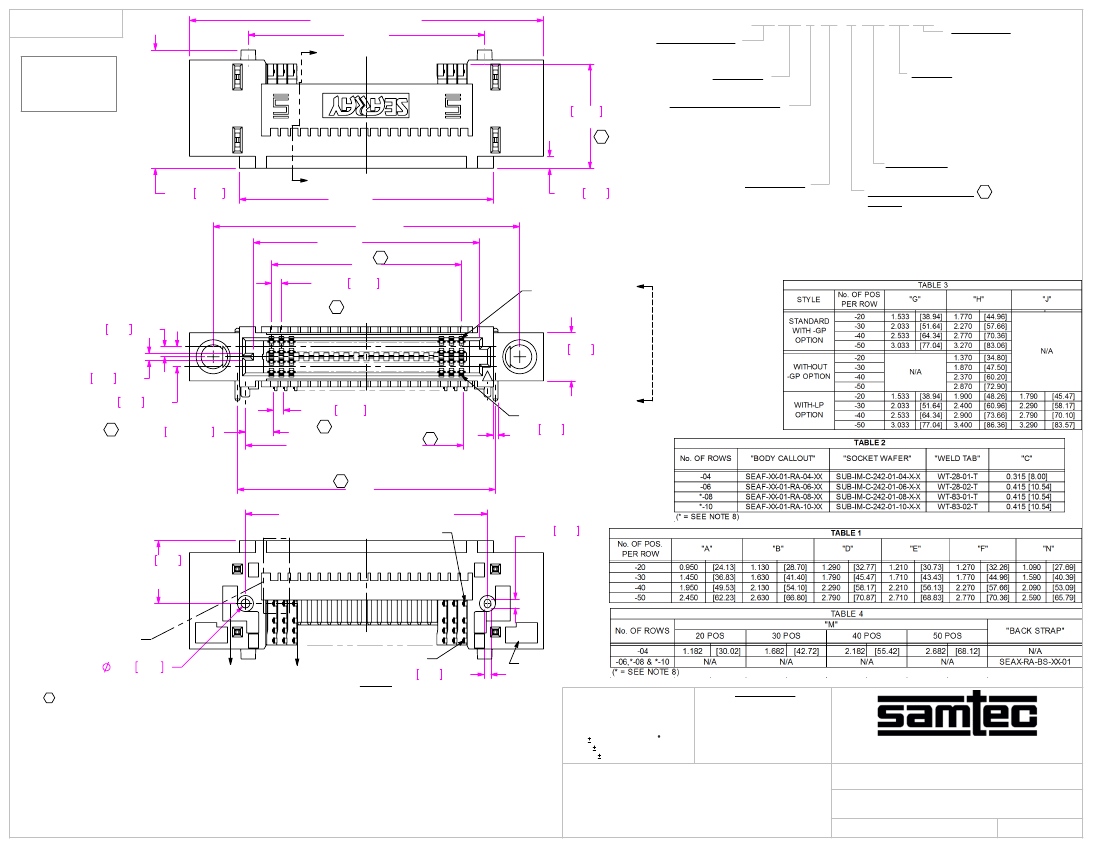

SEAF-XX-XX-X-XX-X-RA-XX-TR

No OF POSITIONS

-20,-30,-40,-50

(PER ROW)

LEAD STYLE

-01

"A"

PACKAGING

-TR: TAPE & REEL

(STANDARD PACKAGING)

(SEE NOTE 4 & 7)

.522 13.26 (TYP)

TO WAFER

PLATING SPECIFICATION

-S: SELECTIVE GOLD,

30µ GOLD, MATTE TIN ON TAILS

(USE SUB-IM-C-242-XX-S-X)

-L: LIGHT SELECTIVE GOLD,

10µ GOLD, MATTE TIN ON TAILS

(USE SUB-IM-C-242-XX-L-X)

No OF ROWS

-04,-06,*-08,*-10

(* = SEE NOTE 8)

OPTIONS

-GP: GUIDE POST HOLE

-LP: LATCH POST

(USE WITH SEAC ONLY)

(-06 ROW, ALL POS AND

-08 ROW, 40 POS ONLY)

(NOT AVAILABLE WITH -GP OPTION)

-K: PAD

RIGHT ANGLE

-RA

SOLDER COMPOSITION

& STYLE

-1: 63% TIN / 37% LEAD CHARGE TAIL

(USE SUB-IM-C-242-XX-XX-X-1)

-2: 95.5% TIN / 3.8 SILVER / 0.7% COPPER

LEAD FREE CHARGE TAIL

(USE SUB-IM-C-242-XX-XX-X-2)

"A"

.592 15.04

REF

"F" REF

.060 1.52

REF

"G" REF

"B" REF

"A"

PIN D1

"G"

.0500 1.270 (TYP)

(TOL NON-ACCUM)

.050 1.27 REF

.241 6.12

REF

.035 0.89 REF

.100 2.54 REF

.0500 1.270 (TYP)

.140±.007 3.55±0.18

"N"±.007 (SEE SECTION E-E)

(SEE NOTE 9)

.025 0.64

REF (TYP)

PIN A1

"G"

(SEE SHT 2)

"D"

"E" (REF)(ALIGNMENT PIN CENTERS)

PIN A1

.044 1.12

REF

.315 7.99

REF

(A-PIN C )

'J'

.044 1.12

"E"

PIN D1

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSH-OUT FORCE: .50 LBS[2.2N].

3. INSPECT DIMENSION AT FIRST POSITION WAFER LOCATION ONLY, FIRST AND LAST PIN.

4. ONLY FULL REEL QUANTITIES ARE SHIPPED ON A REEL WITH LEADER AND TRAILER.

5. NOTE DELETED

6. NOTE DELETED

7. ATTACH LABEL "SEAX-0001" TO EACH TAPE & REEL PACKAGE.

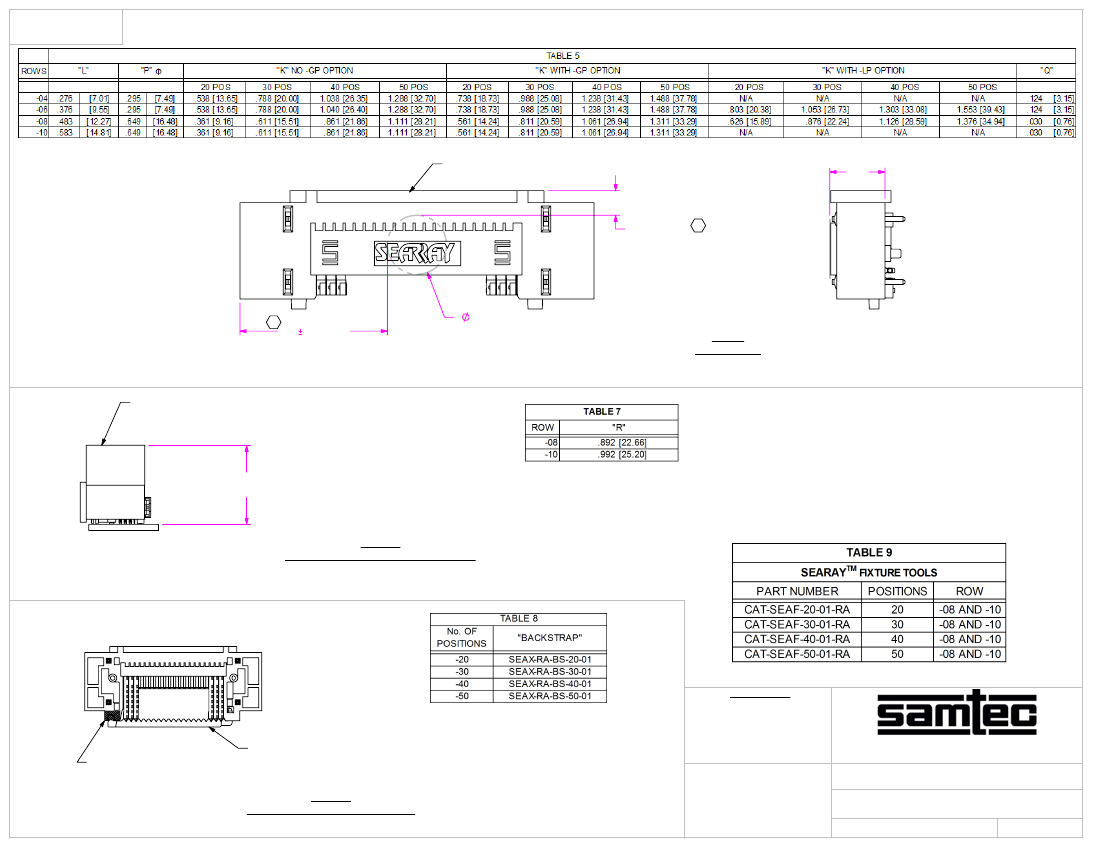

8. ON -08 & -10 ROW ASSEMBLIES, SEE FIG 10, SHEET 5 FOR CAT FIXTURE VIEW.

9. CHECK DIMENSION ON FIRST AND LAST ROW OF TAILS.

10. A 20~30°C TEMPERATURE DIFFERENCE MAY EXIST BETWEEN THIS HIGH-DENSITY COMPONENT AND THE BOARD

SURFACE DURING REFLOW. SAMTEC RECOMMENDS A THERMAL STUDY BE PERFORMED TO UNDERSTAND THE

TEMPERATURE GRADIENTS YOU MAY EXPERIENCE.

11. SOME RELAXATION/WARPING OF THE BACK STRAP IS ACCEPTABLE AFTER PROCESSING.

12. SEE SHEET 5 FOR PROCESSING INFORMATION.

13. VOID PATTERN MAY VARY BY ROW AND END OPTION.

(SEAF-20-01-X-04-X-RA-GP)

(SOME DETAIL OMITTED FOR CLARITY)

FIG 1

.034 0.86 REF

SEE NOTE 13

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP COLOR: BLACK

CONTACT: PHOS BRONZE .006 THICK

SEAF-RA ASSEMBLY

DWG. NO.

DESCRIPTION:

SEAF-XX-XX-X-XX-X-RA-XX-TR

12/15/2007

SHEET

BY:

C. PIERCE

F:\DWG\MISC\MKTG\SEAF-XX-XX-X-XX-X-RA-XX-TR-MKT.SLDDRW
