1672-24-1-0500-001-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 1672-24-1-0500-001-1-TS

1672-24-1-0500-001-1-TS: DescriptionHOOK-UP STRND 24AWG BLACK 100'; CategoryWire/cable; File Size270KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

1672-24-1-0500-001-1-TS Overview

HOOK-UP STRND 24AWG BLACK 100'

1672-24-1-0500-001-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	24 AWG
Number of wire strands	11/0.0063"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (PVC)
Sheath (insulation) diameter	0.094"（2.38mm）
Sheath (insulation) thickness	0.019"（0.48mm）
length	100.0'（30.5m）
Voltage	300V
Operating temperature	-10°C ~ 105°C
Casing color	black
grade	UL Type 1672
characteristic	Oil resistant

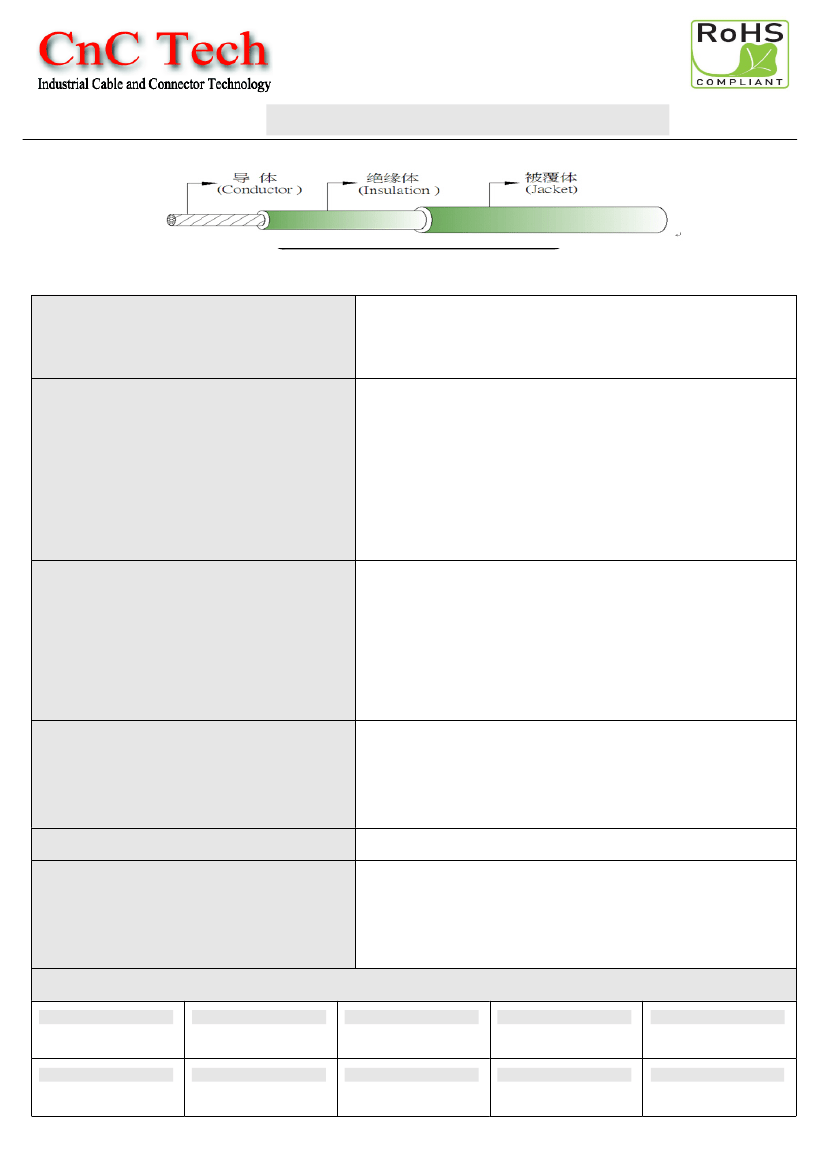

Preview

Download Datasheet

View All

P/N 1672-24-1-0500-0XX-1-TS

UL1672 PVC Wire 105°C 300V (24AWG)

Tinned Strands, copper conductor, 11/0.16mm strands.

CONSTRUCTION:

Overall Diameter=2.40+/-0.15mm

Insulation Thickness: 0.40mm

Jacket Thickness: 0.50mm

CERTIFICATION & APPROVALS:

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 1672 VW-1 105°C 300V E108485-S ( ) AWG REI HSING

CSA AWM IA/B 105°C 300V LL84687

( ) AWG FT1-F-LF

Passes UL VW-1 & CSA FT1 Vertical Flame Test.

Rated Temperature: 105

℃

~ -10

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: PVC Insulation

Maximum Conductor Resistance: 88.6ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

APPLICATIONS:

Suitable for Internal wiring of electric equipment

PHYSICAL

ELECTRICAL PROPERTIES:

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

1672-24-1-0500-001-1-TS

1672-24-1-0500-002-1-TS

1672-24-1-0500-003-1-TS

1672-24-1-0500-004-1-TS

1672-24-1-0500-005-1-TS

BLACK

1672-24-1-0500-006-1-TS

WHITE

1672-24-1-0500-007-1-TS

YELLOW

1672-24-1-0500-008-1-TS

RED

1672-24-1-0500-010-1-TS

BLUE

1672-24-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

1672-24-1-0500-001-1-TS Related Products

	1672-24-1-0500-001-1-TS	1672-24-1-0500-007-1-TS	1672-24-1-0500-005-1-TS	1672-24-1-0500-003-1-TS	1672-24-1-0500-008-1-TS	1672-24-1-0500-002-1-TS	1672-24-1-0500-004-1-TS	1672-24-1-0500-010-1-TS	1672-24-1-0500-006-1-TS	1672-24-1-0500-011-1-TS
Description	HOOK-UP STRND 24AWG BLACK 100'	HOOK-UP STRND 24AWG GREEN 100'	HOOK-UP STRND 24AWG BLUE 100'	HOOK-UP STRND 24AWG YELLOW 100'	HOOK-UP STRND 24AWG ORANGE 100'	HOOK-UP STRND 24AWG WHITE 100'	HOOK-UP STRND 24AWG RED 100'	HOOK-UP STRND 24AWG VIOLET 100'	HOOK-UP STRND 24AWG BROWN 100'	HOOK-UP STRND 24AWG GRN/YEL 100'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Number of wire strands	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)
Sheath (insulation) diameter	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）
Sheath (insulation) thickness	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）	0.019"（0.48mm）
length	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）	100.0'（30.5m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C
Casing color	black	green	blue	yellow	orange color	White	red	Purple	brown	green,yellow
grade	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672	UL Type 1672
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
