ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS
554 SERIES SOLID STATE, HALL EFFECT SWITCHES
MOMENTARY ACTION 4.5 VDC TO 16 VDC

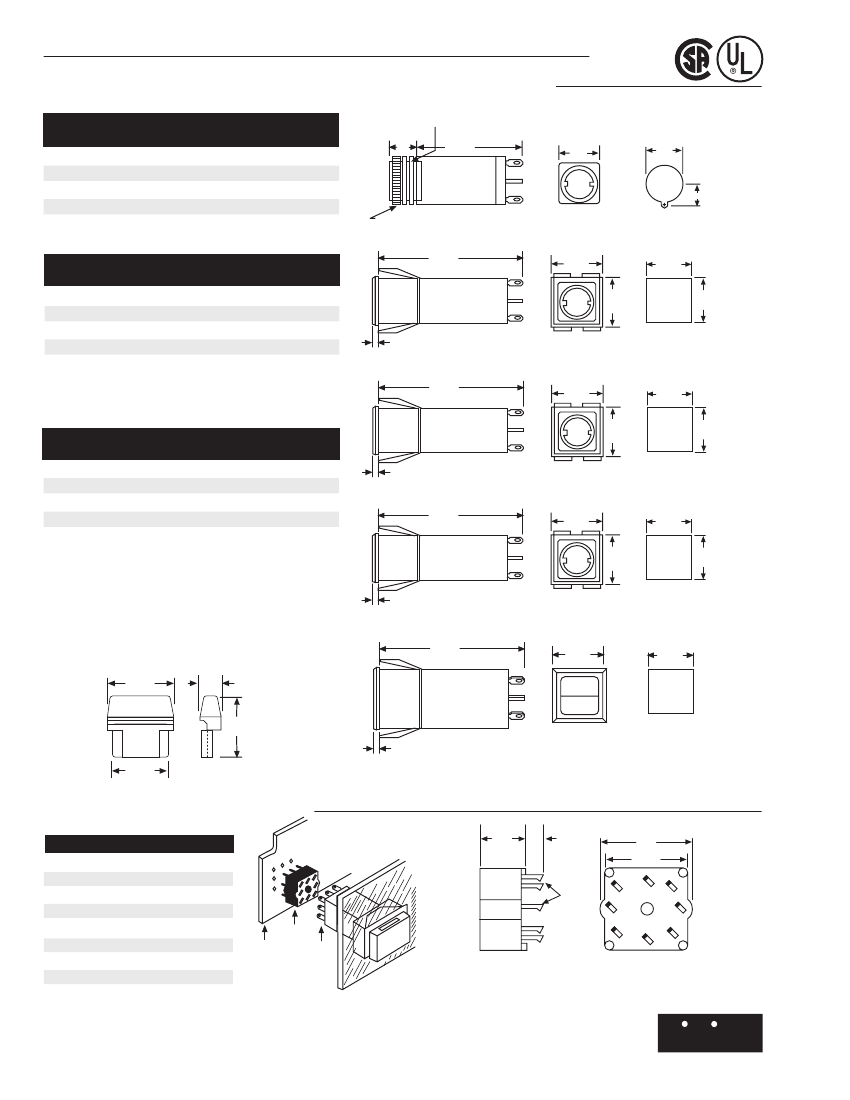

SIDE VIEW
12.70 [.500] 32 UNS - 2A THD.
PART NO.
554-7321
554-7321-211
554-7321-411
554-7321-511
ACCEPTS
CAP SIZE
ALL
5/8" SQ.
3/4" SQ.
3/4" X 1"
CONTACT
CIRCUIT
SPST N.O.
SPST N.O.
SPST N.O.
SPST N.O.
FRONT
VIEW
15.88
[.625]
SQ.
MOUNTING
HOLE
12.70
±.005
[.500±..13
FIG
1
2
3
4
6.78
[.267]
37.85
[1.490]
MAX
Uses:
T-1 3/4
MIDGET
FLANGE BASE
INCANDESCENT
LAMP
554 SERIES INDICATORS
PART NO.
554-0001
554-0001-211
554-0001-411
554-0001-511
554-4001-411
KNURLED FLANGE NUT 2.39 [.094]
X 16.51 [.658] MAX O.D.
52.83
[2.080]
MAX
6.73±.05
.265±.002
FIG 1
21.44
[.844]
19.18
[.755]
ACCEPTS
CAP SIZE
ALL
5/8" SQ.
3/4" SQ.
3/4" X 1"
DUAL LAMP
FIG
1
2
3
4
5
21.44
[.844]
19.18
[.755]
1.78
[.070]
52.83
[2.080]
MAX
FIG 2
24.61
[.969]
22.35
[.880]
Caps Ordered Separately, see Page 25
565 SERIES BARRIERS
PART NO.
565-0701
565-0711
565-0721
565-0731
DESCRIPTION
5/8" END BARRIER
5/8" CENTER BARRIER
3/4" END BARRIER
3/4" CENTER BARRIER
FOR USE WITH
BEZEL SUFFIX
-211 OR -311
-211 OR -311
-411 OR -511
-411 OR -511
1.78
[.070]
52.83
[2.080]
MAX
24.61
[.969]
22.35
[.880]
FIG 3
30.45
[1.199]
28.19
[1.110]
GENERAL INFORMATION:
Barriers may be used with Snap-In Bezel Mounting Switches to
provide safer separation between switch caps, thereby minimizing
accidential actuation of the wrong switch. "End" and "center" barrier
are used if two or more switches are mounted in common hole cutout.
For individual switch mounting, two end barriers are used.
INSERTION:
The barriers are held to the side of the switch by hand and inserted
as one unit. The end or side barrier becomes captured upon insertion
into a panel and appear to be one complete assembly.
21.44
[.844]
3.96
[.156]
24.36
[.959]
22.10
[.870]
1.78
[.070]
52.83
[2.080]
MAX
FIG 4
24.61
[.969]
SQ.
22.35±.13
[.880±.005]
SQ.
13.97
[.550]
18.97
[.747]
565-0701 SHOWN
1.78
[.070]
FIG 5
501 SERIES PCB SOCKETS
WAVE SOLDERABLE PCB SOCKETS FOR 554 SWITCHES
PART NO.
501-1001
501-1001
501-2001
501-1001
501-2001
501-1002
501-2002
501-1002
FOR SWITCH
554-00
554-11
554-12
554-21
554-22
554-31
554-32
554-73
8.84
[.348
MAX]
3.43
[.136]
17.45
[.687]
15.88
[.625] SQ.
PC
TERMINALS
SOCKET
PC BOARD
554
SWITCH
PANEL
Material: All plastic switch components made from 94V-0 plastic
Neon and incandescent lamp information on Pages 35 and 36.
Dimensions in mm [inches]
