Part Number

Search

5452253

Description
TERM BLOCK PLUG 22POS STR 5.08MM
CategoryThe connector
File Size95KB,5 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452253 Online Shopping

Suppliers Part Number Price MOQ In stock
5452253 - - View Buy Now

5452253 Overview

TERM BLOCK PLUG 22POS STR 5.08MM

5452253 Parametric

Parameter NameAttribute value
typeplug, female socket
Number of pins22
Number of pins per level22
Number of levels1
spacing0.200"(5.08mm)
Needle seat direction-
Plug entrance180°
Terminal typescrews
Installation typefree hanging
Current - IEC12A
Voltage - IEC320V
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG12-30 AWG
Wire gauge or range - mm²-
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristicFixed lock (non-wire side)
Material flammability rating-
Intrusion protection-
Screw size-
Torque - Screws0.4-0.5 Nm(3.5-4.4 Lb-In)
Wire stripping length7mm
Contact material-
Shell material-
Contact tail length-
Insulation height0.591"(15.00mm)
https://www.phoenixcontact.com/us/products/5452253
Printed-circuit board connector - BCP-508-22 BK - 5452253
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 22, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin

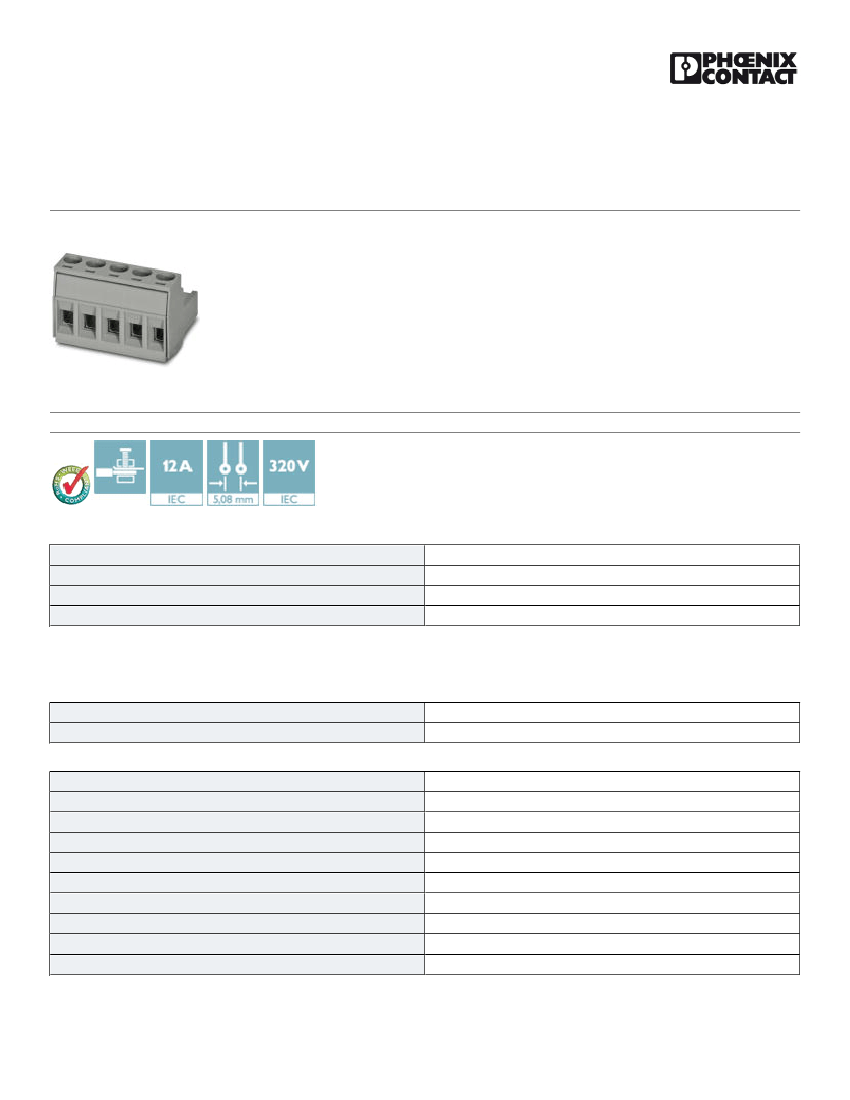

The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
China
Technical data

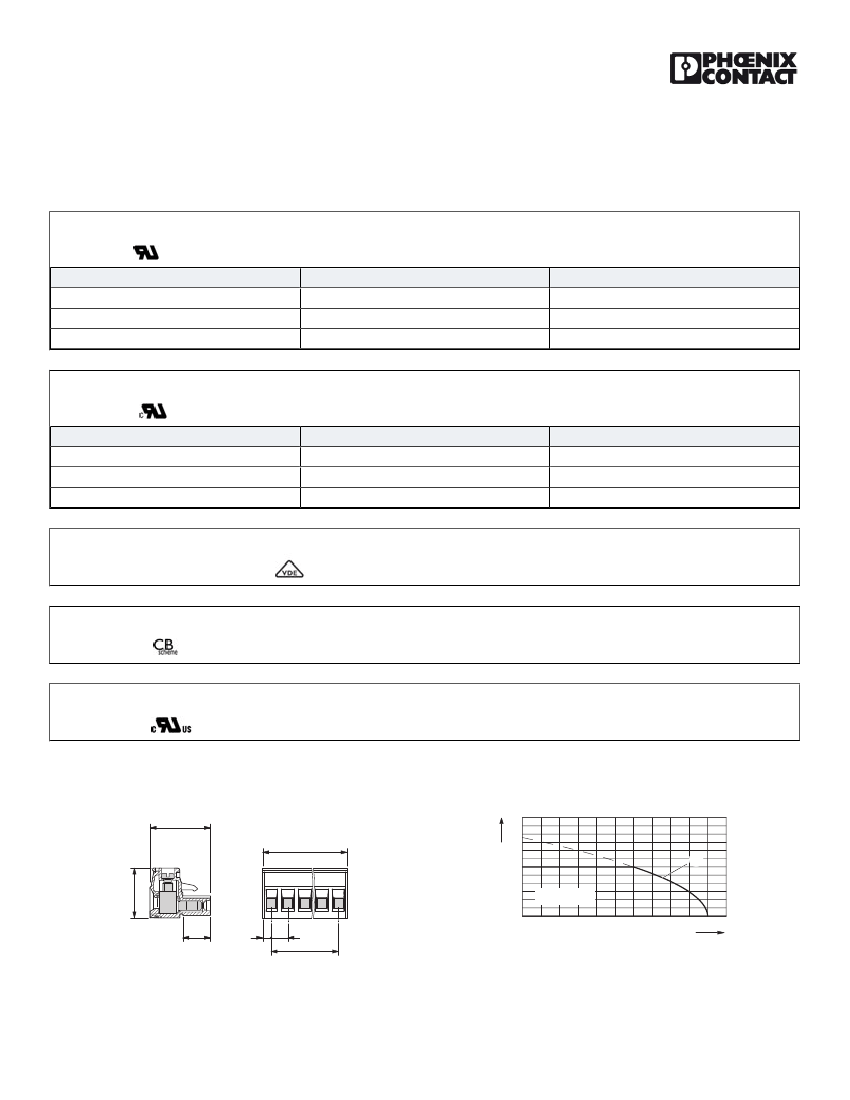

Dimensions
Pitch
Dimension a
5.08 mm
106.68 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
BCP
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
2.5 mm²
04/29/2016   Page 1 / 5
