3266-18-1-0500-003-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3266-18-1-0500-003-1-TS

3266-18-1-0500-003-1-TS: DescriptionHOOK-UP STRND 18AWG 300V YEL 50'; CategoryWire/cable; File Size205KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3266-18-1-0500-003-1-TS Overview

HOOK-UP STRND 18AWG 300V YEL 50'

3266-18-1-0500-003-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	18 AWG
Number of wire strands	34/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyethylene (XLPE), irradiated
Sheath (insulation) diameter	0.083"（2.11mm）
Sheath (insulation) thickness	0.015"（0.38mm）
length	50.00'（15.24m）
Voltage	300V
Operating temperature	-10°C ~ 125°C
Casing color	yellow
grade	UL type 3266
characteristic	Oil resistant

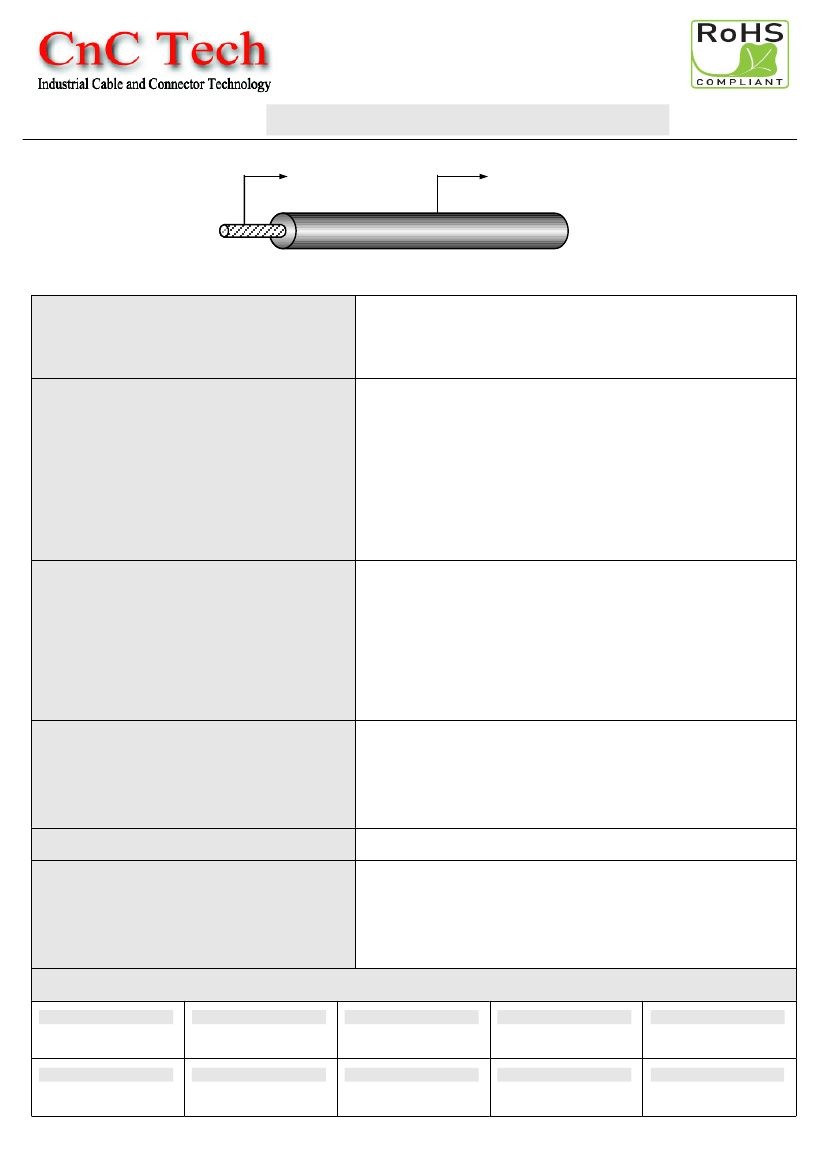

Preview

Download Datasheet

View All

P/N 3266-18-1-0500-0XX-1-TS

Conductor: Tinned Strands

(Conductor: Tinned strands)

Insulation: XLPE

(Insulation: Silicone Rubber)

UL3266 XLPE Wire 125°C 300V (18AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 34/0.180mm strands.

Overall Diameter=2.10+/-0.10mm

Insulation Thickness: 0.38mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 3266 105°C 300V E108485-S ( )AWG -H- REI HSING

CSA AWM I A 125° 300V LL84687 ()AWG FT2 HF

CERTIFICATION & APPROVALS:

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 125

℃

~ -10

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: XLPE Insulation

Maximum Conductor Resistance: 24.4 ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

APPLICATIONS:

XLPE Wire, pass FT2 flame test

Halogen Free (Cl, Br </=900ppm each, CL+BL </=1500 ppm in total)

Suitable for internal wires of household appliance,

headlamp, mechanical etc.

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3266-18-1-0500-001-1-TS

3266-18-1-0500-002-1-TS

3266-18-1-0500-003-1-TS

3266-18-1-0500-004-1-TS

3266-18-1-0500-005-1-TS

BLACK

3266-18-1-0500-006-1-TS

WHITE

3266-18-1-0500-007-1-TS

YELLOW

3266-18-1-0500-008-1-TS

RED

3266-18-1-0500-010-1-TS

BLUE

3266-18-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3266-18-1-0500-003-1-TS Related Products

	3266-18-1-0500-003-1-TS	3266-18-1-0500-004-1-TS	3266-18-1-0500-002-1-TS	3266-18-1-0500-007-1-TS	3266-18-1-0500-010-1-TS	3266-18-1-0500-001-1-TS	3266-18-1-0500-005-1-TS	3266-18-1-0500-006-1-TS	3266-18-1-0500-008-1-TS	3266-18-1-0500-011-1-TS
Description	HOOK-UP STRND 18AWG 300V YEL 50'	HOOK-UP STRND 18AWG 300V RED 50'	HOOK-UP STRND 18AWG 300V WHT 50'	HOOK-UP STRND 18AWG 300V GRN 50'	HOOK-UP STRND 18AWG VIOLET 50'	HOOK-UP STRND 18AWG 300V BLK 50'	HOOK-UP STRND 18AWG 300V BLU 50'	HOOK-UP STRND 18AWG 300V BRN 50'	HOOK-UP STRND 18AWG 300V ORG 50'	HOOK-UP STRND 18AWG GRN/YEL 50'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Number of wire strands	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated	Polyethylene (XLPE), irradiated
Sheath (insulation) diameter	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）	0.083"（2.11mm）
Sheath (insulation) thickness	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）
length	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C	-10°C ~ 125°C
Casing color	yellow	red	White	green	Purple	black	blue	brown	orange color	green,yellow
grade	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266	UL type 3266
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
