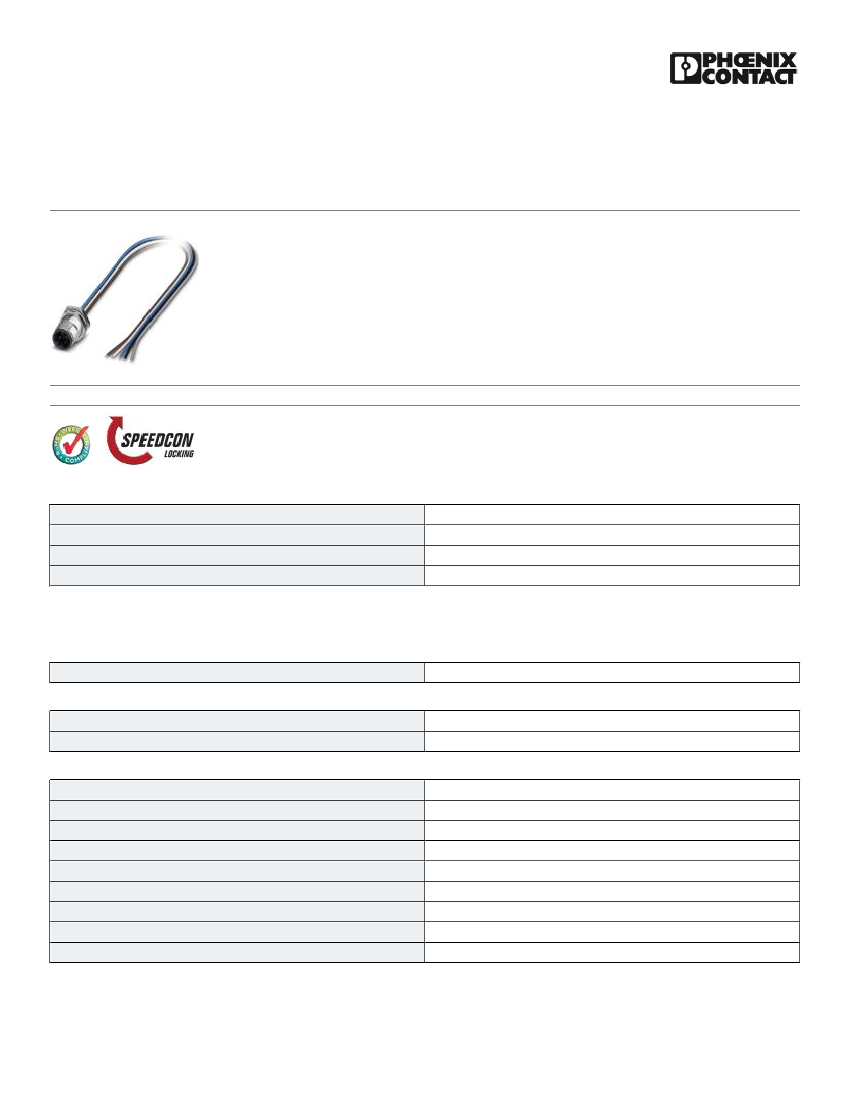

Panel feed-through - SACC-DSI-MSB-5CON-M12/0,5 SCO - 1551891
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/actuator flush-type plug, 5-pos., M12 SPEEDCON, B-coded, rear/screw mounting with M12 thread, with
0.5 m TPE litz wire, 5 x 0.34 mm²
Packing unit
11
19.6 GRM
85444290
Germany
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Length of cable
0.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Surge voltage category
4A
60 V
5
≤ 3 mΩ
≥ 100 MΩ
B - inverse
M12 connector IEC 61076-2-101
No
II
29.10.2013 Page 1 / 5
https://www.phoenixcontact.com/us/products/1551891
Panel feed-through - SACC-DSI-MSB-5CON-M12/0,5 SCO - 1551891
Technical data
General
Pollution degree
Connection method
Mounting type
3
Individual wires
Rear mounting M12 x 1 With locking nut
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material, knurls
Sealing material
V0
CuZn
Au
PA 66
Zinc die-cast, nickel-plated
NBR
Cable
Cable type
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Ambient temperature (operation)
TPE litz wire
0.34 mm²
22
7x 0.25 mm
1.2 mm ±0.07 mm
0.21 mm
Black, brown,blue, white, gray
TPE
Tin-plated Cu litz wires
≥ 20 MΩ*km
≤ 57.6 mΩ/m
300 V
2000 V AC
-25 °C ... 85 °C (cable, fixed installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250313
27250313
27143423
27143423
27143423
27449001
27449001
29.10.2013 Page 2 / 5
https://www.phoenixcontact.com/us/products/1551891
Panel feed-through - SACC-DSI-MSB-5CON-M12/0,5 SCO - 1551891
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC002061
EC002062
EC002062
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
Approvals
Approvals
Approvals
UL Recognized / GOST / GOST
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-20
4A
60 V
GOST
29.10.2013 Page 3 / 5
https://www.phoenixcontact.com/us/products/1551891
Panel feed-through - SACC-DSI-MSB-5CON-M12/0,5 SCO - 1551891
Approvals
GOST
Drawings
Dimensioned drawing
Dimensioned drawing
max.4,0
M12x1
Housing cutout for M12 fastening thread, mounting panel with thread
11
+0,1
Housing cutout for M12 fastening thread, mounting panel with feed-
through hole (alternative with surface as protection against rotation)
Schematic diagram
4
5
Dimensioned drawing
20
500
2,5
2,8
3
Ø12,2
+0,1
1
2
Pin assignment M12 male connector, 5-pos., B-coded, male side
15
4,5
14
M12 flush-type connector
Circuit diagram
1
2
4
3
5
BN
WH
BK
BU
GY
Contact assignment of the M12 plug and the M12 socket
M12x1
29.10.2013 Page 4 / 5
