612-13-422-41-002100 datasheet, PDF

Datasheet> All Categories > socket> 612-13-422-41-002100

612-13-422-41-002100: DescriptionIC Socket, DIP22, 22 Contact(s), ROHS COMPLIANT; Categorysocket; File Size201KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

612-13-422-41-002100 Overview

IC Socket, DIP22, 22 Contact(s), ROHS COMPLIANT

612-13-422-41-002100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP22
JESD-609 code	e4
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

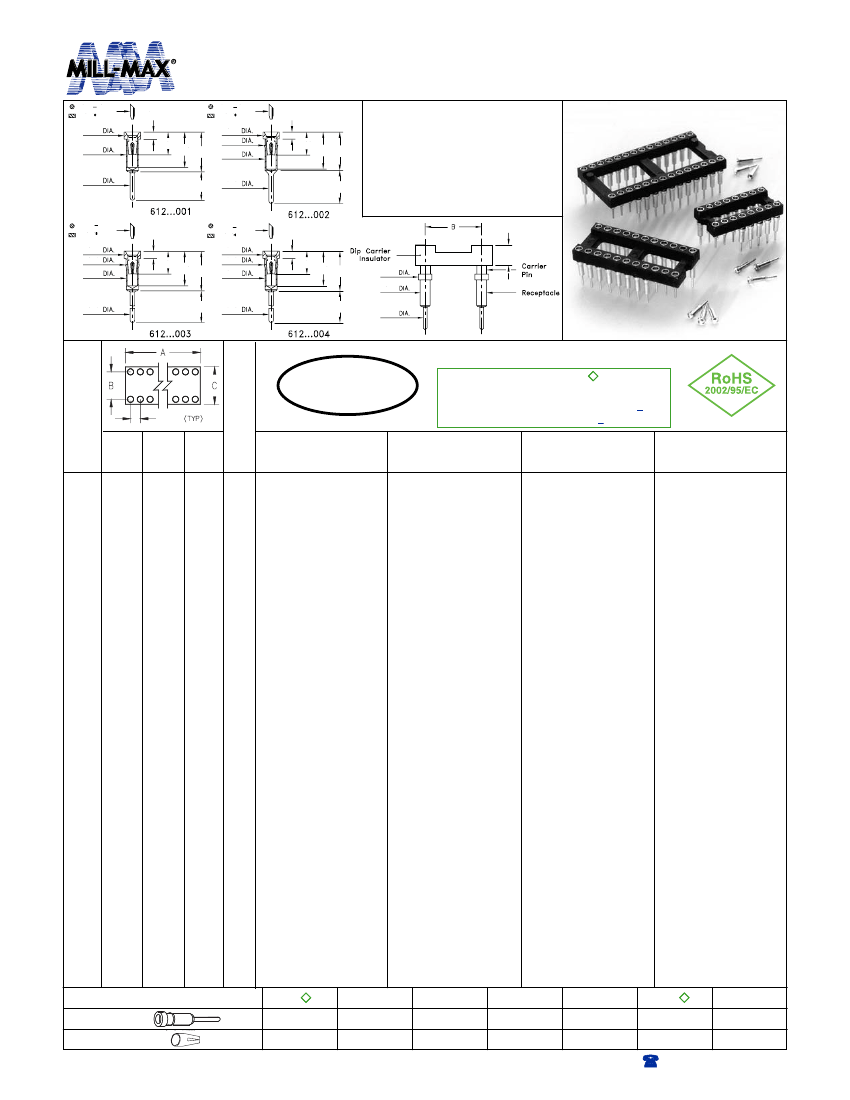

DUAL-IN-LINE SOCKETS

Carrier Type

Solder Tail

0,38 0,64

0,25 0,46

1,83

1,35

2,62

3,81 4,39

0,79

0,38 0,64

0,25 0,46

1,80

1,50

1,35

0,51

0,79

2,54

Series 612

4,09 4,24

0,51

3,15

3,66

•

Hi-Rel, 4-finger #30 clip

rated at 3 amps. See page

208 for details.

•

Uses MM 0132, 0135, 0255

or 8855 receptacles. See

pages 134 & 140 for details.

0,38 0,64

0,25 0,46

1,83

1,52

1,35

0,79

2,62

0,38 0,64

0,25 0,46

1,83

1,52

1,35

0,79

2,62

2,79

3,81 4,39

1,83

1,35

3,81 4,39

0,51

4,65

0,51

6,93

0,51

Total number

of pins

Ordering Information

2,54

Quantity

per tube

XX=Plating Code

See Below

Tail Length = 3,15

(0,56 Min. Mounting Hole)

For RoHS compliance, select plating code.

For the all gold option (XX=13) also change

part number from 612-XX-XXX-41-00X000

to 612-13-XXX-41-00X100

Tail Length = 4,65

(0,56 Min. Mounting hole)

12,6

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,5

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

63,5

66,0

81,2

5,08

7,62

10,16

15,24

22,86

7,6

Tail Length = 3,66

(0,56 Min. Mounting hole)

Tail Length = 6,93

(0,56 Min. Mounting hole)

612-XX-210-41-001000 612-XX-210-41-002000 612-XX-210-41-003000 612-XX-210-41-004000

612-XX-304-41-001000

612-XX-306-41-001000

612-XX-308-41-001000

612-XX-310-41-001000

612-XX-314-41-001000

612-XX-316-41-001000

612-XX-318-41-001000

612-XX-320-41-001000

612-XX-322-41-001000

612-XX-324-41-001000

612-XX-328-41-001000

612-XX-420-41-001000

612-XX-422-41-001000

612-XX-424-41-001000

612-XX-428-41-001000

612-XX-432-41-001000

612-XX-624-41-001000

612-XX-628-41-001000

612-XX-632-41-001000

612-XX-636-41-001000

612-XX-640-41-001000

612-XX-642-41-001000

612-XX-648-41-001000

612-XX-650-41-001000

612-XX-652-41-001000

612-XX-304-41-002000

612-XX-306-41-002000

612-XX-308-41-002000

612-XX-310-41-002000

612-XX-314-41-002000

612-XX-316-41-002000

612-XX-318-41-002000

612-XX-320-41-002000

612-XX-322-41-002000

612-XX-324-41-002000

612-XX-328-41-002000

612-XX-420-41-002000

612-XX-422-41-002000

612-XX-424-41-002000

612-XX-428-41-002000

612-XX-432-41-002000

612-XX-624-41-002000

612-XX-628-41-002000

612-XX-632-41-002000

612-XX-636-41-002000

612-XX-640-41-002000

612-XX-642-41-002000

612-XX-648-41-002000

612-XX-650-41-002000

612-XX-652-41-002000

612-XX-304-41-003000

612-XX-306-41-003000

612-XX-308-41-003000

612-XX-310-41-003000

612-XX-314-41-003000

612-XX-316-41-003000

612-XX-318-41-003000

612-XX-320-41-003000

612-XX-322-41-003000

612-XX-324-41-003000

612-XX-328-41-003000

612-XX-420-41-003000

612-XX-422-41-003000

612-XX-424-41-003000

612-XX-428-41-003000

612-XX-432-41-003000

612-XX-624-41-003000

612-XX-628-41-003000

612-XX-632-41-003000

612-XX-636-41-003000

612-XX-640-41-003000

612-XX-642-41-003000

612-XX-648-41-003000

612-XX-650-41-003000

612-XX-652-41-003000

612-XX-304-41-004000

612-XX-306-41-004000

612-XX-308-41-004000

612-XX-310-41-004000

612-XX-314-41-004000

612-XX-316-41-004000

612-XX-318-41-004000

612-XX-320-41-004000

612-XX-322-41-004000

612-XX-324-41-004000

612-XX-328-41-004000

612-XX-420-41-004000

612-XX-422-41-004000

612-XX-424-41-004000

612-XX-428-41-004000

612-XX-432-41-004000

612-XX-624-41-004000

612-XX-628-41-004000

612-XX-632-41-004000

612-XX-636-41-004000

612-XX-640-41-004000

612-XX-642-41-004000

612-XX-648-41-004000

612-XX-650-41-004000

612-XX-652-41-004000

10,1 102

10,1 68

10,1 50

10,1 40

10,1 28

10,1 25

10,1 22

10,1 20

10,1 18

10,1 16

10,1 14

12,7

17,7

25,3

612-XX-950-41-001000 612-XX-950-41-002000 612-XX-950-41-003000 612-XX-950-41-004000

612-XX-952-41-001000 612-XX-952-41-002000 612-XX-952-41-003000 612-XX-952-41-004000

612-XX-964-41-001000 612-XX-964-41-002000 612-XX-964-41-003000 612-XX-964-41-004000

0,25µm Au

0,76µm Au

” Au

0,76µm Au

200

” Sn/Pb

200

” Sn

” Au

5,08µm Sn

0,76µm Au

200

”Sn

200

” Sn

200

” Sn/Pb

5,08µm Sn/Pb

200

”Sn/Pb

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
