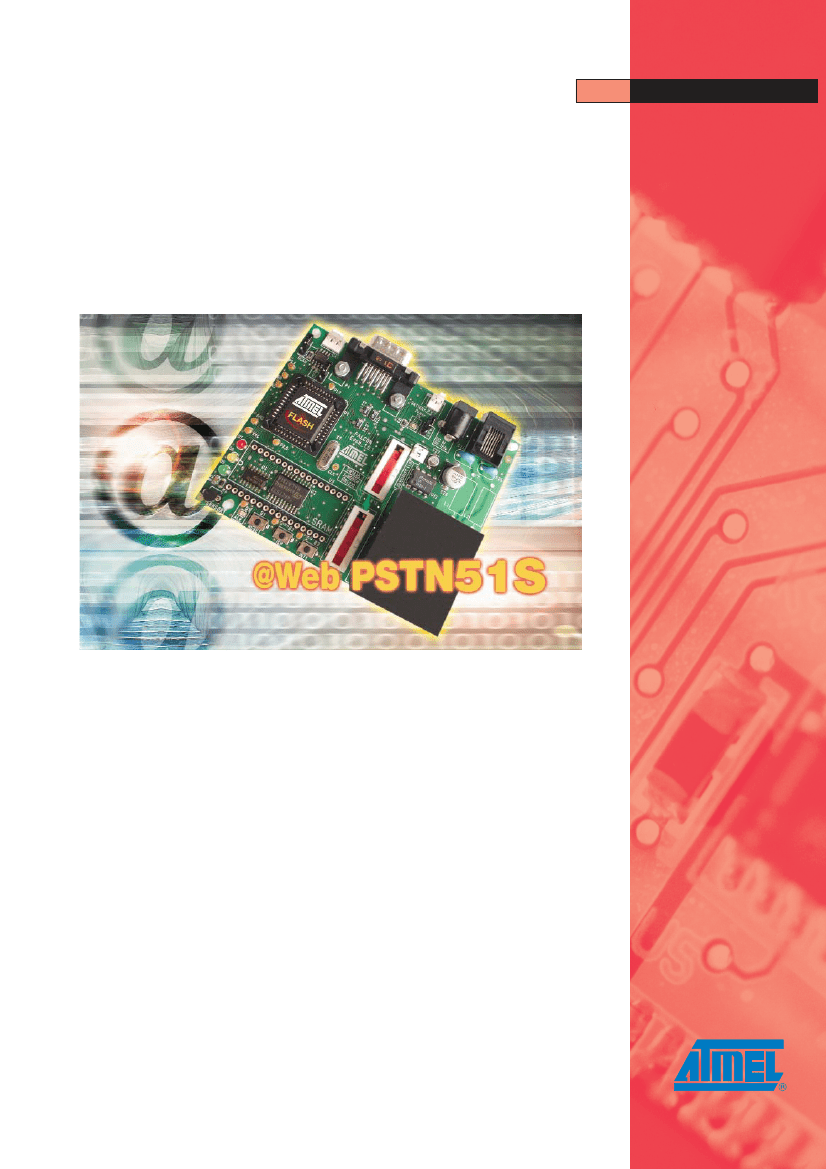

Atmel has developed the @Web PSTN51S TCP/IP protocol stack for its C51 Flash
Microcontrollers to enable easy and cost-effective implementation of any Internet services
such as HTTP, FTP or SMTP to run on
customer applications like data storage,
e-mail services and on-line software
updates.
Thanks to the optimized size of the TCP/IP
stack, it can be implemented together with
the application program, avoiding the use
of expensive external modules.
Sensor
LED
Power Supply
External
Power
T89C51CC01
Memory
Phone
Speaker
Human
CAN
Full UART
Modem
CAN Network
FLIP, Modem, PC
Internet Service
Provider
Product Features
Internet Services
-
HTTP server enables direct Web browser
access
-
FTP server to download files into on-chip
MCU Flash memory
-
FTP client for uploading files from anywhere
on the Internet
-
SMTP support for sending e-mail
Temperature ˚C
Human
Internet Protocols
-
PPP, LCP, IPCP, PAP, SLIP, TCP/IP, UDP,
ICMP protocols
-
Low Level Dial-up or direct connectivity
interface drivers
Communication Ports
Direct connectivity through RS232
-
Baudrate up to 115 Kbits/sec
(or 38400 bps at 11.059 MHz)
-
DB9 connector
-
Null or external modem connection type
V.34bis Analog Modem
–
PSTN Line Connection
-
Cermetek Modem chip (Hayes)
-
Speed up to 33.6-Kbit/sec
-
Toll-free call back system
-
Standard RJ-11C Jack
CAN 2.0B Interface (with T89C51CC01 only)
-
On-board CAN transceiver
-
1-Mbit/sec transfer rate
-
3-pin connector
Application Microcontroller
32-Kbyte C51 on-chip Flash MCUs:
-
T89C51AC2: with on-chip A/D converter
-
T89C51CC01: with on-chip CAN bus and A/D
3V or 5V In-System Programming (ISP)
1-Mbit External Optional RAM
0°C - 70°C Temperature Sensor
©Atmel Corporation, 2003
Atmel Corporation makes no warranty for
the use of its products, other than those
expressly contained in the Company’s
standard warranty which is detailed in
Atmel’s Terms and Conditions located on
the Company’s web site. The Company
assumes no responsibility for any errors
which may appear in this document,
reserves the right to change devices or
specifications detailed herein at any time
without notice, and does not make any
commitment to update the information
contained herein. No licenses to patents or
other intellectual property of Atmel are
granted by the Company in connection
with the sale of Atmel products, expressly
or by implication. Atmel’s products are not
authorized for use as critical components
in life support devices or systems.
Atmel
®
is a registered trademark of Atmel.
Other terms and product names may be
trademarks of others.
Ref.: 4002B-8051-02/03/10M
@Web Evaluation Kit Software
@Web TCP/IP Stack Library for Keil V 6.20C
FLIP Software (FLexible In-system Programming)
Quick Start Examples
Demonstration Software Source Code
User Guide and Application Notes
@Web Flash Configuration Monitor
-
Hayes commands and ISP dial string
-
ISP login and password
-
e-mail address
-
IP address for the SMTP server
Cables and Power Supply
Null-modem Cable
9V Battery
9V - 12V Power Supply Connector (no supply
unit included)
Kits Part Numbers
ATWebEVK-01
(including T89C51AC2)
ATWebEVK-02
(including T89C51CC01)
Ordering Information
Two versions of the kit are available:
