52559-3692 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 52559-3692

52559-3692: DescriptionCONN FFC VERT 36POS 0.50MM SMD; CategoryThe connector; File Size442KB，6 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

52559-3692 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52559-3692	-	-	View	Buy Now

52559-3692 Overview

CONN FFC VERT 36POS 0.50MM SMD

52559-3692 Parametric

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	surface mount
Connector/contact type	Contact, vertical, 1 side
Number of pins	36
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.154"（3.90mm）
Lock function	slide lock
Cable end type	straight, tapered
Contact material	Phosphor bronze
Contact plating	Tin - Lead
Shell material	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)
characteristic	Zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	118.1µin（3.00µm）
Shell color	-
Actuator color	-
Number of patches	-

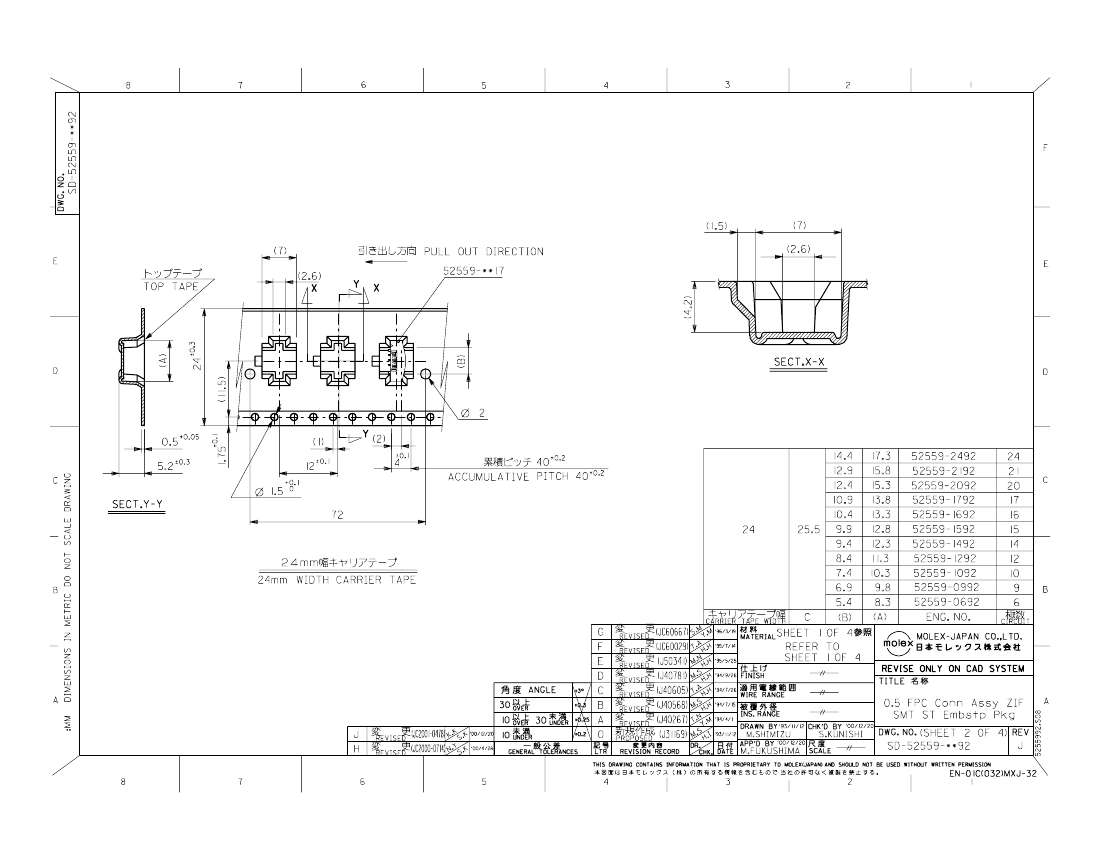

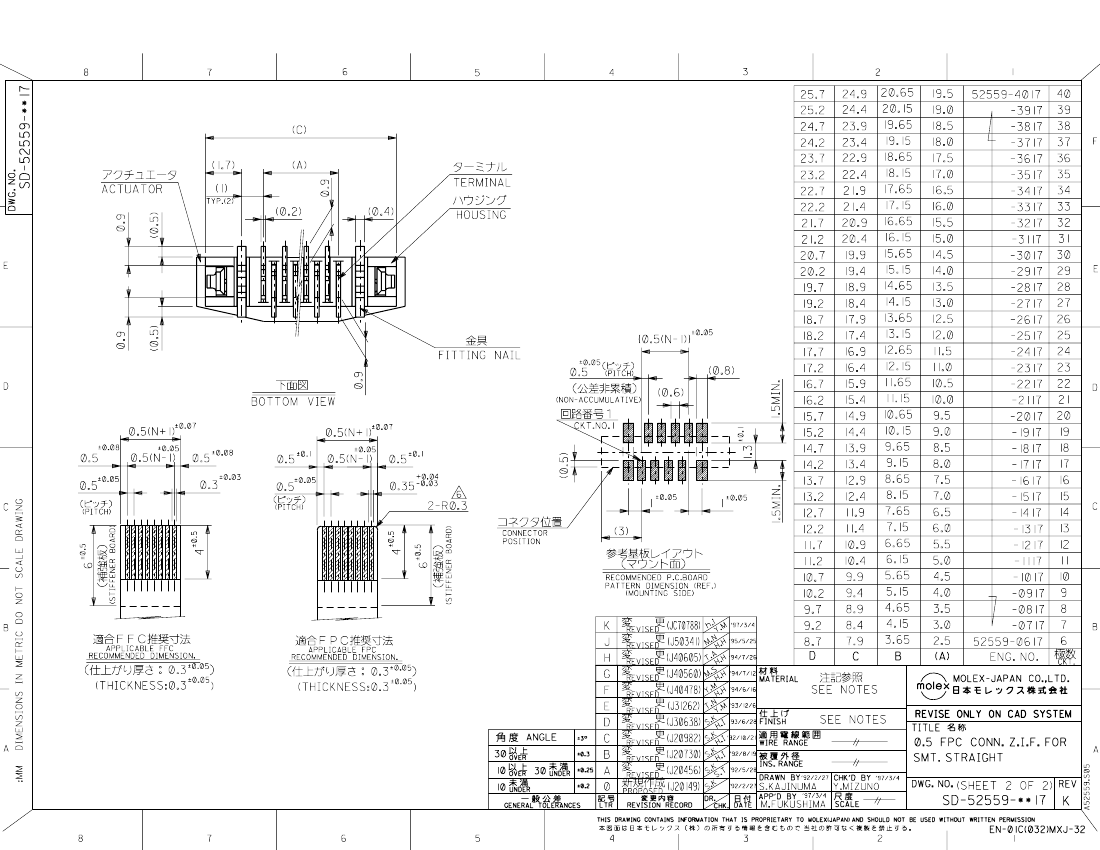

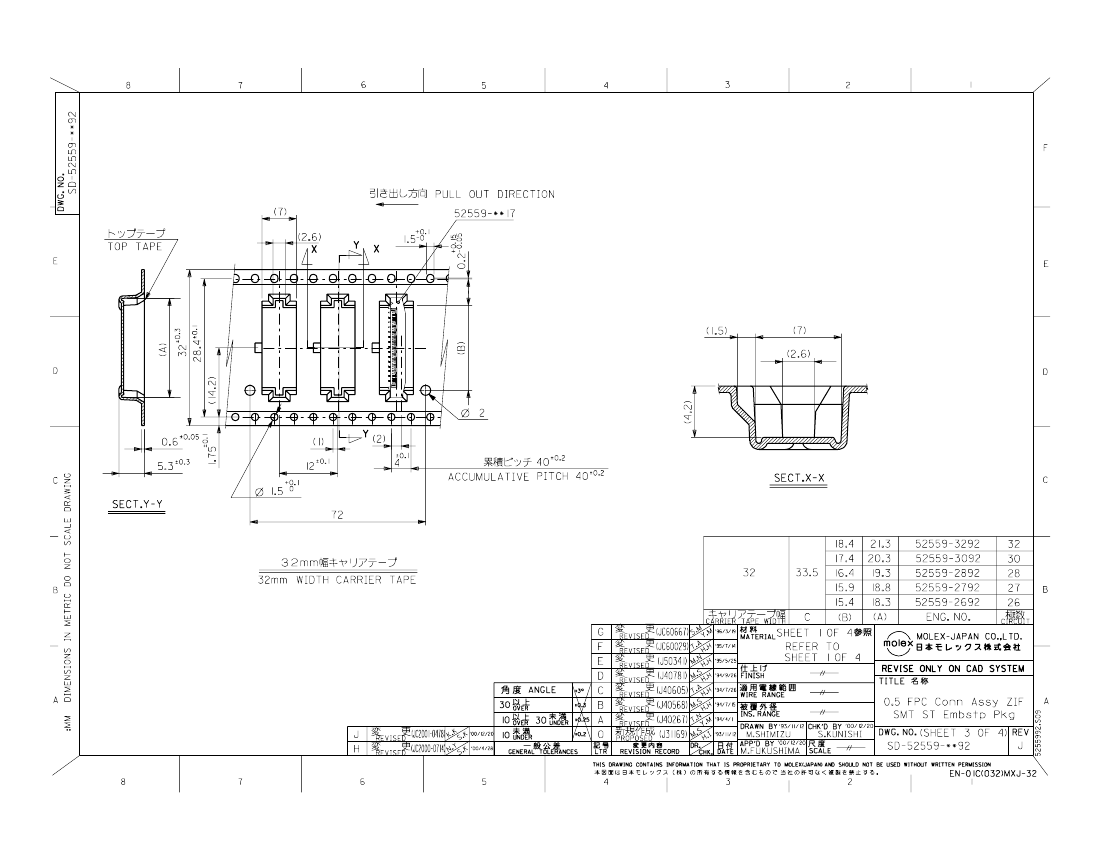

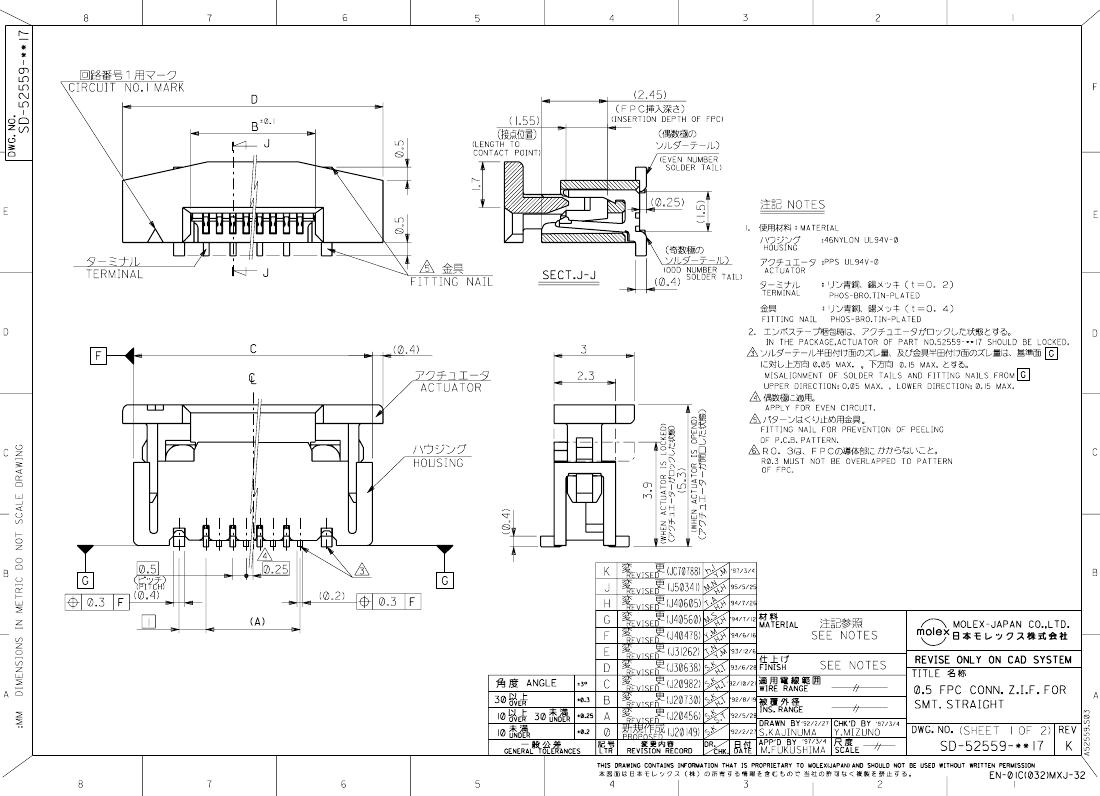

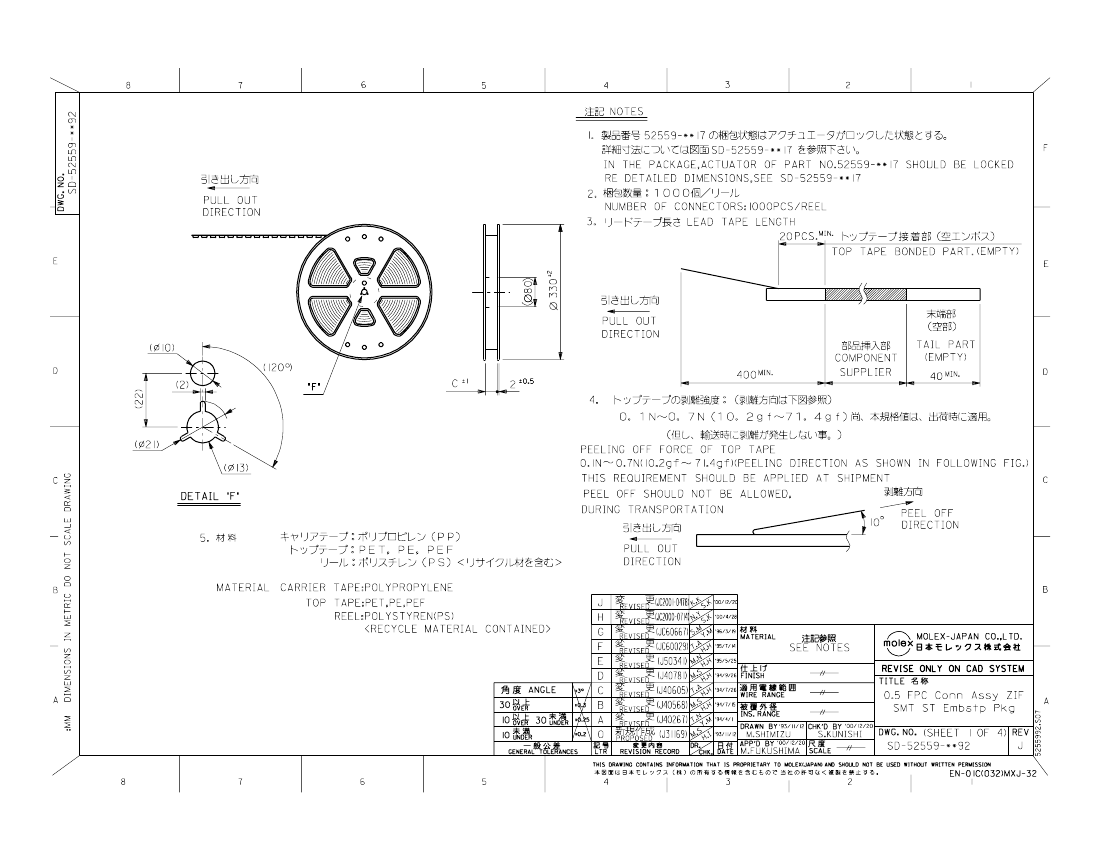

Preview

Download Datasheet

View All

52559-3692 Related Products

	52559-3692	52559-1792	52559-2892	52559-2092	52559-2492
Description	CONN FFC VERT 36POS 0.50MM SMD	CONN FFC VERT 17POS 0.50MM SMD	CONN FFC VERT 28POS 0.50MM SMD	CONN FFC VERT 20POS 0.50MM SMD	CONN FFC VERT 24POS 0.50MM SMD
Flat flexible type	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount
Connector/contact type	Contact, vertical, 1 side	Contact, vertical, 1 side	Contact, vertical, 1 side	Contact, vertical, 1 side	Contact, vertical, 1 side
Number of pins	36	17	28	20	24
spacing	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）
Termination	welding	welding	welding	welding	welding
FFC, FCB thickness	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm
board height	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）	0.154"（3.90mm）
Lock function	slide lock	slide lock	slide lock	slide lock	slide lock
Cable end type	straight, tapered	straight, tapered	straight, tapered	straight, tapered	straight, tapered
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead
Shell material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)
characteristic	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)
Rated voltage	50V	50V	50V	50V	50V
Operating temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.5A	0.5A	0.5A	0.5A	0.5A
Contact plating thickness	118.1µin（3.00µm）	118.1µin（3.00µm）	118.1µin（3.00µm）	118.1µin（3.00µm）	118.1µin（3.00µm）
