52437-3091 datasheet, PDF - EEWORLD Datasheet

52437-3091: DescriptionCONN FFC BOTTOM 30POS 0.50MM R/A; CategoryThe connector; File Size433KB，5 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

52437-3091 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52437-3091	-	-	View	Buy Now

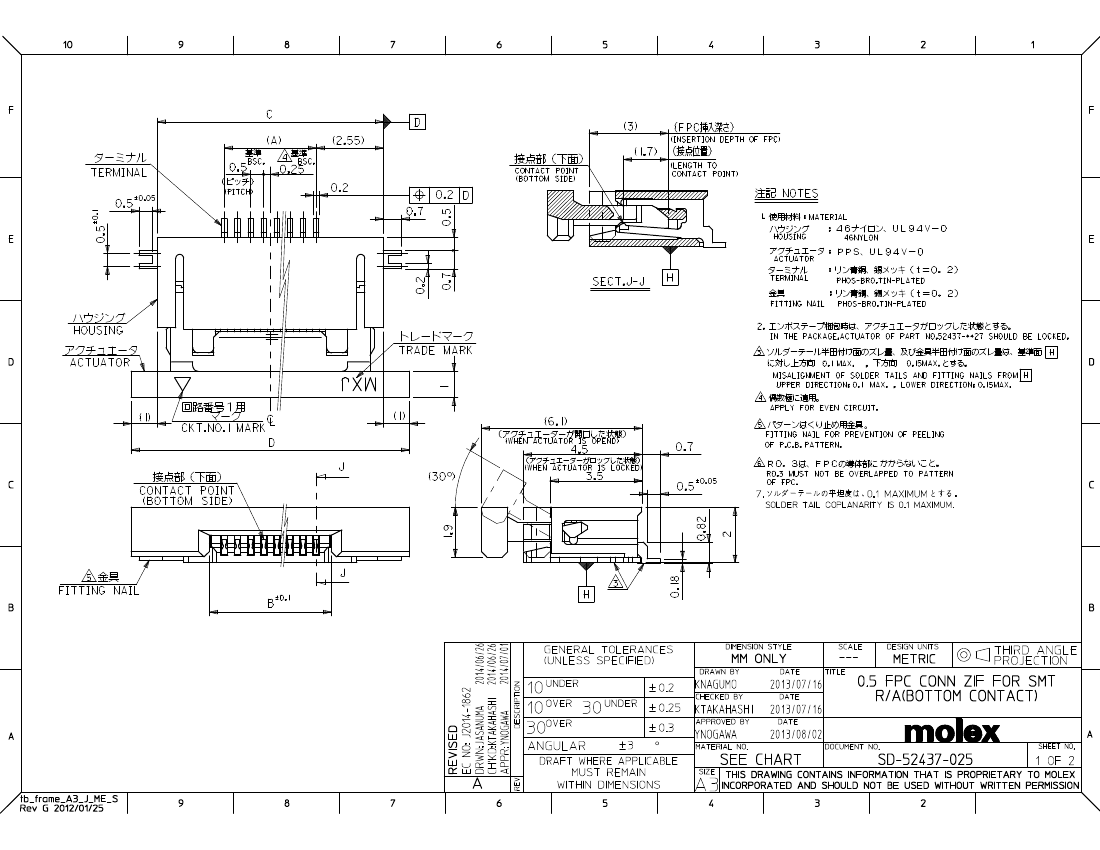

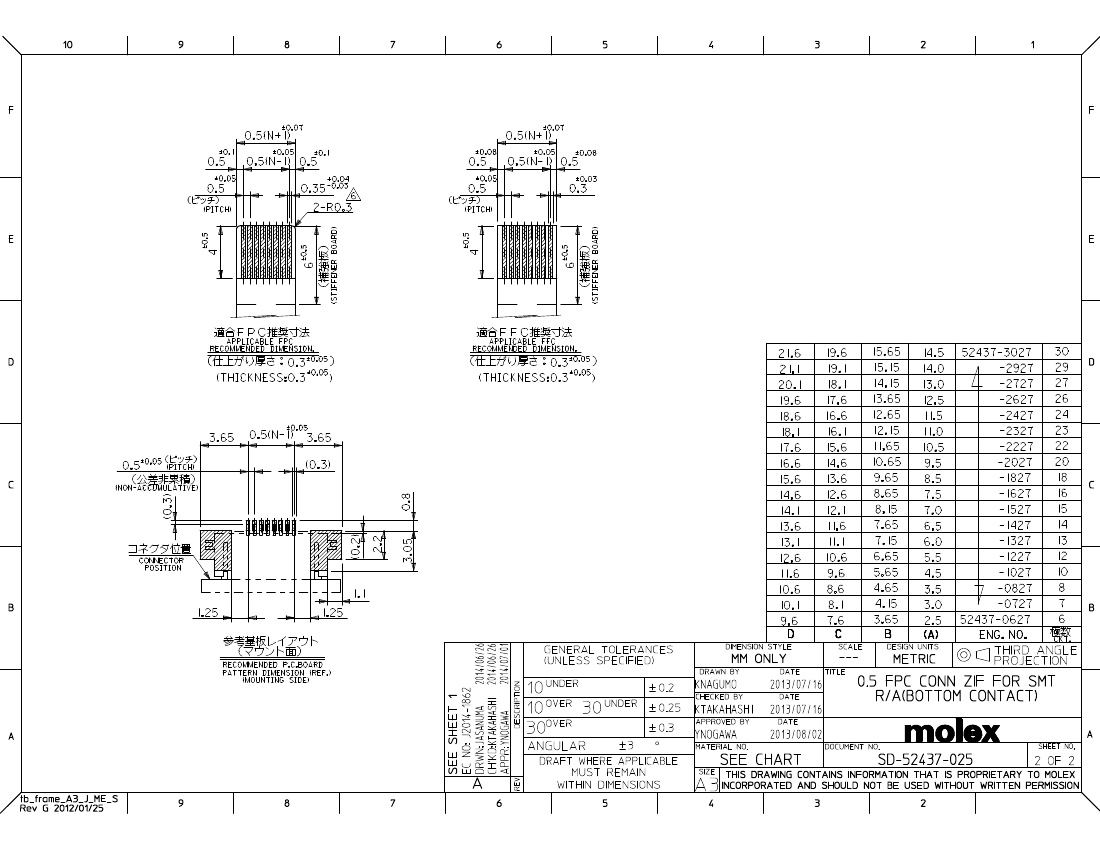

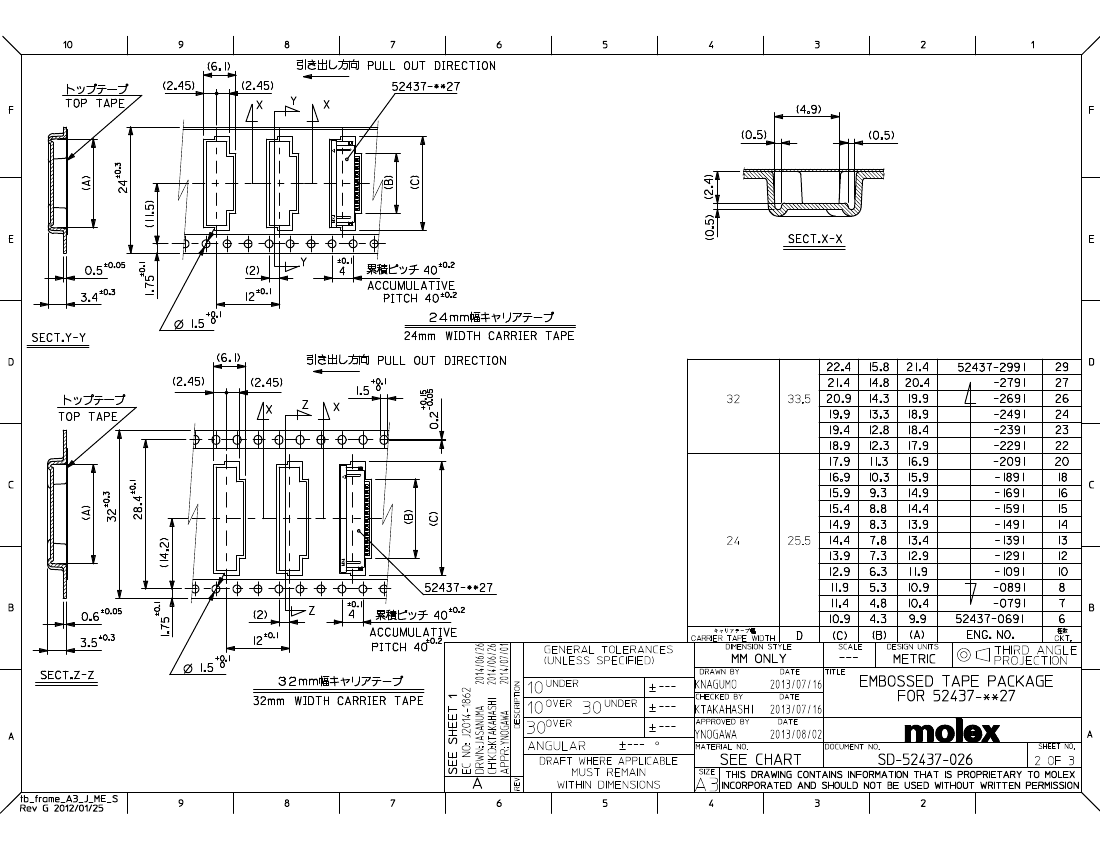

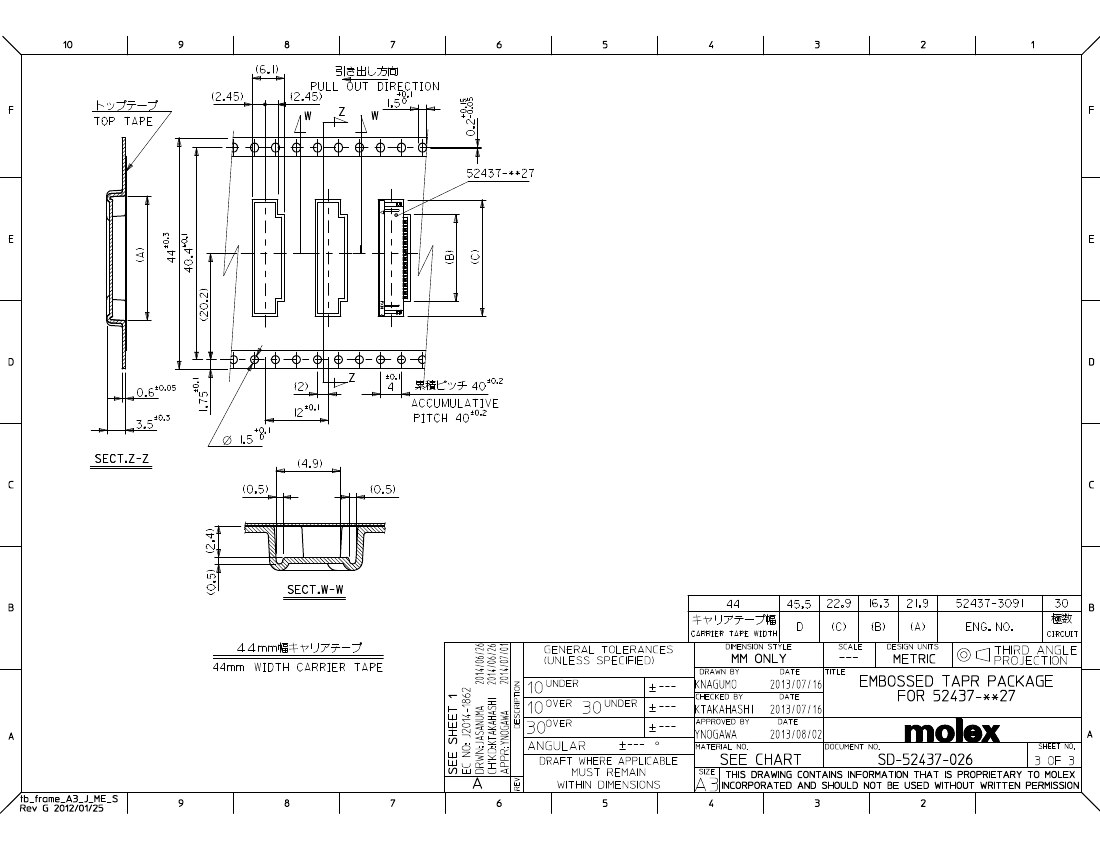

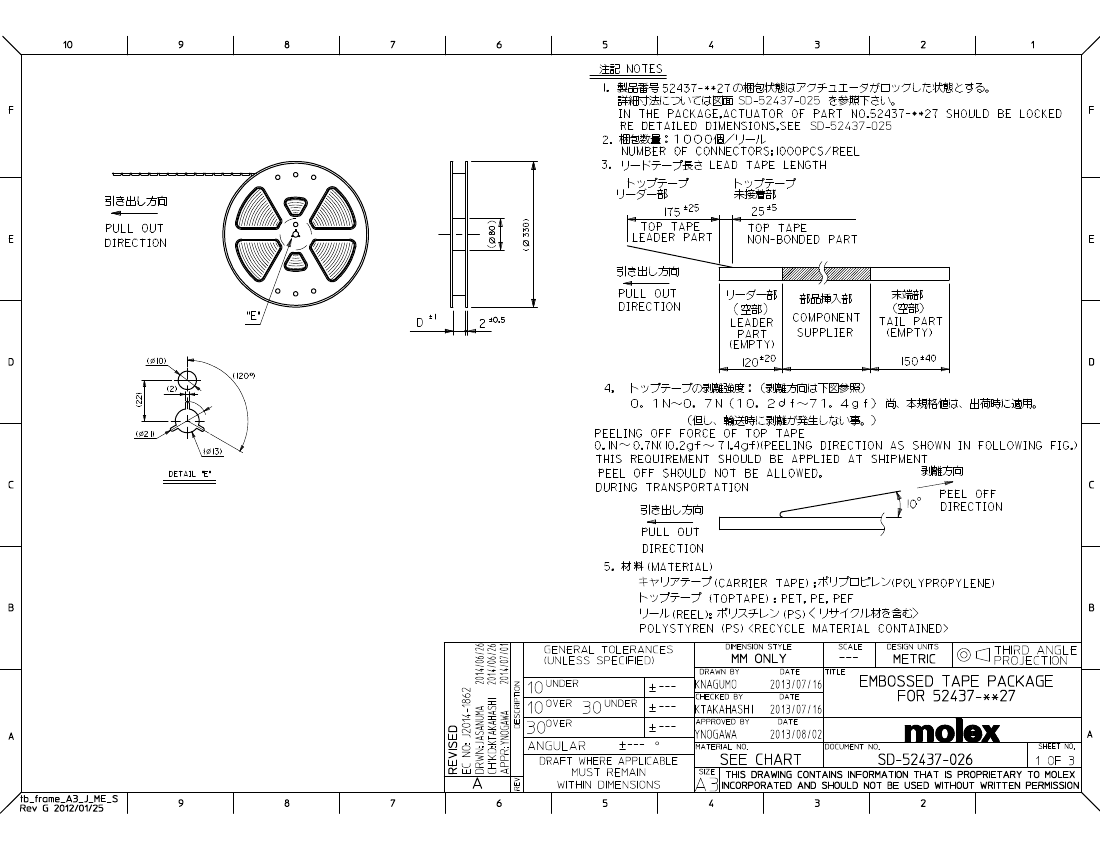

CONN FFC BOTTOM 30POS 0.50MM R/A

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	30
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.079"（2.00mm）
Lock function	trigger lock
Cable end type	Straight
Contact material	Phosphor bronze
Contact plating	tin
Shell material	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	-
Shell color	-
Actuator color	-
Number of patches	-

	52437-3091	52437-2691	52437-2491
Description	CONN FFC BOTTOM 30POS 0.50MM R/A	CONN FFC BOTTOM 26POS 0.50MM R/A	CONN FFC BOTTOM 24POS 0.50MM R/A
Flat flexible type	FFC，FPC	FFC，FPC	FFC，FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom
Number of pins	30	26	24
spacing	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）
Termination	welding	welding	welding
FFC, FCB thickness	0.30mm	0.30mm	0.30mm
board height	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Lock function	trigger lock	trigger lock	trigger lock
Cable end type	Straight	Straight	Straight
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	tin	tin	tin
Shell material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V
Operating temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.5A	0.5A	0.5A
