AT40K05AL-1AJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Programmable logic devices> AT40K05AL-1AJC

AT40K05AL-1AJC: DescriptionIC FPGA 62 I/O 84PLCC; Categorysemiconductor Programmable logic devices; File Size518KB，54 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

AT40K05AL-1AJC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AT40K05AL-1AJC	-	-	View	Buy Now

AT40K05AL-1AJC Overview

IC FPGA 62 I/O 84PLCC

AT40K05AL-1AJC Parametric

Parameter Name	Attribute value
Number of logic elements/units	256
Total RAM bits	2048
Number of I/Os	62
Number of gates	10000
Voltage - Power	3 V ~ 3.6 V
Installation type	surface mount
Operating temperature	0°C ~ 70°C（TC）
Package/casing	84-LCC (J-lead)
Supplier device packaging	84-PLCC（29.31x29.31）

Preview

Download Datasheet

View All

Features

•

Ultra High Performance

– System Speeds to 100 MHz

– Array Multipliers > 50 MHz

– 10 ns Flexible SRAM

– Internal Tri-state Capability in Each Cell

FreeRAM

™

– Flexible, Single/Dual Port, Synchronous/Asynchronous 10 ns SRAM

– 2,048 - 18,432 Bits of Distributed SRAM Independent of Logic Cells

128 - 384 PCI Compliant I/Os

– Programmable Output Drive

– Fast, Flexible Array Access Facilitates Pin Locking

– Pin-compatible with XC4000, XC5200 FPGAs

8 Global Clocks

– Fast, Low Skew Clock Distribution

– Programmable Rising/Falling Edge Transitions

– Distributed Clock Shutdown Capability for Low Power Management

– Global Reset/Asynchronous Reset Options

– 4 Additional Dedicated PCI Clocks

Cache Logic

Dynamic Full/Partial Re-configurability In-System

– Unlimited Re-programmability via Serial or Parallel Modes

– Enables Adaptive Designs

– Enables Fast Vector Multiplier Updates

– QuickChange

™

Tools for Fast, Easy Design Changes

Pin-compatible Package Options

– Plastic Leaded Chip Carriers (PLCC)

– Thin, Plastic Quad Flat Packs (LQFP, TQFP, PQFP)

Industry-standard Design Tools

– Seamless Integration (Libraries, Interface, Full Back-annotation) with

Everest, Exemplar

™

, Mentor

, OrCAD

, Synopsys

, Verilog

, Viewlogic

Synplicity

– Timing Driven Placement & Routing

– Automatic/Interactive Multi-chip Partitioning

– Fast, Efficient Synthesis

– Over 75 Automatic Component Generators Create 1000s

of Reusable, Fully Deterministic Logic and RAM Functions

Easy Migration to Atmel Gate Arrays for High Volume Production

Supply Voltage 3.3V

5V I/O Tolerant

•

5K - 50K Gates

Coprocessor

FPGA with

FreeRAM

™

AT40K05AL

AT40K10AL

AT40K20AL

AT40K40AL

•

Rev. 2818E–FPGA–1/04

Table 1.

AT40KAL Family

(1)

Device

Usable Gates

Rows x Columns

Cells

Registers

RAM Bits

I/O (Maximum)

Note:

AT40K05AL

5K - 10K

16 x 16

256

496

(1)

2,048

128

AT40K10AL

10K - 20K

24 x 24

576

954

(1)

4,608

192

AT40K20AL

20K - 30K

32 x 32

1,024

1,520

(1)

8,192

256

AT40K40AL

40K - 50K

48 x 48

2,304

3,048

(1)

18,432

384

1. Packages with FCK will have 8 less registers.

Description

The AT40KAL is a family of fully PCI-compliant, SRAM-based FPGAs with distributed

10 ns programmable synchronous/asynchronous, dual-port/single-port SRAM, 8 global

clocks, Cache Logic ability (partially or fully reconfigurable without loss of data), auto-

matic component generators, and range in size from 5,000 to 50,000 usable gates. I/O

counts range from 128 to 384 in industry standard packages ranging from 84-pin PLCC

to 352-ball Square BGA, and support 3.3V designs.

The AT40KAL is designed to quickly implement high-performance, large gate count

designs through the use of synthesis and schematic-based tools used on a PC or Sun

platform. Atmel’s design tools provide seamless integration with industry standard tools

such as Synplicity, ModelSim, Exemplar and Viewlogic. See the “IDS Datasheet” avail-

able on the Atmel web site (http://www.atmel.com/atmel/acrobat/doc1421.pdf) for a list

of other supported tools.

The AT40KAL can be used as a coprocessor for high-speed (DSP/processor-based)

designs by implementing a variety of computation intensive, arithmetic functions. These

include adaptive finite impulse response (FIR) filters, fast Fourier transforms (FFT), con-

volvers, interpolators and discrete-cosine transforms (DCT) that are required for video

compression and decompression, encryption, convolution and other multimedia

applications.

Fast, Flexible and

Efficient SRAM

The AT40KAL FPGA offers a patented distributed 10 ns SRAM capability where the

RAM can be used without losing logic resources. Multiple independent, synchronous or

asynchronous, dual-port or single-port RAM functions (FIFO, scratch pad, etc.) can be

created using Atmel’s macro generator tool.

The AT40KAL’s patented 8-sided core cell with direct horizontal, vertical and diagonal

cell-to-cell connections implements ultra fast array multipliers without using any busing

resources. The AT40KAL’s Cache Logic capability enables a large number of design

coefficients and variables to be implemented in a very small amount of silicon, enabling

vast improvement in system speed at much lower cost than conventional FPGAs.

Fast, Efficient Array and

Vector Multipliers

AT40KAL Series FPGA

2818E–FPGA–1/04

AT40KAL Series FPGA

Cache Logic Design

The AT40KAL, AT6000 and FPSLIC families are capable of implementing Cache Logic

(dynamic full/partial logic reconfiguration, without loss of data, on-the-fly) for building

adaptive logic and systems. As new logic functions are required, they can be loaded into

the logic cache without losing the data already there or disrupting the operation of the

rest of the chip; replacing or complementing the active logic. The AT40KAL can act as a

reconfigurable coprocessor.

The AT40KAL FPGA family is capable of implementing user-defined, automatically gen-

erated, macros in multiple designs; speed and functionality are unaffected by the macro

orientation or density of the target device. This enables the fastest, most predictable and

efficient FPGA design approach and minimizes design risk by reusing already proven

functions. The Automatic Component Generators work seamlessly with industry stan-

dard schematic and synthesis tools to create the fastest, most efficient designs

available.

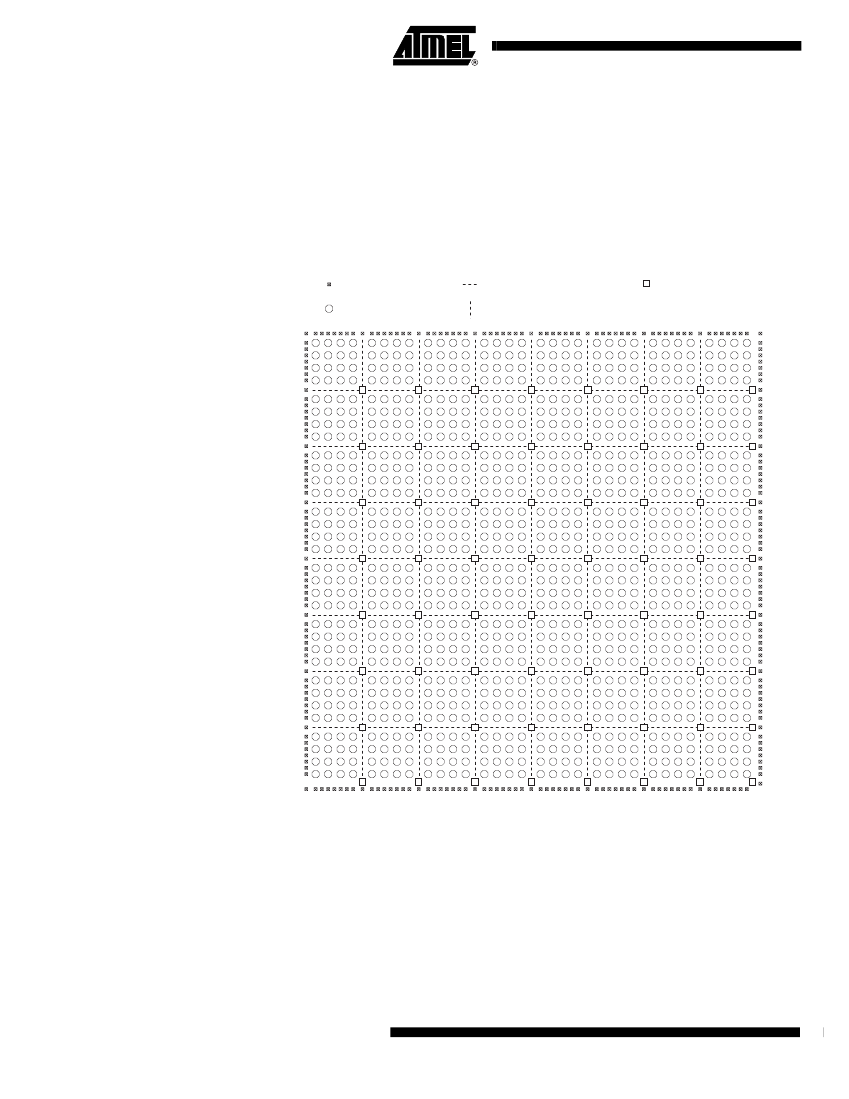

The patented AT40KAL series architecture employs a symmetrical grid of small yet

powerful cells connected to a flexible busing network. Independently controlled clocks

and resets govern every column of cells. The array is surrounded by programmable I/O.

Devices range in size from 5,000 to 50,000 usable gates in the family, and have 256 to

3,048 registers. Pin locations are consistent throughout the AT40KAL series for easy

design migration in the same package footprint. The AT40KAL series FPGAs utilize a

reliable 0.35µ triple-metal, CMOS process and are 100% factory-tested. Atmel’s PC-

and workstation-based integrated development system (IDS) is used to create

AT40KAL series designs. Multiple design entry methods are supported.

The Atmel architecture was developed to provide the highest levels of performance,

functional density and design flexibility in an FPGA. The cells in the Atmel array are

small, efficient and can implement any pair of Boolean functions of (the same) three

inputs or any single Boolean function of four inputs. The cell’s small size leads to arrays

with large numbers of cells, greatly multiplying the functionality in each cell. A simple,

high-speed busing network provides fast, efficient communication over medium and

long distances.

Automatic Component

Generators

2818E–FPGA–1/04
