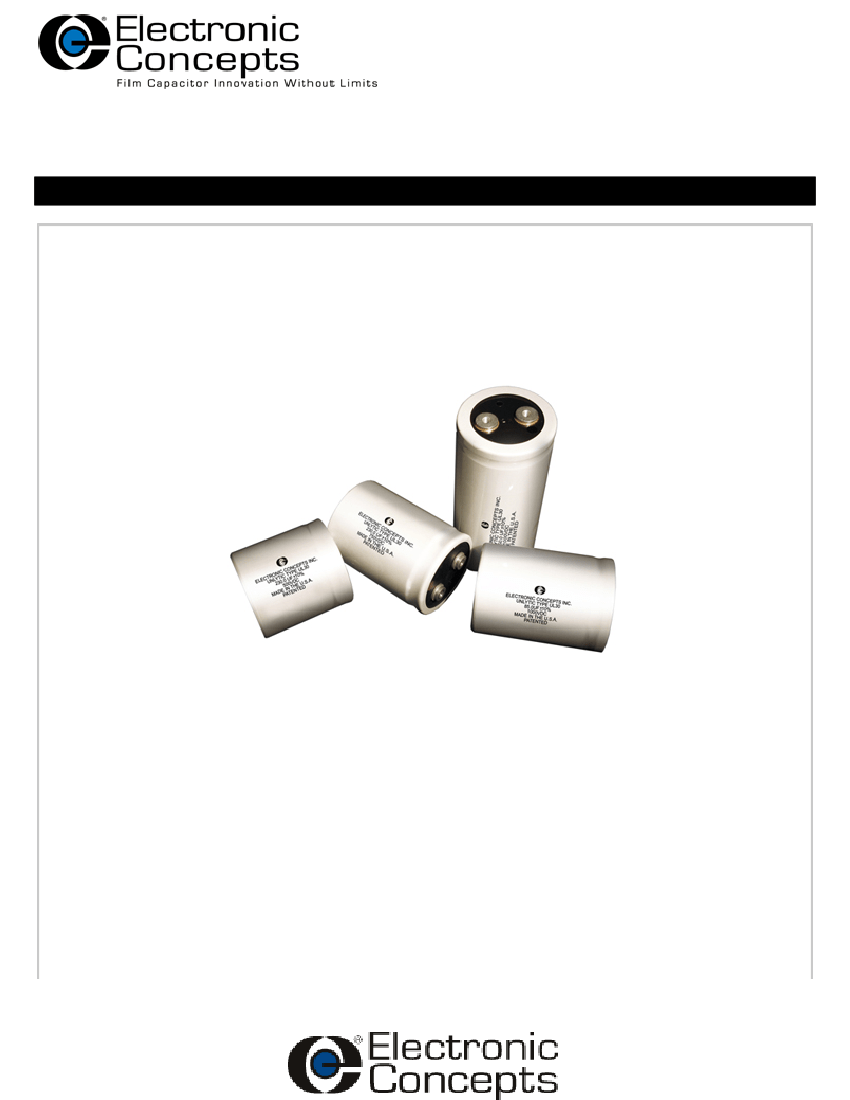

UL30
SERIES
Unlytic
Unlytic
®
Series
The rst lm dielectric capacitor replacement for electrolytic capacitors. Its
availability establishes a new standard and the ongoing search for better
answers creates a void that UNLYTIC
®
is best able to ll!
®
FEATURES
-
10X greater current density
-
3X greater over voltage
protection
-
Higher voltage ratings
-
Superior performance over
temperature range -55°C to
105°C
-
10 year shelf life
-
Dry construction (no harmful
electrolytes)
-
Non-polar

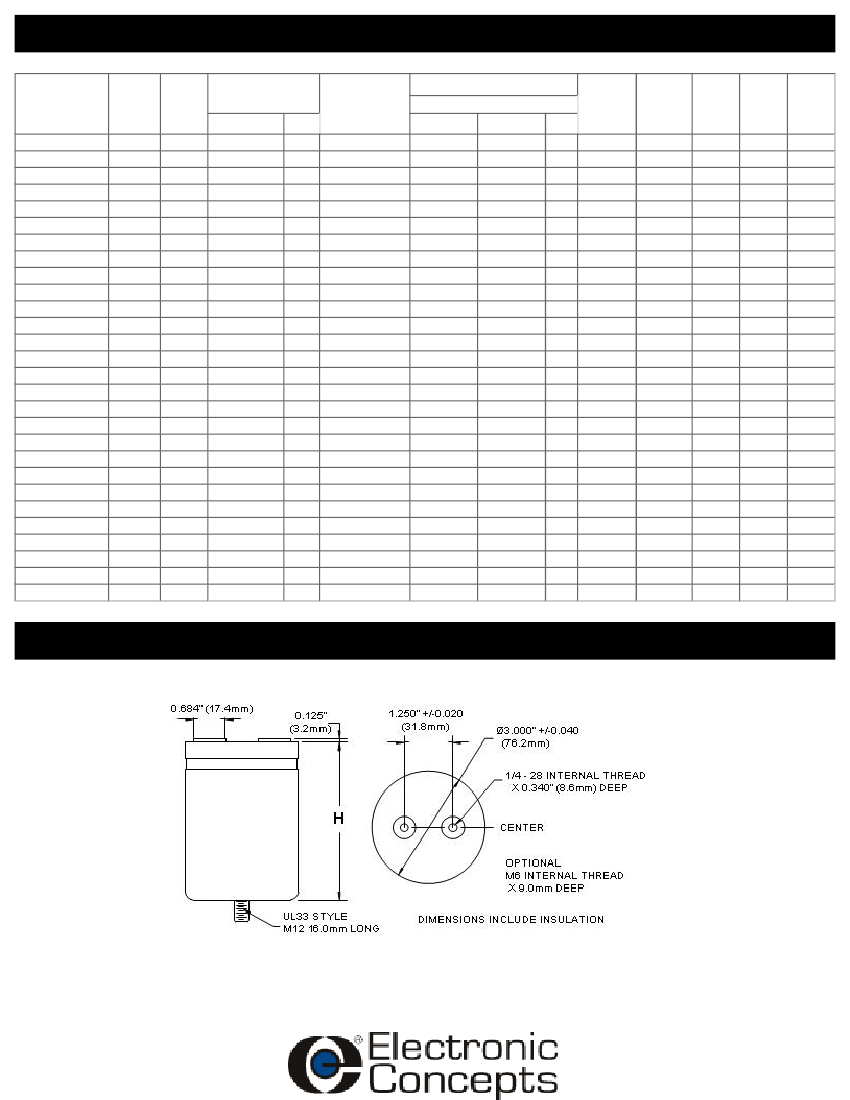

STANDARD CONFIGURATION
-
UL30: Flat Mount
-
UL33: Optional Stud Mount
Rev. 2
Speci cation Summary
Capacitance Range
50.0µF to 1600.0µF
Capacitance Tolerance
Standard capacitance tolerance is ± 10%.
Operating Temperature Range
-55° TO +105°C
Enclosure/ Construction
Aluminum case with high-current terminals. Non-inductive
wound dry lm.
Voltage Rating
300VDC to 1000VDC
Quality Control
Capacitors are tested 100% for:
o Capacitance
o Tolerance
o Dissipation Factor
o Dielectric withstanding voltage
o Insulation Resistance
o Equivalent Series Resistance (ESR)
Process and inspection data are maintained on le and available
on special request.
Environmental
Parameter
Vibration
Immersion
Shock
Humidity
Thermal Shock
Life
Method
204
104
213
106
107
108
Condition
D
C
I
-
B
F
Reference MIL-STD-202

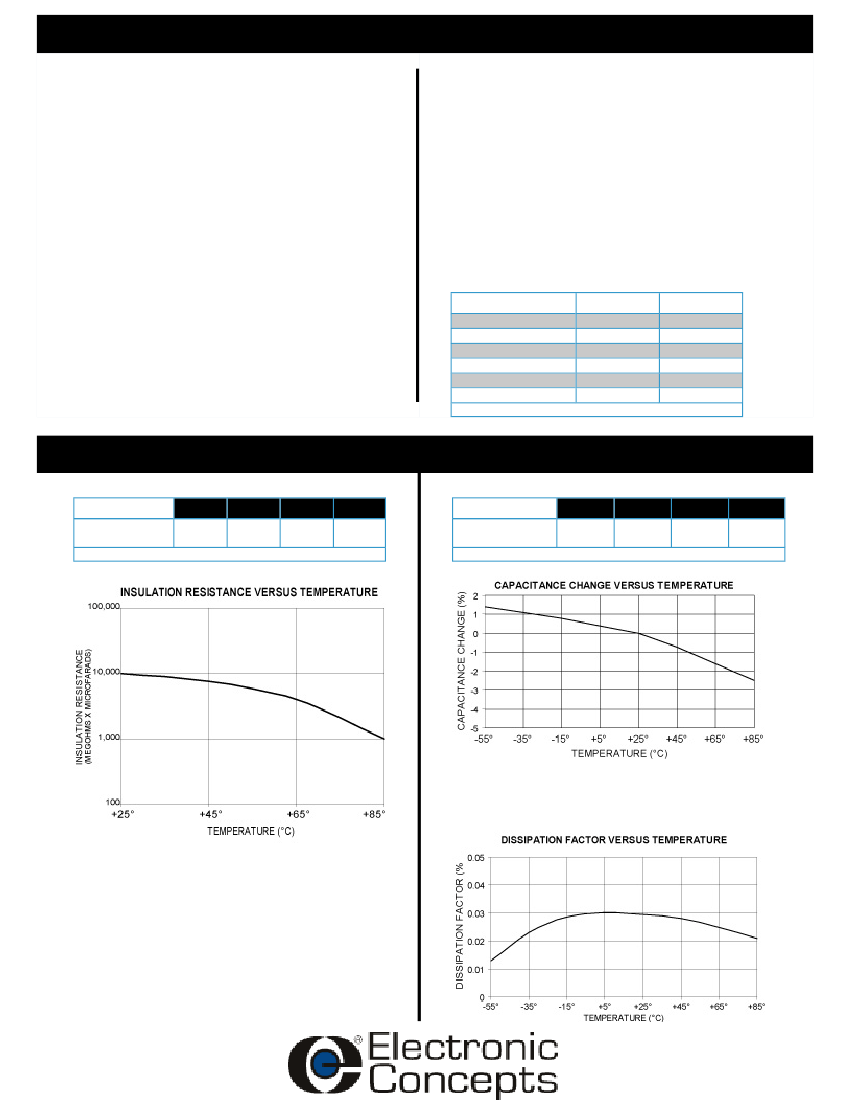

Characteristics
Insulation Resistance
Temperature(°C)
25
Megaohmsx
10,000
Microfarads
85
1,000
105
Capacitance Change
Temperature(°C)
-55
PercentageChange
1.4
(typical)
25
0
65
-1.5
85
-3.5
Insulation Resistance
CapacitanceChange
Dissipation Factor
When measured at the frequency speci ed for capacitance
measurement, the dissipation factor will not exceed 0.1%.
Dielectric Strength
Capacitors withstand a DC potential of 130% rated
voltage for two (2) minutes without damage or
breakdown. Test voltage is applied and discharged
through a resistance of 1 ohm per volt minimum, and at
25°C.
Rev. 2
ADDITIONAL
INFORMATION
With our patented advances in dry lm technology...the impossible is now practical! Now for the rst time,
all of the superior performance characteristics of lm capacitors are available in values and sizes
previously achieved only by electrolytics! This will improve how high power systems are designed - by
improving reliability, extending service life, allowing for miniaturization, lowering production costs and
maximizing performance.
In addition, the packaging dimensions of the UNLYTIC
®
are identical to electrolytics for a direct
replacement. Therefore, conceptual changes in system design are not required.
HOW TO ORDER
TYPE
Metallized Polypropylene
UL3
3 AT
1600
K
STYLE
0: Flat mount, 3: Optional stud mount / DC Voltage Rating: AT=300VDC,
AX=400VDC, etc.
/ VOLTAGE
CAPACITANCE
TOLERANCE
K=±10%
Last 4 characters represent capacitance. 1600 = 1600uF
IN MICROFARADS
Marking And Date Code
All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type UL30, capacitance,
tolerance, rated DC working voltage and date code. The rst two digits of the date code represent the year, the second two digits the
week, i.e., 0952 is the 52nd week of 2009, 0902 is the second week of 2009.
Quality Assurance
Major emphasis is placed on quality assurance. EC is an ISO 9001-2000 and AS9100:2004 Certi ed Company. Raw material
inspection and the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the
EC Quality Control Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology,
compact capacitor designs and establishing reliability procedures.
