1.25mm Pitch Miniature Crimping Connector
DF13 Series
Type
DIP
Mounting Type
Mounting Height(h)
5.3mm
Straight Type
SMT
5.8mm
Right Angle Type
DIP
3.6mm
SMT

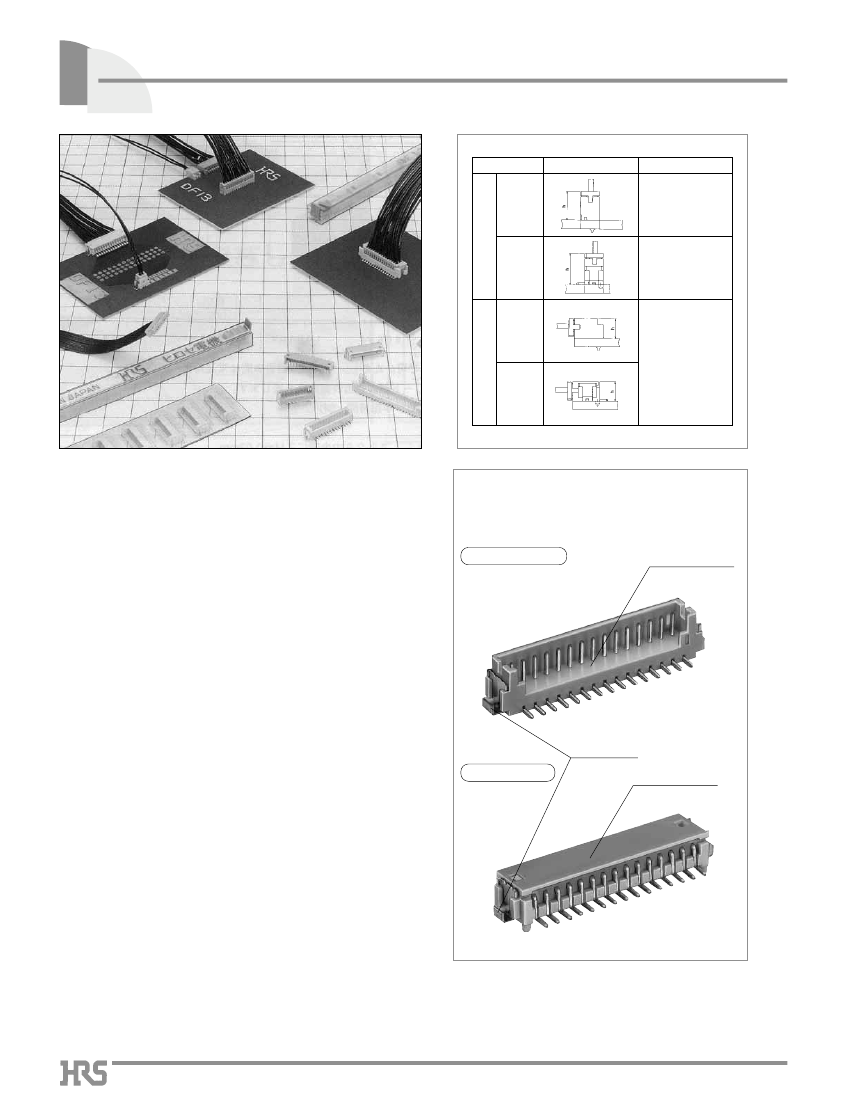

sFeatures
1. Miniature Size
Designed in the low profile at mounting height 5.8mm.
(SMT mounting straight type)
(For DIP type, the mounting height is to 5.3mm to the
straight and 3.6mm at the right angle)
Correspond to Automatic Mounting
Secure the automatic plain area for the absorption
type automatic mounting machine.
Straight Type
Absorption area
2. Multi-contact
The double row type achieves the multi-contact up to 40
contacts, and secures 30% higher density in the mounting
area, compared with the single row type.
3. Correspond to Automatic Mounting
The header provides the grade with the vacuum absorption
area, and secures automatic mounting by the embossed
tape packaging.
In addition, the tube packaging can be selected.
4. Integral Basic Function Despite Miniature Size
The header is designed in a scoop-proof box structure, and
completely prevents mis-insertion.
In addition, the surface mounting (SMT) header is equipped
with the metal fitting to prevent solder peeling.
Right Angle Type
Metal fitting
Absorption area
sApplications
Note PC, mobile terminal, miniature type business equipment,
and other various consumer equipment, including video
camera
Figure 1
B242
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
DF13 Seriesq1.25mm Pitch Miniature Crimping
sales representative.
sProduct
Specifications
Rating
Item
1.Insulation Resistance
2.Withstanding voltage
3.Contact Resistance
5.Vibration
7.Temperature Cycle
500M
ohms min.
No flashover or insulation breakdown.
30m ohms max.
No electrical discontinuity of 1µs or more
Contact resistance: 30m
ohms
max. Insulation resistance: 500M
ohms
min.
Current rating 1A
Operating Temperature Range:
-35 to
+85ç
(Note 1)
Storage Temperature Range:
-10 to
+60ç
(Note 2)
Storage Moisture Range: 40
to
70%
Condition
100V DC
500V AC/1 minute
100mA
Measured at the square steel pin of 0.35±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes➝ 5
to
35ç: 10 minutes➝ 85ç: 30 minutes➝ 5
to
35ç: 10 minutes) 5 cycles
Tin plating: 30 cycles
Gold plating: 50 cycles
9.Resistance to Soldering heat
No deformation of components affecting performance.
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
Voltage rating 150V AC Operating Moisture Range: 20
to
80%
Specification
(Note 2)
4.Single Insertion/Extraction Force 0.3N (30gf) min., 3N (300gf) max.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Connector
DF13 Seriesq1.25mm Pitch Miniature Crimping
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sSingle
Row Socket
Photo: Contact insertion
Number of Contacts
Part Number
CL No.
536-0001-4
DF13-2S-1.25C
2
536-0002-7
DF13-3S-1.25C
3
536-0003-0
DF13-4S-1.25C
4
536-0004-2
DF13-5S-1.25C
5
536-0005-5
DF13-6S-1.25C
6
536-0006-8
DF13-7S-1.25C
7
536-0007-0
DF13-8S-1.25C
8
Note 1.The quantity is delivered per bag (100
A
B
RoHS
Part Number
1.25 4.15
DF13- 9S-1.25C
2.50 5.40
DF13-10S-1.25C
3.75 6.65
DF13-11S-1.25C
Yes
5.00 7.90
DF13-12S-1.25C
6.25 9.15
DF13-13S-1.25C
7.50 10.40
DF13-14S-1.25C
8.75 11.65
DF13-15S-1.25C
pcs.). If needed, please select and order
Number of Contacts
CL No.
536-0008-3
9
536-0009-6
10
536-0010-5
11
536-0011-8
12
536-0012-0
13
536-0013-3
14
536-0014-6
15
the products per bag.
A
10.00
11.25
12.50
13.75
15.00
16.25
17.50
Unit: mm
B
RoHS
12.90
14.15
15.40
16.65 Yes
17.90
19.15
20.40
sDouble
Row Socket
Photo: Contact insertion state
Part Number
DF13-10DS-1.25C
DF13-20DS-1.25C
DF13-30DS-1.25C
DF13-40DS-1.25C
Note:The quantity
Number of Contacts
CL No.
A
B
536-0550-2
10
10.40
5.00
20
536-0555-6
16.65
11.25
Yes
536-0560-6
30
22.90
17.50
536-0565-0
40
29.15
23.75
is delivered per bag (100pcs). If needed, please select and order the products per bag.
Unit: mm
RoHS
B244
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
DF13 Seriesq1.25mm Pitch Miniature Crimping
sales representative.
sSingle

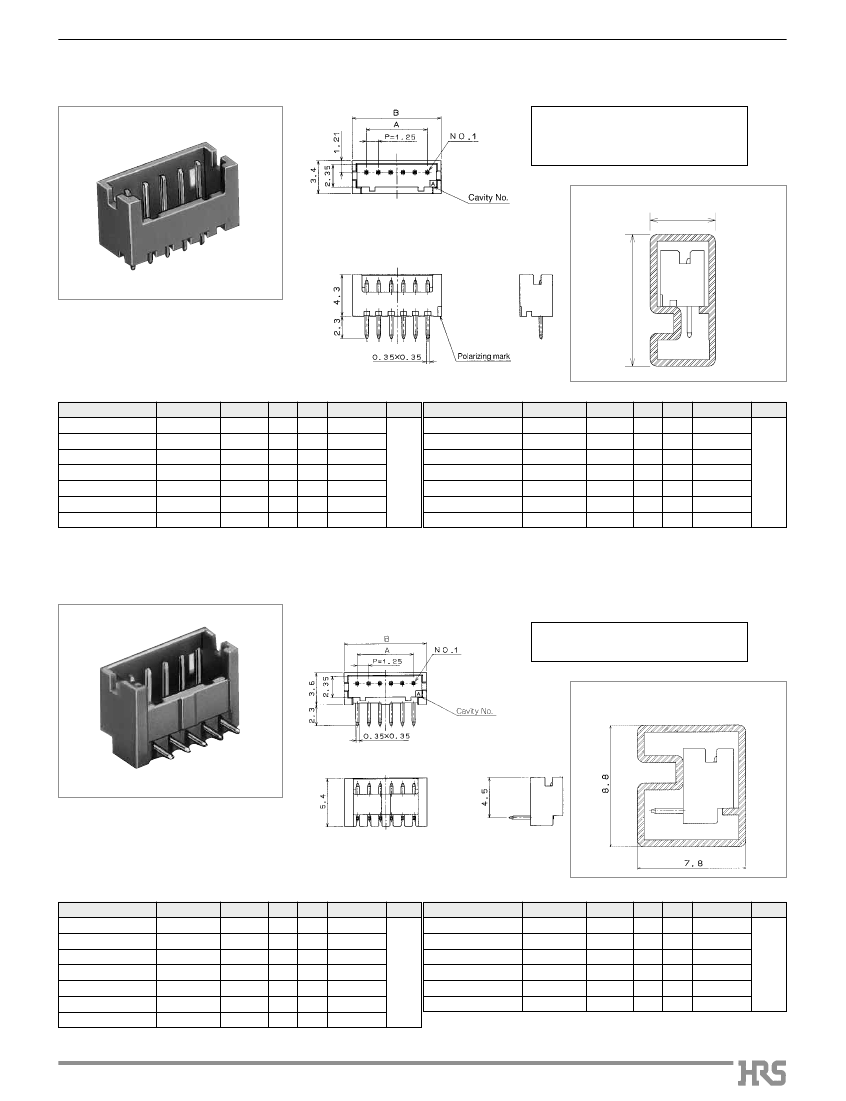

Row Straight Pin Header (Through hole)
[Specific No.] –
**,
(**)
Blank: Tin plated
20: Tin plated, tube packaging
BTube
Dimensions
5
qBoard
Through-hole Diameter:Ø0.6±0.03
10
Part Number
CL No. Number of Contacts A
B Tube Packaging Quantity RoHS
Part Number
CL No. Number of Contacts
115
DF13-2P-1.25DSA(**) 536-0101-9-**
2
1.25 4.15
DF13- 9P-1.25DSA(**)
536-0108-8-**
9
89
DF13-3P-1.25DSA(**) 536-0102-1-**
3
2.50 5.40
DF13-10P-1.25DSA(**)
536-0109-0-**
10
72
DF13-4P-1.25DSA(**) 536-0103-4-**
4
3.75 6.65
DF13-11P-1.25DSA(**)
536-0110-0-**
11
61
Yes DF13-12P-1.25DSA(**)
536-0111-2-**
DF13-5P-1.25DSA(**) 536-0104-7-**
5
5.00 7.90
12
52
DF13-6P-1.25DSA(**) 536-0105-0-**
6
6.25 9.15
DF13-13P-1.25DSA(**)
536-0112-5-**
13
46
DF13-7P-1.25DSA(**) 536-0106-2-**
7
7.50 10.40
DF13-14P-1.25DSA(**)
536-0113-8-**
14
41
DF13-8P-1.25DSA(**) 536-0107-5-**
8
8.75 11.65
DF13-15P-1.25DSA(**)
536-0114-0-**
15
Note 1.The quantity at the specific No."None" is delivered per bag (100 pcs.). If needed, please select and
Note 2.Order the tube packaging product, multiplying the tube packaging quantity.
A
B
37
10.00 12.90
34
11.25 14.15
31
12.50 15.40
29
Yes
13.75 16.65
27
15.00 17.90
25
16.25 19.15
23
17.50 20.40
order the products per bag.
Unit: mm
Tube Packaging Quantity RoHS
sSingle
Row Right Angle Pin Header (Through hole)
[Specific No.] –
**,
(***)
(20): Tin plated tube packaging
BTube
Dimensions
qBoard
Through-hole Diameter:Ø0.6±0.03
Part Number
CL No. Number of Contacts A
B Tube Packaging Quantity RoHS
Part Number
2
1.25 4.15
115
DF13-2P-1.25DS(20) 536-0151-7-20
DF13- 9P-1.25DS(20)
3
2.50 5.40
89
DF13-3P-1.25DS(20) 536-0152-0-20
DF13-10P-1.25DS(20)
4
3.75 6.65
72
DF13-4P-1.25DS(20) 536-0153-2-20
DF13-11P-1.25DS(20)
5
5.00 7.90
61
Yes DF13-12P-1.25DS(20)
DF13-5P-1.25DS(20) 536-0154-5-20
6
6.25 9.15
52
DF13-6P-1.25DS(20) 536-0155-8-20
DF13-14P-1.25DS(20)
7
7.50 10.40
46
DF13-7P-1.25DS(20) 536-0156-0-20
DF13-15P-1.25DS(20)
8
8.75 11.65
41
DF13-8P-1.25DS(20) 536-0157-3-20
Note 1.Order the tube packaging product, multiplying the tube packaging quantity.
CL No.
536-0158-6-20
536-0159-9-20
536-0160-8-20
536-0161-0-20
536-0163-6-20
536-0164-9-20
Unit: mm
Number of Contacts A
B Tube Packaging Quantity RoHS
9
10.00 12.90
37
10
11.25 14.15
34
11
12.50 15.40
31
Yes
12
13.75 16.65
29
14
16.25 19.15
25
15
17.50 20.40
23
B245
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Connector
DF13 Seriesq1.25mm Pitch Miniature Crimping
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sSingle

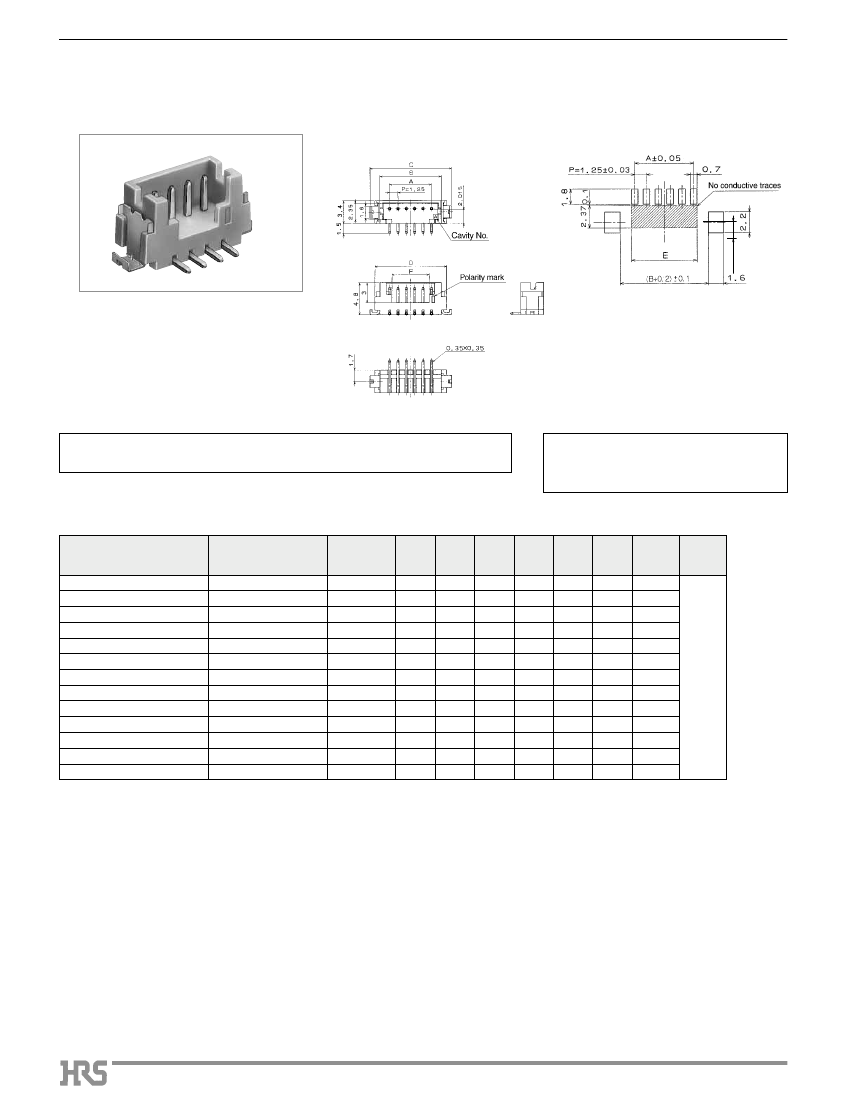

Row Straight Pin Header (SMT)
s(Three-Wall/Correspond
to Vacuum Absorption)
BPCB
mounting pattern
Note 1.Shaded area must be free of any
electrically conductive traces to
avoid contact with soldered pin
header terminations.
This pin header is a three-wall type, header has sufficiently large flat areas to allow
pick-up with vacuum nozzles of automatic placement equipment.
[Specific No.] –
**,
(**)
(21): Tin plated embossed tape packaging
(51): Gold plated embossed tape packaging
Unit: mm
Part Number
CL No.
Number of
Contacts
A
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
12.90
14.15
15.40
16.65
19.15
20.40
C
7.15
8.40
9.65
10.90
12.15
13.40
14.65
15.90
17.15
18.40
19.65
22.15
23.40
D
5.65
6.90
8.15
9.40
10.65
11.90
13.15
14.40
15.65
16.90
18.15
20.65
21.90
E
1.95
3.20
4.45
5.70
6.95
8.20
9.45
10.70
11.95
13.20
14.45
16.95
18.20
F
2.20
3.45
3.10
4.35
5.60
6.85
8.10
9.35
10.60
11.85
13.10
15.60
16.85
Emboss
Width
16
16
24
24
24
24
24
24
24
32
32
32
44
RoHS
1.25
2
536-0401-2-**
DF13C- 2P-1.25V(**)
2.50
3
536-0402-5-**
DF13C- 3P-1.25V(**)
3.75
4
536-0403-8-**
DF13C- 4P-1.25V(**)
5.00
5
536-0404-0-**
DF13C- 5P-1.25V(**)
6.25
6
536-0405-3-**
DF13C- 6P-1.25V(**)
7.50
7
536-0406-6-**
DF13C- 7P-1.25V(**)
8.75
8
536-0407-9-**
DF13C- 8P-1.25V(**)
10.00
9
536-0408-1-**
DF13C- 9P-1.25V(**)
11.25
10
536-0409-4-**
DF13C-10P-1.25V(**)
12.50
11
536-0410-3-**
DF13C-11P-1.25V(**)
13.75
12
536-0411-6-**
DF13C-12P-1.25V(**)
16.25
14
536-0413-1-**
DF13C-14P-1.25V(**)
17.50
15
536-0414-4-**
DF13C-15P-1.25V(**)
Note 1.Please order the embossed tape packaging product according
