SMW200-15P: Description2.00mm PITCH CONNECTOR; CategoryThe connector The connector; File Size263KB，1 Pages; ManufacturerYEONHO ELECTRONICS CO., LTD.; Websitehttp://www.yeonho.com/

Download Datasheet Parametric Compare View All

SMW200-15P Overview

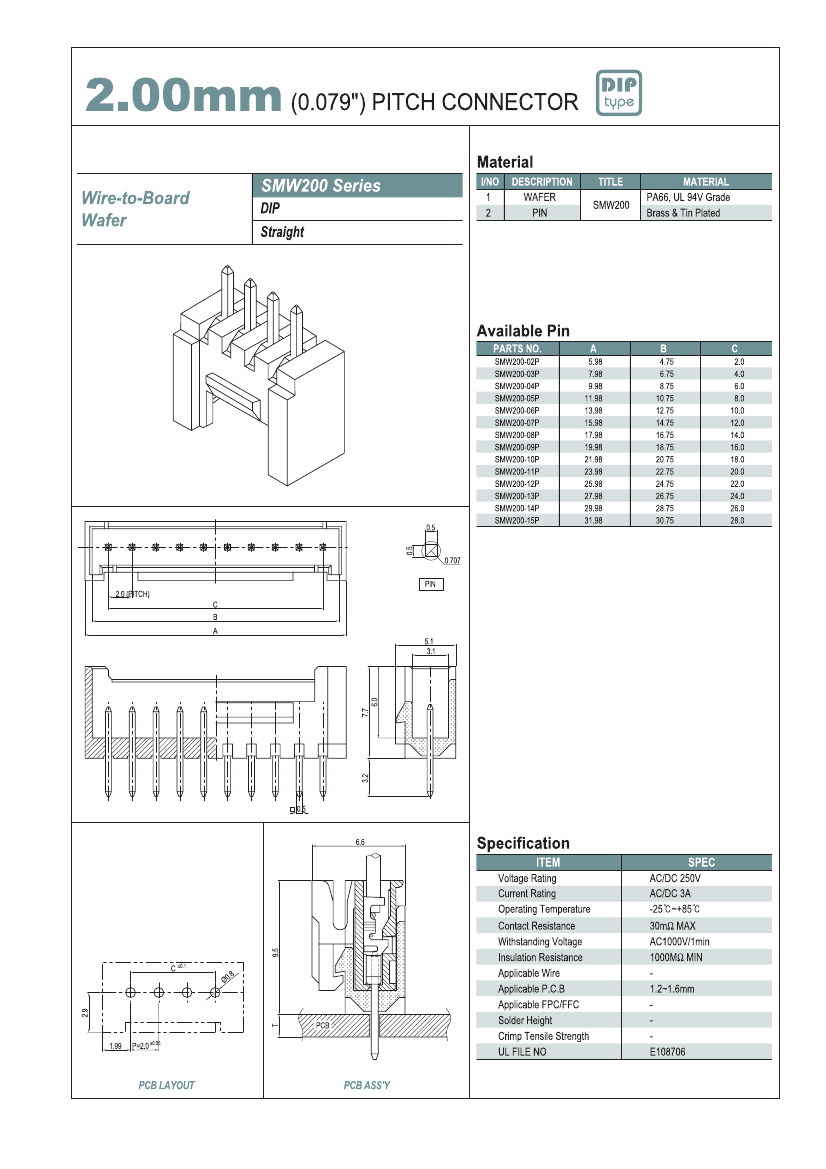

2.00mm PITCH CONNECTOR

Parameter Name	Attribute value
Maker	YEONHO ELECTRONICS CO., LTD.
Reach Compliance Code	unknow
body width	0.201 inch
subject depth	0.303 inch
body length	1.259 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	SMW200
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	15

	SMW200-15P	SMW200	SMW200-14P
Description	2.00mm PITCH CONNECTOR	2.00mm PITCH CONNECTOR	2.00mm PITCH CONNECTOR
Maker	YEONHO ELECTRONICS CO., LTD.	-	YEONHO ELECTRONICS CO., LTD.
Reach Compliance Code	unknow	-	unknow
body width	0.201 inch	-	0.201 inch
subject depth	0.303 inch	-	0.303 inch
body length	1.259 inch	-	1.18 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	SN	-	SN
Contact completed and terminated	TIN	-	TIN
Contact point gender	MALE	-	MALE
Contact material	BRASS	-	BRASS
contact mode	RECTANGULAR	-	RECTANGULAR
Contact resistance	30 mΩ	-	30 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	-	1000VAC V
Insulation resistance	1000000000 Ω	-	1000000000 Ω
insulator material	NYLON	-	NYLON
Manufacturer's serial number	SMW200	-	SMW200
Plug contact pitch	0.079 inch	-	0.079 inch
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	1	-	1
Number of rows loaded	1	-	1
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-25 °C	-	-25 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
Rated current (signal)	3 A	-	3 A
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Terminal length	0.126 inch	-	0.126 inch
Terminal pitch	2.0066 mm	-	2.0066 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	15	-	14
