SMV1235-004

Description
S BAND, 6.4 pF, 15 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE
CategoryDiscrete semiconductor    diode
File Size947KB，12 Pages
ManufacturerSkyworks
Websitehttp://www.skyworksinc.com
Download Datasheet Parametric View All

SMV1235-004 Overview

S BAND, 6.4 pF, 15 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE

SMV1235-004 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerSkyworks
Parts packaging codeSOT-23
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresLOW NOISE
Minimum breakdown voltage15 V
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode Capacitance Tolerance10%
Minimum diode capacitance ratio1.6
Nominal diode capacitance11.5 pF
Diode component materialsSILICON
Diode typeVARIABLE CAPACITANCE DIODE
frequency bandS BAND
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Humidity sensitivity level1
Number of components2
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)245
Maximum power dissipation0.25 W
Certification statusNot Qualified
minimum quality factor750
Maximum repetitive peak reverse voltage15 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature30
Varactor Diode ClassificationHYPERABRUPT

SMV1235-004 Preview

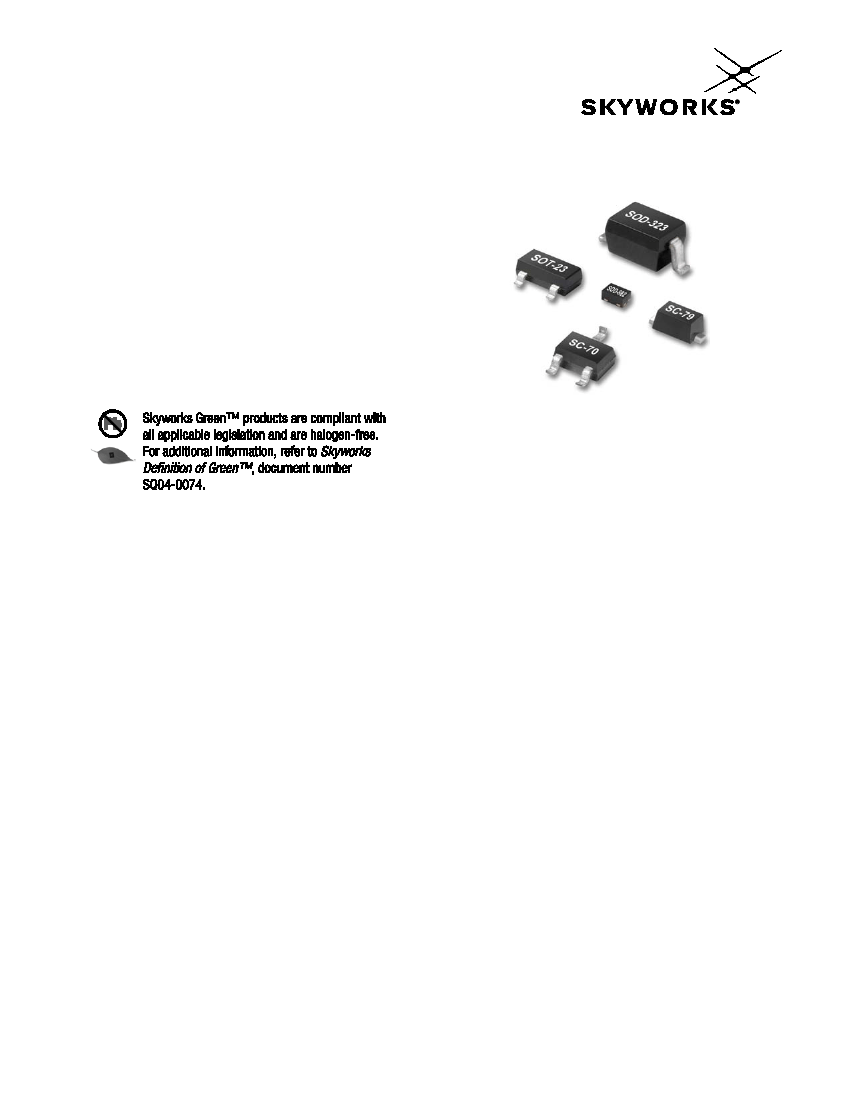

DATA SHEET
SMV123x Series: Hyperabrupt Junction Tuning Varactors
Applications
•
Low
tuning voltage VCOs
•
High-Q resonators in wireless system VCOs
•
High-volume commercial systems
Features
•
High capacitance ratio
•
Low series resistance for low phase noise
•
Packages rated MSL1, 260
°C
per JEDEC J-STD-020
Description
The SMV123x series of silicon hyperabrupt junction varactor
diodes are designed for use in Voltage Controlled Oscillators
(VCOs) with a low tuning voltage operation. The low resistance of
these varactors makes them appropriate for high-Q resonators in
wireless system VCOs to frequencies over 10
GHz.
This family of
varactors is characterized for capacitance and resistance over
temperature.
Table 1 describes the various packages and markings of the
SMV123x varactors.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200058Q • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • June 14, 2012
1
DATA SHEET • SMV123x VARACTORS
Table 1. Packaging and Marking
Single
SC-79
Green™
Single
SOD-323
Green™
Single
SOT-23
Common Cathode
SOT-23
Common Anode
SC-70
Common Cathode
SC-70
SMV1231-074
Marking: JA3
Single
SOD-882
Green™
SMV1231-079LF
Marking: Cathode
SMV1231-011LF
Marking: KA
SMV1231-074LF
Green™
Marking: KA3
SMV1232-074
Marking: CC3
SMV1231-040LF
Marking: A
SMV1232-079LF
Marking: Cathode
SMV1232-011LF
Marking: HC
SMV1233-001
Marking: VP1
SMV1233-004
Marking: VP3
SMV1233-004LF
Green™
Marking: DP3
SMV1234-004
Marking: VQ3
SMV1234-004LF
Green™
Marking: DQ3
SMV1235-004
Marking: VR3
SMV1235-004LF
Green™
Marking: DR3
SMV1236-004
Marking: AQ3
SMV1236-004LF
Green™
Marking: EQ3
SMV1234-073
Marking: VQ9
SMV1234-073LF
Green™
Marking: DQ9
SMV1232-074LF
Green™
Marking: HC3
SMV1233-074
Marking: VP3
SMV1233-074LF
Green™
Marking: DP3
SMV1232-040LF
Marking:
Y
SMV1233-079LF
Marking: Cathode
♦
SMV1233-011LF
Marking: DP
SMV1233-001LF
Green™
Marking: DP1
SMV1234-001
Marking: VQ1
SMV1233-040LF
Marking:
B
SMV1234-079LF
Marking: Cathode
♦
SMV1234-011LF
Marking: DQ
SMV1234-001LF
Green™
Marking: DQ1
SMV1235-001
Marking: VR1
SMV1234-040LF
Marking:
G
SMV1235-074
Marking: VR3
SMV1235-074LF
Green™
Marking: DR3
SMV1236-074
Marking: AQ3
SMV1236-074LF
Green™
Marking: EQ3
SMV1236-040LF
Marking: R
SMV1235-040LF
Marking:
M
SMV1235-079LF
Marking: Cathode
SMV1235-011LF
Marking: DR
SMV1235-001LF
Green™
Marking: DR1
SMV1236-001
Marking: AQ1
♦
SMV1236-079LF
Marking: Cathode
SMV1236-011LF
Marking: EQ
SMV1236-001LF
Green™
Marking: EQ1
SMV1237-001
Marking: VT1
SMV1237-001LF
Green™
Marking: DT1
L
S
= 0.7 nH
L
S
= 1.5 nH
L
S
= 1.5 nH
L
S
= 1.5
nH
L
S
= 1.4 nH
L
S
= 1.4 nH
L
S
=
0.45
nH
The Pb-free symbol or “LF” in the part number denotes a lead-free, RoHS-compliant package unless otherwise noted as Green™. Tin/lead (Sn/Pb) packaging is not recommended
for new designs.
Innovation to Go™
Select Linear Products (indicated by
♦)
now available for purchase online.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
2
June 14, 2012 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200058Q
DATA SHEET • SMV123x VARACTORS
Electrical and Mechanical Specifications
The absolute maximum ratings of the SMV123x varactors are
provided in Table 2. Electrical specifications are provided in
Table 3. Typical capacitance values are listed in Table 4. Typical
performance characteristics of the SMV123x varactors are
illustrated in Figures 1 through 4.
The SPICE model for the SMV123x varactors is shown in Figure 5
and the associated model parameters are provided in Table 5.
Package dimensions are shown in Figures 6 to 14 (even
numbers), and tape and reel dimensions are provided in Figures 7
to 15 (odd numbers).
Package and Handling Information
Instructions on the shipping container label regarding exposure to
moisture after the container seal is broken must be followed.
Otherwise, problems related to moisture absorption may occur
when the part is subjected to high temperature during solder
assembly.
The SMV123x series of varactors are rated to Moisture Sensitivity
Level 1 (MSL1) at 260
°C.
They can be used for lead or lead-free
soldering. For additional information, refer to the Skyworks
Application Note,
Solder Reflow Information,
document number
200164.
Care must be taken when attaching this product, whether it is
done manually or in a production solder reflow environment.
Production quantities of this product are shipped in a standard
tape and reel format.
Table 2. SMV123x Absolute Maximum Ratings
Parameter
Reverse voltage
Forward current
Power dissipation
Operating temperature
Storage temperature
Note:
Symbol
V
R
I
F
P
DIS
T
OP
T
STG
Minimum
Maximum
15
20
250
Units
V
mA
mW
°C
°C
–55
–55
+125
+150
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other
parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
CAUTION:
Although this device is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this device. This device
must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body
or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times. The
SMV123x varactors are Class 1B Human Body Model (HBM) ESD devices.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200058Q • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • June 14, 2012
3
DATA SHEET • SMV123x VARACTORS
Table 3. SMV123x Electrical Specifications (Note 1)
(T
OP
= 25
°C,
Unless Otherwise Noted)
Part
Number
Min.
SMV1231
SMV1232
SMV1233
SMV1234
SMV1235
SMV1236
SMV1237
1.43
2.34
3.00
5.85
10.35
15.50
45.00
C
T
@ 1 V
(pF)
Max.
1.72
2.86
3.60
7.15
12.65
18.50
54.00
C
T
@ 3 V
(pF)
Typ.
0.97
1.50
1.80
3.60
6.40
9.20
26.90
C
T
@ 6 V
(pF)
Typ.
0.61
0.94
1.10
2.00
3.60
5.30
14.40
Min.
1.5
1.5
1.5
1.6
1.6
1.6
1.6
C
T
@ 1 V
C
T
@ 3 V
(Ratio)
Max
1.8
1.9
1.9
2.0
2.0
2.0
2.0
Min.
2.5
2.6
2.6
2.8
2.9
3.0
3.0
C
T
@ 1 V
C
T
@ 6 V
(Ratio)
Max.
2.8
3.3
3.3
3.4
3.4
3.5
3.5
R
S
@ 3 V,
500 MHz
(Ω)
Typ.
2.90
1.50
1.20
0.80
0.60
0.50
0.40
Note 1:
Performance is guaranteed only under the conditions listed in this Table.
Tested with
-079
package.
Reverse voltage V
R
(I
R
= 10
μA)
= 15
V minimum
Reverse current I
R
(V
R
=
12 V) = 20 nA maximum
Table 4. Capacitance vs Reverse Voltage
V
R
(V)
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
C
T
(pF)
SMV1231
2.35
1.87
1.58
1.40
1.22
1.09
0.970
0.882
0.794
0.732
0.683
0.648
0.613
0.590
0.567
0.551
0.534
0.512
0.497
0.492
0.487
0.480
0.472
0.466
SMV1232
4.15
3.22
2.67
2.28
1.97
1.72
1.51
1.35
1.22
1.13
1.05
0.99
0.94
0.90
0.86
0.84
0.81
0.78
0.76
0.75
0.74
0.73
0.73
0.72
SMV1233
5.08
3.95
3.28
2.80
2.41
2.09
1.82
1.62
1.45
1.33
1.24
1.16
1.10
1.05
1.01
0.98
0.96
0.92
0.90
0.88
0.87
0.86
0.85
0.84
SMV1234
9.63
7.53
6.28
5.39
4.68
4.09
3.58
3.15
2.81
2.54
2.32
2.15
2.02
1.90
1.80
1.72
1.65
1.55
1.47
1.42
1.38
1.35
1.33
1.32
SMV1235
18.22
14.12
11.67
9.91
8.52
7.36
6.40
5.62
4.99
4.50
4.11
3.80
3.55
3.34
3.17
3.03
2.91
2.73
2.61
2.53
2.47
2.43
2.40
2.38
SMV1236
26.75
20.61
17.02
14.38
12.29
10.56
9.16
8.04
7.19
6.53
6.01
5.61
5.28
5.02
4.81
4.64
4.49
4.28
4.13
4.02
3.95
3.89
3.84
3.80
SMV1237
71.82
56.10
46.89
40.33
35.13
30.71
26.87
23.57
20.83
18.62
16.87
15.48
14.36
13.46
12.72
12.11
11.61
10.87
10.38
10.06
9.84
9.68
9.56
9.47
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
4
June 14, 2012 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200058Q
DATA SHEET • SMV123x VARACTORS
Typical Performance Characteristics

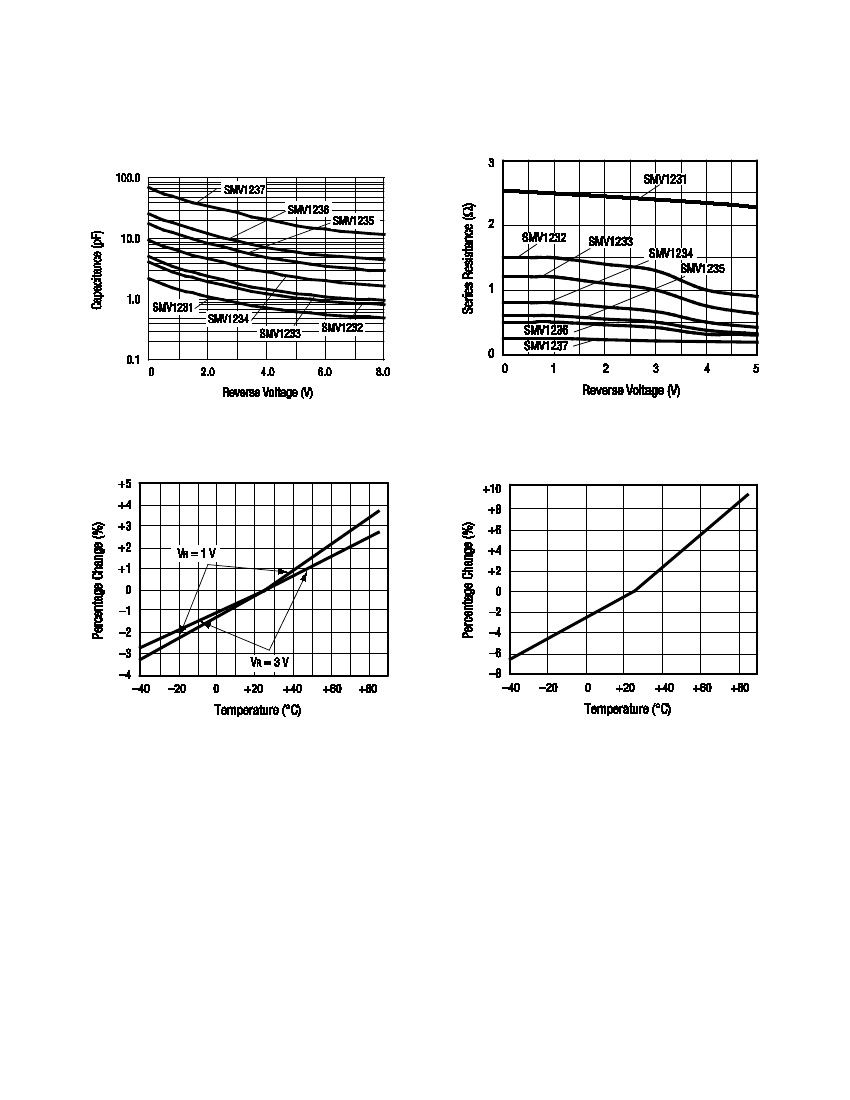

Figure 1. Capacitance vs Reverse Voltage
Figure 2. Series Resistance vs Reverse Voltage @ 500 MHz
Figure 3. Relative Capacitance Change vs Temperature
Figure 4. Relative Series Resistance Change vs Temperature
@ 500 MHz
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200058Q • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • June 14, 2012
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Bass power amplifier circuit using TDA7294V chip

Base bootstrap circuit analysis (b)

Double button light switch circuit (3)

KA78R05, 12 typical application circuit diagram

Application circuit of TC9149

1000m single tube oscillation FM transmitter circuit

90% new, Xintang NuTiny-SDK-Nano130 development board 50 yuan, free shipping
[backcolor=rgb(238, 238, 238)][font=Tahoma, Helvetica, SimSun, sans-serif][size=12px]Friends who like development boards should hurry up. The board packaging is a bit dusty and old, and the board will...
whb565938 Buy&Sell
Keysight Technology Service Day Seminar｜Wuhan Station——Invitation Letter
Keysight Technologies service team will have a close dialogue with you in Wuhan, the center of the electronics industry, to discuss three major issues: how to maintain the long-term accuracy of instru...
EEWORLD社区 Test/Measurement
TMS2812 FFT library call problem solution
Hello everyone!I encountered many problems when debugging FFT. I solved them all before, but the conversion of FFT to amplitude mag is not correct.My calling method is as follows (I just modified the ...
yin_rj Microcontroller MCU
Does anyone use the cc2530 simplici TI protocol?
We need to use cc2530 for point-to-point transparent transmission. The upper layer is a one-to-many polling mechanism. Because cc2530 only changes the original wired transmission of the 485 serial por...
辛昕 RF/Wirelessly
High-precision impedance measurement using a 12-bit impedance converter
...
dontium ADI Reference Circuit
Failed to attach to END device
When I was burning the VxWorks image, after burning was completed, the prompt appeared at startup: muxDevload failed for device entry 0 Failed to attach to END device Attaching interface lo0...done wd...
zdhm Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. 951426-4011409-AR-PT
  2. KG363A2BXA266XCVXXVDE
  3. ABM9-12.0000MHZ-18-N-1-X-T
  4. ESQT-128-02-F-Q-440
  5. RWR82N2150BSBSL
  6. M55342K12B22D6VWIV
  7. TC-400-CGF-156A2.0
  8. VJ1206A272GXBAR68
  9. KBU8G
  10. 1.5SMC12CA_R2_00001
  11. A2008WVA-12P-BL
  12. A2006WR-2x12P-BL

Popular Articles

  1. Digital RMB applications blossom in many places, and Unigroup Tongxin's solutions fully empower
  2. Chipone North appeared at the Zhongguancun Forum Exhibition and the 24th China Hi-Tech Expo
  3. Cinda Electronics: Morgan Stanley's one-sided view is not afraid of market noise and is firmly optimistic about semiconductors
  4. AVIC Lithium Battery releases new battery technology: no modules, 10% cost reduction!
  5. Is there a practical future for smart glasses?
  6. Samsung Galaxy S22 Ultra will have a 1TB storage version, matte black "real machine" appears
  7. OmniVision and Tobii Collaborate to Advance Metaverse Vision Solutions in Eye Tracking
  8. Rochester Electronics and Kyoto Semiconductor Partner to Provide Long-Term Reliable Optical Components to Communications and Sensing Customers
  9. Introduction to the equipment characteristics and principles of fabric air permeability tester
  10. Infineon launches 256 Mbit SEMPER™ Nano NOR Flash flash memory product

Technical ResourceMore

  1. AG6202 Chinese Manual | AG6206 Chinese Specification
  2. Research on photovoltaic grid-connected power regulation system and its control
  3. Drawing Assistant v1[1].0 cracked version.exe
  4. STM32F0 cannot run user code after Leaving DFU Mode after DFU upgrade
  5. MATLAB Case 21 LVQ Neural Network Classification - Breast Tumor Diagnosis.rar
  6. MATLAB Case 8 GRNN Data Prediction - Freight Volume Prediction Based on Generalized Regression Neural Network.rar
  7. C Modern Programming - Example Code
  8. Discussion on new applications of magnetic materials and devices_Microwave ferrite components_Li Shigen
  9. Cadence SPB16.2 Getting Started Tutorial
  10. Basic knowledge of varistor

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 310  1012  1455  1737  2128  7  21  30  35  43
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
