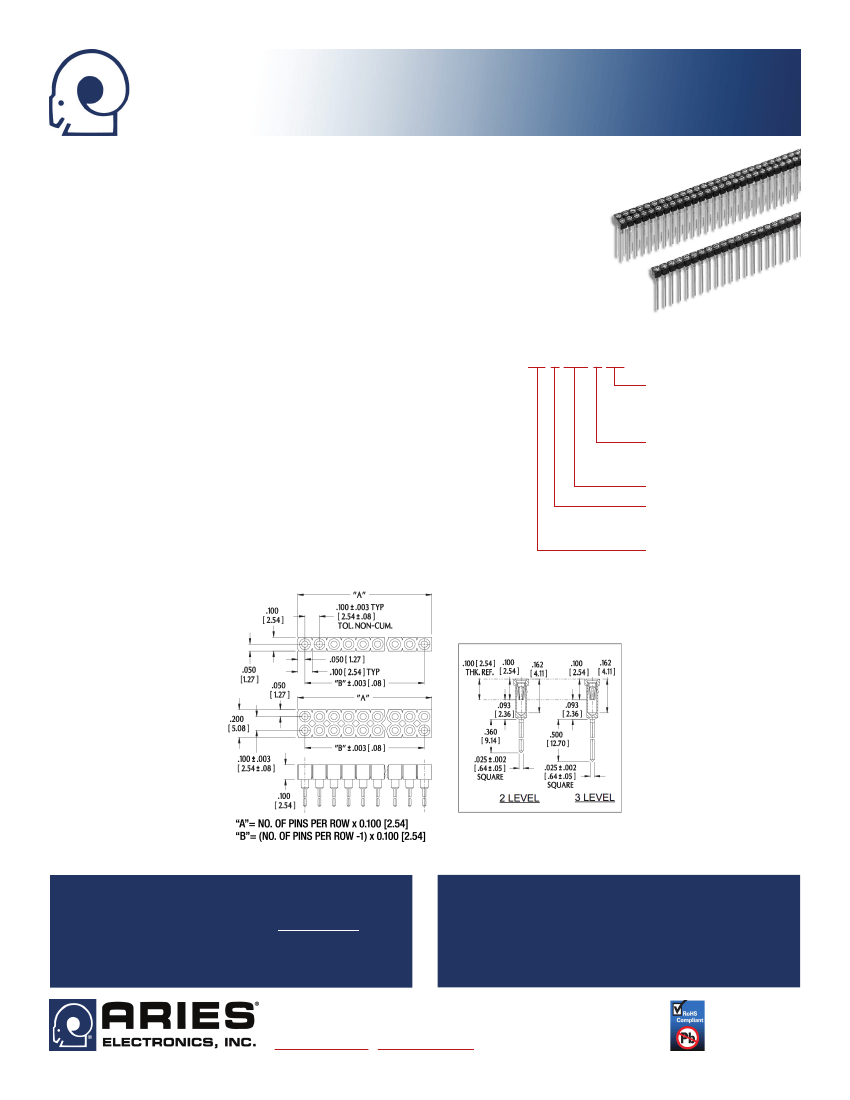

Single and Dual Row Wire Wrap Pins
Collet Socket – Series 508
FEATURES
• Available in Single or Dual Row Strips
• Cut to the Desired Number of Pins to Fit the Application
• Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Black UL 94V-0 Nylon 4/6
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per
ASTM B545
–OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE
AMS-QQ-N-290B
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
ORDERING INFORMATION
•
CONTACT PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 –OR–
200µ
[5.08µ] min. Sn per ASTM B545 Type 1 –OR– 10µ [0.25µ] min. Au per MIL-G-45204
XX-X 508-X XX
over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
Plating
•
CONTACT CURRENT RATING: 3 amps
0 = Au Collet, RoHS Shell
0TL = Au Collet, Sn/Pb Shell
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn plating; -67°F
1 = Au Collet & Shell
to 257°F [-55°C to 125°C] for Au plating
Termination
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
2 = 2-level Wire Wrap Pins
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
3 = 3-level Wire Wrap Pins
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
Series
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.160 [2.79-4.06] long
No. of Rows
0 = Single
1 = Dual
No. of Pins per Socket
1 Row – 1 to 40 Pins
2 Rows – 2 to 66 Pins
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB PAD SIZE:
0.063 [1.60] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLECT SOCKETS w/SOLDER PIN TAILS, SEE DATA SHEET 12020
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12021
Rev. 7.4
1 of 1
