Introduction
V Series™ HD LED array product, an ultra-high lumen density COB product line, is designed for high intensity spotlights used
in commercial and retail settings. V Series HD arrays offer industry leading color over angle uniformity, and replace ceramic
metal halide lamps by providing equal or greater center beam candle power at lower power and at greater lifetimes. Their
tight beam control and exceptional quality of light is well suited for demanding directional spot applications.
The V9 HD LED array is available in a variety of CCT and CRI combinations providing substantial design flexibility and energy
efficiencies.
Lighting system designs incorporating these LED arrays deliver increased system level efficacy and longer service life. Typical
applications include, but are not limited to, commercial and residential down lights, accent, spot and track lights.
Bridgelux Décor Series™ is our state of the art color line designed specifically for premium applications, producing
unmatched LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux
Décor Series color points are available on Vero® SE Series, Vero
®
Series, V Series™ and V Series™ HD.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
•
Efficacy of 134 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 80, 90 and 95 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 3 SDCM options
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• V
f
bin code backside marking
• Enhanced optical control
• Clean white light without pixelation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to
enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue
V Series HD
Product Feature Map

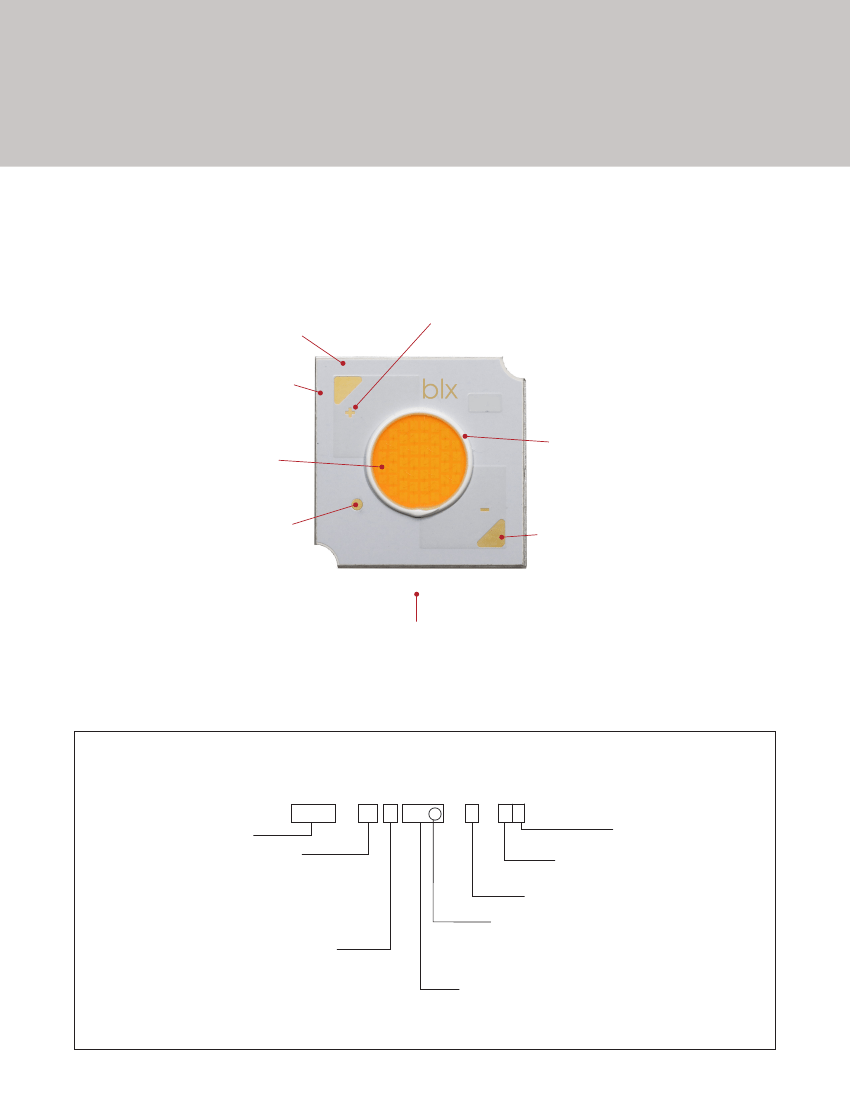

Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on an
engineered mechanical platform. The V Series HD arrays
are the most compact chip-on-board devices across all of
Bridgelux’s LED Array products. The arrays incorporate
several features to simplify design integration and
assembly. Please visit www.bridgelux.com for more
information on the V Series HD family of products.
Designed to comply with global
safety standards for creepage
and clearance distances
Polarity symbols
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
)
Measurement Point
Solder Pads
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series HD LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRH – 30 E 300 0 – D – 7 3
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
CRI
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
Gen. 7
CCT Bin Options
3 = 3 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Décor Series Showcase Targeted
Flux Indicator
300x = 3000 lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRH-27E3000-D-73
BXRH-27G3000-D-73
BXRH-27H3000-D-73
BXRH-30E3000-D-73
BXRH-30G3000-D-73
BXRH-30G300C-D-73
BXRH-30H3000-D-73
BXRH-35A3001-D-73
BXRH-35G3000-D-73
8,9
Nominal
CCT
1
(K)
2700
2700
2700
3000
3000
3000
3000
3500
3500
4000
4000
CRI
2
80
90
97
80
90
90
97
93
90
80
90
Nominal Drive
Current
3
(mA)
700
700
700
700
700
700
700
700
700
700
700
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
3246
2699
2392
3417
2870
2631
2529
2870
2939
3554
3007
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
2792
2322
2057
2939
2468
2263
2175
2468
2527
3056
2586
Typical V
f
(V)
36.4
36.4
36.4
36.4
36.4
36.4
36.4
36.4
36.4
36.4
36.4
Typical
Power
(W)
25.5
25.5
25.5
25.5
25.5
25.5
25.5
25.5
25.5
25.5
25.5
Typical
Efficacy
(lm/W)
127
106
94
134
113
103
99
113
115
139
118
BXRH-40E3000-D-73
BXRH-40G3000-D-73
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value for 80
CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a ± 3 tolerance on
CRI and R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8.
Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may vary
depending on fixture design and performance.
3
