ECM Surface Mount Toroidal Inductors
SMTC Series
ECM UCR Series
Surface Mount
Toroidal Design
Zero Radiated Interference
Reliable Self Leaded Design
Typical Reel Size 500pcs
The
SMTC
series of toroidal SMD inductors exhibit excellent current handling characteristics. The
clever design of the moulded enclosure makes these coils suitable for automatic placement, while the
variation of core materials available mean this component series covers a wide range of product
applications.

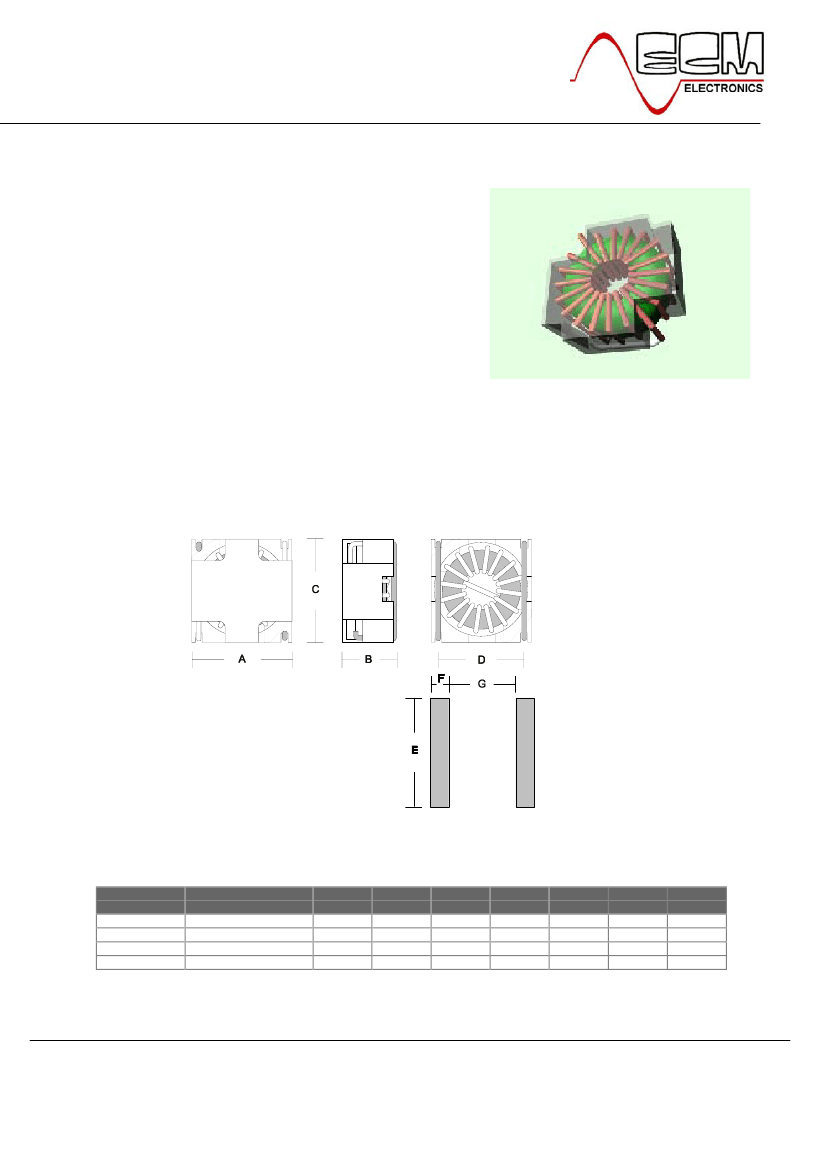

COMPONENT OUTLINE
DIMENSIONS
ECM Type
SMTC30
SMTC38
SMTC44
SMTC50
Inductance Range
1.8uH ~ 390uH
1.5uH ~ 470uH
5.6uH ~ 2.2mH
10uH ~ 4.7mH
A
(mm)
11.05
14.22
14.99
17.02
B
11.18
14.35
15.62
17.78
C
9.50
9.50
10.50
10.50
D
8.89
11.43
12.70
14.73
E
10.16
13.21
13.97
15.75
F
1.52
1.52
1.52
1.52
G
9.14
11.68
12.95
14.99
Custom specifications furnished upon request.
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: sales@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
