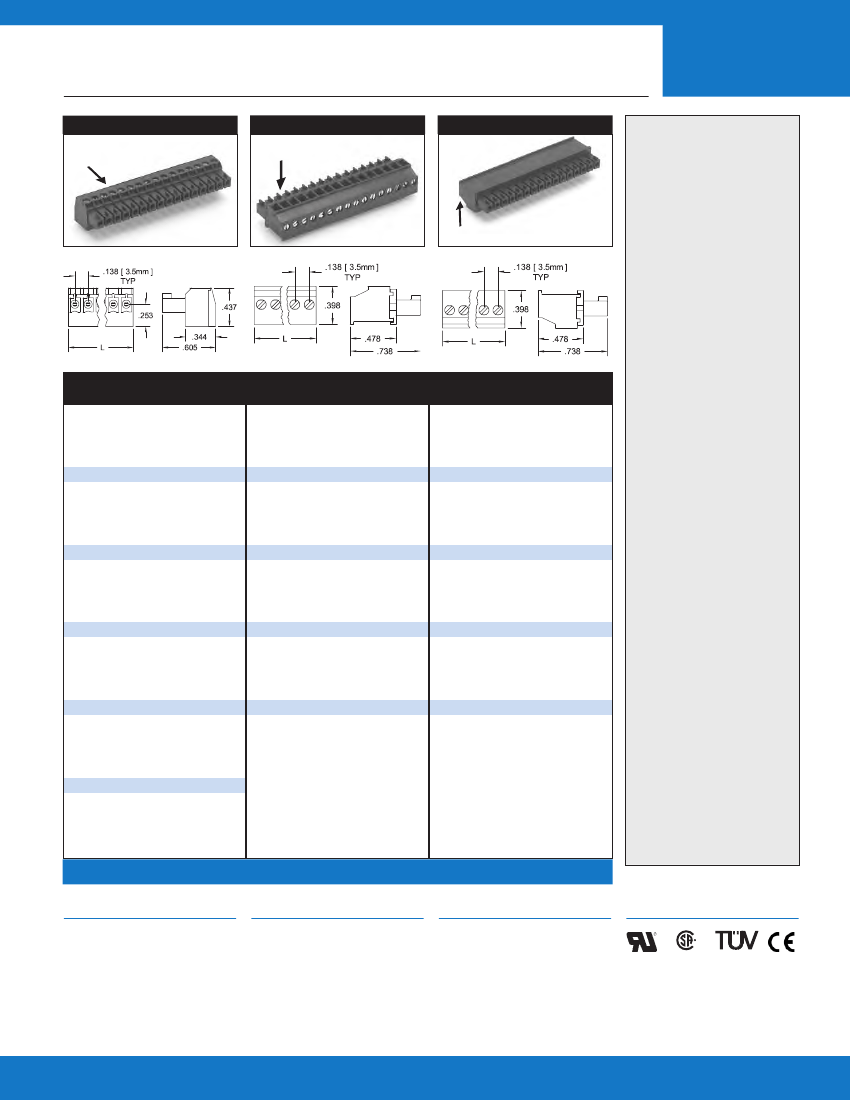

ELXP/ELXT MINI-PLUGS
Right Angle/Straight
ELXP Right Angle
E
WIR
3.5mm
( .138" )
ELXT Bottom Entry
ELXT Top Entry
WIRE
POLARIZING KEYS
FOR ELV AND ELX
ELV and ELX family head-
ers are designed to accept
tabs which lock into key-
ways in the body
moldings, and can be con-
figured to ensure correct
mating of physically simi-
lar but electrically unique
plugs and headers—and
to prevent incorrect mating
of the wrong connectors.
Keying is accomplished
without loss of a contact
position.
In order to key a mated
plug and header pair, the
header is configured with
the appropriate keys, and
the plug is modified by
trimming off the protruding
tabs on the corresponding
contact positions. The
bright yellow tabs provide
a visual and physical con-
firmation of correct
mating.
For handling convenience,
keys are supplied in rings
of eight. Order Part No.
300800000.
WIR
E
Pos
Catalog #
Black
Catalog #
Green
L
(mm) Pos
Catalog #
Black
Catalog #
Green
L
(mm) Pos
Catalog #
Black
Catalog #
Green
L
(mm)
2
3
4
5
6
7
8
9
ELXP02100
ELXP03100
ELXP04100
ELXP05100
ELXP06100
ELXP07100
ELXP08100
ELXP09100
ELXP021G0
ELXP031G0
ELXP041G0
ELXP051G0
ELXP061G0
ELXP071G0
ELXP081G0
ELXP091G0
ELXP101G0
ELXP111G0
ELXP121G0
ELXP131G0
ELXP141G0
ELXP151G0
ELXP161G0
ELXP171G0
ELXP181G0
ELXP191G0
ELXP201G0
ELXP211G0
ELXP221G0
ELXP231G0
ELXP241G0
7.0
10.5
14.0
17.5
21.0
24.5
28.0
31.5
35.0
38.5
42.0
45.5
49.0
52.5
56.0
59.5
63.0
66.5
70.0
73.5
77.0
80.5
84.0
2
3
4
5
6
7
8
9
ELXT02500
ELXT03500
ELXT04500
ELXT05500
ELXT06500
ELXT07500
ELXT08500
ELXT09500
ELXT025G0
ELXT035G0
ELXT045G0
ELXT055G0
ELXT065G0
ELXT075G0
ELXT085G0
ELXT095G0
ELXT105G0
ELXT115G0
ELXT125G0
ELXT135G0
ELXT145G0
ELXT155G0
ELXT165G0
ELXT175G0
ELXT185G0
ELXT195G0
ELXT205G0
7.0
10.5
14.0
17.5
21.0
24.5
28.0
31.5
35.0
38.5
42.0
45.5
49.0
52.5
56.0
59.5
63.0
66.5
70.0
2
3
4
5
6
7
8
9
ELXT02600
ELXT03600
ELXT04600
ELXT05600
ELXT06600
ELXT07600
ELXT08600
ELXT09600
ELXT026G0
ELXT036G0
ELXT046G0
ELXT056G0
ELXT066G0
ELXT076G0
ELXT086G0
ELXT096G0
ELXT106G0
ELXT116G0
ELXT126G0
ELXT136G0
ELXT146G0
ELXT156G0
ELXT166G0
ELXT176G0
ELXT186G0
ELXT196G0
ELXT206G0
7.0
10.5
14.0
17.5
21.0
24.5
28.0
31.5
35.0
38.5
42.0
45.5
49.0
52.5
56.0
59.5
63.0
66.0
70.0
10 ELXP10100
11 ELXP11100
12 ELXP12100
13 ELXP13100
14 ELXP14100
15 ELXP15100
16 ELXP16100
17 ELXP17100
18 ELXP18100
19 ELXP19100
20 ELXP20100
21 ELXP21100
22 ELXP22100
23 ELXP23100
24 ELXP24100
10 ELXT10500
11 ELXT11500
12 ELXT12500
13 ELXT13500
14 ELXT14500
15 ELXT15500
16 ELXT16500
17 ELXT17500
18 ELXT18500
19 ELXT19500
20 ELXT20500
10 ELXT10600
11 ELXT11600
12 ELXT12600
13 ELXT13600
14 ELXT14600
15 ELXT15600
16 ELXT16600
17 ELXT17600
18 ELXT18600
19 ELXT19600
20 ELXT20600
MARKING LABELS
Stick-on marking labels,
printed on vinyl cloth, ar e
available in two versions:
ELVLABEL1: Nos. 1--10
ELVLABEL2: Nos. 11--20
Labels are supplied in
sheets containing 25 peel-
off strips.
See page 13 for gold plating and marking options
SPECIFICA TIONS:
MATERIALS:
WIRE INST ALLATION:
APPROVALS:
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
3
Megohms
Dielectric Withstanding:
<1600V
Wire Pullout Force:
Per UL 486E, Section 14
Housing:
Polyamide, UL 94V-0,
black or green
Contact:
Copper alloy, optional finish
Clamp Screw:
Copper alloy, nickel finish
Wire Clamp:
Copper alloy, nickel finish
Wire Range:
#16-28 AWG
Wire Strip Length:
0.25"
Recommended Tightening Torque:
2.2 lb-in. (0.25N-m)
Consult factory for specific product recognitions
Amphenol Pcd
15
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com

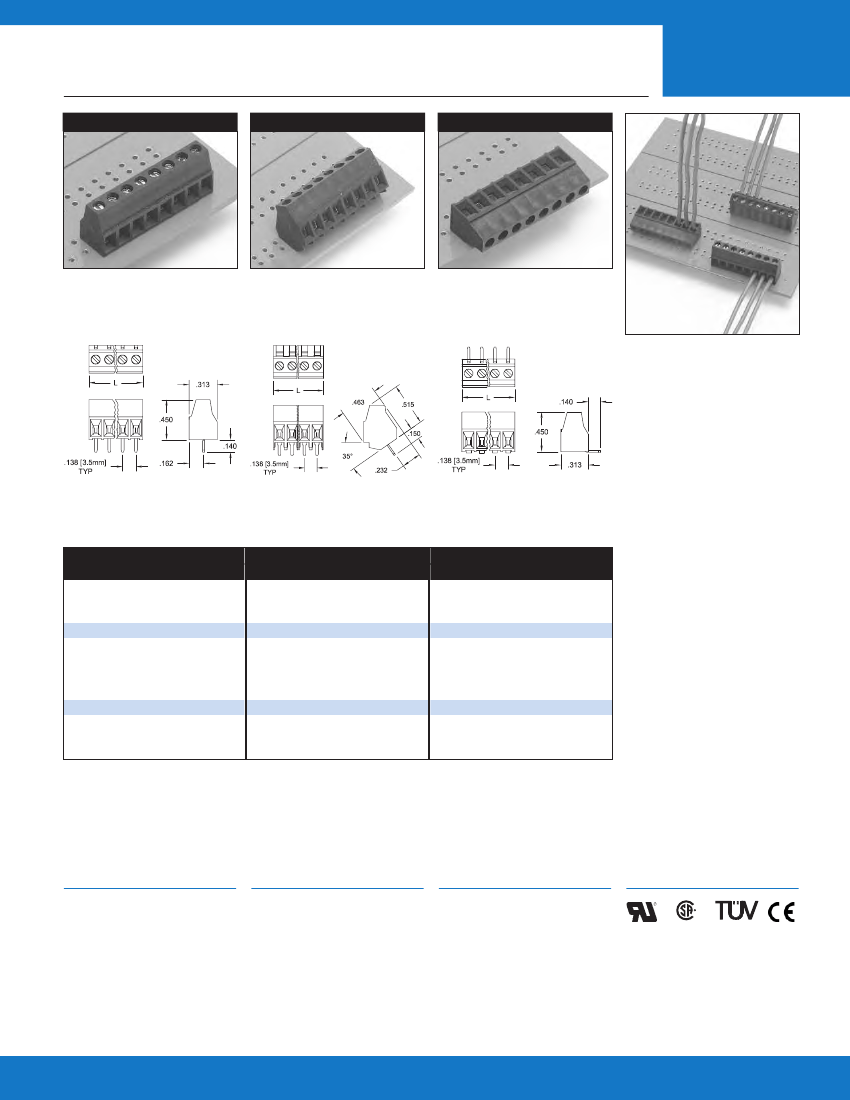

ELXM Fixed Terminal Blocks
SMT Compatible
ELXM Horizontal
ELXM Angled
ELXM Vertical
3.5mm
(.138")
ELXM 3.5mm spacing wire-
to-board terminal blocks are
available in vertical, hori-
zontal and angled wire
entry variations.
SMT Compatibility
The ELXM is suitable for
SMT reflow solder PCB
manufacturing processes as
well as wave solder, provid-
ing users with additional
flexibility and maximizing
production efficiencies by
eliminating secondary
solder operations. Terminal
blocks are molded of ultra-
high-temperature, glass-filled
polyamide that will with-
stand temperatures of
260°C during PCB produc-
tion.
Moving cage clamp wire
termination assures
repeated, high-reliability
connections. The housing is
molded to size. Blocks are
available in sizes 2 to 10,
and can be stacked side-to-
side on a board without
loss of a contact position.
APPROVALS:
Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.)
2 ELXM02100
3 ELXM03100
4 ELXM04100
5 ELXM05100
6 ELXM06100
7 ELXM07100
8 ELXM08100
9 ELXM09100
10 ELXM10100
ELXM021G0
7.0
2 ELXM02300
3 ELXM03300
4 ELXM04300
5 ELXM05300
6 ELXM06300
7 ELXM07300
8 ELXM08300
9 ELXM09300
10 ELXM10300
ELXM023G0
7.0
2 ELXM02900
3 ELXM03900
4 ELXM04900
5 ELXM05900
6 ELXM06900
7 ELXM07900
8 ELXM08900
9 ELXM09900
10 ELXM10900
ELXM029G0
7.0
ELXM031G0 10.5
ELXM041G0 14.0
ELXM051G0 17.5
ELXM061G0 21.0
ELXM071G0 24.5
ELXM081G0 28.0
ELXM091G0 31.5
ELXM101G0 35.0
ELXM033G0 10.5
ELXM043G0 14.0
ELXM053G0 17.5
ELXM063G0 21.0
ELXM073G0 24.5
ELXM083G0 28.0
ELXM093G0 31.5
ELXM103G0 35.0
ELXM039G0 10.5
ELXM049G0 14.0
ELXM059G0 17.5
ELXM069G0 21.0
ELXM079G0 24.5
ELXM089G0 28.0
ELXM099G0 31.5
ELXM109G0 35.0
INSTALLATION:
MATERIALS:
SPECIFICA TIONS:
Wire Range:
16-28 AWG
Wire Strip Length:
.250"
Recommended Tightening Torque:
2.2 lb-in. (0.25N-m)
Hole Diameter:
.047 min.
Housing:
Polyamide 4/6, UL 94V-0, black
or green
Contact:
Brass, optional finish
Clamp Screw:
Copper alloy, nickel finish
Wire Clamp:
Copper alloy, nickel finish
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
5
Megohms
Dielectric Withstanding:
<3000V
Wire Pullout Force:
Per UL 486E, Section 14
Consult factory for specific product recognitions
Amphenol Pcd
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
