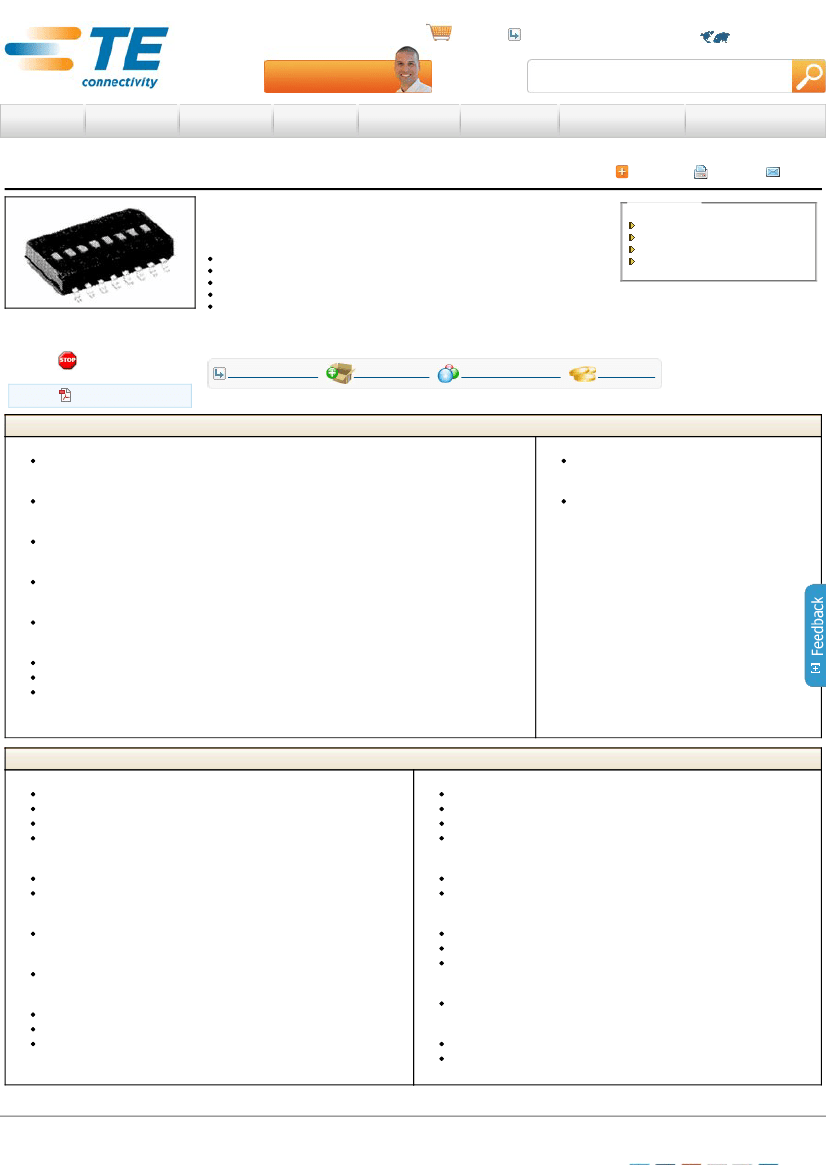

GDH10STR Product Details
DIP & SIP Switches Standard
Not EU RoHS or ELV Compliant
(
Find RoHS Compliant Alternates
)
Share
Print
Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
Switch
Switch Type = DIP
PCB Mount Style = Surface Mount
Single Pole Single Throw Configuration (PoleThrow)
Actuator Style = Recessed Rocker
GDH10STR
(214375908)
TE Internal Number: 214375908
View all Features
Superseded
Search for Replacement Parts
View 3D PDF
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files: (CAD Format & Compression Information)
2D Drawing (DXF, Version B)
3D Model (IGES, Version B)
3D Model (STEP, Version B)
Additional Information:
Product Line Information
Related Products:
Tooling
Add to My Part List
Request Sample
Find Similar Products
Buy Product
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Switch
PCB Mount Style = Surface Mount
Actuator Style = Recessed Rocker
Sealed = Yes
Termination Features:
Seal Type = Tape
Termination Style = Outside "L"
Dimensions:
Length (mm [in]) = 13.82 [0.544]
Body Features:
Switch Type = DIP
Contact Features:
AutoInsertable = No
Contact Base Material = Copper Alloy
Contact Plating, Mating Area, Material = Gold
Housing Features:
Centerline (mm [in]) = 1.27 [0.050]
Low Profile = Yes
Housing Color = Black
Housing Material = Polyphenylene Sulfide (PPS)
Configuration Features:
Configuration (PoleThrow) = Single Pole Single Throw
Number of Switches = 10
Industry Standards:
RoHS/ELV Compliance = Not ELV/RoHS compliant
Lead Free Solder Processes = Reflow solder capable to 245°C
UL Flammability Rating = UL 94V0
Packaging Features:
Packaging Method = Tape & Reel
Other:
Series = GD
Brand = Alcoswitch
