Data sheet...
CP M SNT3 250W 24V 10A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
PRO-M = Power-Reliable-Optimized

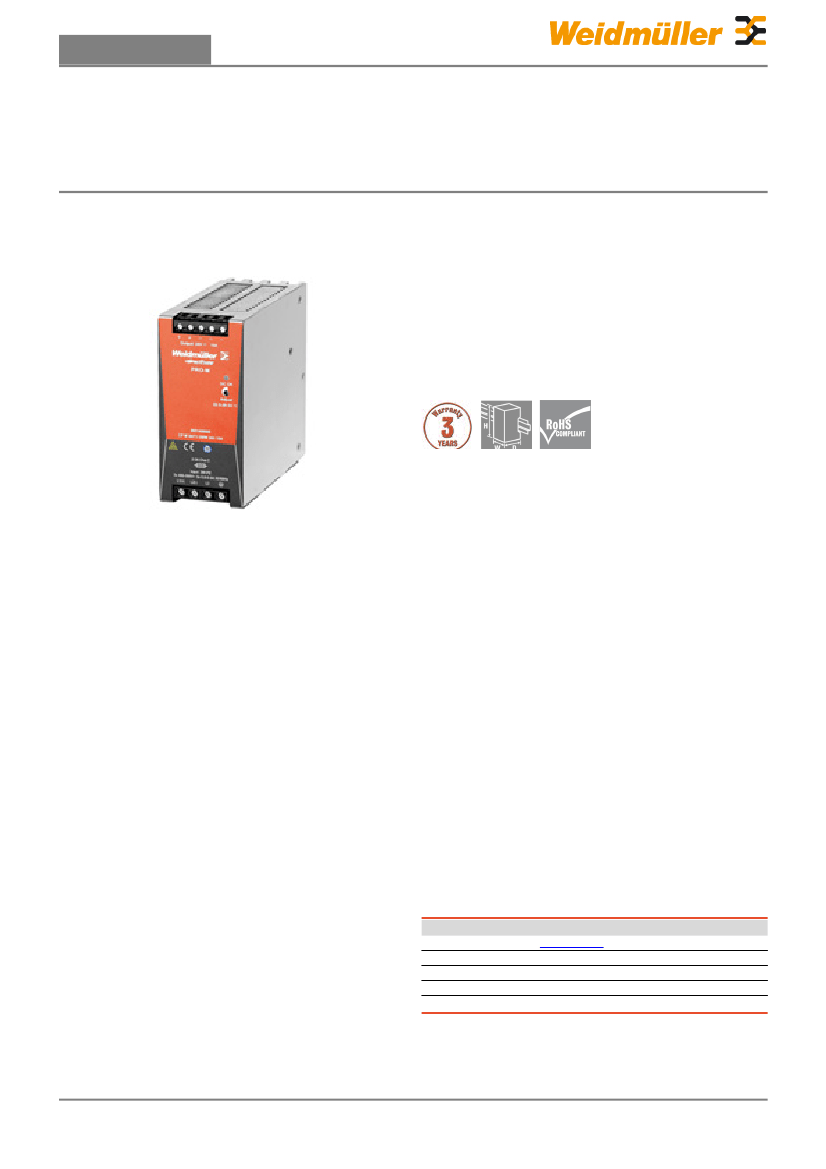

The perfectly reliable power supply for automation
technology.
The ten different versions for the 24V-DC power supply
all feature a solid but thin metal housing which enables
them to be installed without any side gaps. This results
in less space required on the mounting rail. Wide range
of AC/DC inputs and a wide temperature range enable
them to be used anywhere. Because of its high efficiency,
resistance to overloads and high power reserves, the PRO-
M is a trusted power supply for use in any application.
The three-phase PRO-M power supply modules continue
to function reliably when one phase fails (i.e., in two-
phase mode).
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8951400000
CP M SNT3 250W 24V 10A
Power supply, switch-mode power supply unit
4032248742615
1 pc(s).
Creation date April 10, 2013 5:43:19 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
1
Data sheet...
CP M SNT3 250W 24V 10A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
60 mm
150 mm
1,293 g
Height
Weight
Dimensions and weights
Width
Depth
Net weight
130 mm
1.25 kg
Temperatures
Operating temperature
-25 °C...+70 °C
Storage temperature
-40 °C...+85 °C
Input
AC current consumption
DC input voltage range
Input fuse
Input voltage range AC
Recommended back-up fuse
rated input voltage
0.5 A @ 3 x 500 V AC /
0.55 A @ 3 x 400 V AC
450...800 V DC (max. 500
V DC acc. to UL508)
Yes
3 x 320...3 x 575 V AC / 2
x 360...2 x 575 V AC
2 A / DI, safety fuse
2...3 A, Char. C, circuit
breaker
3 x 400...3 x 500 V AC
(wide-range input)
DC current consumption
Frequency range AC
Input fuse (internal)
Making current
Wire connection method
0.35 A @ 800 V DC / 0.6
A @ 450 V DC
47...63 Hz
Yes
max. 50 A
Screw connection
output
Output current
Output voltage type
Output voltage, min.
Overload protection
Powerboost @ 24 V DC, 60 °C
Wire connection method
rated output voltage
10 A
DC
22.5 V
Yes
12 A for 1 min, ED = 5 %
Screw connection
24 V DC ± 1 %
Output power
Output voltage, max.
Output voltage, note
Parallel connection option
Rated (nominal) output current @ U
Nom
continous output current @ 24 V DC
residual ripple, breaking spikes
240 W
29.5 V
(adjustable via
potentiometer on front)
yes, max. 5
10 A @ 60 °C
12 A @ 45 °C, 10.7 A @
55 °C, 7.5 A @ 70 °C
< 50 mV
SS
@ 24 V DC, I
N
General data
AC failure bridging time @ I
Nom
> 40 ms @ 3 x 500 V AC /
> 20 ms @ 3 x 400 V AC
Degree of efficiency
89 % @ 3 x 500 V AC / 90
% @ 3 x 400 V AC
Indication
Operation, green LED
Mounting position, installation notice
Horizontal on TS35
mounting rail, with 50 mm
of clearance at top and
bottom for air circulation.
Can be mounted side
by side with no space in
between.
Power factor (approx.)
> 0.65 @ 3 x 500 V AC / >
0.75 @ 3 x 400 V AC
Protection against reverse voltages from
the load
30…35 V DC
Weight
1.25 kg
Current limiting
Housing version
MTBF
Operating temperature
> 120 % I
N
Metal, corrosion resistant
> 500,000 h acc. to IEC
1709 (SN29500
Protection against over-heating
Short-circuit protection
-25 °C...+70 °C
Yes
Yes
Creation date April 10, 2013 5:43:19 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
2
Data sheet...
CP M SNT3 250W 24V 10A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
in accordance with EN
61000-3-2
EN 61000-4-2 (ESD)|
EN 61000-4-3 and EN
61000-4-8 (fields)|EN
61000-4-4 (burst)|EN
61000-4-5 (surge)|EN
61000-4-6 (conducted)|
EN 61000-4-11 (dips)
EMC / shock / vibration
Limiting of mains voltage harmonic
currents
Interference immunity test acc. to
Noise emission acc. to EN55022
Shock resistance IEC 60068-2-27
Class B
30 g in all directions
Insulation coordination
Class of protection
I, with PE connection
2
3 kV
Insulation voltage
electrical isolation, input-earth
electrical isolation, output-earth
3 kV input/ouput; 2
kV input/earth; 0.5 kV
output/earth
2 kV
0.5 kV
Pollution severity
electrical isolation, input-output
Electrical safety (applied standards)
Electrical machine equipment
Acc. to EN60204
Acc. to VDE0106-101
SELV acc. to EN60950,
PELV acc. to EN60204
For use with electronic equipment
Protective separation / protection
against electrical shock
Safety transformers for switch-mode
power supplies
Acc. to EN50178 /
VDE0160
VDE0100-410 / acc. to
DIN57100-410
Acc. to EN 61558-2-17
Protection against dangerous shock
currents
Safety extra-low voltage
Connection data (input)
Conductor cross-section, AWG/kcmil ,
max.
Conductor cross-section, flexible , min.
Conductor cross-section, rigid , min.
Tightening torque, max.
Wire connection cross section, flexible
(input), max.
12
0.5 mm²
0.5 mm²
0.6 Nm
2.5 mm²
Conductor cross-section, AWG/kcmil ,
min.
Conductor cross-section, rigid , max.
Number of terminals [Input]
Tightening torque, min.
26
6 mm²
4 for L1/L2/L3/PE
0.5 Nm
Connection data (output)
Conductor cross-section, AWG/kcmil ,
max.
Conductor cross-section, flexible , max.
Conductor cross-section, rigid , max.
Number of terminals [Output]
Tightening torque, min.
12
2.5 mm²
6 mm²
5 (++ / ---)
0.5 Nm
Conductor cross-section, AWG/kcmil ,
min.
Conductor cross-section, flexible , min.
Conductor cross-section, rigid , min.
Tightening torque, max.
26
0.5 mm²
0.5 mm²
0.6 Nm
Creation date April 10, 2013 5:43:19 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
3
Data sheet...
CP M SNT3 250W 24V 10A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Institute (GERMLLOYD)
Certificate No. (GERMLLOYD)
94767-10
Institute (cULus)
Certificate no. (cULus)
Institute (cURus)
Certificate No. (cURus)
E258476VOL1SEC28
E255651VOLX3A15
Classifications
ETIM 3.0
eClass 6.2
EC001039
27-04-90-04
eClass 5.1
eClass 7.1
27-04-90-02
27-04-90-04
Approvals
Approvals
ROHS
Conform
Downloads
Package insert
Declaration of Conformity
PDF
EPLAN
3-D model
Operating instructions
K469_12_11.pdf
Warranty information
8951400000.ema
Creation date April 10, 2013 5:43:19 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
4
Data sheet...
CP M SNT3 250W 24V 10A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

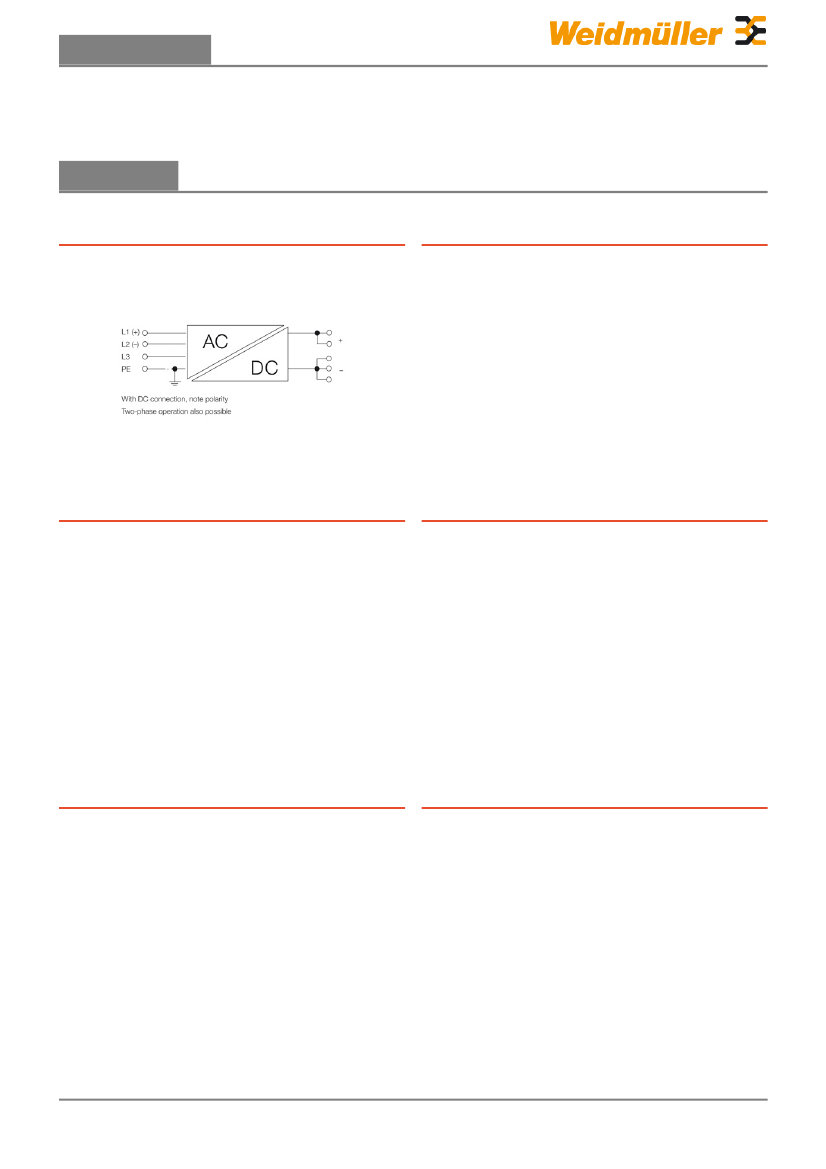

Drawings
Electric symbol
Creation date April 10, 2013 5:43:19 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
