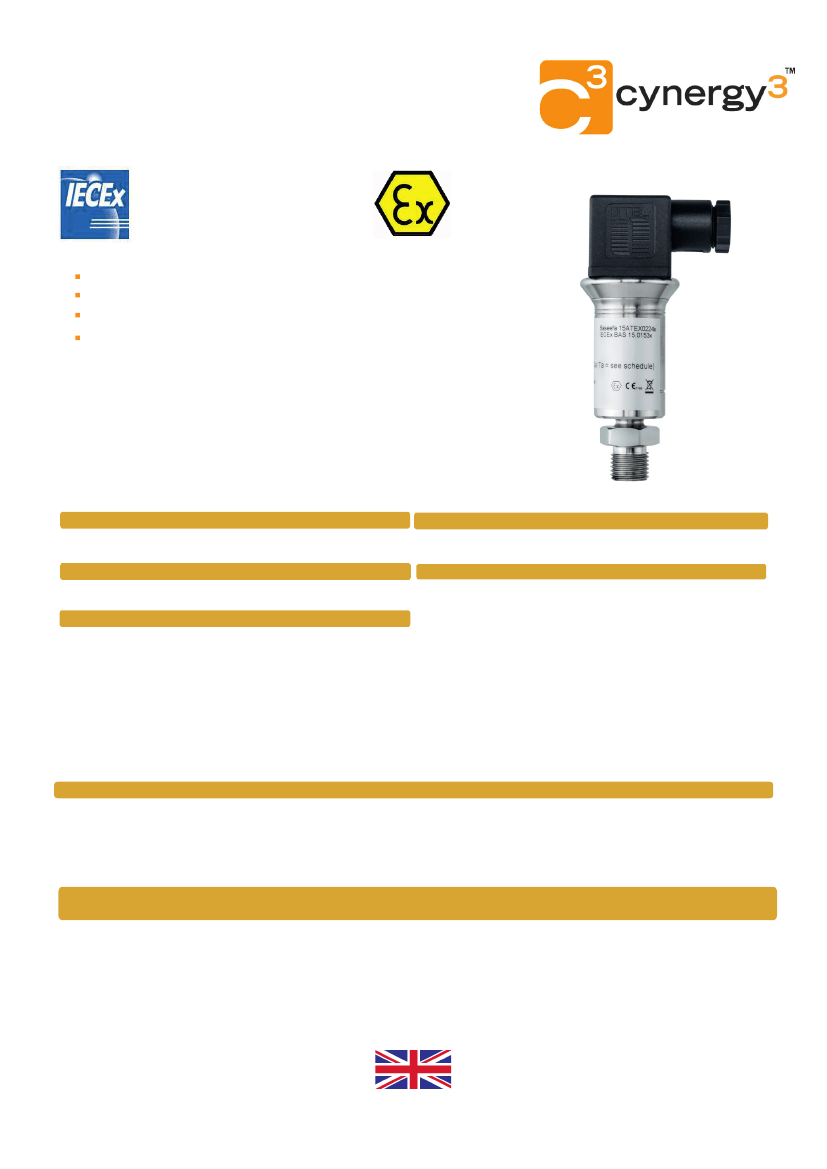

IPSAT Series
Intrinsically Safe Pressure Transducer
Approvals:-
ATEX / IECEx
EII
1G Ex ia IIC T4 Ga (Ta -see schedule)
Piezo-resistive thick film ceramic sensor
Stainless steel body
Accuracy <
±
0.25% FS BFSL
Pressure ranges from -1 to 400 bar
The IPSAT series is ideally suited for use in a wide range of industrial applications in hazardous
areas. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within
a stainless steel housing
The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving
stable electronics, especially industrial applications.
Each device is temperature compensated, calibrated and supplied with a traceable serial number
and calibration data.
Electrical Protection
Supply reverse polarity
Electromagnetic compatibility
Mechanical Stability
Shock
Vibration
Environment & Thermal Effects
Ambient Temperature Range
Storage temperature
Compensated temperature range
Thermal Zero Shift (TZS)
Thermal Span Shift
Permissible environment
Performance
No damage but also no function Accuracy (Non-Linearity & Hysteresis) <±0.25% / FS (BFSL)
Setting Errors (offsets)
Zero & Full Scale, <±0.5% / FS
CE Compliant
Material Specifications
100g / 11s
Housing
316 Stainless Steel
10g RMS (20 - 2000Hz)
“O” ring seals
Viton
Diaphragm
Ceramic Al
2
O
3
96%
-20ºC to +75ºC
Media wetted parts
Housing & connection, “O” ring seal,
-20ºC to +80ºC
diaphragm
+20ºC to +80ºC
Weight
Approx 100g
<±0.04% /FS/ºC
Installation position
Any
6
<±0.015% /ºC
Operational Life
> 100x 10 cycles
Zone 0
Insulation resistance
> 50MOhms at 50Vdc
Pressure Ranges
Nominal Pressure, Gauge,
Compound range
Permissible Overpressure
Burst Pressure
bar
bar
bar
bar
1
-1 to 0
2
4
2
-1 to 2
4
5
5
-1 to 5
10
12
10
20
50
-1 to 9 -1 to 19 -1 to 24
20
40
100
25
50
120
100
200
250
250
400
500
400
650
650
Output Signal and Supply Voltage
Wire system
Output
2-wire
4-20mA
Supply Voltage
10-28Vdc
Connection Pin Nos
+ve Supply Pin 1
-ve Supply Pin 2
Ground Earth Pin
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
ISO
9001
C E R T I F I E D
IPSAT 2017
Made in the UK
www.cynergy3.com
© 2017 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
IPSAT Series
Intrinsically Safe Pressure Transducer
Part Number
IPSAT-G1000-5
IPSAT-G6000-5
IPSAT-GM1P9-5
IPSAT-G1002-5
IPSAT-G1602-5
IPSAT-C0184-5
IPSAT-G2502-5
IPSAT-G4002-5
IPSAT-G1003-5
IPSAT-G2503-5
IPSAT-G4003-5
Pressure Rating
0 - 1 Bar G
0 - 6 Bar G
-1 to +9 Bar G
0 - 10 Bar G
0 - 16 bar G
-1 to +24 Bar G
0 - 25 Bar G
0 - 40 Bar G
0 - 100 Bar G
0 - 250 Bar G
0 - 400 Bar G

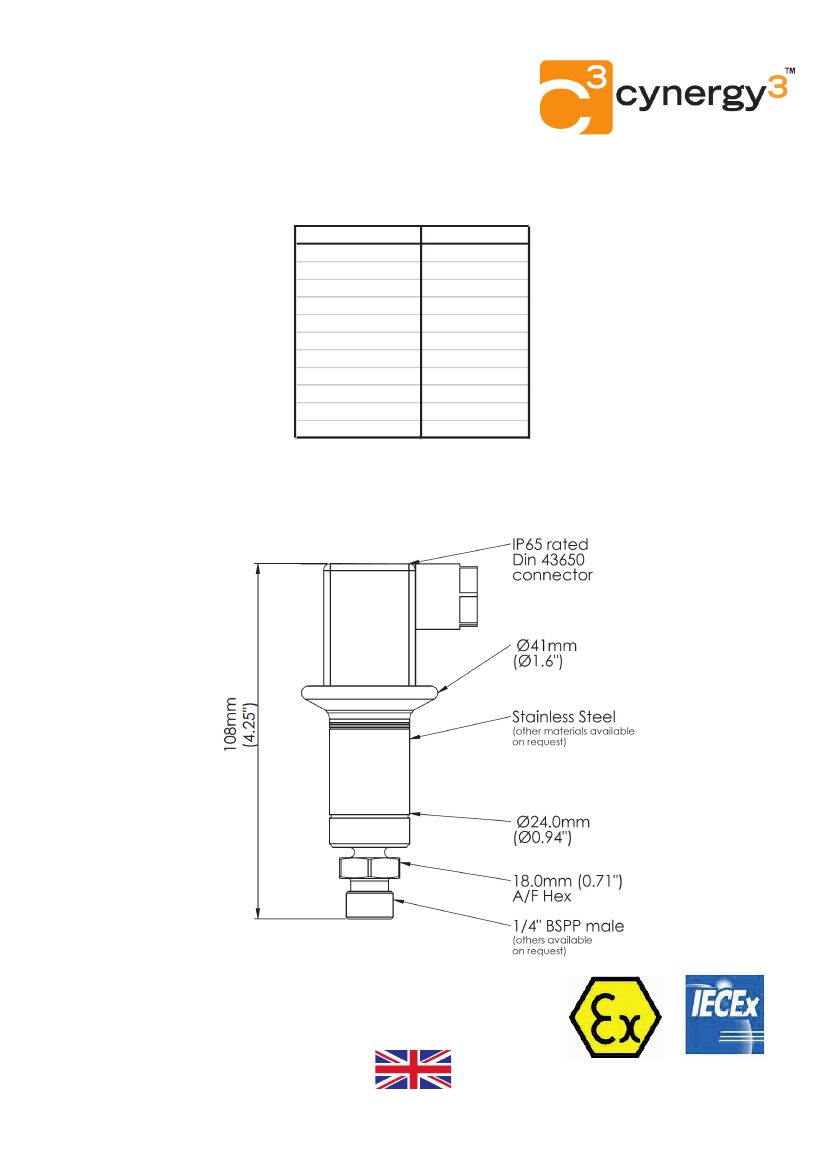

Mechanical Dimensions
