DB 016030, DB 016040, DB 016060
www.vishay.com
Vishay Draloric

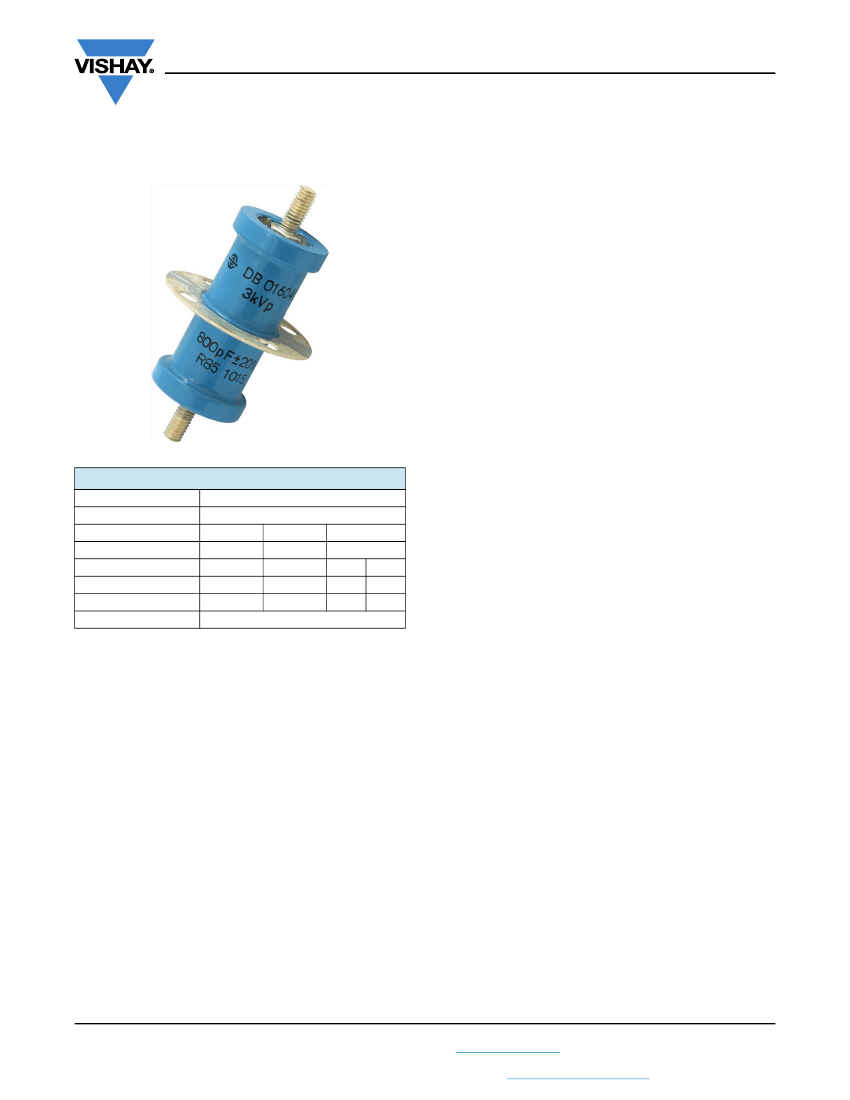

RF Power Feed-Through Capacitors
with Conductor Rod, Class 1 Ceramic
FEATURES
• Small size
• Geometry minimizes inductance
• Wide range of capacitance values
APPLICATIONS
Filtering purposes in industrial and medical RF power
equipment, where high voltages and high feed-through
currents are required.
CAPACITANCE RANGE
200 pF to 2.5 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
CERAMIC DIELECTRICS
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
R85
3000
200
600
VALUE
1
R85
3000
500
800
R85, R230
DB 016060
3000
1000
2500
4000
800
800
• R85 (TCC - 750 ppm/K)
• R230 (TCC - 750 ppm/K)
RATED VOLTAGE
• 3.0 kV
p
• 4.0 kV
p
DB 016030 DB 016040
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
Screw terminal
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
made from copper / brass, silver plated.
DISSIPATION FACTOR
Max. 0.05 %
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
FINISH
Capacitor body completely protective lacquered.
INSULATION RESISTANCE
Min. 10 000 M (at 25 °C)
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
Revision: 14-Sep-15
Document Number: 22115
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DB 016030, DB 016040, DB 016060
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
200
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
FEED-THROUGH
CURRENT
(2)
(A)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
TYPE DB 016030
DB016030BC201##BJ1
DB016030BC401##BJ1
DB016030BC601##BJ1
TYPE DB 016040
DB016040BC501##BJ1
DB016040BC701##BJ1
DB016040BC801##BJ1
TYPE DB 016060
DB016060BD801##BJ1
DB016060BC102##BJ1
DB016060BC122##BJ1
DB016060BC152##BJ1
DB016060BC252##BK1
R230
R85
800
1000
1200
1500
2500
3.0
7.5
5.0
10.0
4.0
R85
500
700
800
3.0
5.0
5.0
10.0
R85
400
600
3.0
4.0
5.0
10.0
CERAMIC
Notes
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C
(2)
DC or low frequency RMS current (< 20 kHz)
DIMENSIONS
in millimeters (inches)
DB 016030: 30 (1.18)
DB 016040: 40 (1.57)
DB 016060: 60 (2.36)
Ø 34.0 ± 0.3
(1.339 ± 0.012 Dia.)
Ø 26.0 ± 0.3
(1.024 ± 0.012 Dia.)
10 ± 1
(0.39 ± 0.04)
=
=
M 4 Thread
Ø 20 (0.79 Dia.)
Ø 16 (0.63 Dia.)
0.5
(0.020)
Ø 4.2 + 0.2
(0.165 + 0.008 Dia.)
MOUNTING GUIDELINES
• The connection to one electrode must be flexible in order to prevent the generation of physical force which could damage the
capacitor elements. Such forces are often generated by the dimensional differences resulting from the normal physical
tolerances of these components.
• The capacitor elements must not be used as a mechanical support for other devices or components.
• Use two wrenches when tightening the nuts on both sides of the conductor rod.
The outer electrode terminal flange of these feed-through capacitors components should be fixed after tightening the inner
electrode’s connection.
• Make sure that not too much force applied to the solder connections between hardware and noble metal electrode. A torque
less than 3.5 Nm (31 lbf in) is recommended.
Revision: 14-Sep-15
Document Number: 22115
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DB 016030, DB 016040, DB 016060
www.vishay.com
Vishay Draloric
DB016030BC401##BJ1
I
g
(A
RMS
)
Q
g
(kvar)
10
U
g
(kV
p
)
10
U
g
Q
g
0.35 MHz
2.48 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10

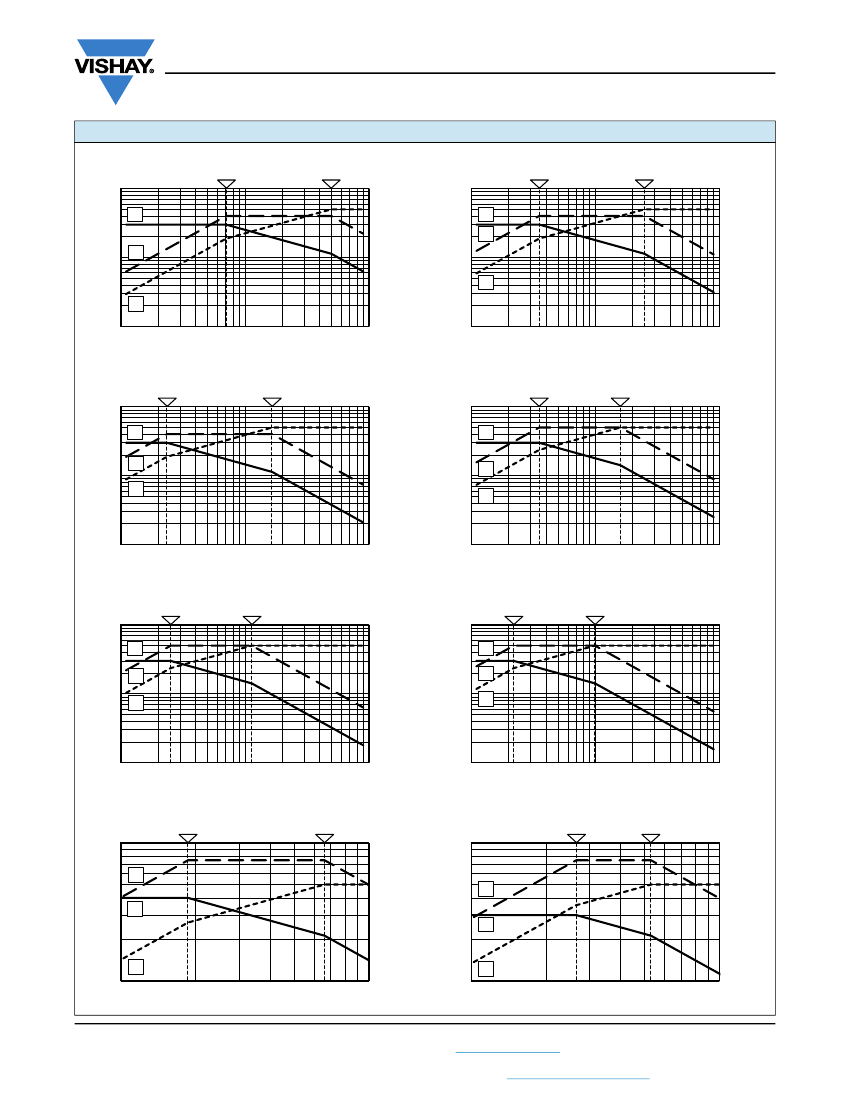

DERATING DIAGRAMS
DB016030BC201##BJ1
U
g
(kV
p
)
10
U
g
0.71 MHz
4.97 MHz
1
Q
g
1
1
I
g
1
I
g
0.1
0.1
1
10
0.1
0.1
0.1
1
10
0.1
Frequency (MHz)
DB016030BC601##BJ1
U
g
(kV
p
)
10
U
g
Q
g
1
I
g
1
1
0.24 MHz
1.66 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
U
g
(kV
p
)
10
U
g
Frequency (MHz)
DB016040BC501##BJ1
0.35 MHz
1.59 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
Q
g
I
g
1
0.1
0.1
1
10
0.1
0.1
0.1
1
10
0.1
Frequency (MHz)
DB016040BC701##BJ1
U
g
(kV
p
)
10
U
g
Q
g
1
I
g
1
1
0.22 MHz
1.14 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
U
g
(kV
p
)
10
U
g
Q
g
I
g
0.22 MHz
Frequency (MHz)
DB016040BC801##BJ1
0.99 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
1
0.1
0.1
1
10
0.1
0.1
0.1
1
10
0.1
Frequency (MHz)
DB016060BD801##BJ1
U
g
(kV
p
)
10
Q
g
U
g
U
g
Q
g
0.19 MHz
0.66 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
U
g
(kV
p
)
10
Frequency (MHz)
DB016060BC102##BJ1
0.27 MHz
0.53 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
I
g
1
0.1
1
1
1
0.1
I
g
1
1
Frequency (MHz)
Revision: 14-Sep-15
Frequency (MHz)
Document Number: 22115
3
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DB 016030, DB 016040, DB 016060
www.vishay.com
Vishay Draloric
DB016060BC152##BJ1
I
g
(A
RMS
)
Q
g
(kvar)
10
U
g
(kV
p
)
10
Q
g
U
g
0.18 MHz
0.35 MHz
I
g
(A
RMS
)
Q
g
(kvar)
10
DERATING DIAGRAMS
DB016060BC122##BJ1
U
g
(kV
p
)
10
U
g
0.22 MHz
0.44 MHz
Q
g
I
g
I
g
1
0.1
1
1
1
0.1
1
1
Frequency (MHz)
DB016060BC252##BK1
U
g
(kV
p
)
10
U
g
Q
g
1
0.18 MHz
0.35 MHz
Frequency (MHz)
I
g
(A
RMS
)
Q
g
(kvar)
10
1
I
g
0.1
0.01
0.1
0.1
1
Frequency (MHz)
