FDA2-R17251NBKT3F-SF Overview

FAN AXIAL 172X51MM 115VAC TERM

FDA2-R17251NBKT3F-SF Parametric

Parameter Name	Attribute value
Voltage - Rated	115VAC
size/dimensions	Round - 172mm diameter
width	51.00mm
airflow	270.0 CFM（7.56m³/min）
static pressure	0.787 inches water column (196.0 Pa)
Bearing type	ball
Fan type	Tube shaft type
characteristic	Salt spray level, thermal overload protector (TOP)
noise	61.0 dB（A）
Power (W)	26.00W
RPM	3300 RPM
Termination	2 terminals
Intrusion protection	IP56M - dust and water resistant
Operating temperature	-4 ~ 158°F （-20 ~ 70°C）
Approval	CE，cURus，TUV
weight	2.5 pounds (1.1kg)
Rated current	0.230A
voltage range	-
Material - Frame	aluminum
Material - Blade	plastic
Service life at different temperatures	-

Preview

Download Datasheet

View All

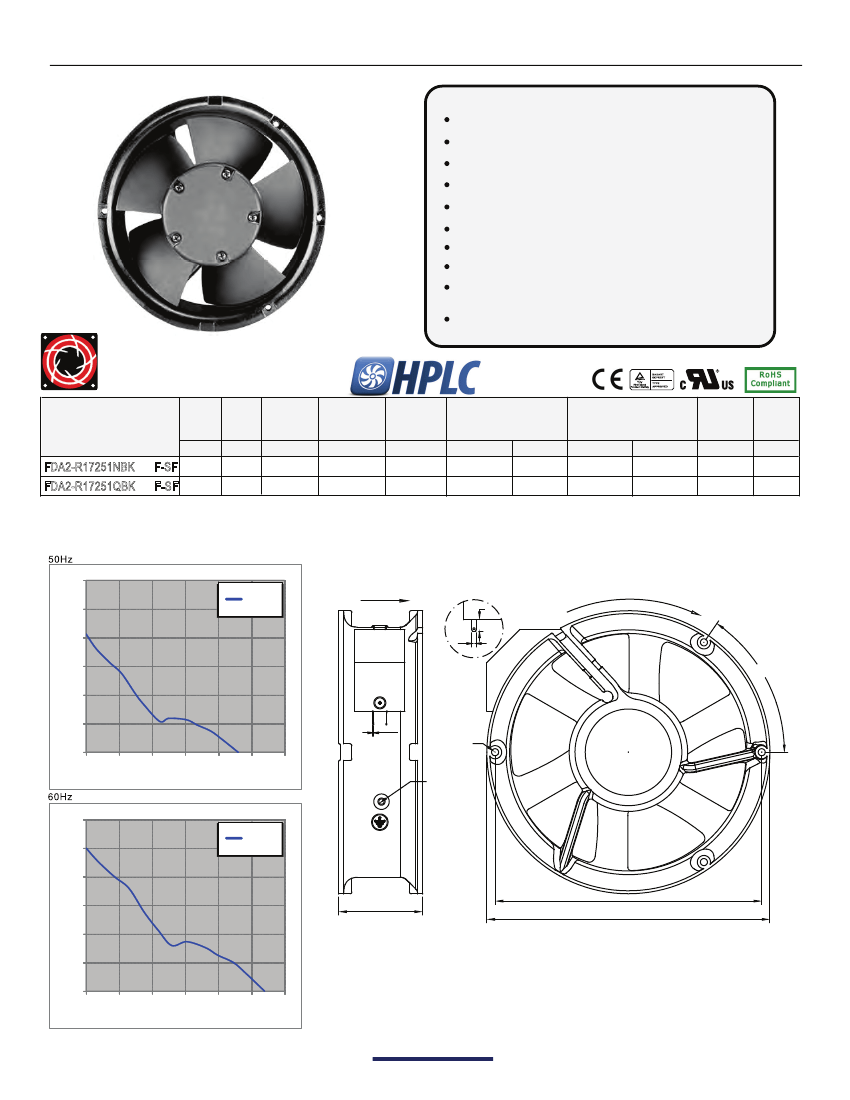

172x51mm

AC AXIAL FAN

Features:

FDA2-R17251-SF Series

Motor: External Rotor Capacitor-Run Induction Motor

Motor Protection: Thermal Protected

Bearing Type: Two Ball

Connection: UL 1015 AWG 22, 300mm Wire Leads or Terminal

Frame Material: Aluminum Alloy

Impeller Material: Plastic UL94V-0, or Steel

Salt Fog Rated -

GR-487-CORE, ASTM B117-11, ISO 9227 Compliant

IP56M Certified

Operating Temp:

Two Ball: -20°C~70°C

Life Expectancy:

Two Ball: 70,000 Hours

SALT FOG

Fan-S Division

Model No.

Volt.

(VAC)

Freq.

(Hz)

Current

(A)

Power

(W)

Rated

Speed

(rpm)

Maximum

AirFlow

(CMM)

(CFM)

Maximum Static

Pressure

(InAq)

(mmAq)

Noise

Level

(dB/A)

Weight

(g)

FDA2-R17251NBK

*

**

F-SF 115

50/60

0.27/0.23 26.0/26.0

2800/3300 6.51/7.65

230/270

0.649/0.787 16.5/20.0

55.0/61.0

1080

50/60 0.10/0.11 23.0/26.0

FDA2-R17251QBK

*

**

F-SF 230

*

Indicates “W” (Wire Leads) or “T” (Terminal)

**

Indicates “3” (Metal Frame, Plastic Impeller) or “4” (Metal Frame and Impeller)

Noise is measured at the distance of one (1) meter from the axis of intake.

Fan Performance Curve

K

Air flow

R otation direction

STATIC PRESSURE (mmAq)

7

3

55.5˚

0.5

FLOWRATE (CFM)

Ø4.3 ± 0.2

M4xP0.7

Fan Performance Curve

K

STATIC PRESSURE (mmAq)

51.0

± 0.5

162 ± 0.3

172 ± 0.5

FLOWRATE (CFM)

ISO-9001 Company

Q

ualtek

Electronics Corporation

www.Qualtekusa.com

FDA2-R17251NBKT3F-SF Related Products

	FDA2-R17251NBKT3F-SF	FDA2-R17251NBKW3F-SF	FDA2-R17251QBKW3F-SF	FDA2-R17251QBKT3F-SF	FDA2-R17251NBKW4F-SF	FDA2-R17251QBKW4F-SF	FDA2-R17251NBKT4F-SF	FDA2-R17251QBKT4F-SF
Description	FAN AXIAL 172X51MM 115VAC TERM	FAN AXIAL 172X51MM 115VAC WIRE	FAN AXIAL 172X51MM 230VAC WIRE	FAN AXIAL 172X51MM 230VAC TERM	FAN AXIAL 172X51MM 115VAC WIRE	FAN AXIAL 172X51MM 230VAC WIRE	FAN AXIAL 172X51MM 115VAC TERM	FAN AXIAL 172X51MM 230VAC TERM
Voltage - Rated	115VAC	115VAC	230VAC	230VAC	115VAC	230VAC	115VAC	230VAC
size/dimensions	Round - 172mm diameter	Round - 172mm diameter	Round - 172mm diameter	Round - 172mm diameter	Round - 172mm diameter	Round - 172mm diameter	Round - 172mm diameter	Round - 172mm diameter
width	51.00mm	51.00mm	51.00mm	51.00mm	51.00mm	51.00mm	51.00mm	51.00mm
airflow	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）	270.0 CFM（7.56m³/min）
static pressure	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)	0.787 inches water column (196.0 Pa)
Bearing type	ball	ball	ball	ball	ball	ball	ball	ball
Fan type	Tube shaft type	Tube shaft type	Tube shaft type	Tube shaft type	Tube shaft type	Tube shaft type	Tube shaft type	Tube shaft type
characteristic	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)	Salt spray level, thermal overload protector (TOP)
noise	61.0 dB（A）	61.0 dB（A）	61.0 dB（A）	61.0 dB（A）	61.0 dB（A）	61.0 dB（A）	61.0 dB（A）	61.0 dB（A）
Power (W)	26.00W	26.00W	26.00W	26.00W	26.00W	26.00W	26.00W	26.00W
RPM	3300 RPM	3300 RPM	3300 RPM	3300 RPM	3300 RPM	3300 RPM	3300 RPM	3300 RPM
Termination	2 terminals	2 leads	2 leads	2 terminals	2 leads	2 leads	2 terminals	2 terminals
Intrusion protection	IP56M - dust and water resistant	IP56M - dust and water resistant	IP56M - dust and water resistant	IP56M - dust and water resistant	IP56M - dust and water resistant	IP56M - dust and water resistant	IP56M - dust and water resistant	IP56M - dust and water resistant
Operating temperature	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）	-4 ~ 158°F （-20 ~ 70°C）
Approval	CE，cURus，TUV	CE，cURus，TUV	CE，cURus，TUV	CE，cURus，TUV	CE，cURus，TUV	CE，cURus，TUV	CE，cURus，TUV	CE，cURus，TUV
weight	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)	2.5 pounds (1.1kg)
Rated current	0.230A	0.230A	0.110A	0.110A	0.230A	0.110A	0.230A	0.110A
Material - Frame	aluminum	aluminum	aluminum	aluminum	aluminum	aluminum	aluminum	aluminum
Material - Blade	plastic	plastic	plastic	plastic	steel	steel	steel	steel
