New Product
Slim I/O Relay
G2RV-SR/G3RV-SR
Global standard size,
low profile slim I/O relay with width 6.2 mm,
slim I/O solid state relay
• Realized about 25% lower profile than conventional
products, contributing to further miniaturization of the
control panel.
• Push-In Plus technology are used to save wiring work in
comparison with conventional screw terminals.
(Wiring time is reduced by 60%* in comparison with
traditional screw terminals.)
• No screw loosening means maintenance-free application,
realizing high reliability
• ‘Hand-free’ structure that holds an inserted flat-blade
screwdriver to achieve easier wiring work for stranded
wires.
• Screw terminal is also stocked to meet the screw type
needs.
• Mounted relay or solid-state relay has a plug-in terminal
that is difficult to bend at the time of exchange.
*
According to OMRON actual measurement data from November 2015.
Refer to
Safety Precautions
on page 20.
G2RV-SR
G3RV-SR
Common Precautions
For the recent information on models that have been certified
for safety standards, refer to your OMRON website.
Slim I/O Relay Types
G2RV-SR series mounted relay: electromagnetic relay ...... from page 2
G3RV-SR series mounted relay: solid state relay ................ from page 10
Common matter
Common precautions ................................................................ from page 20
Common accessories (order separately)................................. from page 25
1
Common Accessories
Slim I/O Relay
G2RV-SR
G3RV-SR
Common Precautions
Common Accessories

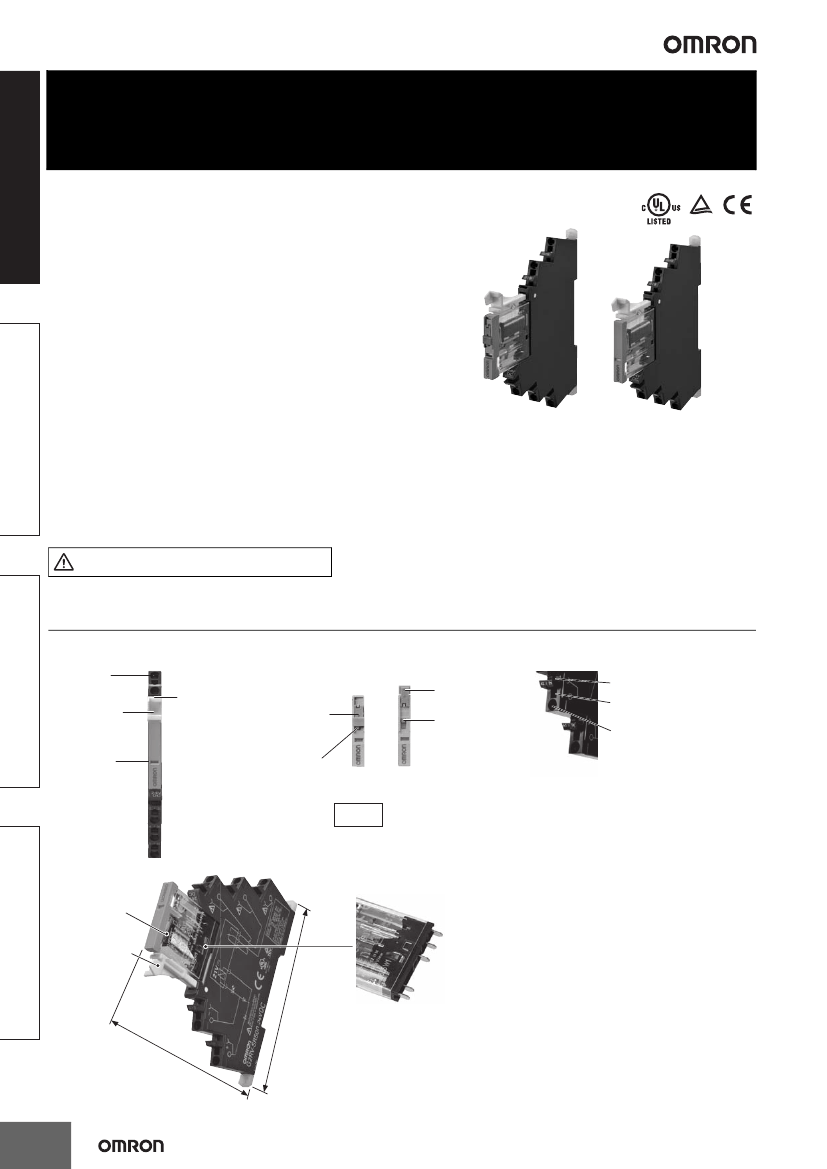

G2RV-SR
Global standard size, low profile slim
I/O relay with width 6.2 mm
• Realized about 25% lower profile than conventional
products, contributing to further miniaturization of the
control panel.
• Realized opening and closing ability with one pole 6 A slim
shape.
• Micro load products for one pole 50 mA using Au-plated
contacts for small load switching also available.
• Since G2RV is a transparent case, confirming the state of
the contact with the naked eye is possible, and easy to
confirm abnormality on-site (installed location).
For the recent information on models that have been certified
• Screw terminal is also stocked to meet the screw type
for safety standards, refer to your OMRON website.
needs.
• Mounted relay uses plug-in terminals that are difficult to
bend when exchanging.
• G3RV-SR featuring a solid state relay similar in shape to G2RV-SR also available.
Refer to
Safety Precautions
on page 20.
Features
Standard model/Micro load
Terminal x 5
• Push-in
• Screw
Release lever
Operation
display LED
(Socket section)
With latching lever
(Test switch)
Protective cover
(Released state)
Protective cover
(Locked condition)
Latching lever
(Test switch)
Push-In Plus technology
Short bar insertion holes
Release hole
Terminal (insertion) hole
Mechanical
indicator
• Operation
verification
which is linked
to the contact
Latching lever
(Test switch)
• Circuit check operation
Confirmation, reducing the inspection effort
PAT
"Foreign matter intrusion prevention structure"
"Malfunction prevention stopper"
Transparent case
Relay contact
Easy confirmation
of the situation
Release lever
Relay easily
fixed/removed
90
mm
80
mm
Plug-in terminal
Peace of mind as the
terminal does not bend
when replacing
2
G2RV-SR
Model Number Structure
Model Number Legend
G2RV-SR
@@ @
-
@ @
(1)
(2)
(3) (4)
(5)
(6)
(3) Terminal (wire connection)
50: Push-In Plus Terminal
70: Screw terminal
(4) Latching lever (test switch)
0: Without latching lever
1: With latching lever
(5) Contact structure
Blank: Standard
AP: Microloads
(6) Rated input voltage
12, 24 VDC
24, 48 VAC/VC
100, 110, 200, 230 VAC
(1) Basic model name
G2RV: Slim I/O Relay
(2) Sub type
SR: Slim relay + integrated low profile socket
G2RV-SR
Ordering Information
Terminal
(Wire connection)
Classification
Latching lever
(Test switch)
Rated input voltage (V)
DC
AC/DC
No
Standard
AC
12
24
24
48
100
110
200
230
Push-In Plus
Terminal
Yes
DC
AC/DC
DC
AC/DC
Microloads
No
AC
24
24
12
24
24
48
100
110
200
230
DC
AC/DC
No
Standard
AC
12
24
24
48
100
110
200
230
Screw terminal
Yes
DC
AC/DC
DC
AC/DC
Microloads
No
AC
24
24
12
24
24
48
100
110
200
230
Model
G2RV-SR500 DC12
G3RV-SR
G2RV-SR500 DC24
G2RV-SR500 AC/DC24
G2RV-SR500 AC/DC48
G2RV-SR500 AC100
G2RV-SR500 AC110
G2RV-SR500 AC200
G2RV-SR500 AC230
G2RV-SR501 DC24
G2RV-SR501 AC/DC24
G2RV-SR500-AP DC12
G2RV-SR500-AP DC24
Common Precautions
G2RV-SR500-AP AC/DC24
G2RV-SR500-AP AC/DC48
G2RV-SR500-AP AC100
G2RV-SR500-AP AC110
G2RV-SR500-AP AC200
G2RV-SR500-AP AC230
G2RV-SR700 DC12
G2RV-SR700 DC24
G2RV-SR700 AC/DC24
G2RV-SR700 AC/DC48
G2RV-SR700 AC100
G2RV-SR700 AC110
G2RV-SR700 AC200
G2RV-SR700 AC230
G2RV-SR701 DC24
G2RV-SR701 AC/DC24
G2RV-SR700-AP DC12
G2RV-SR700-AP DC24
G2RV-SR700-AP AC/DC24
G2RV-SR700-AP AC/DC48
G2RV-SR700-AP AC100
G2RV-SR700-AP AC110
G2RV-SR700-AP AC200
G2RV-SR700-AP AC230
Common Accessories
Note:
Sockets are not sold individually.
3
G2RV-SR

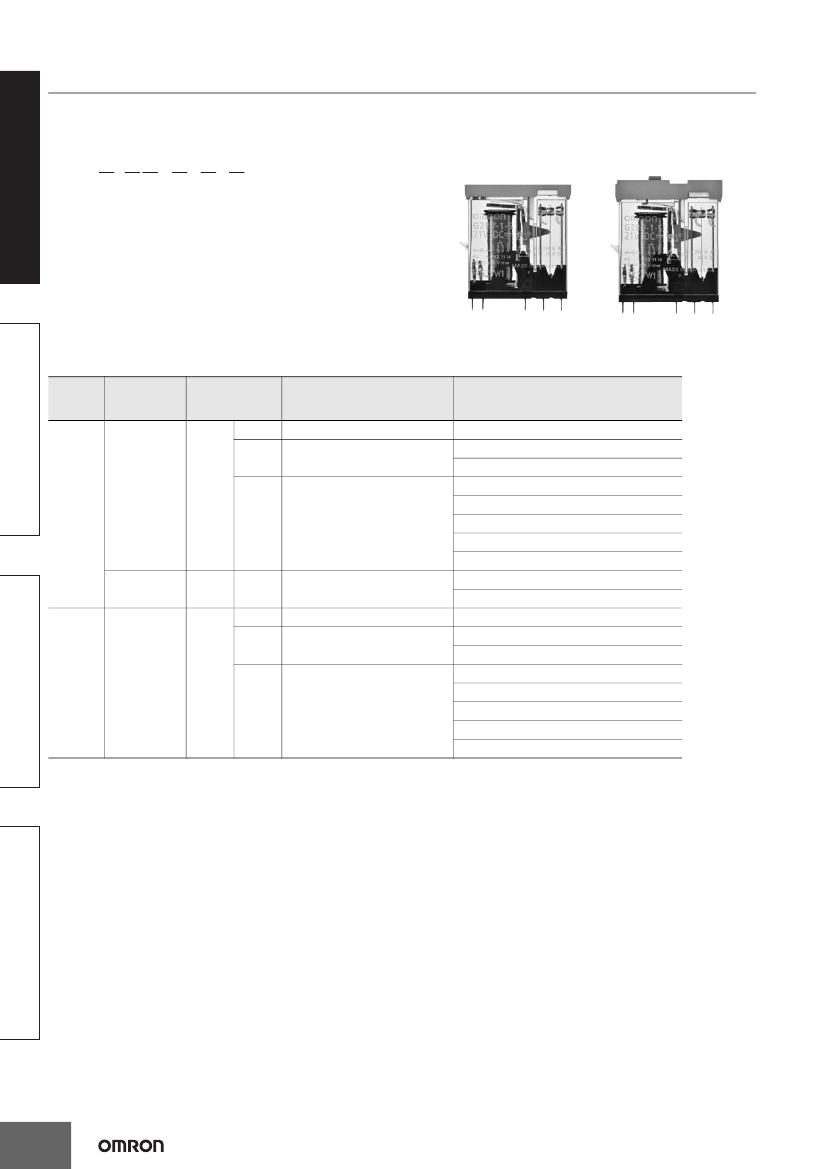

Relay for Maintenance
Model Number Legend
G2RV-SR
G3RV-SR
Common Precautions
Common Accessories
G2RV-1 - S
@
-
@
- G
@
(1) (2) (3)
(1) No. of poles
1: 1 pole
(2) Terminal
S: plug-in
(3) Latching lever (Test switch)
Blank: Without latching lever
I: With latching lever
G2RV-1-SI-G
G2RV-1-S(-AP)-G
(4)
(5)
(6)
(4) Contact material
Blank: Ag alloy
AP: Ag alloy + Au plating
(5) Types of relay for exchange
G: G2RV-SR series equipped
Relay
(6) Rated coil voltage
Number: 11, 21, 48 VDC
List of Models
Type
Latching
Lever
(Test switch)
Rated coil
voltage (V)
11
21
No
Standard
DC
48
G2RV-1-S-G DC48
Model
G2RV-1-S-G DC11
G2RV-1-S-G DC21
Applicable model
G2RV-SR700/500 DC12V
G2RV-SR700/500 DC24V
G2RV-SR700/500 AC/DC24V
G2RV-SR700/500 AC/DC48V
G2RV-SR700/500 AC100V
G2RV-SR700/500 AC110V
G2RV-SR700/500 AC200V
G2RV-SR700/500 AC230V
Yes
DC
21
11
21
Microload No
DC
48
G2RV-1-S-AP-G DC48
G2RV-1-SI-G DC21
G2RV-1-S-AP-G DC11
G2RV-1-S-AP-G DC21
G2RV-SR701/501 DC24V
G2RV-SR701/501 AC/DC24V
G2RV-SR700/500-AP DC12V
G2RV-SR700/500-AP DC24V
G2RV-SR700/500-AP AC/DC24V
G2RV-SR700/500-AP AC/DC48V
G2RV-SR700/500-AP AC100V
G2RV-SR700/500-AP AC110V
G2RV-SR700/500-AP AC200V
G2RV-SR700/500-AP AC230V
Note:
Voltage is reduced within the socket for the slim I/O relay, so the rated input voltage and rated coil voltage of replacement relays are different.
Accessories (order separately)
Refer to page 25 for G2RV-SR/G3VR-SR Common Accessories.
4
G2RV-SR
Specifications
Ratings
Coil ratings
Rated input
voltage
50 Hz
12 VDC
24 VDC
24 VAC/VDC
48 VAC/VDC
100 VAC
110 VAC
200 VAC
230 VAC
–
–
5.9 mA
5.9 mA
5.9 mA
6.6 mA
7.3 mA
–
–
6.1 mA
6.0 mA
5.9 mA
7.6 mA
8.4 mA
Rated current
AC
60 Hz
DC
27.9 mA
13.5 mA
12.6 mA
5.2 mA
–
–
–
–
80% max.*
10% min.
Must operate
voltage
Must release
voltage
Power consumption
AC (VA)
–
–
DC (mW)
Approx. 300 mW
Approx. 300 mW
Maximum
allowable voltage
Percentage of the
rated voltage
G2RV-SR
Percentage of the rated voltage
12.5 mA 12.6 mA
Approx. 0.5 VA Approx. 300 mW
Approx. 0.4 VA Approx. 250 mW
Approx. 0.8 VA –
Approx. 0.8 VA –
Approx. 1.7 VA –
Approx. 1.7 VA –
110%
Note:
The operating characteristics are measured at ambient temperature of 23°C.
*
Operating voltage will be, for mounting in the upside down direction, 85% max.
(Upside down: Direction in which the mechanical indicator faces down)
G3RV-SR
Contact ratings
Item
Contact configuration
Load
Rated load
Rated carry current
Maximum switching voltage
Maximum switching current
Maximum switching power
Failure rate P value
(reference value) *1
SPDT
Resistive load
(cosφ=1)
6 A at 250 VAC
6 A at 30 VDC
6A
440 VAC, 125 VDC
6A
1,500 VA
180 W
10 mA at 5 VDC
500 VA
60 W
Inductive load
(cosφ=0.4, L/R=7ms)
2.5 A at 250 VAC
2 A at 30 VDC
Resistive load
(cosφ=1)
50 mA at 30 VAC
50 mA at 36 VDC
50 mA
30 VAC, 36 VDC
50 mA
–
1 mA at 100 mVDC
Standard (G2RV-SR700, 500, 701, 501)
For microloads (G2RV-SR700-AP, 500-AP) *2
Common Precautions
*1.
P level:
λ
60
=0.1×10
-6
/times
This value is the value in switching frequency 120 operations/min.
*2.
If the Au plating layer is destroyed, the number will be the same as the standard type.
Characteristics
Item
Contact resistance *
Operate (Set) time *
Release time *
Maximum operating frequency
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Mechanical
Endurance *
Electrical
Standard (G2RV-SR700, 500, 701, 501)
100 m
Ω
max.
20 ms max.
AC, AC/DC: 40 ms max.
DC: 20 ms max.
Mechanical: 18,000 operations/h
Electrical: 1,800 operations/h (rated load)
1,000 MΩ min. (at 500 VDC)
Between coil and contacts: 4,000VAC 50/60 Hz 1 min
Contact between the same polarity: 1,000 VAC 50/60 Hz 1 min
Destruction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm)
Malfunction: 10 to 55 to 10 Hz, single amplitude 0.50 mm (double amplitude 1.0 mm)
Destruction: 1,000 m/s
2
Malfunction: Energized 200m/s
2
, Non-energized 100m/s
2
5,000,000 operations min.
NO contact: 70,000 operations min.
NC contact: 50,000 operations min.
Operating: 5 to 85% RH
Approx. 30 g
Ag alloy
Ag alloy + Au plating
5,000,000 operations min.
For microloads (G2RV-SR700-AP, 500-AP)
Common Accessories
Ambient operating temperature
Ambient operating humidity
Weight
Contact material
Operating: –40 to +55°C (with no icing or condensation)
Note:
Above values are initial values.
*
Value is at ambient temperature of 23°C.
5
