Bus system cable - SAC-3P-M12MS/ 0,5-961/M12FS VA - 1419103
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

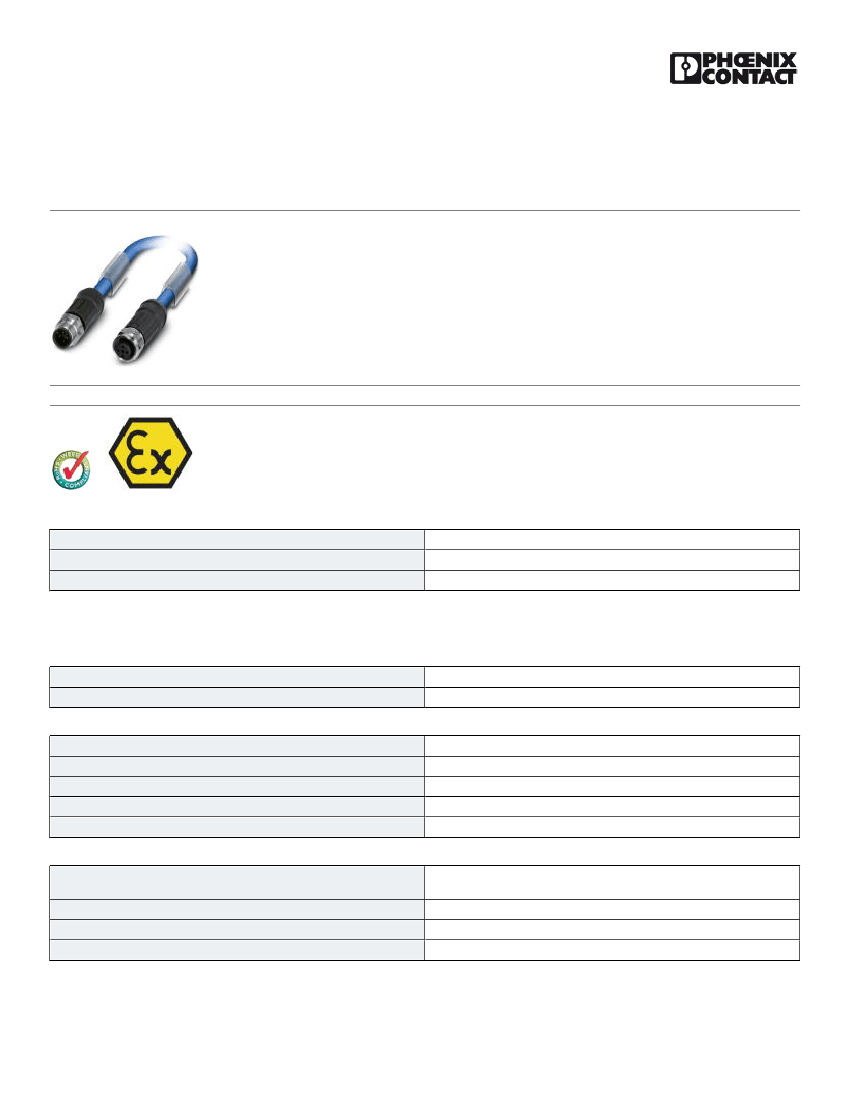

Bus system cable, PROFIBUS PA, PROFIBUS PA, 3-position, PVC, blue RAL 5015, shielded, Plug straight M12,
A-coded, on Socket straight M12, A-coded, Cable length: 0.5 m, For Ex area with high-grade steel knurl
Packing unit
Custom tariff number
Country of origin
11
85444290
Germany
Key commercial data
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
0.5 m
50 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
IP69K
General
Note
Rated current at 40°C
Rated voltage
Number of positions
For applications in circuits of intrinsic safety protection type "i". Electrical
values following EN 60079-14.
4A
60 V
3
30.10.2013 Page 1 / 5
https://www.phoenixcontact.com/us/products/1419103
Bus system cable - SAC-3P-M12MS/ 0,5-961/M12FS VA - 1419103
Technical data
General
Contact resistance
Coding
Signal type/category
Status display
Surge voltage category
Pollution degree
Insertion/withdrawal cycles
Torque
≤ 5 mΩ
B - inverse
PROFIBUS PA
No
II
3
≥ 100
0.4 Nm (M12 connector)
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
High-grade steel
NBR
Pin assignment
Position = wire color (signal) = position (optional)
1 (Plug) = OG (DATA+) = 1 (Socket)
3 (Plug) = BU (DATA-) = 3 (Socket)
4 (Plug) = SR (shield) = 4 (Socket)
Cable
Cable type
Cable type (abbreviation)
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Twisted pairs
Overall twist
Shielding
Optical shield covering
Fieldbus FOUNDATION/PROFIBUS PA, blue
961
2xAWG18/7 + 1xAWG20/7
2x 0.75 mm² (signal line)
1x 0.5 mm² (Drain wire)
18
7x 0.40 mm
2.24 mm ±0.05 mm
0.5 mm (Core insulation)
1 mm (Outer cable sheath)
Blue, orange
2 cores to the pair
One pair with one drain wire and fillers for core
Plastic-coated aluminum foil with a drain wire
100 %
30.10.2013 Page 2 / 5
https://www.phoenixcontact.com/us/products/1419103
Bus system cable - SAC-3P-M12MS/ 0,5-961/M12FS VA - 1419103
Technical data
Cable
External sheath, color
External cable diameter
External cable diameter D
Smallest bending radius, fixed installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Conductor resistance
Working capacitance
Wave impedance
Signal speed
Nominal voltage, cable
Special properties
Flame resistance
Ambient temperature (operation)
blue RAL 5015
7.42 mm
7.5 mm ±0.25 mm
75 mm
56.552 kg/km
PVC
PO (signal line)
Tin-plated Cu litz wires
19.2 Ω/km (signal line)
26 Ω/km (shield)
148 nF (core-shield)
78 nF (core-core)
100 Ω (At 31.25 kHz)
0.66 c
300 V
UL standards PLTC-ER and ITC
UL 1685 (CSA FT 4)
-30 °C ... 105 °C (Cable)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060307
27060307
27061801
27060307
27279218
27279218
27279218
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC000830
EC001855
EC001855
UNSPSC
UNSPSC 6.01
26121616
30.10.2013 Page 3 / 5
https://www.phoenixcontact.com/us/products/1419103
Bus system cable - SAC-3P-M12MS/ 0,5-961/M12FS VA - 1419103
Classifications
UNSPSC
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121616
26121604
26121616
26121616
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
2
2
1
Pin assignment M12 plug, 3-pos., A-coded, view male side
Pin assignment M12 socket, 3-pos., A-coded, view female side
30.10.2013 Page 4 / 5
https://www.phoenixcontact.com/us/products/1419103
Bus system cable - SAC-3P-M12MS/ 0,5-961/M12FS VA - 1419103

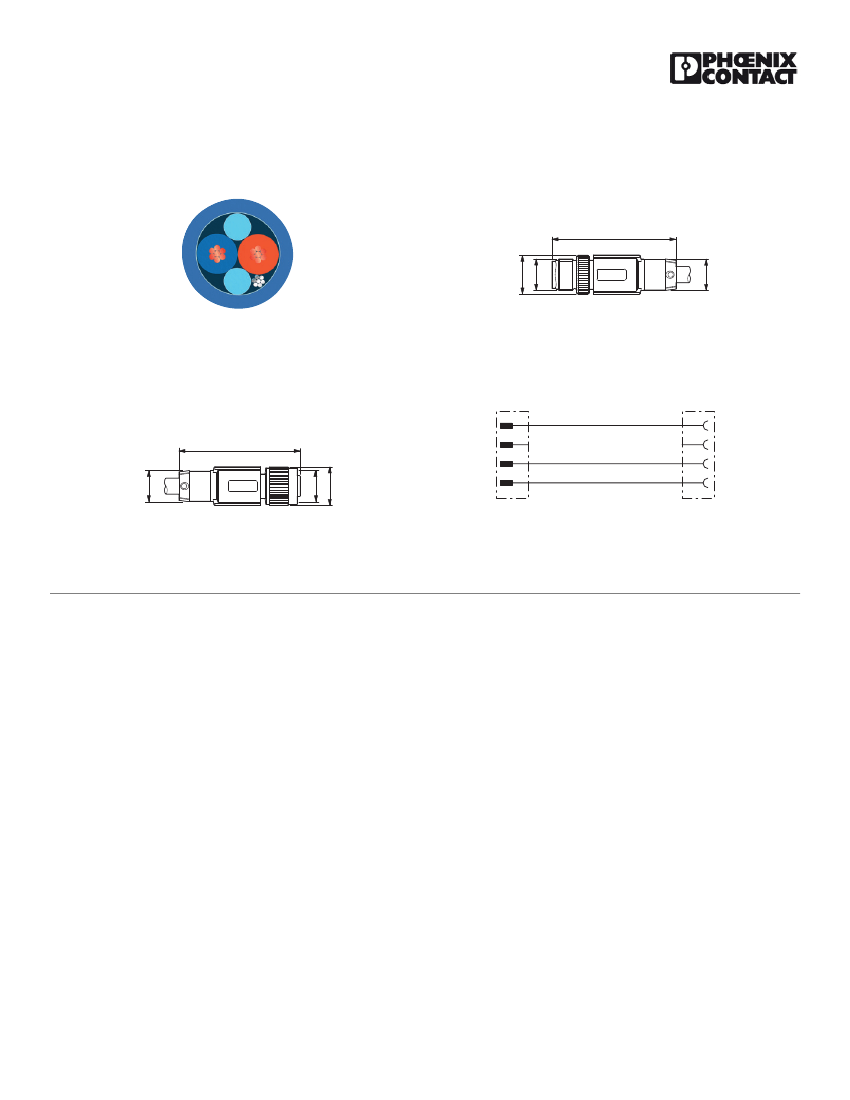

Cable cross section
Dimensioned drawing
47,3
Ø14,8
M12
Fieldbus FOUNDATION/PROFIBUS PA, blue [961]
M12 x 1 plug, straight
Dimensioned drawing
1
44,5
Circuit diagram
OG
N.C.
SH
BU
2
4
M12
Ø12
Ø15
3
Contact assignment of the M12 connector and the M12 socket
M12 x 1 socket, straight
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
30.10.2013 Page 5 / 5
