Cable connector - CA-07S1N8AT006S - 1619418
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

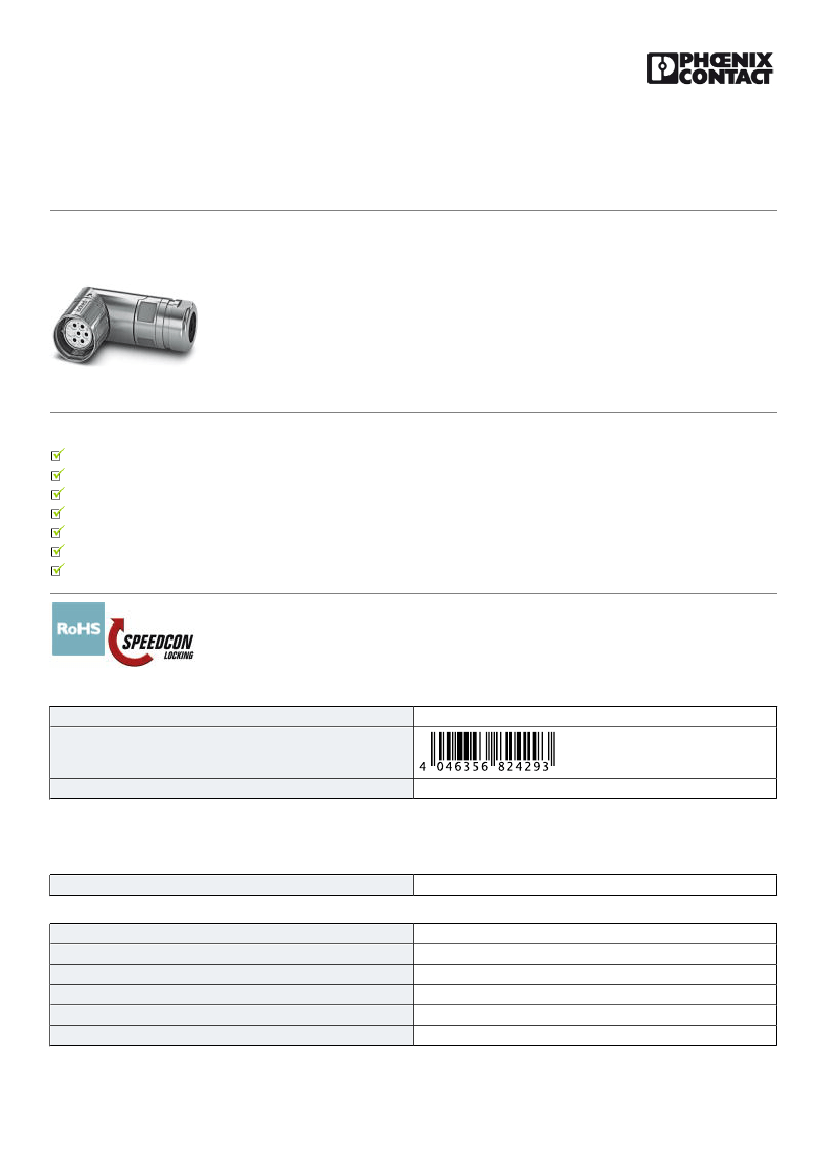

Cable connector, angled, shielded: yes, SPEEDCON locking, M23, No. of pos.: 7, type of contact: Socket,
Crimp connection, cable diameter range: 4 mm ... 6 mm
The figure shows the 6-pos. product
version
Your advantages
Angled cable outlet for confined spaces
Can be adapted to various applications, thanks to adjustable cable outlet direction
Safe use in the field, thanks to high degree of protection
Connector for flexible on-site assembly
Consistent EMC protection for reliable transmission of signals
Reduced connection time with SPEEDCON fast locking system
Crimping connection: vibration- and temperature-resistant assembly
Key Commercial Data
Packing unit
GTIN
GTIN
4046356824293
1 pc
Technical data
Temperature range
Ambient temperature (operation)
-40 °C ... 125 °C
Data of the insulating body
Note
Coding
Insulator material
Contact connection method
Type of contacts
Application
Order information: Order crimp contacts Ø 2 mm separately
N
PA 6.6
Crimp connection
Socket
Signal
10/16/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1619418
Cable connector - CA-07S1N8AT006S - 1619418
Technical data
Data of the insulating body
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Nominal voltage, power contact
Rated surge voltage
Overvoltage category
Degree of pollution
7
2 mm
20 A
300 V
2.5 kV
II
3
Housing data
Housing material
Type of locking
Degree of protection (when plugged in)
Thread type
Metal
SPEEDCON locking
IP67
M23
Cable seal data
Cable diameter
Sealing material
4 mm ... 6 mm
NBR
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
6
1
Dimensional drawing
Ø25,8
N
7
5
2
3
SO
4
Ø26,4
78
Approvals
Approvals
53
10/16/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1619418
Cable connector - CA-07S1N8AT006S - 1619418
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E335019-20141210
300 V
17 A
14
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E335019-20141210
300 V
10 A
14
cULus Recognized
