IC-324-ZWGT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> IC-324-ZWGT

IC-324-ZWGT: DescriptionIC Socket, DIP24, 24 Contact(s),; CategoryThe connector socket; File Size439KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IC-324-ZWGT Overview

IC Socket, DIP24, 24 Contact(s),

IC-324-ZWGT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	UL 94V-0, LOW INSERTION FORCE
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn)
Contact material	BERYLLIUM COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	DIP24
Shell material	POLYESTER
JESD-609 code	e3
Number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

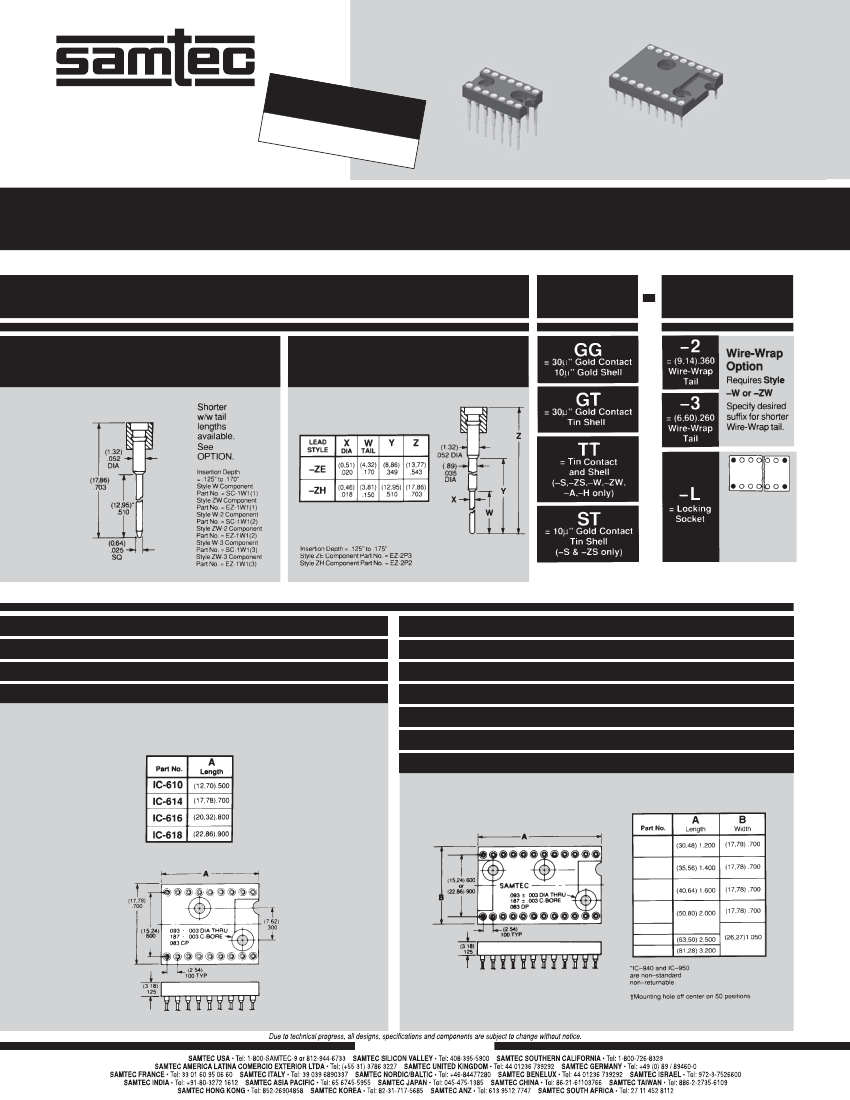

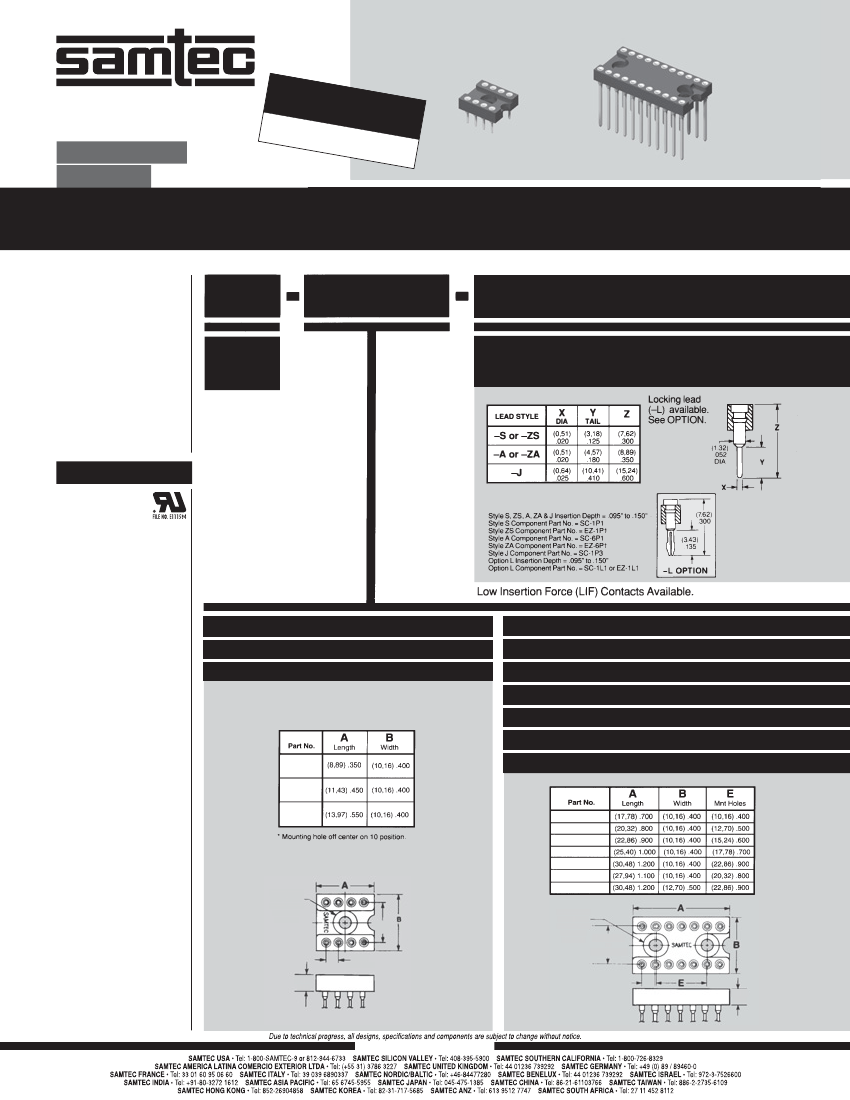

F-210-1 SUPPLEMENT

IC–422–ZHGG

MOLD

-TO-P

PROD OSITION

UCT

Minimu

(2,54mm) .100"

IC SERIES

may ap or set-up cha

ply. Ca

ll Samt ges

ec.

IC–308–SGT

SCREW MOUNT DIP SOCKETS

Mates with:

APA

Highest

reliability DIP

sockets

IC series DIP sockets

feature U.L. rated

G.F. polyester body with

mounting holes and use

precision machined lead

sockets for high reliability

in the most demanding

applications.

TYPE

SOCKET

ROW SPACING &

NO. OF CONTACTS

= IC

Socket

–S*, –A*, or –J

= Printed Circuit

* For LIF Specify –ZS or –ZA

SPECIFICATIONS

Insulator Material:

Black Glass Filled

Polyester

Flammability Rating:

UL 94V-0

Insulation Resistance:

5000 megohm @ 500 VDC

Temperature Range:

-55°C to +125°C

Withstanding Voltage:

1000 VRMS@60 Hz

Contact:

BeCu

Shell:

Brass except style K

Phosphor Bronze

Plating:

Au over 50µ" Ni or Sn over

100µ" Cu or 50µ" Ni

Current Rating:

1 amp continuous @

100 VDC per contact

Contact Resistance:

10 milliohms @ 200 milliamp

Socket Retention in Body:

5 Ibs against barb

Lead Size Range:

.015" to .022" DIA

and most IC leads

Insertion Force:

Standard = 9 oz avg, 16 oz

max (.017" DIA probe); Low

Insertion Force = 2.5 oz avg,

5.5 oz max (.018" DIA probe)

Withdrawal Force:

Standard = 2.5 oz avg, 1.5 oz

min (after 12 insertions with

.017" DIA probe); Low Insertion

Force = 2.0 oz avg, 0.35 oz min

(after 12 insertions with .018"

DIA probe)

–306

= .300 Row / 6 Contacts

–308

= .300 Row / 8 Contacts

–310

= .300 Row / 10 Contacts

IC-306

IC-308

*IC-310

IC-314

IC-316

IC-318

IC-320

IC-324

IC-422

IC-424

–314

= .300 Row / 14 Contacts

–316

= .300 Row / 16 Contacts

–318

= .300 Row / 18 Contacts

–320

= .300 Row / 20 Contacts

–324

= .300 Row / 24 Contacts

–422

= .400 Row / 22 Contacts

–424

= .400 Row / 24 Contacts

.093 ± .003

DIA THRU

.187 ± .003

C-BORE

.083 DP

(7,62)

.300

(2,54)

.100 TYP

(3,18)

.125

.093 ± .003

DIA THRU

.187 ± .003

C-BORE

.083 DP (7,64) .300

(10,16) .400

(2,54)

.100 TYP

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(3,18)

.125

WWW.SAMTEC.COM
