062AQ

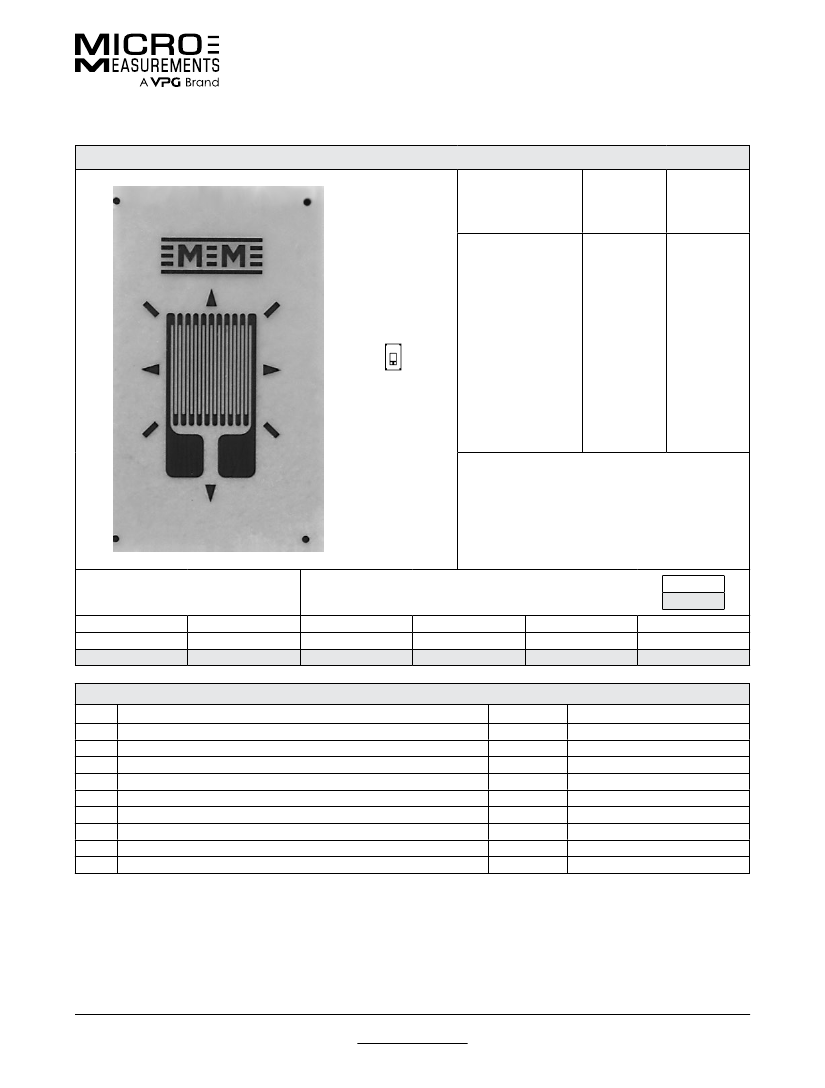

General Purpose Strain Gages—Linear Pattern
GAGE PATTERN DATA
GAGE
DESIGNATION
See Note 1, 3
EA-XX-062AQ-350
ED-DY-062AQ-500
WA-XX-062AQ-350
WK-XX-062AQ-500
EP-08-062AQ-350
SA-XX-062AQ-350
SK-XX-062AQ-500
SD-DY-062AQ-500
WD-DY-062AQ-500
actual size
RESISTANCE
(OHMS)
See Note 2
350 ± 0.15%
500 ± 0.4%
350 ± 0.3%
500 ± 0.3%
350 ± 0.15%
350 ± 0.3%
500 ± 0.3%
500 ± 0.8%
500 ± 0.8%
OPTIONS
AVAILABLE
See Note 3
W, E, L, LE,
P
E, L*, LE*
W*
W*
DESCRIPTION
General-purpose gage. Similar to 062AP pattern but
with high-resistance grid. See also 062UW pattern.
GAGE DIMENSIONS
Gage Length
0.062
1.57
Overall Length
0.114
2.90
Legend
ES = Each Section
S = Section (S1 = Section 1)
Grid Width
0.062
1.57
0.062
1.57
CP = Complete Pattern
M = Matrix
Matrix Length
0.26
6.6
inch
millimeter
Matrix Width
0.15
3.8
Overall Width
GAGE SERIES DATA
—
See Gage Series datasheet for complete specifications
Series
EA
ED
WA
WK
EP
SA
SK
SD
WD
Description
Constantan foil in combination with a tough, flexible, polyimide backing.
Isoelastic foil in combination with tough, flexible polyimide film.
Fully encapsulated constantan gages with high-endurance leadwires.
Fully encapsulated K-alloy gages with high-endurance leadwires.
Annealed constantan foil with tough, high-elongation polyimide backing.
Fully encapsulated constantan gages with solder dots.
Fully encapsulated K-alloy gages with solder dots.
Equivalent to WD Series, but with solder dots instead of leadwires.
Fully encapsulated isoelastic gages with high-endurance leadwires.
Strain Range
±3%
±2%
±2%
±1.5%
±10%
±2%
±1.5%
±1.5%
±1.5%
Temperature Range
–100° to +350°F (–75° to +175°C)
–320° to +400°F (–195° to +205°C)
–100° to +400°F (–75° to +205°C)
–452° to +550°F (–269° to +290°C)
–100° to +400°F (–75° to +205°C)
–100° to +400°F (–75° to +205°C)
–452° to +450°F (–269° to +230°C)
–320° to +400°F (–195° to +205°C)
–320° to +500°F (–195° to +260°C)
Note 1:
Insert desired S-T-C number in spaces marked XX.
Note 2:
Tolerance is increased when Option W, E, SE, LE, or P is specified.
Note 3:
Products with designations and options shown in
bold
are not RoHS compliant.
*Options available but not normally recommended. See Optional Features data sheet for details.
