Part Number

Search

1677911

Description
CONN BASE SIDE ENTRY SZB16 PG21
CategoryThe connector
File Size60KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

1677911 Online Shopping

Suppliers Part Number Price MOQ In stock
1677911 - - View Buy Now

1677911 Overview

CONN BASE SIDE ENTRY SZB16 PG21

1677911 Parametric

Parameter NameAttribute value
Connector typeBase - In-box installation
styleSide insertion
sizeB16
lock positionBase bottom locking clip (1)
Thread sizePG21
size/dimensions4.606" long x 2.244" wide x 3.307" high (117.00mm x 57.00mm x 84.00mm)
Shell colorgrey
characteristiccover, feedthrough
Intrusion protectionIP65 - dust and water resistant
Shell materialAluminum, casting
Shell surfacepowder coating
Operating temperature-40°C ~ 125°C
https://www.phoenixcontact.com/us/products/1677911

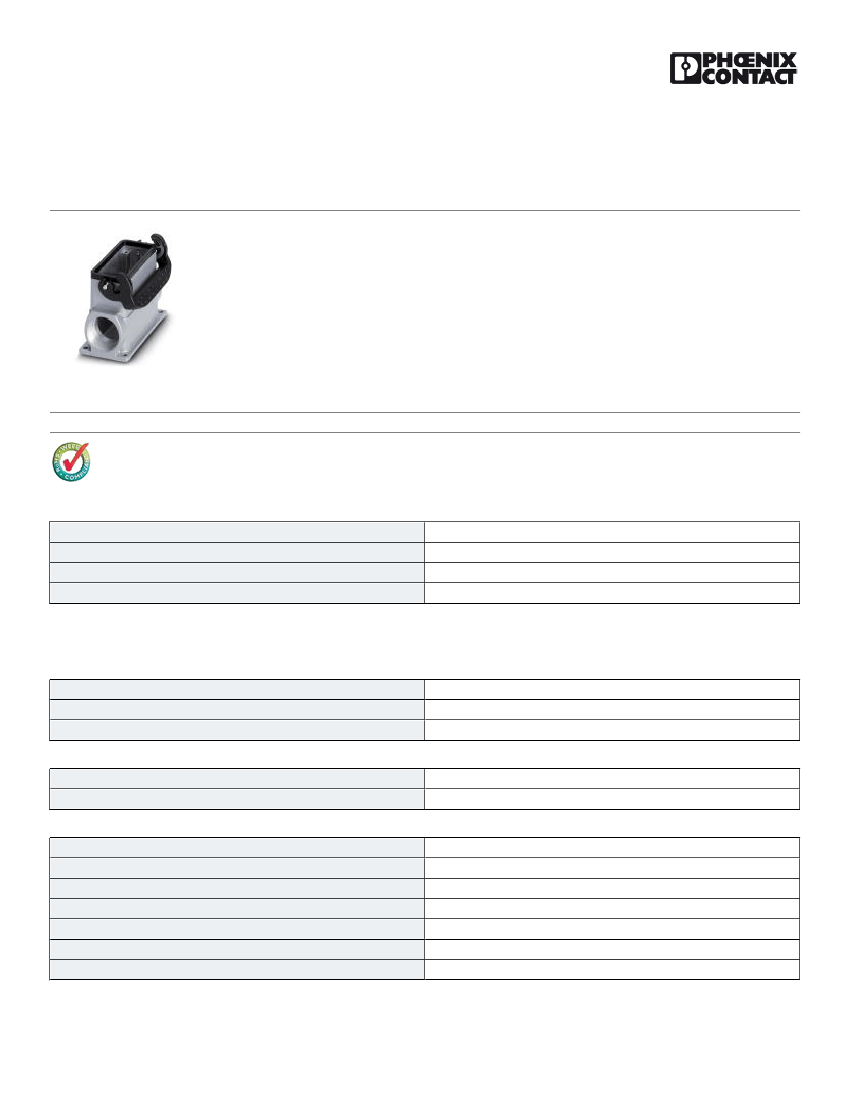

Housing - HC-B 16-SMLD-84/O2PG21 - 1677911
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Box mounting base, with single locking latch, height 84 mm, with a support 2x PG21, with a protective cover
The figure shows box mounting
bases without protective covers
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
572.0 GRM
85389099
Germany
Technical data
Dimensions
Height
Width
Length
84 mm
57 mm
117 mm
Ambient conditions
Degree of protection of housing (IP)
Ambient temperature (operation)
IP65
-40 °C ... 125 °C
General
Note
Design
Housing type
Locking type
No. of cable exits
Cable exit
Screw connection
For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K
B16
Box mounting bases
With single locking latch
2
Lateral
None
2/3/14   Page 1 / 3
