Sensor/Actuator cable - SAC-3P-MS/20,0-542/FSSH SCO BK - 1417889
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

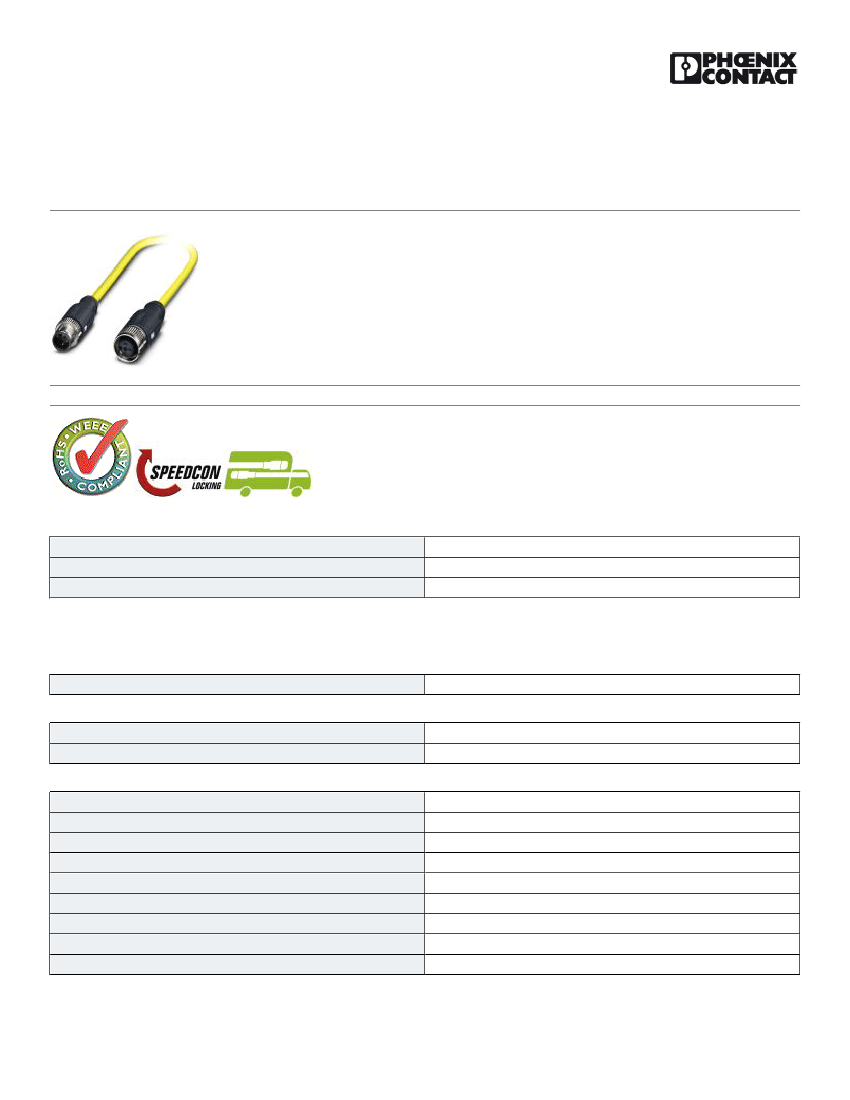

Sensor/Actuator cable, 3-position, PVC, yellow RAL 1021, shielded, Plug straight M12 SPEEDCON, A-coded, on
Socket straight M12 SPEEDCON, A-coded, Cable length: 20 m
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 STK
85444290
United States
Technical data
Dimensions
Length of cable
20 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
4A
250 V
3
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
II
08/15/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1417889
Sensor/Actuator cable - SAC-3P-MS/20,0-542/FSSH SCO BK - 1417889
Technical data
General
Degree of pollution
Insertion/withdrawal cycles
Torque
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
AWG signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Special properties
PVC yellow 105 °C
542
2517 (105°C/300 V)
22
1.27 mm ±0.03 mm
brown, blue, black
3 wires, twisted
Tinned copper braided shield
85 %
yellow
5.2 mm ±0.2 mm
12 x D
40 kg/km
PVC
PVC
Tin-plated Cu litz wires
≥ (550 M Ohms/m @ 500V)
max. 50.5 Ω/km (20° C)
300 V
UL standards PLTC and ITC
08/15/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1417889
Sensor/Actuator cable - SAC-3P-MS/20,0-542/FSSH SCO BK - 1417889
Technical data
Cable
Other resistance
Ambient temperature (operation)
UV resistant
-30 °C ... 105 °C (cable, fixed installation)

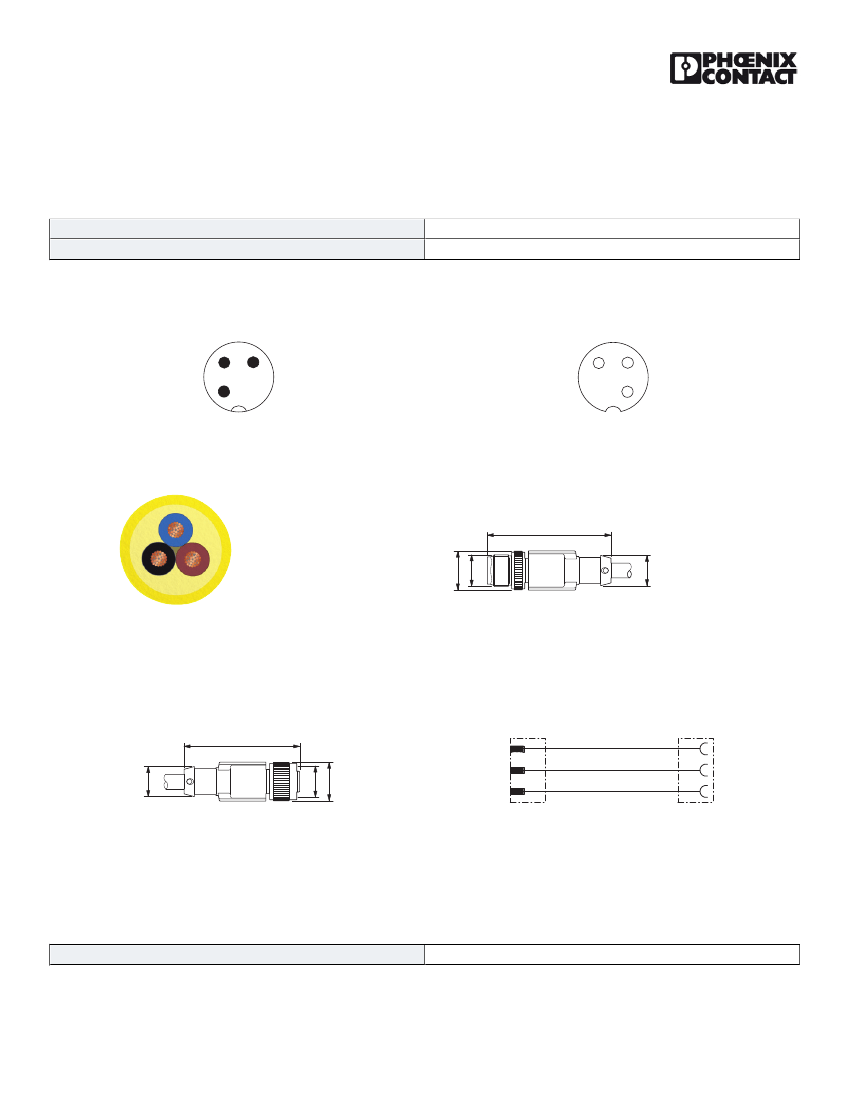

Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
1
Pin assignment M12 plug, 3-pos., A-coded, view male side
Pin assignment M12 socket, 3-pos., A-coded, view female side
Cable cross section
Dimensional drawing
47,3
Ø14,8
M12
PVC yellow 105 °C [542]
Plug, M12 x 1, straight, shielded
Dimensional drawing
Circuit diagram
44,5
1
Ø12
1
4
3
Ø14,8
4
3
M12 x 1 socket, straight, shielded
M12
Ø12
Contact assignment of M8 plugs / M12 sockets
Classifications
eCl@ss
eCl@ss 8.0
27279218
08/15/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1417889
Sensor/Actuator cable - SAC-3P-MS/20,0-542/FSSH SCO BK - 1417889
Classifications
eCl@ss
eCl@ss 9.0
27060311
ETIM
ETIM 5.0
EC001855

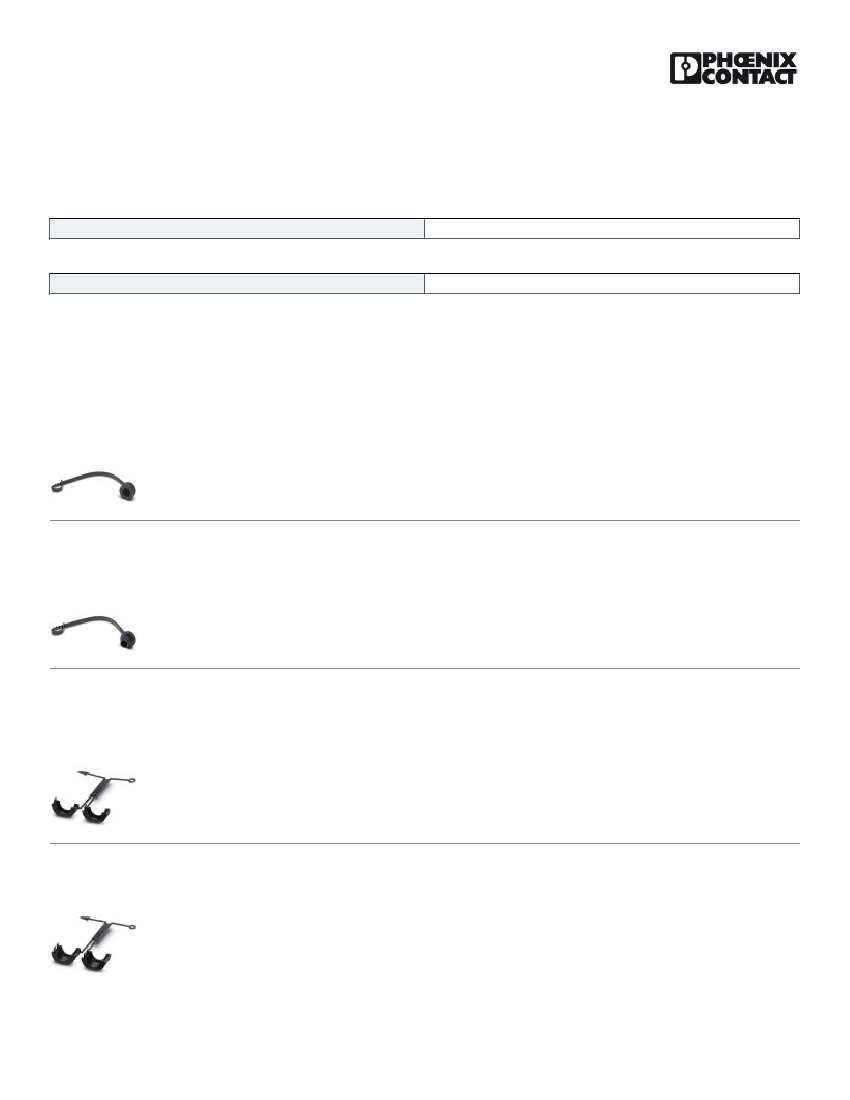

Accessories
Accessories
Protective cap
Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873
M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 sockets
Screw plug - PROT-M12 MS-PA-CHAIN - 1430899
M12 sealing cap with fixing band, for sensor cables, for free M12 sockets
Safety locking
Locking clip - SAC-M12-EXCLIP-M - 1558988
Locking clip for the pin side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without
tools
Locking clip - SAC-M12-EXCLIP-F - 1558991
Locking clip for the socket side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without
tools
08/15/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1417889
Sensor/Actuator cable - SAC-3P-MS/20,0-542/FSSH SCO BK - 1417889

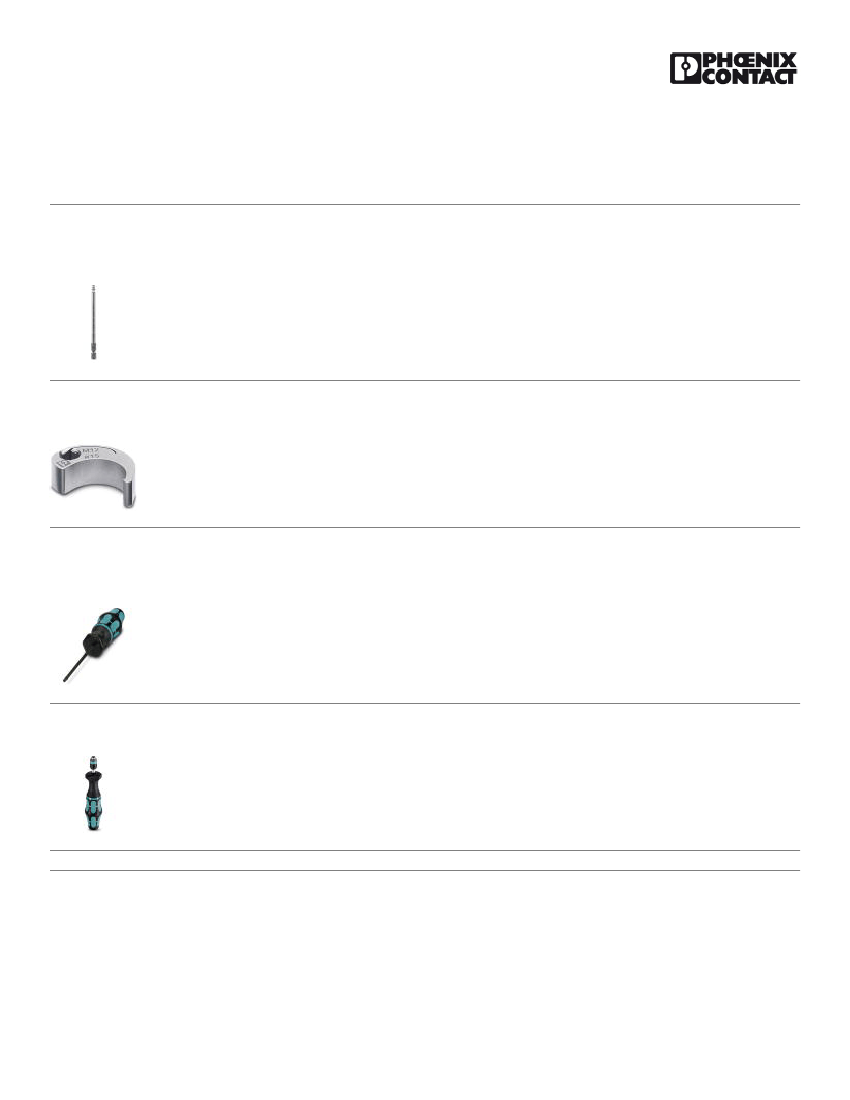

Accessories
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter
of 15 mm, for 4 mm hexagonal drive
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
08/15/2016 Page 5 / 5
