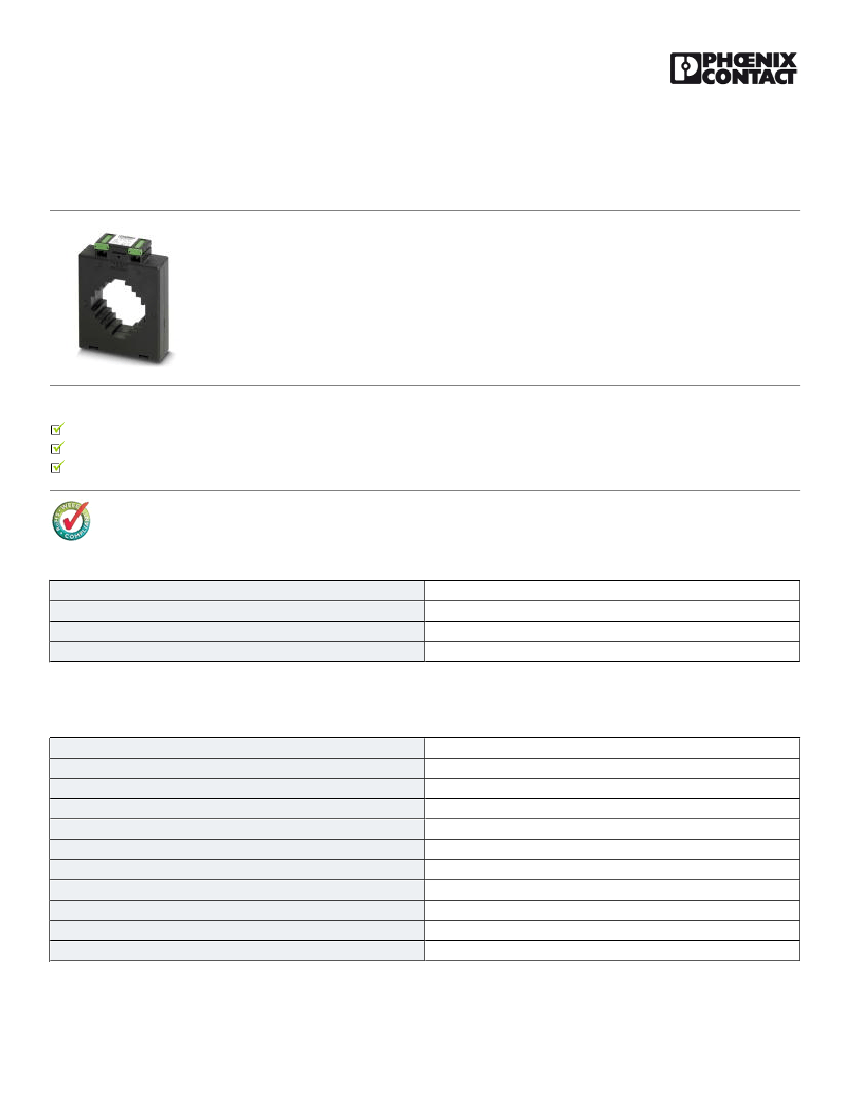

Current transformer - PACT MCR-V2-6315- 95- 800-5A-1 - 2277213
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Window-type current transformer, 800 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA
rated power
Product Features
Primary rated current Ipn: 0 ... (200 ... 2500) A
Circular conductor dimensions: Ø 53 mm
Rail dimensions: 63 x 15 mm, 2x 50 x 10 mm, 40 x 40 mm
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
380.0 GRM
85043129
Germany
Technical data
Dimensions
Primary round conductor (diameter)
Primary round conductor (width)
Primary round conductor (height)
Note on dimensions
Primary round conductor (width)
Primary round conductor (height)
Width
Height
Depth
Width with alternative assembly
Height with alternative assembly
53 mm
63 mm
15 mm
2
50 mm
10 mm
30 mm
121 mm
95 mm
95 mm
121 mm
09/03/2014 Page 1 / 3
https://www.phoenixcontact.com/us/products/2277213
Current transformer - PACT MCR-V2-6315- 95- 800-5A-1 - 2277213
Technical data
Dimensions
Depth with alternative assembly
30 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 40 °C
-25 °C ... 40 °C
Input data
Thermal rated short-time current
Rated surge current
Rated frequency: Standard converter
Surge current limitation factor
Rated power
Primary rated current I
pn
Secondary rated current I
sn
I
th
= 60 * I
n
I
dyn
= 2.5 * I
th
50 Hz ... 60 Hz
FS 5
10 VA
0 A ... 800 A
5 A AC
General
Converter type
Class
Can be calibrated
Rated insulation voltage
Test voltage input/output
Standards/regulations
Color
Housing material
Plug-on converters
1
no
1 kV
3 kV (50 Hz, 1 min.)
IEC 60044-1
black
Polyamide PA fiberglass reinforced
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27210902
27210902
27210902
27210902
27210902
27210902
27210902
ETIM
ETIM 2.0
ETIM 3.0
EC001505
EC001505
09/03/2014 Page 2 / 3
https://www.phoenixcontact.com/us/products/2277213
Current transformer - PACT MCR-V2-6315- 95- 800-5A-1 - 2277213
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC002048
EC002048
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211501
39121019
39121006
39121006
39121006
Drawings
Dimensioned drawing
95
16
30
64x16
54x32
42x42
32x54
105
16x64
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
53
09/03/2014 Page 3 / 3
