2 keys (gamma=75, plug: female contacts, receptacle: male contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
Performance
Configuration
Insulator
Rated Current
1K.302 : 2 Low Voltage
Y: PEEK for crimp contacts
15 Amps
Specifications
Contact Type: Crimp
Max. Matings: 5000
Contact Retention: 40 N
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/4
Contact Dia.: 1.3 mm (0.051in)
Bucket Dia.: 1.4 mm (0.055in)
Min. Conductor: 0.5 mm^2 (AWG 20)
Max. Conductor: 1 mm^2 (AWG 18)
R (max): 3.6 mOhm
Vtest (contact-shell): 1450 V (AC), 2050 V (DC)
Vtest (contact-contact): 1700 V (AC), 2400 V (DC)
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +200°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz)
IP Rating: 68

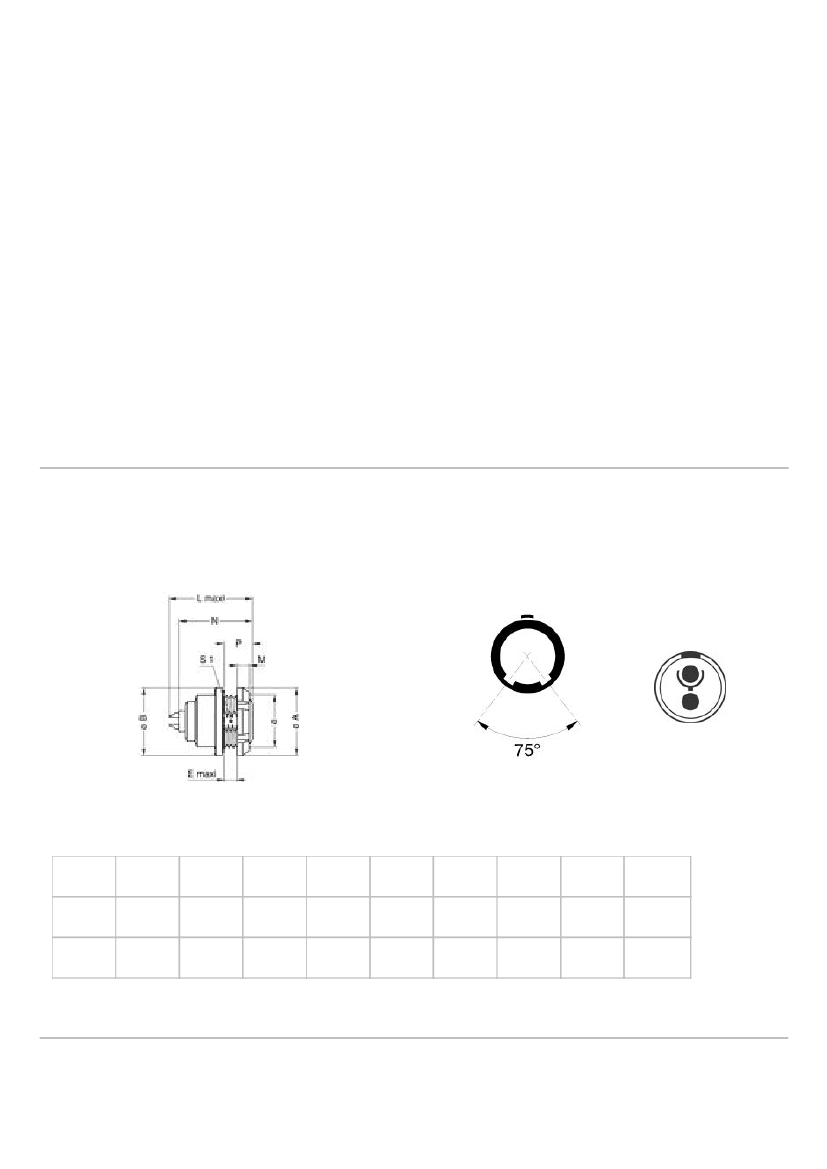

DRAWINGS
Draws
Dimensions
A
mm.
in.
20
0,79
B
20
0,79
E
6.2
0,24
L
27
1,06
M
3.5
0,14
N
25.1
0,99
P
10
0,39
S1
14.5
0,57
e
M16x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/4
RECOMMENDED BY LEMO
Tools
Crimp Tool: DPC.91.701.V
Crimp settings: AWG/Selector = 18-20/8-7
Positionner: DCE.91.131.BVC
Extractor: DCF.91.131.2LT
Replacement contact: FGG.1B.565.ZZC

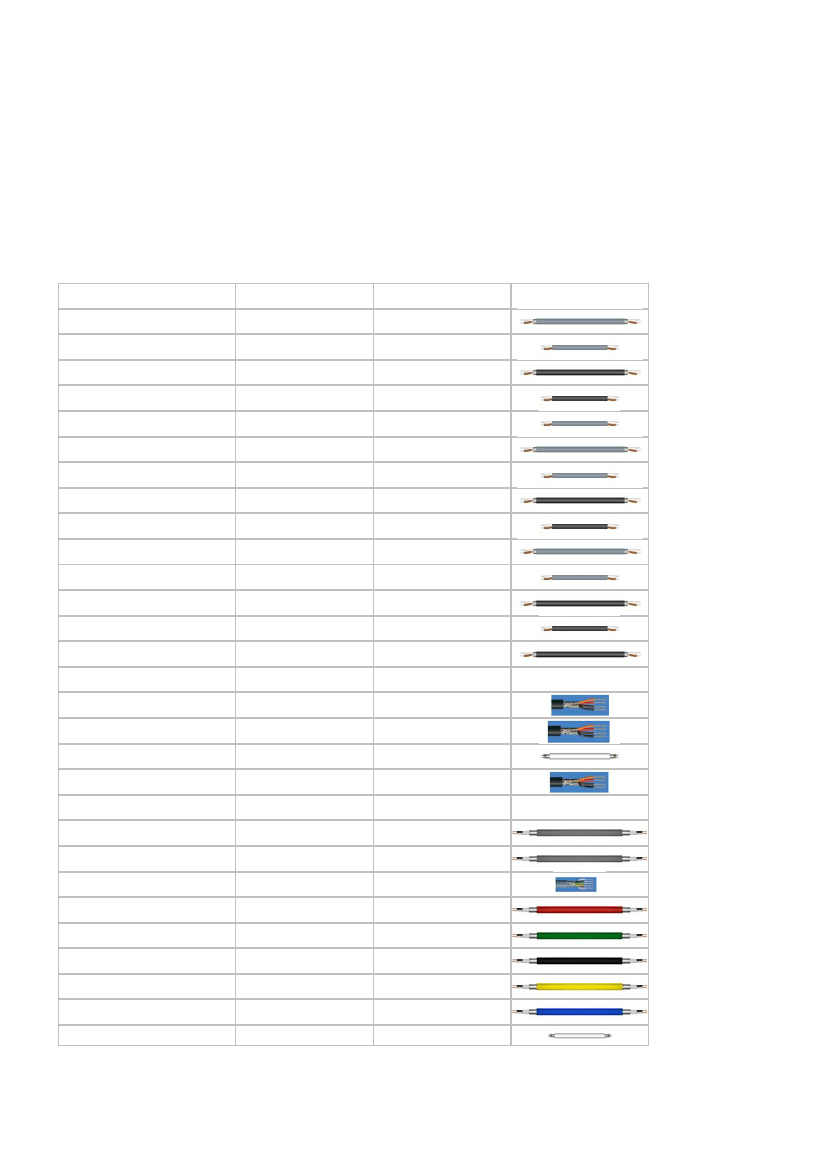

Cables
CMN.02.T18.064UNCU
CMN.02.T20.047PGCE
CMN.02.T20.047PGZE
CMN.02.T20.047PNCE
CMN.02.T20.047PNZE
CMN.02.T20.048QGZE
CMN.02.T22.047PGCE
CMN.02.T22.047PGZE
CMN.02.T22.047PNCE
CMN.02.T22.047PNZE
CMN.02.T28.030PGCE
CMN.02.T28.030PGZE
CMN.02.T28.030PNCE
CMN.02.T28.030PNZE
002 050
002 080
002 200
002 221
002 260
002 280
004 082
020 140
020 140
020 141
020 142
020 143
020 144
020 145
020 146
020 240
PVC
PVC
PVC
PVC
PTFE
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PTFE
Black
Grey
Black
Black
White
Black
Grey
Grey
Grey
Grey
Red
Green
Black
Yellow
Black
White
PVC
PVC
GREY
Grey
Black
PVC
TPR (medical)
PVC
Grey
GREY
Grey
Black
PVC
PVC
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/4
020 260
020 264
020 266
020 550
020 560
102 080
120 184
120 240
120 250
120 500
120 501
120 751
220 750
CCX.50.RG1.74U30B
CMB.02.210.635
PVC
PVC
PVC
PUR
PUR
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
TFE
PUR
Black
Black
Violet
Black
White
Grey
Black
Black
Grey
Grey
Grey
Grey
Grey
White
Black
